one 53", one 49", two 45", one 41", one 37" and two 33", as well as 11 points style terminals, 11 HEI plug style terminals, 9 straight distributor boots, 9 90 Deg distributor boots, 1 distributor to coil wire, dielectric grease and installation instructions. Will require the use of a wire crimping tool to complete the installation.
Edelbrock Edelbrock Max-Fire Universal High Performance's Spark Plug Wires 22710
Specifications:
| Outside Diameter | 8.5 |
| Distributor Coil End Terminal Type | HEI |
| Distributor Coil End Boot Type | HEI |
| Universal Or Specific Fit | Specific |
| Spark Plug End Boot Quantity Straight | 2 |
| Insulation Color | White |
| Insulation Material | Inner Insulation |
| Spark Plug End Boot Color | Black |
| Wire 3 Length | 32.0 |
| Spark Plug Wire Resistance | 500 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Coil End Boot Color | Black |
| Spark Plug End Terminal Type | Standard |
| Resistance | 500 |
| Noise Suppression Type | No |
| Wire 7 Length | 41.0 |
| Insulation Outside Diameter | 0.23 |
| Wire Separators Included | No |
| Spark Plug End Boot Quantity Angled | 6 |
| Wire 4 Length | 32.0 |
| Core Material | Magnetic Kevlar Core |
| Spark Plug Boot Material | Compact Silicone |
| Wire 1 Length | 22.0 |
| Wire 2 Length | 28.0 |
| Wire 5 Length | 40.0 |
| Wire 6 Length | 41.0 |
| Wire 8 Length | 44.0 |
| Distributor Coil End Boot Degree | 90 |
| Description_ABR | Sprk Plg Wir |
| Description_INV | Edelbrock Universal Spark Plug Wire Set |
| Description_LAB | Max-Fire (Ultra-Spark 50) Universal Flex Boots Spark Plug Wire Set |
| Description_EXT | Edelbrock Max-Fire Universal High Performance's Spark Plug Wires |

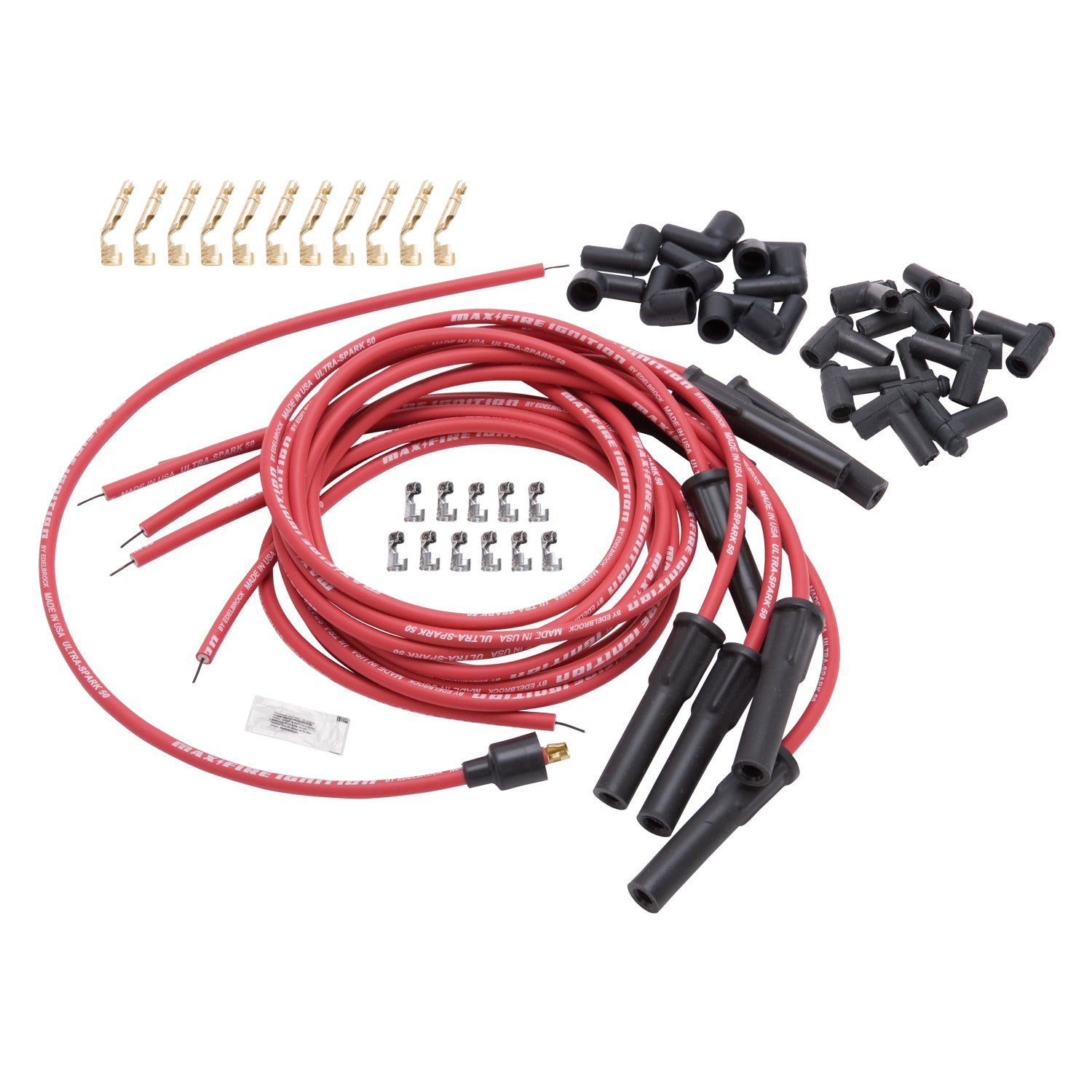

| Description_MKT | The Edelbrock #22710 Max-Fire Universal Ultra-Spark 50 spark plug wire sets feature the same high quality as our model specific sets, but give you the flexibility to tailor them to fit your V8 application perfectly. Includes the straight spark plug boot pre-installed from the factory and the 90 Deg boots. The straight boot is a "Vari-Angle" boot that allows the boot to be bent and hold its position in tight areas to clear headers. The Edelbrock #22710 include early OEM socket style and late style HEI plug distributor terminals to make sure your covered. Comes with the following wire lengths |
| Description_MKT | one 53", one 49", two 45", one 41", one 37" and two 33", as well as 11 points style terminals, 11 HEI plug style terminals, 9 straight distributor boots, 9 90 Deg distributor boots, 1 distributor to coil wire, dielectric grease and installation instructions. Will require the use of a wire crimping tool to complete the installation. |
| Description_TRA | Check your spark plug wires regularly! Like everything else on your car, spark plug wires need to be checked and require periodic changing. If you want to keep the performance of your engine at the optimal level, we recommend you replace your spark plug wires at the same time you replace your spark plugs. Fouled, damaged, or worn out spark plugs can lead to a variety of engine problems, such as misfires, hard starts, increased emissions, poor fuel economy and reduce acceleration. For most vehicles, you should replace your spark plugs every 30,000 miles. |
| Description_DEF | Spark Plug Wire Set |
