*item may differ from images

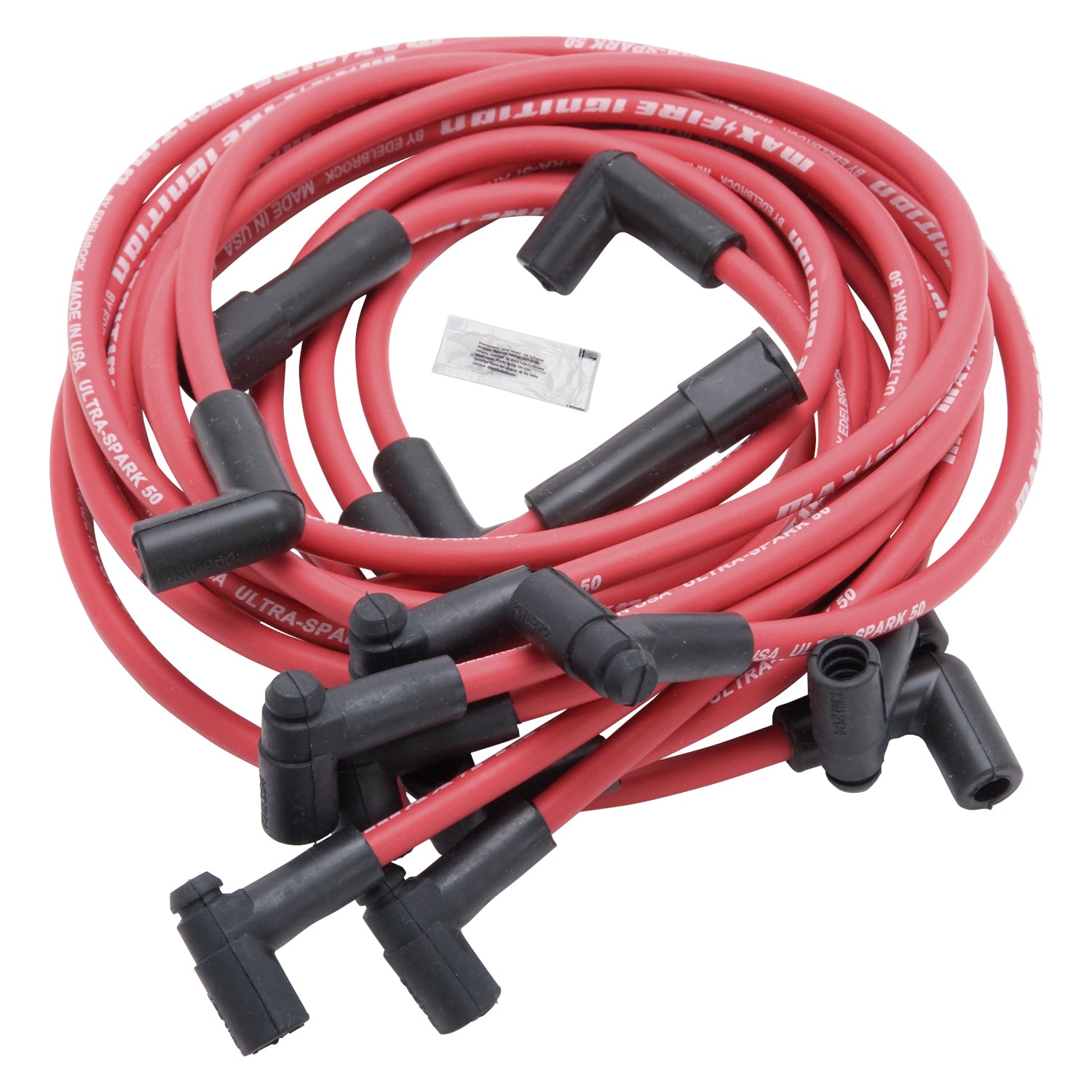

The Edelbrock #22713 Max-Fire Ultra-Spark 50 Performance's Spark plug wires are manufactured from highest quality materials to help deliver maximum voltage ensuring the ultimate performance. These wires have an extremely high EMI/RFI suppression along with a very low resistance to help deliver the most spark possible. They feature a heavy duty 8.5mm diameter silicone jacket to protect the Kevlar spiral wound core from heat, moisture and chemicals. They are engineered for high performance engines that need all of the voltage they can get for maximum power output. Made with wire leads that deliver a low 40 ohms of resistance per-foot for maximum EMI/RFI noise suppression. This makes them ideal for engines with aftermarket high performance upgrades that require maximum voltage. See application chart for engine or vehicle specific kits.
Edelbrock Edelbrock Max-Fire High Performance's Spark Plug Wires 22713
Specifications:
| Spark Plug Boot Material | Compact Silicone |
| Wire 7 Length | 41.0 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Wire Separators Included | No |
| Distributor Coil End Boot Degree | 90 |
| Spark Plug End Boot Quantity Angled | 6 |
| Wire 4 Length | 32.0 |
| Distributor Coil End Terminal Type | HEI |
| Wire 3 Length | 32.0 |
| Insulation Outside Diameter | 0.23 |
| Insulation Color | White |
| Spark Plug End Boot Color | Black |
| Resistance | 50 |
| Coil End Boot Color | Black |
| Spark Plug End Boot Quantity Straight | 2 |
| Wire 1 Length | 22.0 |
| Wire 2 Length | 28.0 |
| Outside Diameter | 8.5 |
| Spark Plug End Terminal Type | Standard |
| Distributor Coil End Boot Type | HEI |
| Noise Suppression Type | Yes |
| Wire 6 Length | 41.0 |
| Spark Plug Wire Resistance | 50 |
| Insulation Material | EPDM |
| Universal Or Specific Fit | Specific |
| Wire 5 Length | 40.0 |
| Wire 8 Length | 44.0 |
| Core Material | Magnetic Kevlar Core |
| Description_ABR | Sprk Plg Wir |
| Description_INV | Edelbrock Spark Plug Wire Set |
| Description_LAB | Max-Fire (Ultra-Spark 50) Small-Block 1978-86 Spark Plug Wire Set |
| Description_ASM | Chevrolet:Small-Block Gen I:305 (5.0L)/350 (5.7L) |
| Description_EXT | Edelbrock Max-Fire High Performance's Spark Plug Wires |
| Description_MKT | The Edelbrock #22713 Max-Fire Ultra-Spark 50 Performance's Spark plug wires are manufactured from highest quality materials to help deliver maximum voltage ensuring the ultimate performance. These wires have an extremely high EMI/RFI suppression along with a very low resistance to help deliver the most spark possible. They feature a heavy duty 8.5mm diameter silicone jacket to protect the Kevlar spiral wound core from heat, moisture and chemicals. They are engineered for high performance engines that need all of the voltage they can get for maximum power output. Made with wire leads that deliver a low 40 ohms of resistance per-foot for maximum EMI/RFI noise suppression. This makes them ideal for engines with aftermarket high performance upgrades that require maximum voltage. See application chart for engine or vehicle specific kits. |
| Description_TRA | Check your spark plug wires regularly! Like everything else on your car, spark plug wires need to be checked and require periodic changing. If you want to keep the performance of your engine at the optimal level, we recommend you replace your spark plug wires at the same time you replace your spark plugs. Fouled, damaged, or worn out spark plugs can lead to a variety of engine problems, such as misfires, hard starts, increased emissions, poor fuel economy and reduce acceleration. For most vehicles, you should replace your spark plugs every 30,000 miles. |
| Description_DEF | Spark Plug Wire Set |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1978,1980 | Buick | Regal | ||
| 1978 | Buick | Skylark | ||
| 1980 | Checker | Marathon | ||
| 1980 | Checker | Marathon | ||
| 1981 | Chevrolet | C10 | ||
| 1981 | Chevrolet | C10 | ||
| 1982 | Chevrolet | C10 | ||
| 1982 | Chevrolet | C10 | ||
| 1985 | Chevrolet | C10 | ||
| 1985 | Chevrolet | C10 | ||
| 1986 | Chevrolet | C10 | ||
| 1986 | Chevrolet | C10 | ||
| 1981 | Chevrolet | C10 Suburban | ||
| 1981 | Chevrolet | C10 Suburban | ||
| 1982 | Chevrolet | C10 Suburban | ||
| 1982 | Chevrolet | C10 Suburban | ||
| 1985 | Chevrolet | C10 Suburban | ||
| 1985 | Chevrolet | C10 Suburban | ||
| 1986 | Chevrolet | C10 Suburban | ||
| 1986 | Chevrolet | C10 Suburban | ||
| 1981 | Chevrolet | C20 | ||
| 1981 | Chevrolet | C20 | ||
| 1982 | Chevrolet | C20 | ||
| 1982 | Chevrolet | C20 | ||
| 1985 | Chevrolet | C20 | ||
| 1985 | Chevrolet | C20 | ||
| 1986 | Chevrolet | C20 | ||
| 1986 | Chevrolet | C20 | ||
| 1981 | Chevrolet | C20 Suburban | ||
| 1981 | Chevrolet | C20 Suburban | ||
| 1982 | Chevrolet | C20 Suburban | ||
| 1982 | Chevrolet | C20 Suburban | ||
| 1985 | Chevrolet | C20 Suburban | ||
| 1985 | Chevrolet | C20 Suburban | ||
| 1986 | Chevrolet | C20 Suburban | ||
| 1986 | Chevrolet | C20 Suburban | ||
| 1985 | Chevrolet | C30 | ||
| 1986 | Chevrolet | C30 | ||
| 1981 | Chevrolet | Camaro | ||
| 1982 | Chevrolet | Camaro | ||
| 1983 | Chevrolet | Camaro | ||
| 1984 | Chevrolet | Camaro | ||
| 1985 | Chevrolet | Camaro | ||
| 1980 | Chevrolet | Caprice | ||
| 1980 | Chevrolet | Caprice | ||
| 1978 | Chevrolet | El Camino | ||
| 1980 | Chevrolet | Impala | ||
| 1980 | Chevrolet | Impala | ||
| 1981 | Chevrolet | K10 | ||
| 1981 | Chevrolet | K10 | ||
| 1982 | Chevrolet | K10 | ||
| 1982 | Chevrolet | K10 | ||
| 1985 | Chevrolet | K10 | ||
| 1985 | Chevrolet | K10 | ||
| 1986 | Chevrolet | K10 | ||
| 1986 | Chevrolet | K10 | ||
| 1981 | Chevrolet | K10 Suburban | ||
| 1986 | Chevrolet | K10 Suburban | ||
| 1986 | Chevrolet | K10 Suburban | ||
| 1981 | Chevrolet | K20 | ||
| 1982 | Chevrolet | K20 | ||
| 1985 | Chevrolet | K20 | ||
| 1985 | Chevrolet | K20 | ||
| 1986 | Chevrolet | K20 | ||
| 1981 | Chevrolet | K20 Suburban | ||
| 1982 | Chevrolet | K20 Suburban | ||
| 1985 | Chevrolet | K20 Suburban | ||
| 1985 | Chevrolet | K20 Suburban | ||
| 1986 | Chevrolet | K20 Suburban | ||
| 1986 | Chevrolet | K20 Suburban | ||
| 1981 | Chevrolet | K5 Blazer | ||
| 1981 | Chevrolet | K5 Blazer | ||
| 1982 | Chevrolet | K5 Blazer | ||
| 1982 | Chevrolet | K5 Blazer | ||
| 1985 | Chevrolet | K5 Blazer | ||
| 1985 | Chevrolet | K5 Blazer | ||
| 1986 | Chevrolet | K5 Blazer | ||
| 1986 | Chevrolet | K5 Blazer | ||
| 1978 | Chevrolet | Malibu | ||
| 1979 | Chevrolet | Malibu | ||
| 1979 | Chevrolet | Malibu | ||
| 1980 | Chevrolet | Malibu | ||
| 1980 | Chevrolet | Malibu | ||
| 1980 | Chevrolet | Malibu | ||
| 1981 | Chevrolet | Malibu | ||
| 1978 | Chevrolet | Monte Carlo | ||
| 1979 | Chevrolet | Monte Carlo | ||
| 1980 | Chevrolet | Monte Carlo | ||
| 1981 | GMC | C1500 | ||
| 1981 | GMC | C1500 | Eng VIN L | |
| 1982 | GMC | C1500 | ||
| 1982 | GMC | C1500 | ||
| 1981 | GMC | C2500 | ||
| 1981 | GMC | C2500 | ||
| 1982 | GMC | C2500 | ||
| 1985 | GMC | C2500 | ||
| 1986 | GMC | C2500 | ||
| 1982 | GMC | C2500 Suburban | ||
| 1985 | GMC | C2500 Suburban | ||
| 1986 | GMC | C2500 Suburban | ||
| 1985 | GMC | C3500 | ||
| 1986 | GMC | C3500 | ||
| 1979 | GMC | Caballero | ||
| 1980 | GMC | Caballero | ||
| 1981 | GMC | G1500 | ||
| 1982 | GMC | G1500 | ||
| 1982 | GMC | G1500 | ||
| 1981 | GMC | G2500 | ||
| 1982 | GMC | G2500 | ||
| 1982 | GMC | G3500 | ||
| 1981 | GMC | Jimmy | ||
| 1981 | GMC | Jimmy | ||
| 1982 | GMC | Jimmy | ||
| 1982 | GMC | Jimmy | ||
| 1981 | GMC | K1500 | ||
| 1981 | GMC | K1500 | ||
| 1982 | GMC | K1500 | ||
| 1982 | GMC | K1500 | ||
| 1985 | GMC | K1500 | ||
| 1985 | GMC | K1500 | ||
| 1986 | GMC | K1500 | ||
| 1986 | GMC | K1500 | ||
| 1982 | GMC | K1500 Suburban | ||
| 1982,1985 | GMC | K1500 Suburban | ||
| 1986 | GMC | K2500 Suburban | ||
| 1986 | GMC | K3500 | ||
| 1980 | Oldsmobile | Cutlass Calais | ||
| 1980 | Oldsmobile | Cutlass Calais | ||
| 1980 | Oldsmobile | Cutlass Cruiser | ||
| 1980 | Oldsmobile | Cutlass Salon | ||
| 1980 | Oldsmobile | Cutlass Supreme | ||
| 1980 | Pontiac | Firebird | ||
| 1981 | Pontiac | Firebird | ||
| 1982 | Pontiac | Firebird | ||
| 1983 | Pontiac | Firebird | ||
| 1980 | Pontiac | Grand Am | ||
| 1980 | Pontiac | Grand LeMans |
