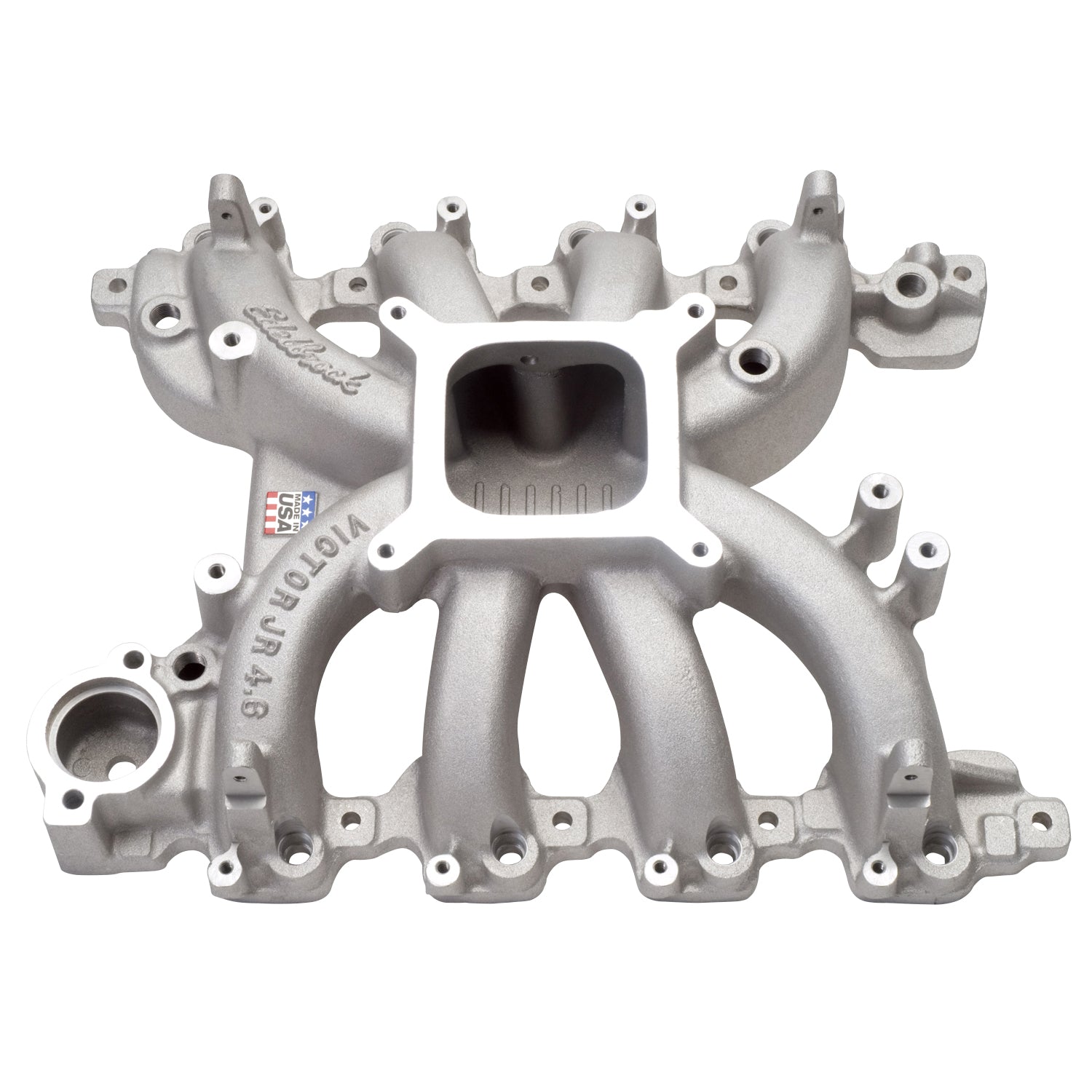

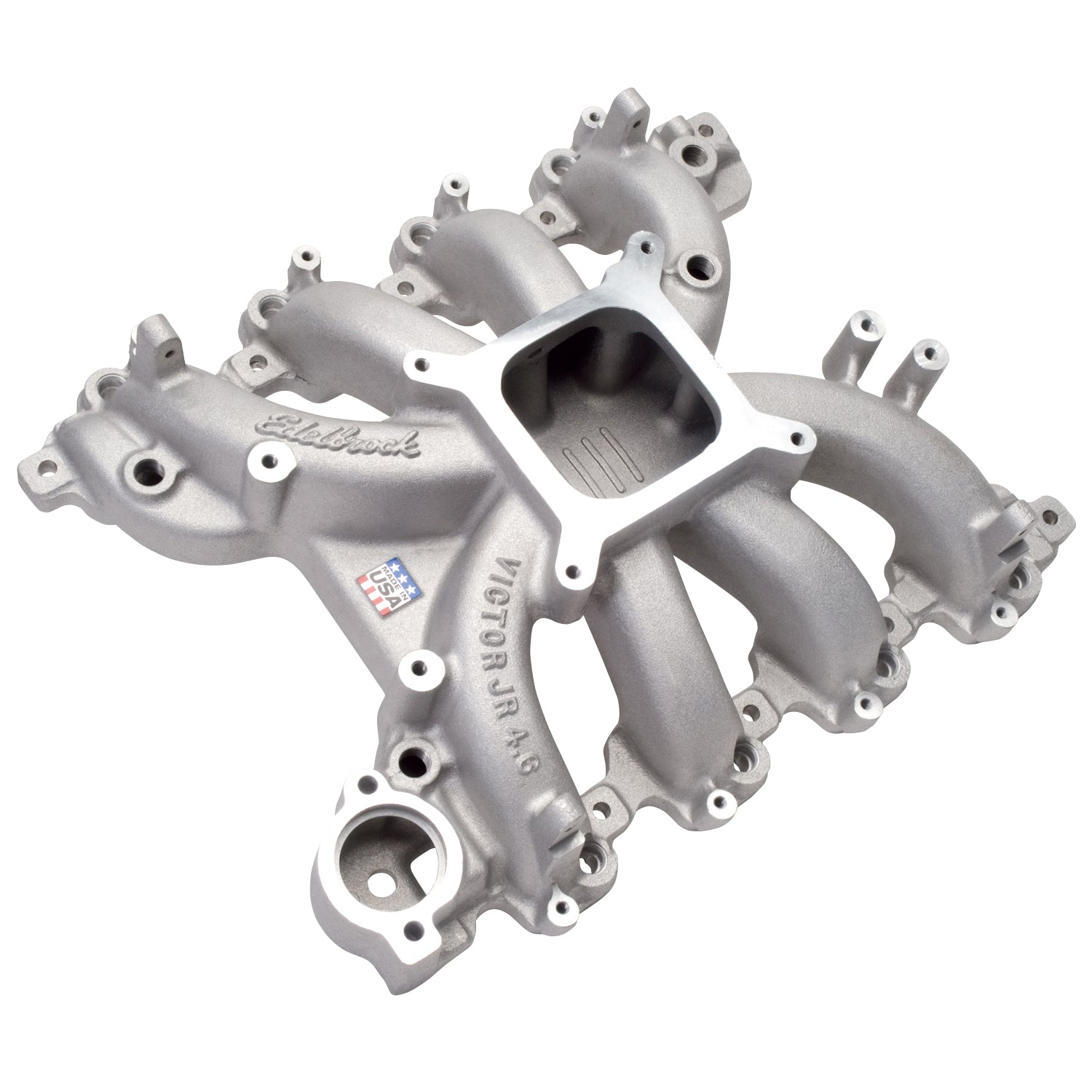

Edelbrock part #28385 Victor Jr. Ford 4.6L SOHC EFI intake manifold is designed for Ford 4.6L SOHC Modular engines, 1999-2004 SOHC Modular 4.6L engine is designed for 4.6l Ford's using EFI in racing. Timing control module available separately. Not intended for or as a stock replacement intake manifold. Whether you're building a daily driver, ultra high-performance's street machine or race car, an Edelbrock intake manifold will provide the power right where you want it. The Edelbrock Victor Jr. Ford 4.6L SOHC also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA.
Edelbrock Edelbrock EFI Victor Jr Ford 4.6L Modular Intake Manifold 28385
Specifications:
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Center Maximum Height | 4.750 |
| Finish | Satin |
| Flange Type | 4150 |
| Vehicle Model | Ford |
| Single Or Dual Plane Type | Single |
| Front Maximum Height | 4.750 |
| EGR Port | No |
| Material | Aluminum |
| Gasket Or Seal Included | No |
| Basic Operating RPM Range | 3500-7500 |
| Grade Type | Performance |
| Rear Maximum Height | 4.750 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_INV | EFI Victor Jr Ford 4.6L Modular Intake |
| Description_LAB | Victor Jr Ford 4.6L Modular Intake Manifold EFI |
| Description_ASM | Ford:Modular 2V:281 (4.6L) |
| Description_EXT | Edelbrock EFI Victor Jr Ford 4.6L Modular Intake Manifold |
| Description_MKT | Edelbrock part #28385 Victor Jr. Ford 4.6L SOHC EFI intake manifold is designed for Ford 4.6L SOHC Modular engines, 1999-2004 SOHC Modular 4.6L engine is designed for 4.6l Ford's using EFI in racing. Timing control module available separately. Not intended for or as a stock replacement intake manifold. Whether you're building a daily driver, ultra high-performance's street machine or race car, an Edelbrock intake manifold will provide the power right where you want it. The Edelbrock Victor Jr. Ford 4.6L SOHC also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA. |
| Description_TRA | Recommended fuel rail: Edelbrock #3639 |
| Description_TRA | Recommended intake gasket: OEM factory gaskets |
| Description_TRA | Throttle body recommendations: Edelbrock #38783 4150 style 4V |
| Description_TRA | or #3848 competition EFI elbow and #3818 90mm throttle body. |
| Description_TRA | Manifold height: A-4.75", B-4.75", 0 Deg carb angle |
| Description_TRA | Port exit dimensions: 1.42" x 1.72" |
| Description_TRA | Throttle pad and plenum optimized for square-bore (4150 style) 4V throttle bodies. |
| Description_TRA | Built in water crossover with clearance for the stock 1999-2004 alternator location. |
| Description_DEF | Engine Intake Manifold |
