*item may differ from images

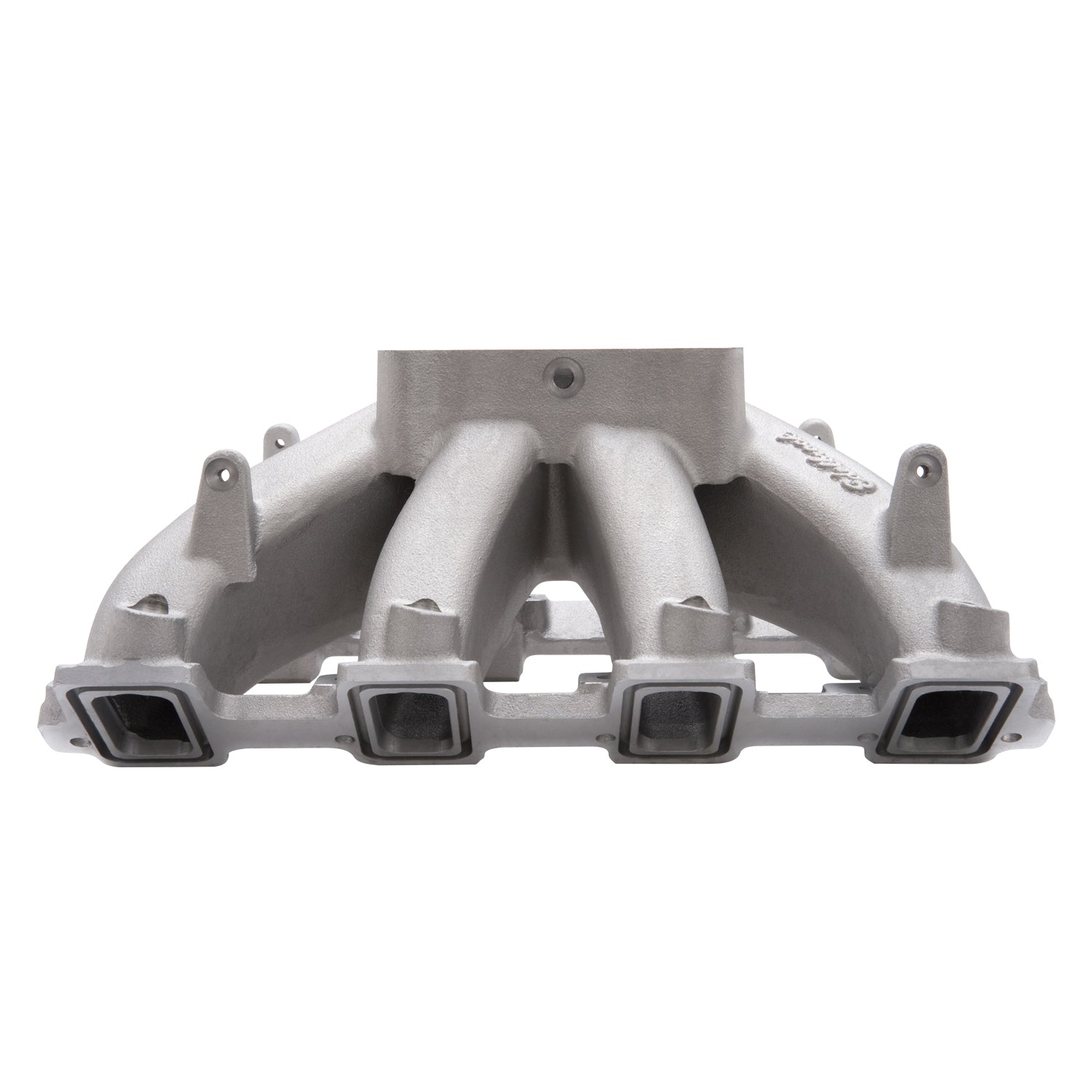

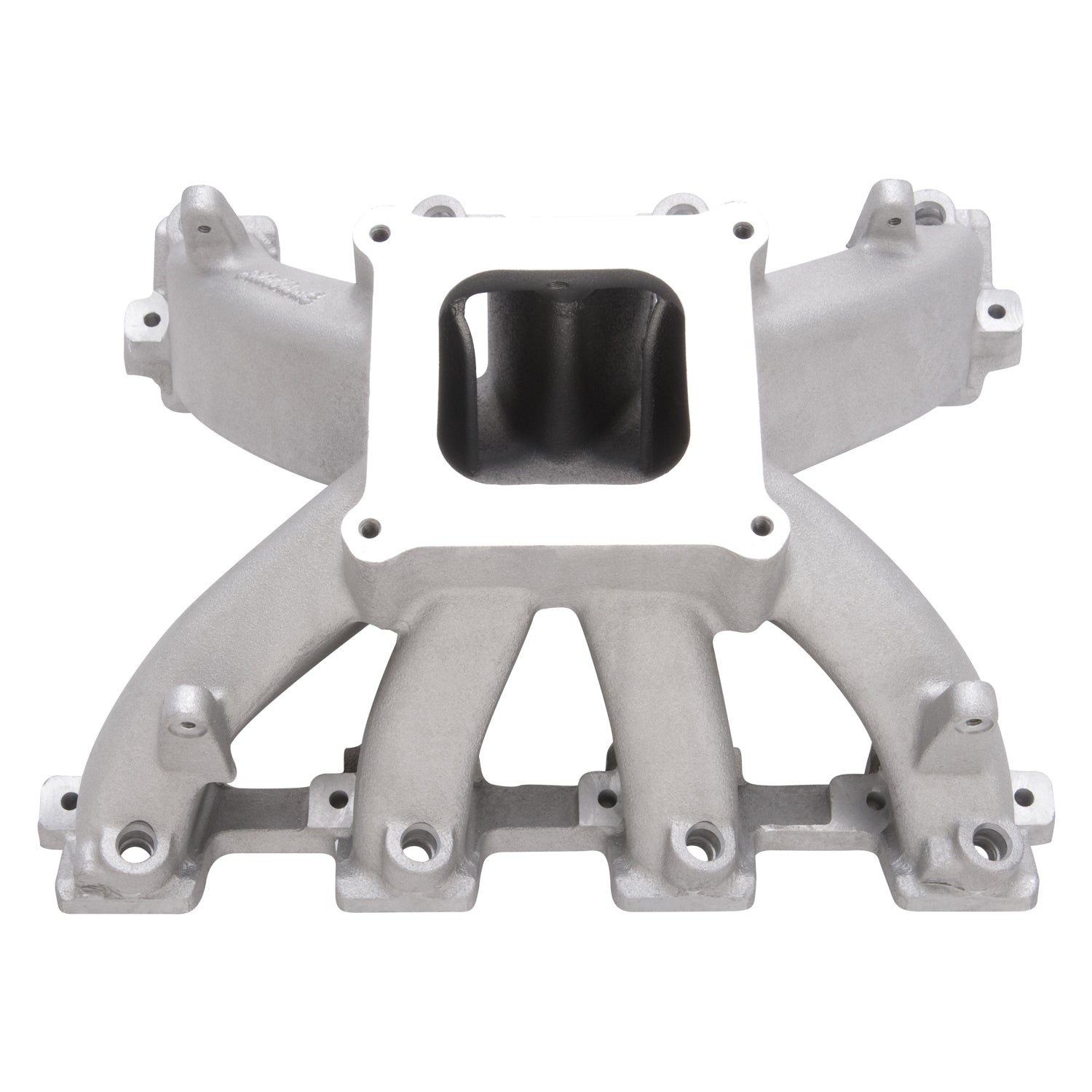

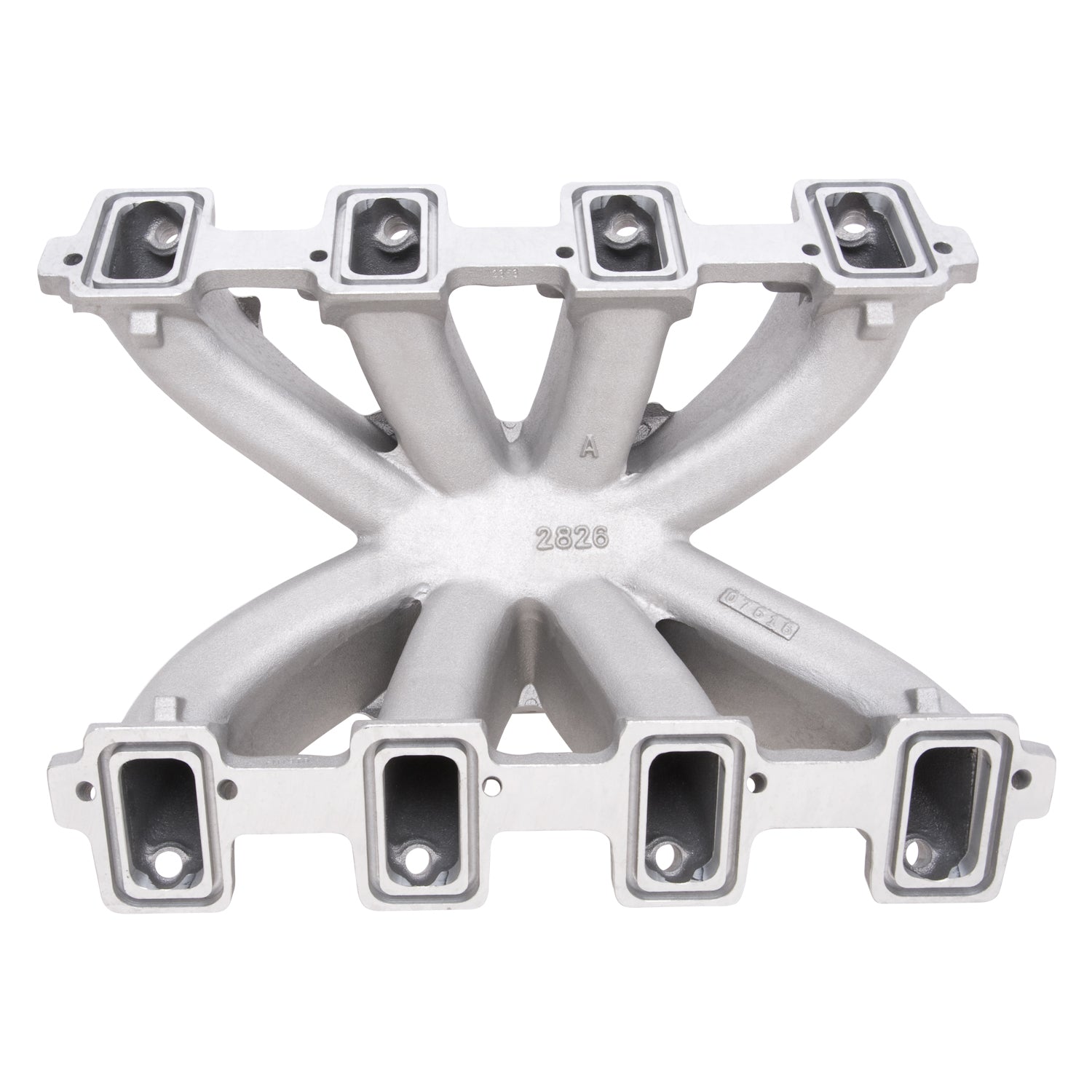

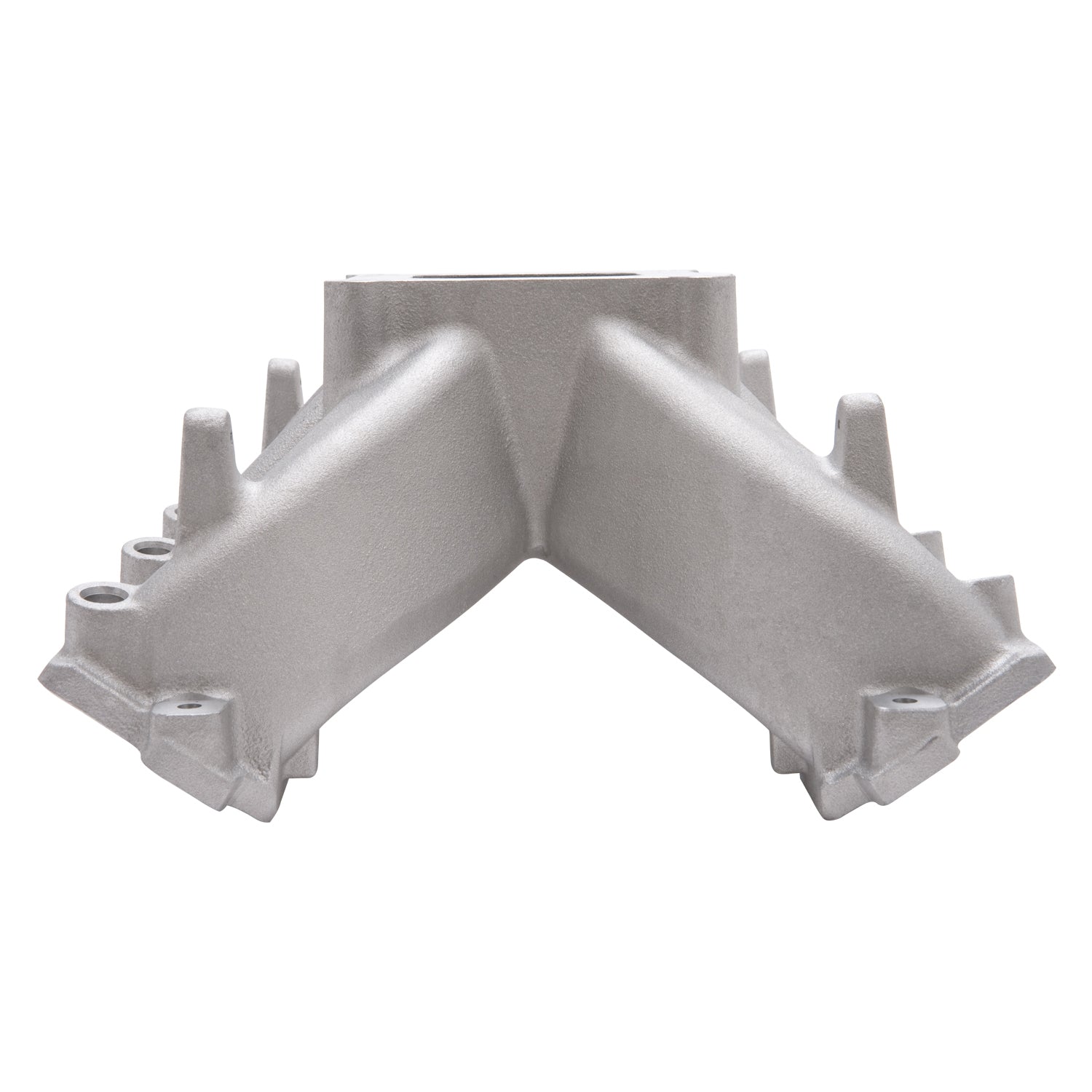

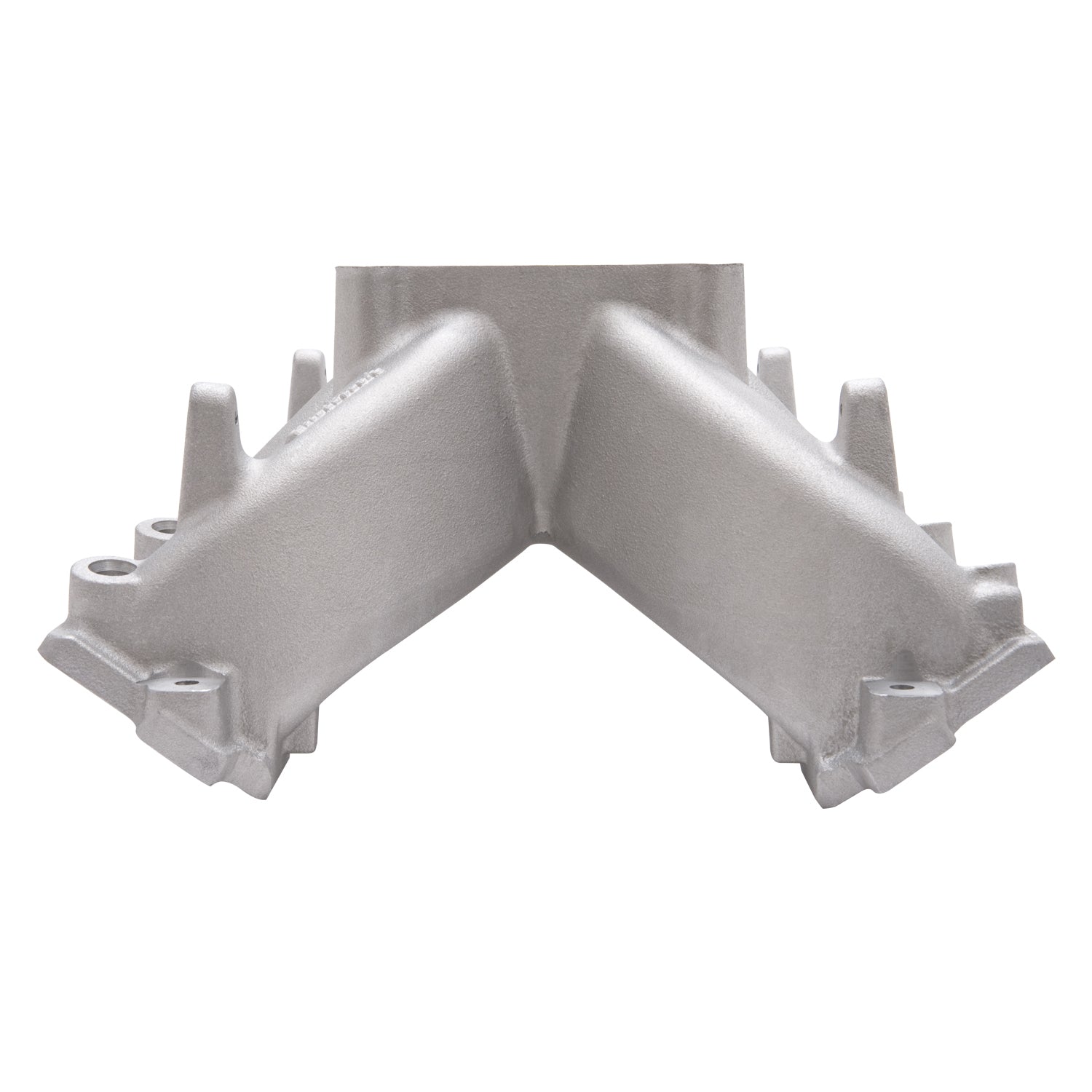

Edelbrock part #28265 Super Victor LS3 EFI intake manifold is designed for Gen IV LS engines equipped with LS3 cylinder heads. This new Super Victor intake manifold is ideal for anyone building a 700+ hp 4150 series EFI large displacement racing engine operating between 3,500 - 7,500 rpm. The large plenum makes this intake manifold ideal for nitrous and forced induction applications. This EFI intake manifold also features tapered runners for increased flow at high rpm. A carburetor mounted style throttle bracket is recommended.
Edelbrock Edelbrock EFI Super Vic LS3 4150 Intake Manifold GM LS Engines 28265
Specifications:
| Center Maximum Height | 7.670 |
| Flange Type | 4150 |
| CNC Ported | No |
| Vehicle Model | Chevrolet |
| Gasket Or Seal Included | No |
| Basic Operating RPM Range | 3500-7500 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor |
| Rear Maximum Height | 7.670 |
| EGR Port | No |
| Finish | Satin |
| Front Maximum Height | 7.670 |
| Material | Aluminum |
| Grade Type | Performance |
| Single Or Dual Plane Type | Single |
| Description_ABR | Intake Mnfld |
| Description_INV | EFI Super Vic LS3 4150 Intake Manifold |
| Description_LAB | EFI Super Vic Small Block Chevy LS3 4150 Intake Manifold |
| Description_ASM | Chevrolet:Small-Block Gen IV L76:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L92:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV L99:364 (6.0L)/376 (6.2L) |
| Description_ASM | Chevrolet:Small-Block Gen IV LS3:364 (6.0L)/376 (6.2L) |
| Description_EXT | Edelbrock EFI Super Vic LS3 4150 Intake Manifold GM LS Engines |
| Description_MKT | Edelbrock part #28265 Super Victor LS3 EFI intake manifold is designed for Gen IV LS engines equipped with LS3 cylinder heads. This new Super Victor intake manifold is ideal for anyone building a 700+ hp 4150 series EFI large displacement racing engine operating between 3,500 - 7,500 rpm. The large plenum makes this intake manifold ideal for nitrous and forced induction applications. This EFI intake manifold also features tapered runners for increased flow at high rpm. A carburetor mounted style throttle bracket is recommended. |
| Description_TRA | Uses LS3/L76/LS92 style individual port o-ring seals GM PN19256623 |
| Description_TRA | Fuel Rail Recommendations: Use Edelbrock fuel rail kit #3655. |
| Description_TRA | Throttle body recommendations: Edelbrock #38783 or #38883 |
| Description_TRA | Will work with Edelbrock Manifold bolt kit PN 8515 |
| Description_TRA | Manifold height: A-7.67", B-7.67" |
| Description_TRA | Carb pad height: 7.67" |
| Description_DEF | Engine Intake Manifold |
