This Edelbrock fuel pressure regulator #174053 is machined from aircraft quality aluminum for those who demand the best. This carbureted fuel pressure regulator has an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. This Edelbrock fuel pressure regulator #174053 is compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Pressure regulation slope is 0.75 psi/gal of flow rate change. Will hold fuel system pressure for at least 20 minutes after pump shutdown. Developed for optimum compatibility with Edelbrock electric fuel pumps. This regulator is available with 1/8" NPT gauge port and a boost reference fitting for blow through or pressurized carburetor applications (even beyond 30 psi of boost).

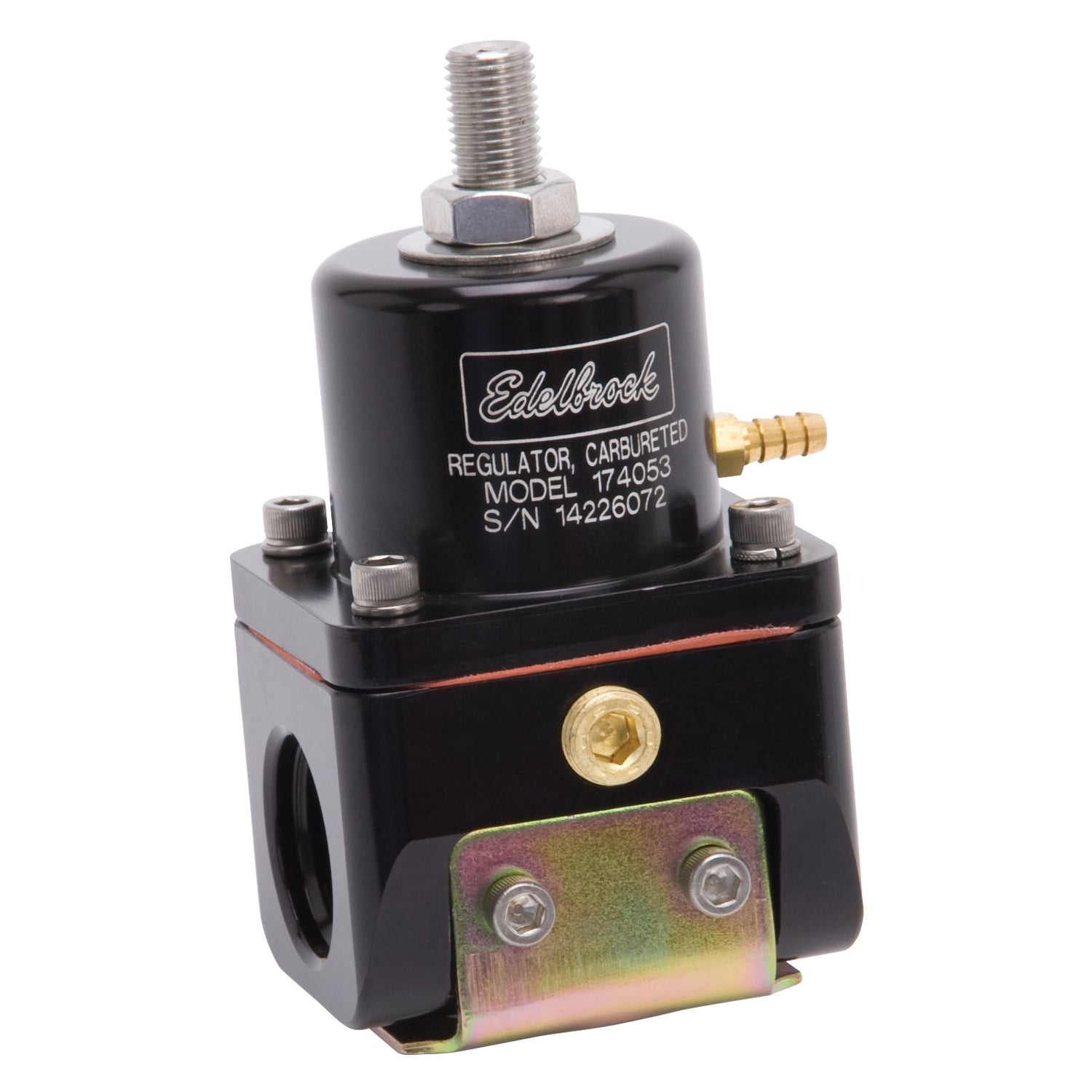

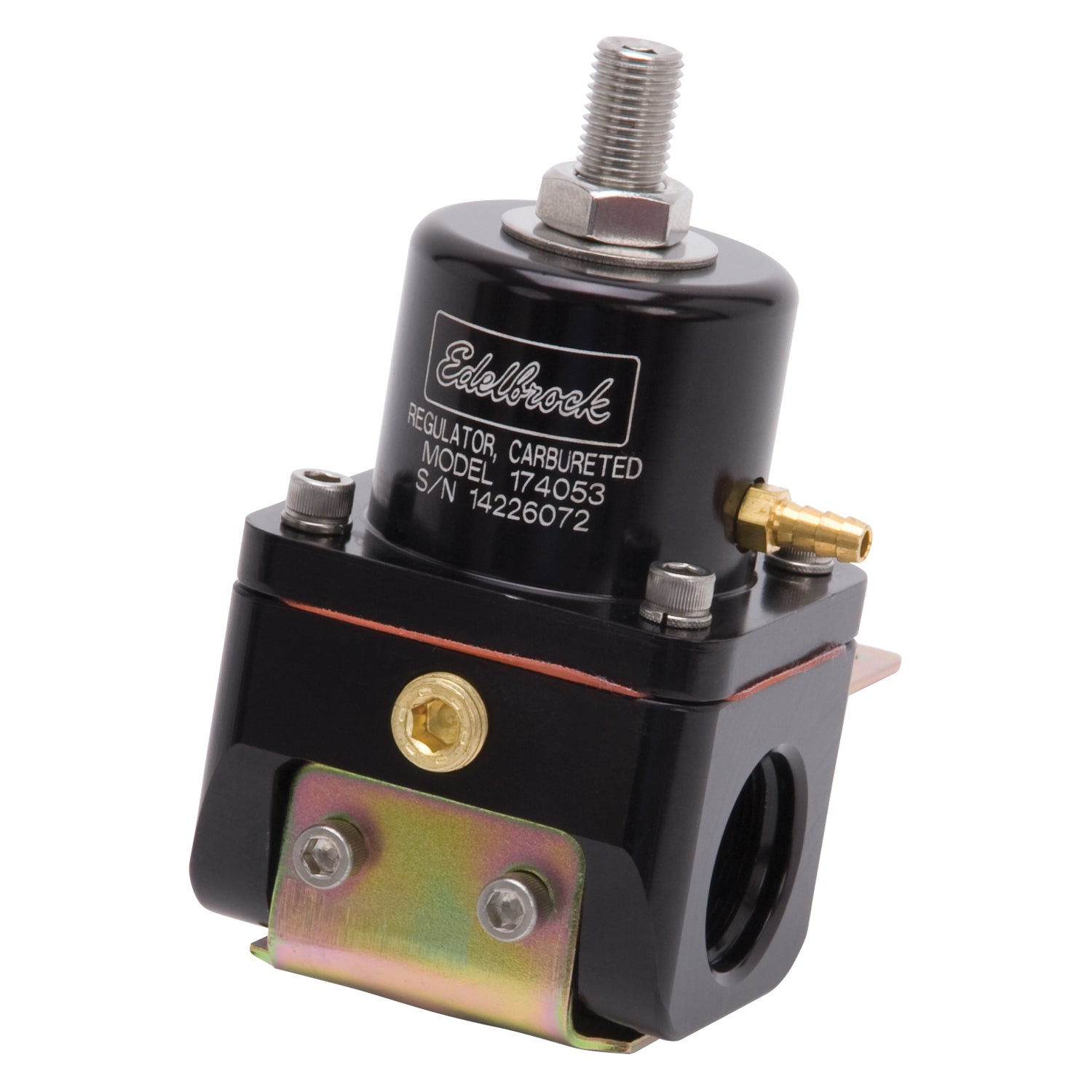

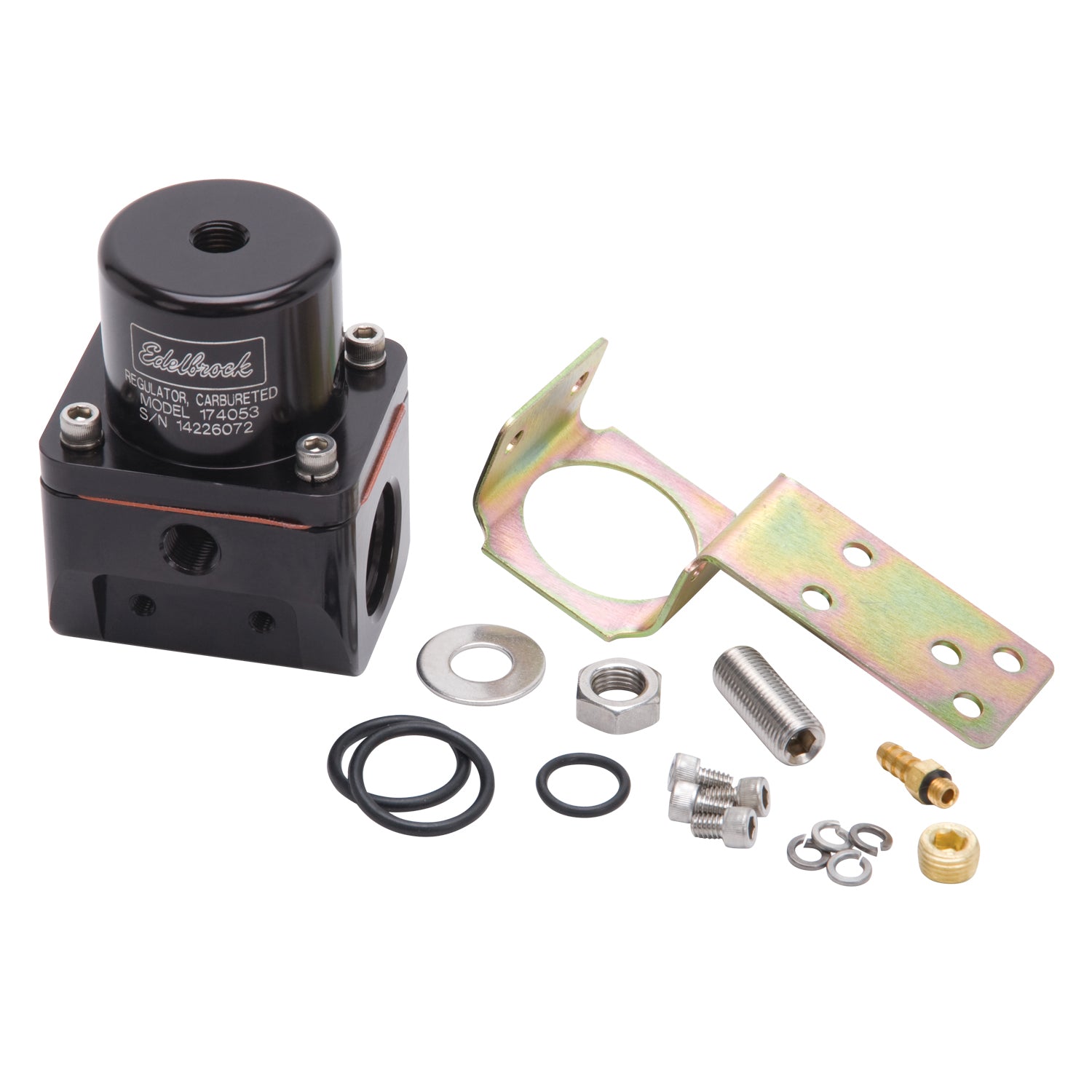

Edelbrock Edelbrock Carbureted Bypass Style Fuel Pressure Regulator, 180 GPH 174053
Specifications:
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Inlet Port Diameter | -10 an |
| Inlet Type | Threaded |
| Port Quantity | 5 |
| Mounting Type | Bracket |
| Outlet Type | Threaded |
| Outlet Port Diameter | -10 an |
| Description_ABR | FU REG |
| Description_INV | Fuel Pressure Regulator |
| Description_LAB | Carbureted Adjustable Bypass Fuel Pressure Regulator (180 GPH) in Black Finish |
| Description_EXT | Edelbrock Carbureted Bypass Style Fuel Pressure Regulator, 180 GPH |
| Description_MKT | This Edelbrock fuel pressure regulator #174053 is machined from aircraft quality aluminum for those who demand the best. This carbureted fuel pressure regulator has an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. This Edelbrock fuel pressure regulator #174053 is compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Pressure regulation slope is 0.75 psi/gal of flow rate change. Will hold fuel system pressure for at least 20 minutes after pump shutdown. Developed for optimum compatibility with Edelbrock electric fuel pumps. This regulator is available with 1/8" NPT gauge port and a boost reference fitting for blow through or pressurized carburetor applications (even beyond 30 psi of boost). |
| Description_DEF | Fuel Pressure Regulator |
