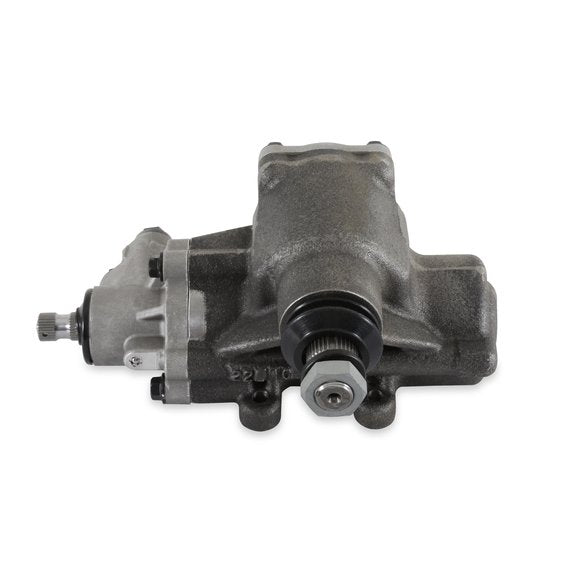

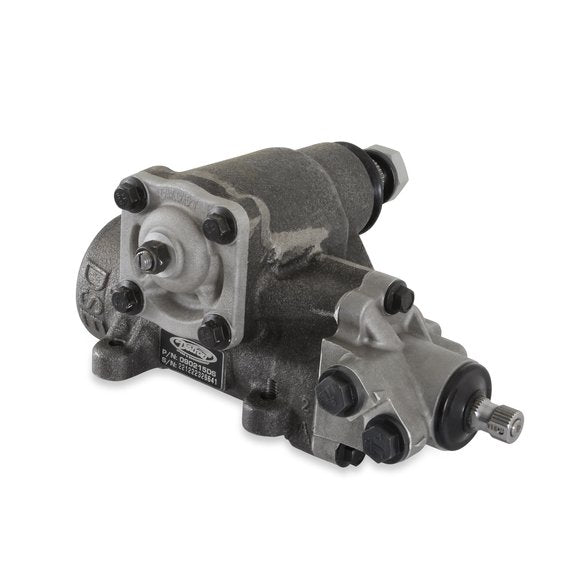

*item may differ from images
DS090215DS
OVERVIEW
The Detroit Speed quick ratio steering gearbox provides modern late model steering performance similar to a rack & pinon with easy bolt-in installation. This steering box can replace the GM/Delphi 800 series or GM/Delphi 600 series power steering box. This steering box has a raw unpainted finish. Upgrade the steering on the following vehicles: • 1967-1992 GM F-Body (Camaro/Firebird) • 1964-1981 GM A-Body (Chevelle, El Camino, Skylark, Tempest, Cutlass, LeMans, etc.) • 1968-1979 GM X-Body (Nova, Ventura, Omega, Apollo) • 1978-1988 GM G-Body (Monte Carlo, El Camino, Regal, Bonneville, Grand Prix, etc.) • 1982-2004 S10/S15/Sonoma
Features:
- All new steering gear unit, not rebuilt
- Fits 1982-92 Camaro/Firebird with no modification to the steering box or the frame.
- Improved steering feel due to low friction gear design
- “Detroit Tuned” precision rack and pinion valve technology
- Late model performance car feel
- Quick Ratio 12.7:1 (3 turns lock-to-lock) – desirable quick ratio that is hard to find in a stock OEM steering box
- Original power pitman arm may be used – or PN 092301DS (for 1967-1969 Camaro & 1968-1972 Nova).
- A 3/4-inch x 30-spline rag joint is required with this steering box and is available through Detroit Speed – PN 090205DS
- New O-ring style power steering hoses are needed – PN 091202DS recommended
- Steering Gear Pressure and Return Fittings not included – PN 090202LDS (pressure) & 090202SDS (return) recommended
- Raw unpainted finish
SPECS
| Brand | Detroit Speed |
|---|---|
| Emission Code | 6 |
| Finish | Raw |
| Input Shaft | 3/4 in. x 30-Spline |
| Number of Turns Lock to Lock | 3 |
| Pressure Fitting | M18 x 1.5 O-Ring |
| Product Type | Steering Box |
| Return Fitting | M16 x 1.5 O-Ring |
| Weight (LBS) | 25.1 |
| UPC | 090127190913 |
| California Proposition 65 Required | Yes |
| Part Number | 090215DS |
