*item may differ from images
• This Option Allows for Easy Tire Rotation since the Same Size Wheels & Tires are Used on the Front and Rear

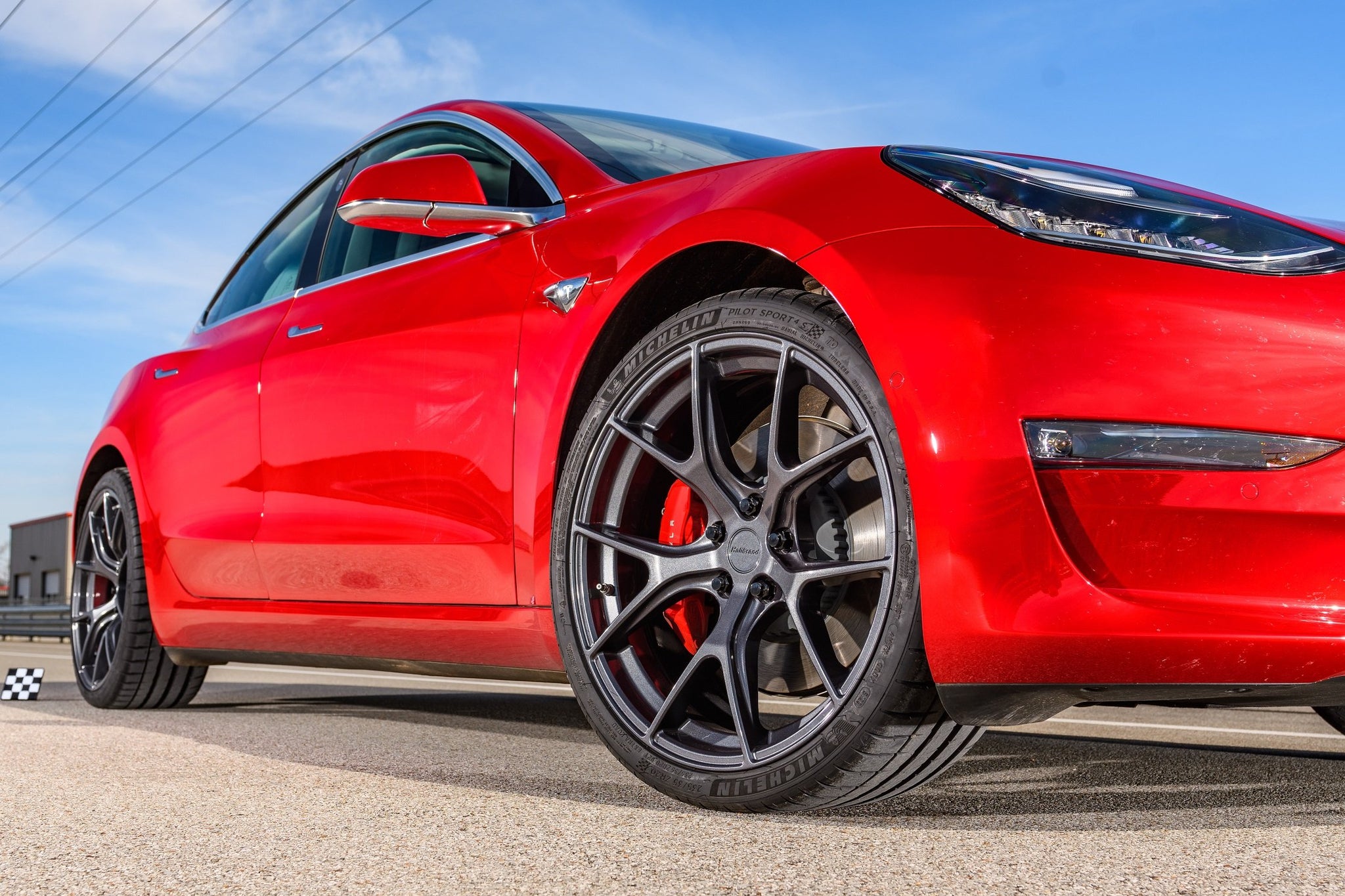

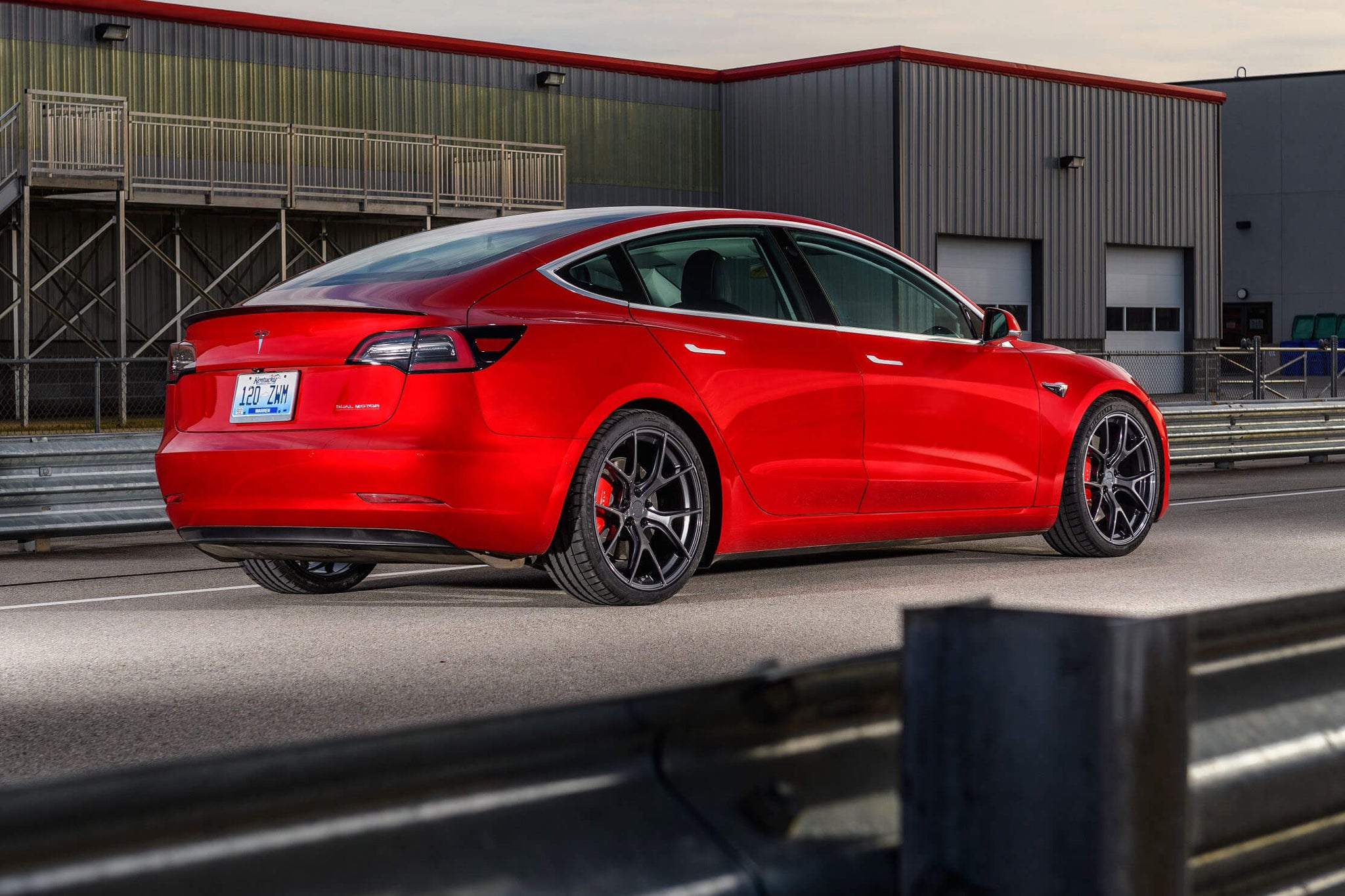

Dinan Fits 2017 & Up Tesla Model 3 - 5x114.3mm Bolt Pattern - Front or Rear HB003-008
Specifications:
| 9097 | 5.93 |
| 9098 | 5x114.3 |
| Brand | Dinan |
| Category | Tire and Wheel |
| Center Bore Diameter | 64.1 |
| 3778 | Yes |
| Clear Coat Finish | Yes |
| 111 | 20 |
| Dinan Point Value | 2 (Complete Set) |
| Emission Code | 6 |
| 200 | Anthracite |
| Material | A356 Alumininum |
| 8526 | 30 |
| Product Type | Flow Formed Wheels |
| Quantity | 1 |
| Recommended Tire Brand / Model | Michelin Pilot Sport 4S, TO Tesla Acoustic Tech |
| Recommended Tire Size | 235/35ZR20 |
| Sub Category | Wheel |
| Tire Diameter | 26.5 |
| Warning | California Proposition 65 |
| Weight | 24 |
| Wheel Construction | Flow Formed |
| Wheel Location on Vehicle | Front or Rear |
| 24 | 8.5 |
| Description_INV | OBS TESLA WHEEL 20X8.5 ANTHRACITE +30MM |
| Description_ASC | This wheel is designed for optimal fitment on the front of the car, but can also be used on the rear for easy tire rotation - the rear wheels will be tucked in more & this may not be as attractive as the other size wheels that are designed specifically for the rear of the vehicle.See Chart for Recommended Wheel Fitment Options.The round factory center cap can be re-installed on these wheels - if desired. |

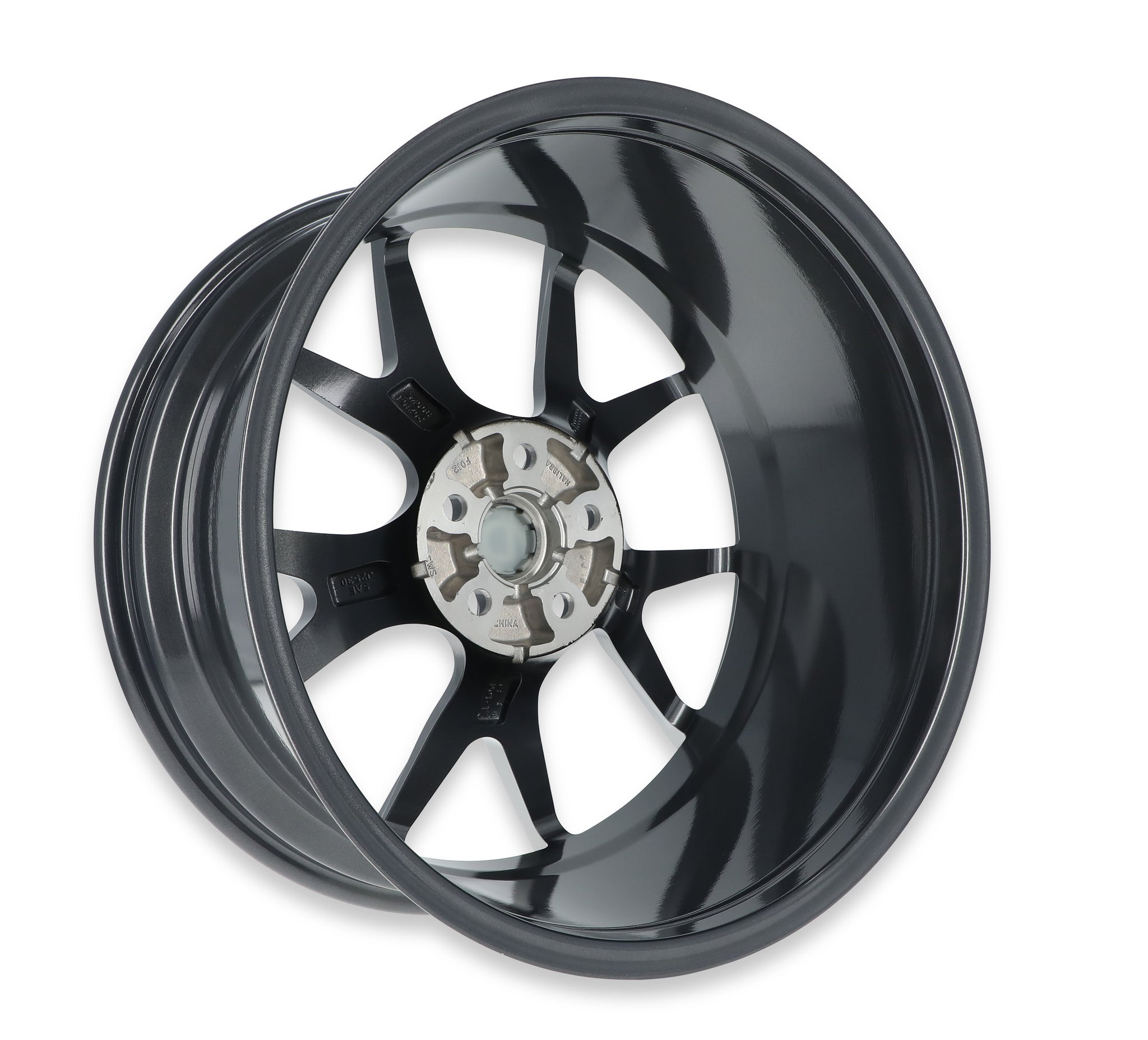

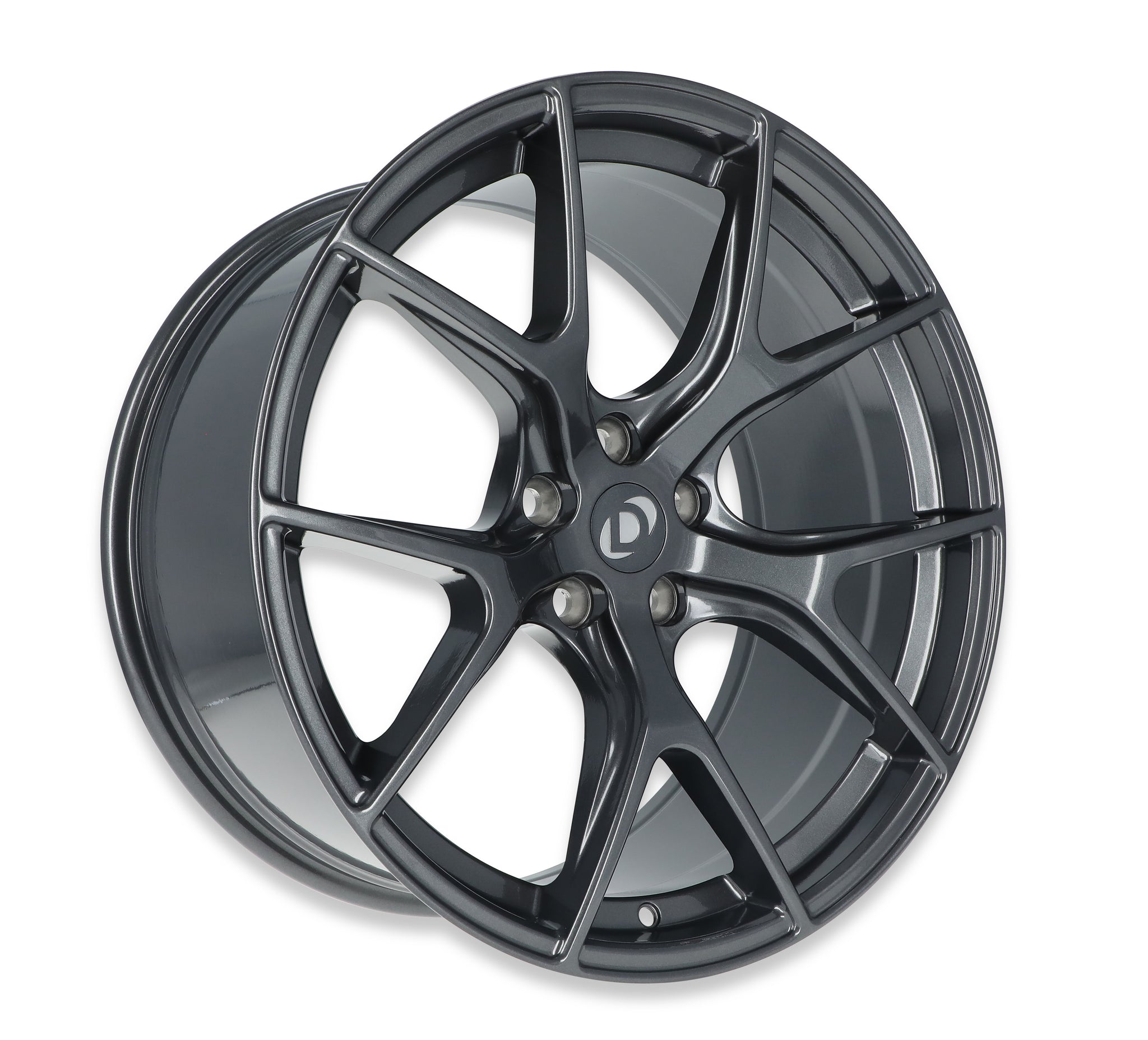

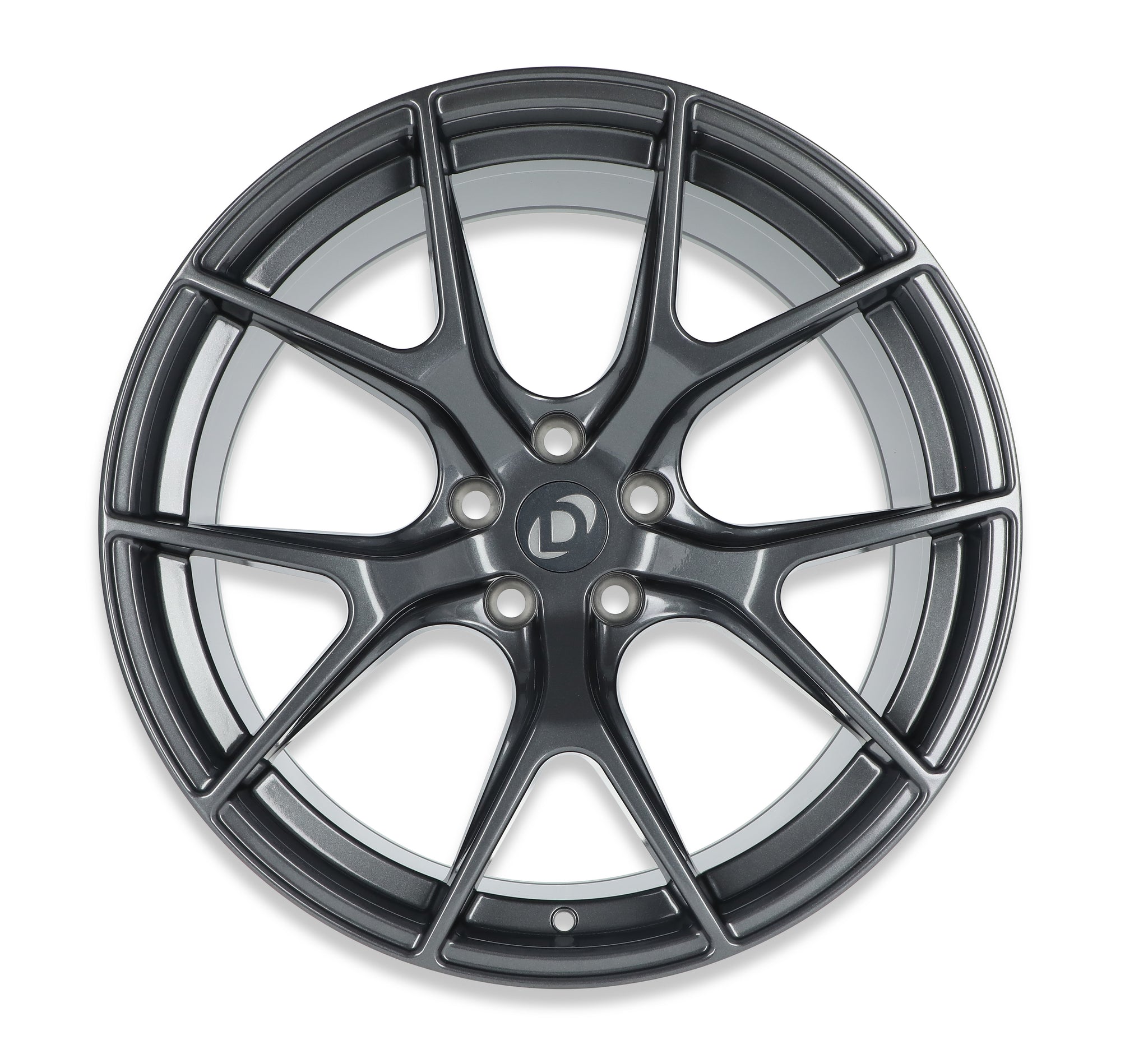

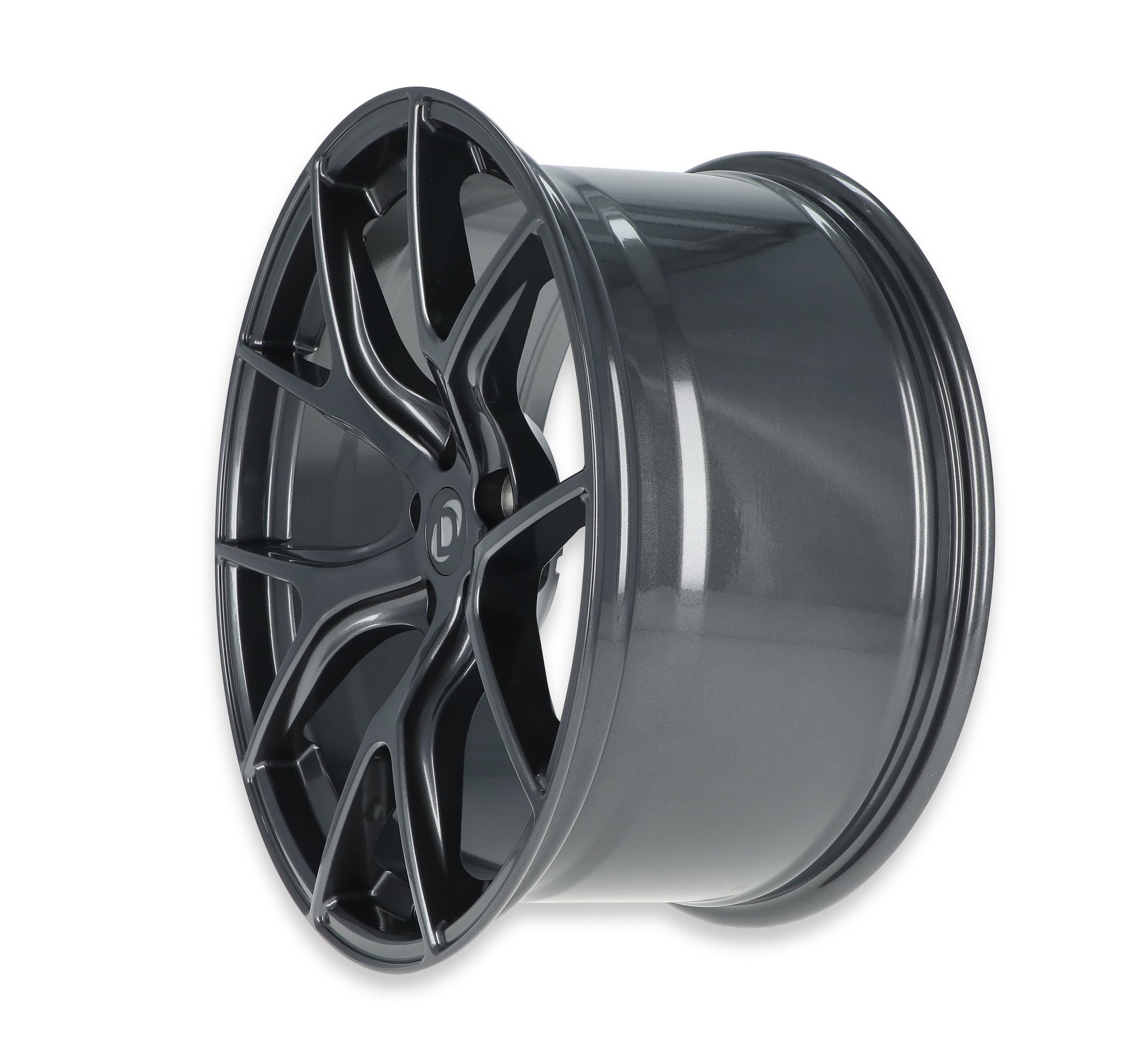

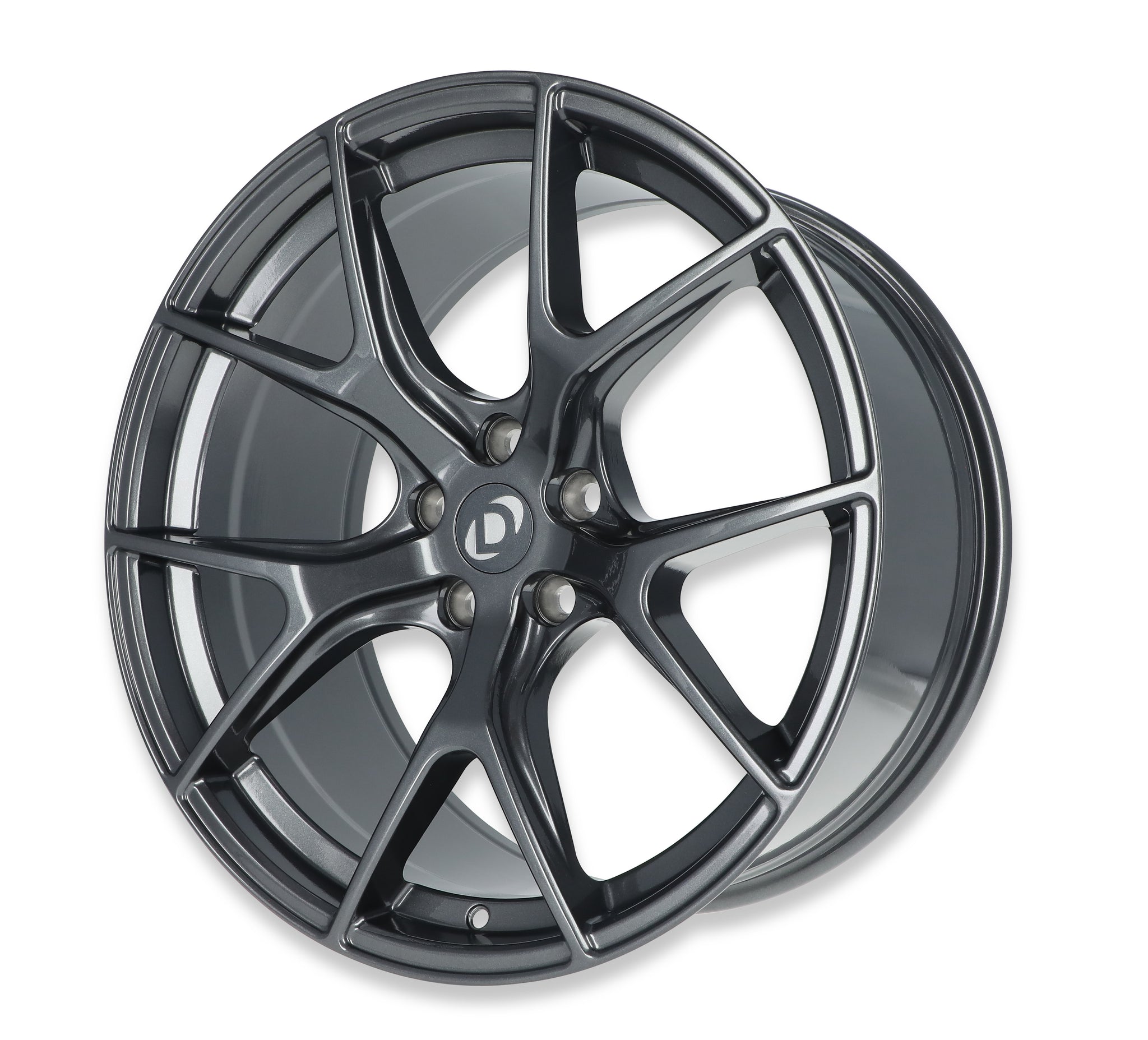

| Description_DES | Dinan Hyper Kinetic™ HB003 Wheel 20x8.5 in. +30mm Offset - Anthracite |
| Description_EXT | Fits 2017 & Up Tesla Model 3 - 5x114.3mm Bolt Pattern - Front or Rear |

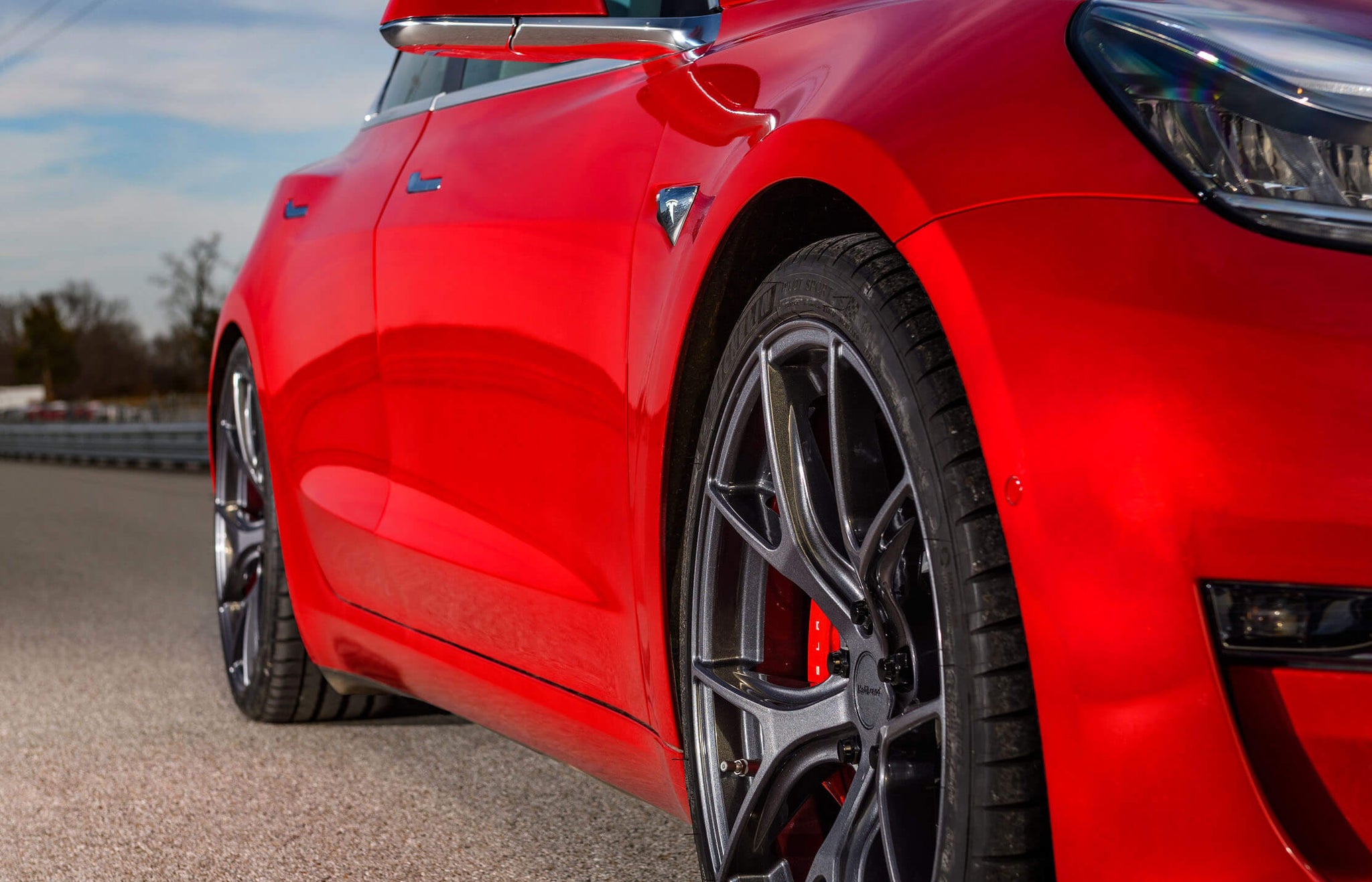

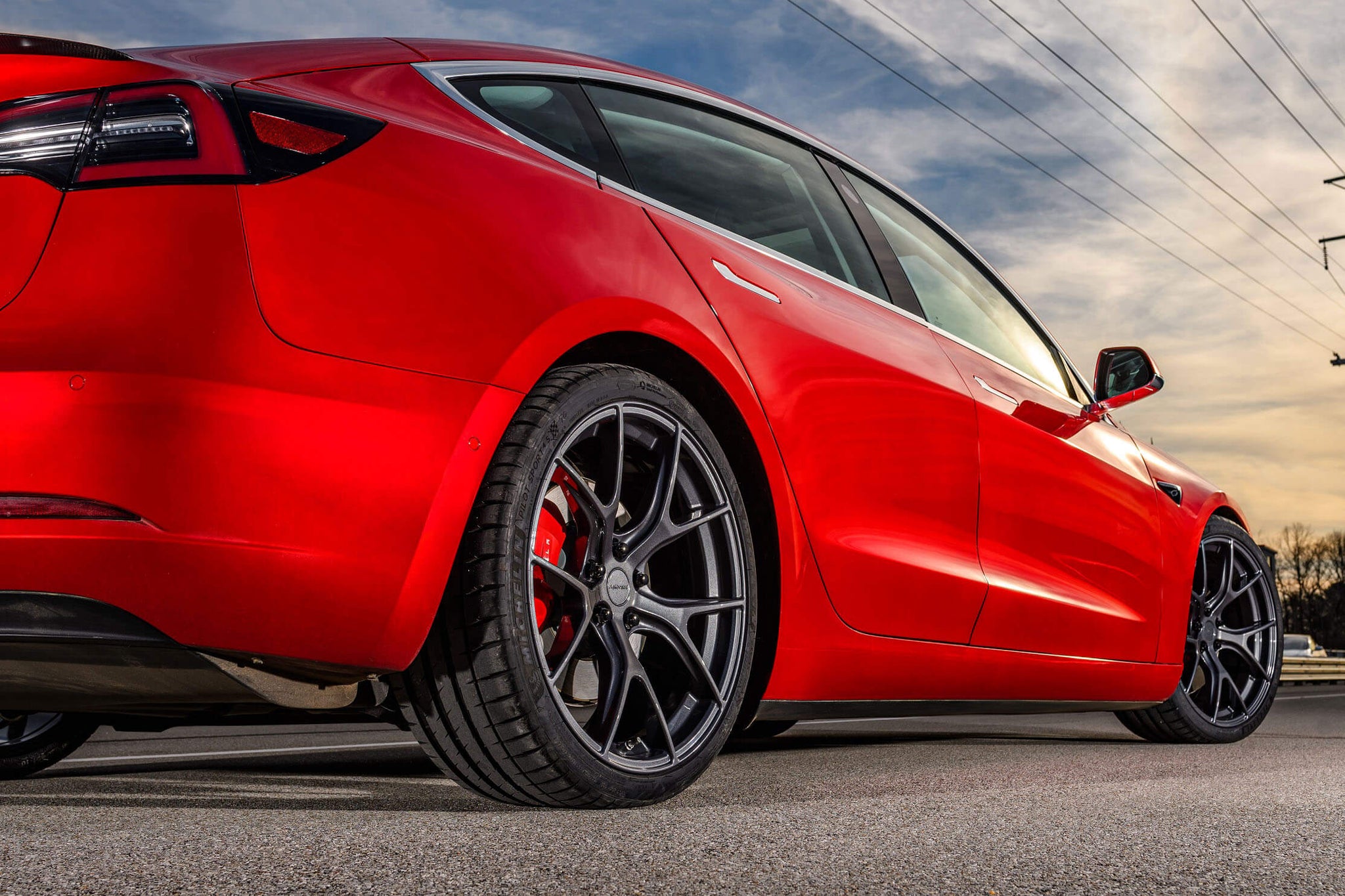

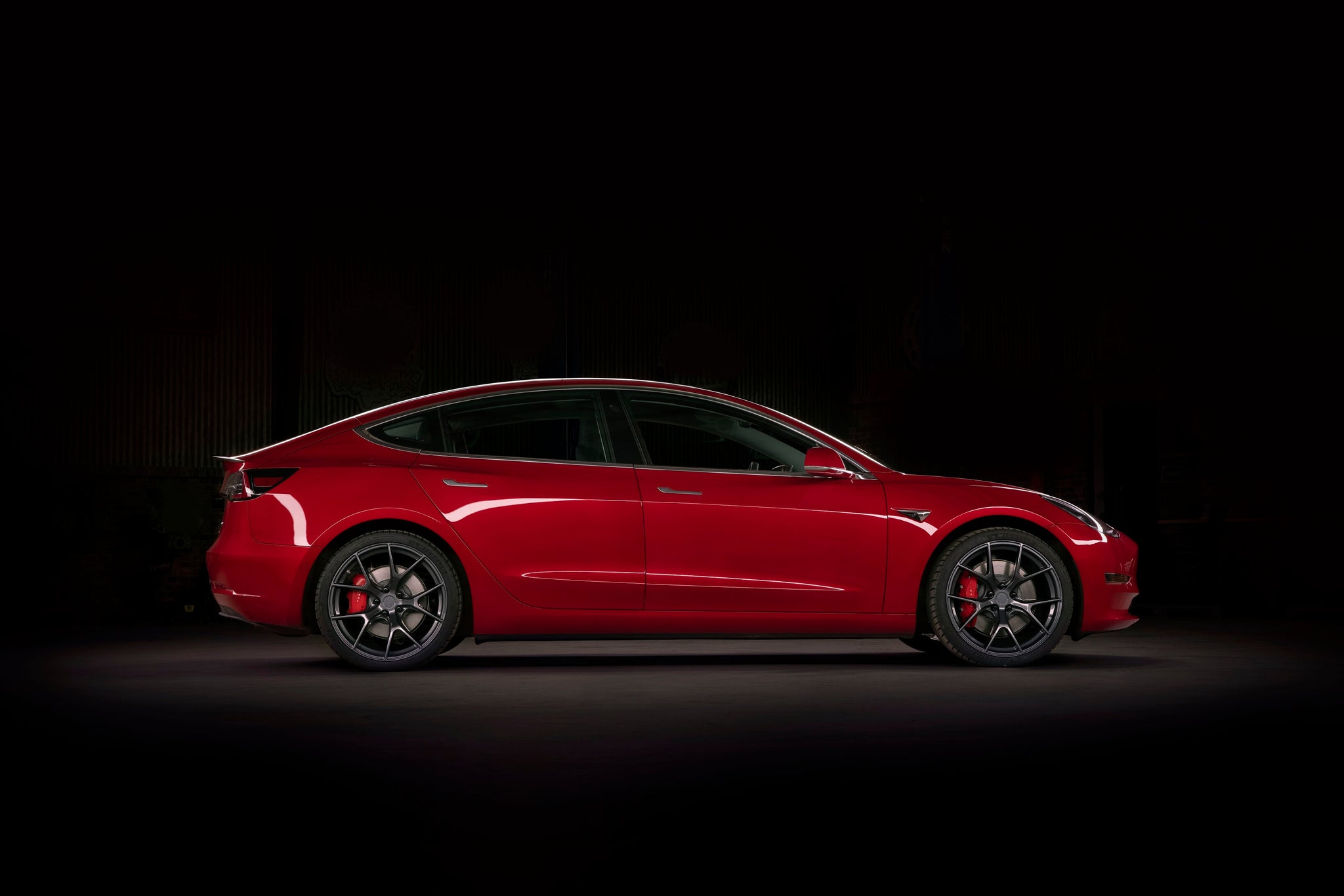

| Description_MKT | The design of Dinan Hyper Kinetic wheel was Inspired by the styling of the wheels on the Tesla Model S Plaid prototype that Tesla took to the Nurburgring. Dinan has teamed up with legendary wheel company Halibrand to produce this iconic design. These wheels are engineered for your Tesla Model 3 with ideal staggered offsets, staggered widths, hub centric mounting, proven fitment & tire clearance. The special offsets fill the wheel openings and move the wheels out flush with the body. |
| Description_MKT | The Flow-Formed wheel manufacturing process applies pressure to the wheel casting while it is spinning to stretch and compress the aluminum. The finished wheel is approximately 2-7 lbs. lighter per wheel than stock Factory Tesla Wheels (see weight chart for details). Flow-Formed wheels are also stronger with a higher shock resistance & load capacity - as compared to standard cast wheels. |
| Description_MKT | Individual wheels are available in 19 or 20-inch diameters with silver or anthracite finish. Reccommended combinations are listed below. |
| Description_MKT | Optimal Appearance & Performance: |
| Description_MKT | • Staggered Width (8.5" Front and 10" Rear) with Staggered Offset (+30mm Front and +39mm Rear) for Extra Traction with Wider Rear Tires, and a Slightly Wider Stance |
| Description_MKT | • Recommended Tires: 275/35ZR19 & 235/40ZR19 Michelin Pilot Sport 4S or 235/35ZR20 & 275/30ZR20 Michelin Pilot Sport 4S, TO Tesla Acoustic Tech |
| Description_MKT | • Staggered width wheels/tires tested in both rear-wheel drive and all-wheel drive vehicles with success - improved traction & performance without setting trouble codes |
| Description_MKT | Premium Appearance: |
| Description_MKT | • 8.5" Wide Width (Front and Rear) with Staggered Offset (+30mm Front and +20mm Rear) for a Slightly Wider Stance |
| Description_MKT | • This Option Fills Up the Fenders & Quarter Panels (Moves the Wheels Out Flush with the Body) |
| Description_MKT | • Allows Reuse of Factory 19" or 20" Tires |
| Description_MKT | • Recommended Tires: 235/40ZR19 Michelin Pilot Sport 4S, or 235/35ZR20 Michelin Pilot Sport 4S, TO Tesla Acoustic Tech |
| Description_MKT | Range and Rotate: |
| Description_MKT | • 8.5" Wide Width (Front and Rear) with Common Offset (+30mm Front and Rear) for a Slightly Wider Than Stock Stance |
| Description_MKT | • This Option Allows for Easy Tire Rotation since the Same Size Wheels & Tires are Used on the Front and Rear |
| Description_FAB | Engineered Specifically for Your Tesla Model 3 with Proven Fitment, Clearance, and Optimized Offset to Fill Up the Wheel Openings |
| Description_FAB | Flow Formed Wheel Manufacturing Process - Produces Wheels that are Lighter, Stronger & Have a Higher Shock Resistance (than Standard Cast Wheels) |
| Description_FAB | Lighter than Factory Wheels - Approximately 2-7 lbs. Lighter Per Wheel (see weight chart for more details) |
| Description_FAB | Hub Centric Mounting, Ensures the Wheel is Properly Centered on the Tesla Hub - Instead of Relying only on the Wheel Studs/Lug Nuts |
| Description_FAB | Choose from 19" & 20" Diameters with 8.5" or 10" Width |
| Description_FAB | Choose from Standard or Staggered Wheels - for Improved Traction, Handling & Appearance |
| Description_FAB | Choose from Anthracite or Silver Finish with Clear Coat for Durability & Low Maintenance |
| Description_FAB | Includes Dinan Center Cap - Round Factory Tesla Center Cap Can Be Re-Installed (if Desired) |
| Description_FAB | Factory Lug Nuts, Tire Pressure Monitoring System (TPMS) Can be Reused with These Wheels |
| Description_FAB | Factory Tires Can be Reused on the 19x8.5 and 20x8.5 Halibrand Wheels |
| Description_FAB | Unique Front & Rear Wheels with Offset Optimized for Appearance & Tire Clearance |
| Description_FAB | Wheels Sold Individually - Choose from 19 or 20-inch Wheel Sets for 1) Optimal Appearance & Performance; 2) Premium Appearance; 3) Range & Rotate |
| Description_FAB | Staggered Width Wheels (when used with recommended tires) Tested on Rear-Wheel Drive & All-Wheel Drive Vehicles with Success - for Improved Traction & Performance without Setting Trouble Codes |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2017 | Tesla | 3 | Long Range | |
| 2018 | Tesla | 3 | Long Range | |
| 2019 | Tesla | 3 | Long Range | |
| 2020 | Tesla | 3 | Long Range | |
| 2021 | Tesla | 3 | Long Range | |
| 2022 | Tesla | 3 | Long Range | |
| 2023 | Tesla | 3 | Long Range | |
| 2018 | Tesla | 3 | Performance | |
| 2019 | Tesla | 3 | Performance | |
| 2020 | Tesla | 3 | Performance | |
| 2021 | Tesla | 3 | Performance | |
| 2022 | Tesla | 3 | Performance | |
| 2023 | Tesla | 3 | Performance | |
| 2020 | Tesla | 3 | Standard Plus | |
| 2021 | Tesla | 3 | Standard Plus |
