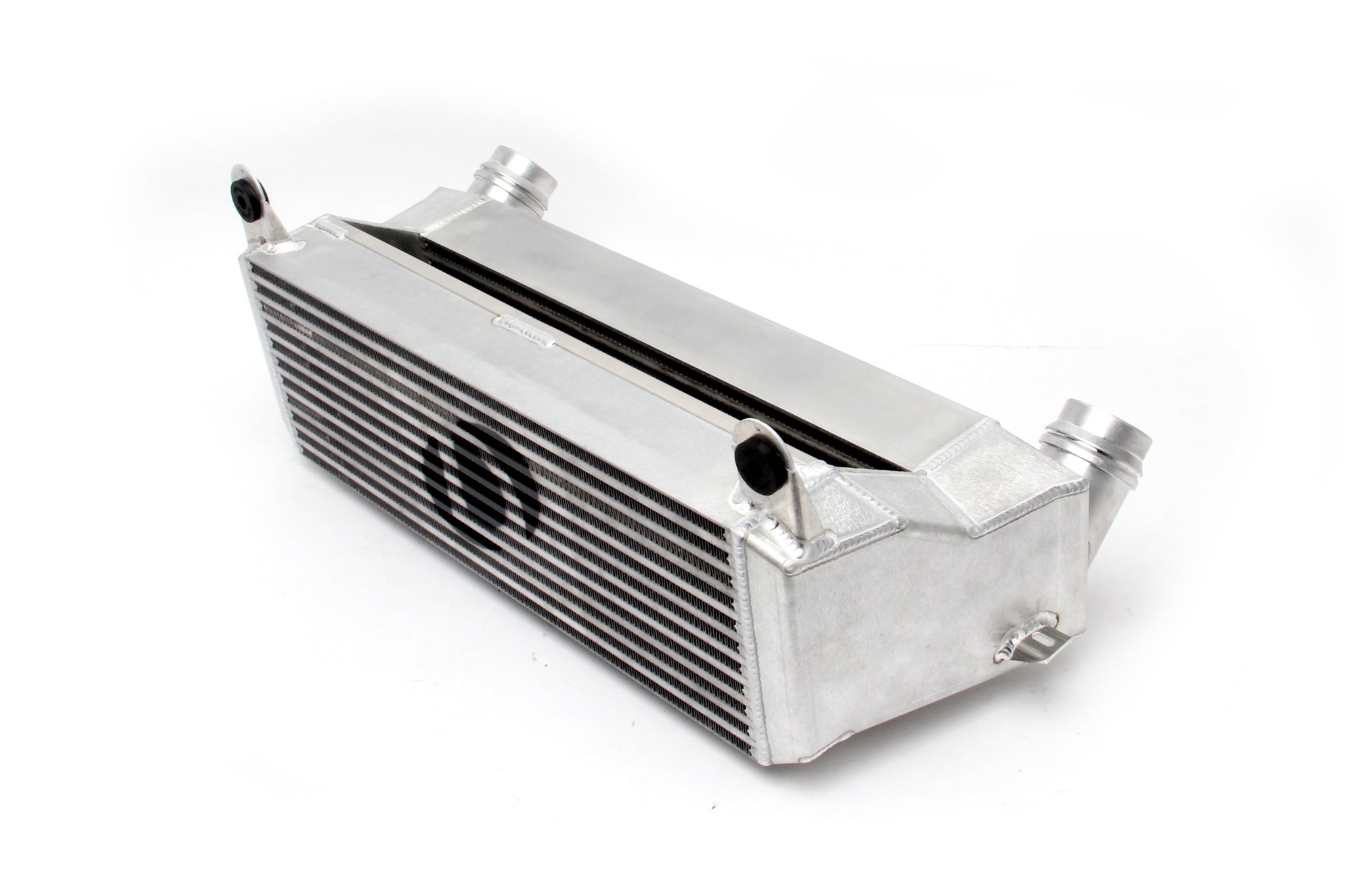

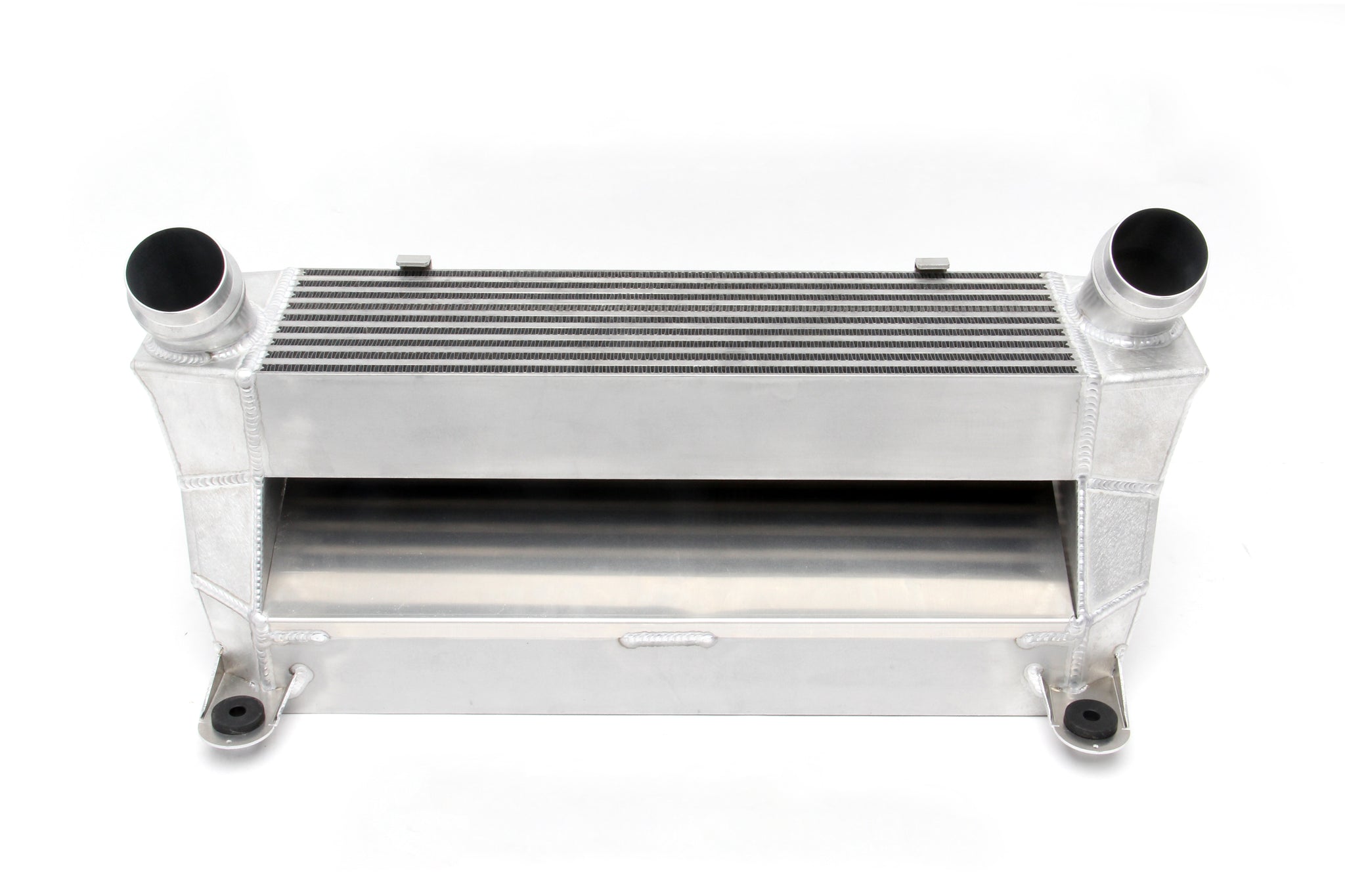

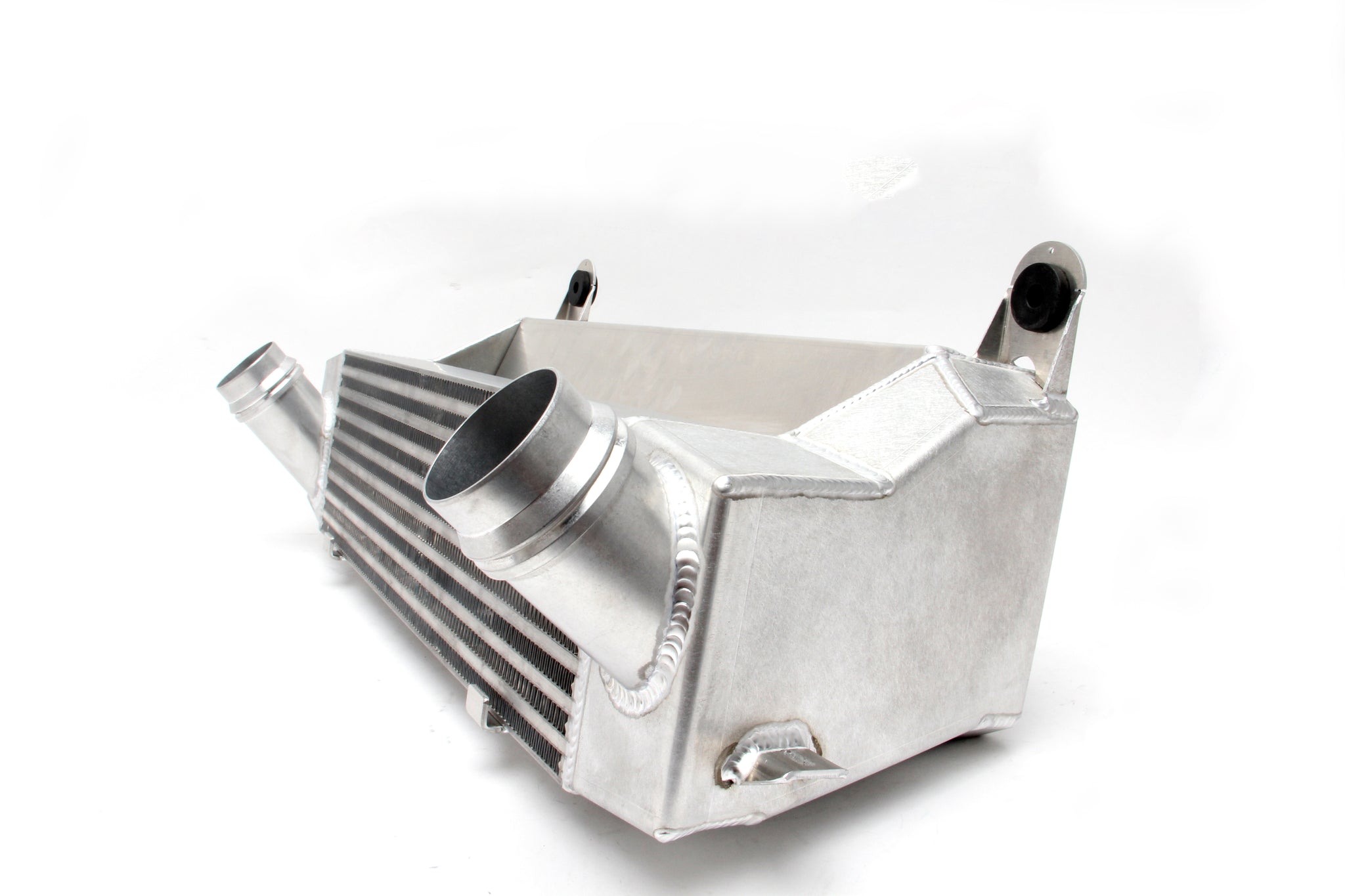

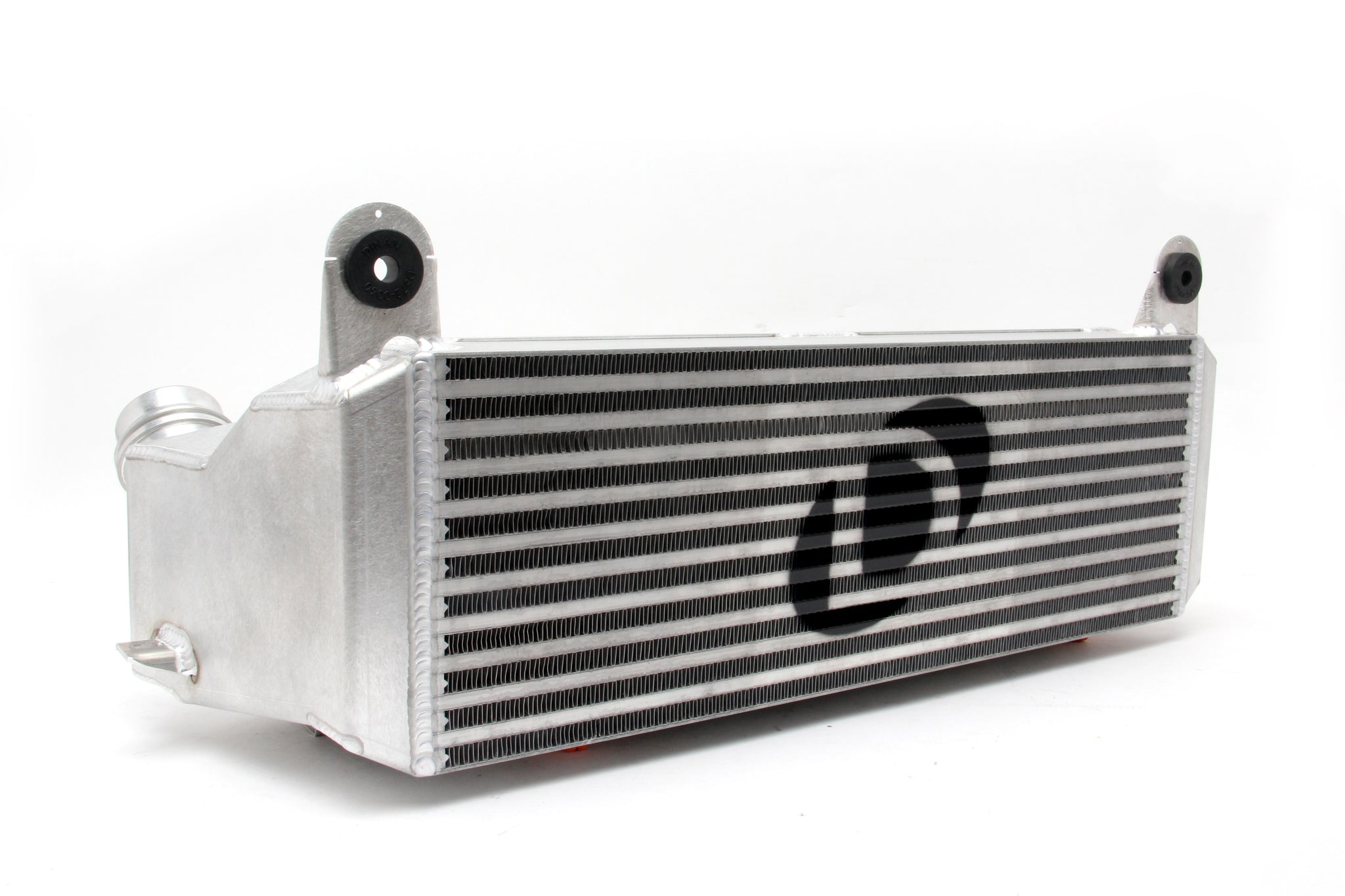

Dinan Dinan High Performance Dual Core Intercooler - 2012-2016 BMW 2/3/4-Series D330-0021

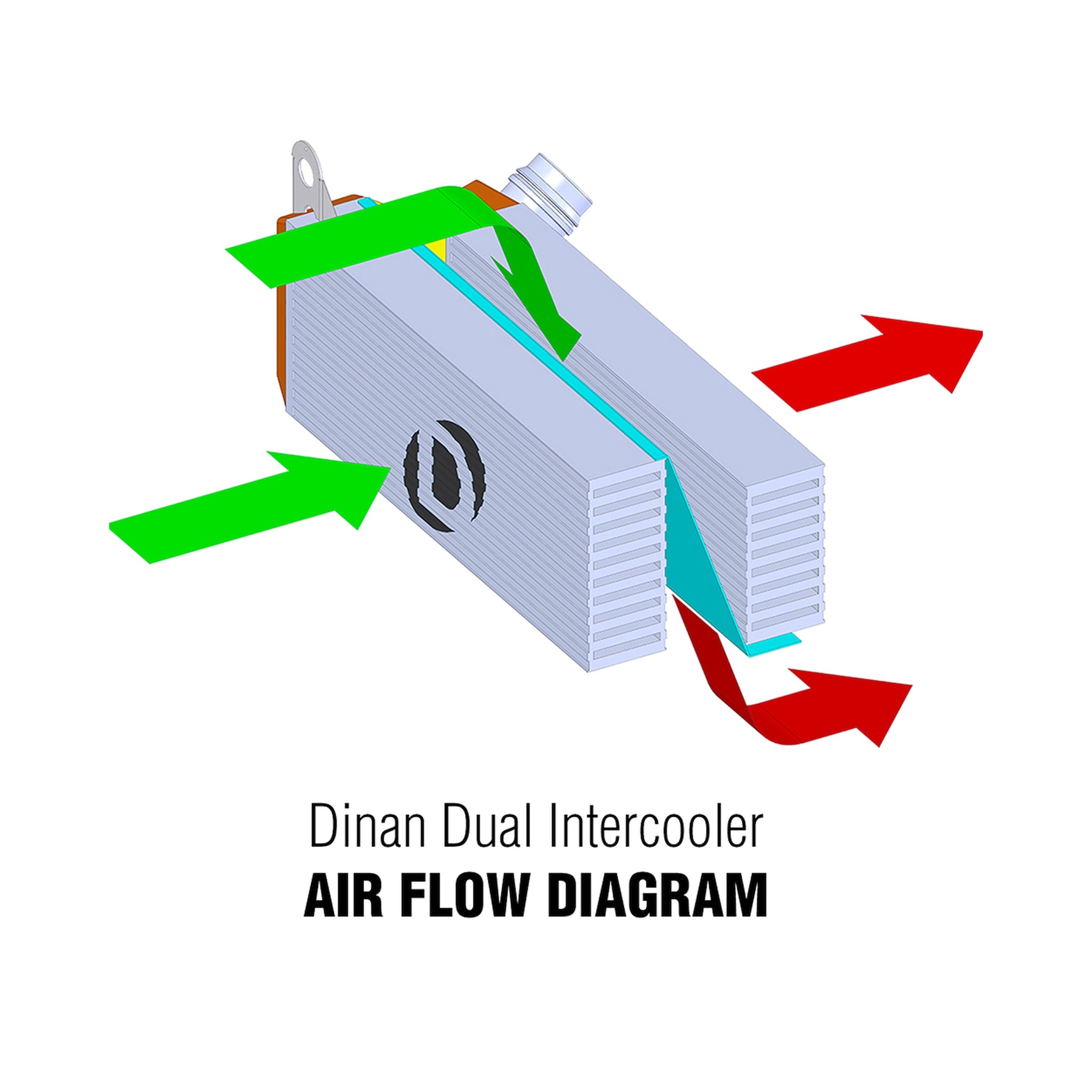

Greater power gains are achieved with a larger high-performance intercooler. The Dinan dual core intercooler provides a 240% increase in face area along with an equally impressive increase in volume, substantially reducing the pressure drop to 0.8 psi, as well as providing for more efficient heat exchange and more consistent output power. Dinan's unique dual-core design allows 2 separate cores to be working in conjunction with one another at all times. This doubling of resources is directly responsible for a 60% improvement in the delta from charge air temperature to ambient temperature (see diagrams). "Cool down" time is also reduced, enabling the cars to produce full power under varying driving conditions such as stop and go traffic. This leaves the chances of being susceptible to heat soak nearly a thing of the past. The system has been engineered to be as direct a replacement as possible to the stock unit, requiring only minor modifications for a clean, factory-like installation. The increased thermal efficiency provided by the Dinan dual core intercooler will also enhance turbocharger reliability in addition to overall power. On a stock vehicle, power gains can be had from 4000 RPM and beyond (when the car is in boost). In order to achieve the best performance, the intercooler should be paired eith engine tuning as it can provide additional optimization of the intercooler. In particular, with Dinan flash software the power band is extended to be more robust and powerful from 5000 RPM to redline whereas without tuning the bulk of the gains are from 6000 RPM to redline.

Dinan Dinan High Performance Dual Core Intercooler - 2012-2016 BMW 2/3/4-Series D330-0021

Specifications:

Brand	Dinan
Category	Belts and Cooling
Dinan Point Value	2
Emission Code	1
Height	13
Labor Time (Hours)	4.5
Length	36
Max HP Gain	15 @ 6250 RPM
Max Torque (lb-ft) Gain	13 @ 6250 RPM
Product Type	Intercooler
Warning	California Proposition 65
Weight	33
Width	19
Description_ABR	DIN INT
Description_SHO	Core Intercooler
Description_INV	F2XF3X UPGRADE COOLER
Description_ASC	Not compatible with vehicles equipped with Active Cruise Control or the F23 / F33 chassis' (convertibles).
Description_DES	Dinan High Performance Dual Core Intercooler - 2012-2016 BMW 2/3/4-Series
Description_EXT	Air-To-Air - F22/F30/F31/F32/F34/F36
Description_MKT	Greater power gains are achieved with a larger high-performance intercooler. The Dinan dual core intercooler provides a 240% increase in face area along with an equally impressive increase in volume, substantially reducing the pressure drop to 0.8 psi, as well as providing for more efficient heat exchange and more consistent output power. Dinan's unique dual-core design allows 2 separate cores to be working in conjunction with one another at all times. This doubling of resources is directly responsible for a 60% improvement in the delta from charge air temperature to ambient temperature (see diagrams). "Cool down" time is also reduced, enabling the cars to produce full power under varying driving conditions such as stop and go traffic. This leaves the chances of being susceptible to heat soak nearly a thing of the past. The system has been engineered to be as direct a replacement as possible to the stock unit, requiring only minor modifications for a clean, factory-like installation. The increased thermal efficiency provided by the Dinan dual core intercooler will also enhance turbocharger reliability in addition to overall power. On a stock vehicle, power gains can be had from 4000 RPM and beyond (when the car is in boost). In order to achieve the best performance, the intercooler should be paired eith engine tuning as it can provide additional optimization of the intercooler. In particular, with Dinan flash software the power band is extended to be more robust and powerful from 5000 RPM to redline whereas without tuning the bulk of the gains are from 6000 RPM to redline.

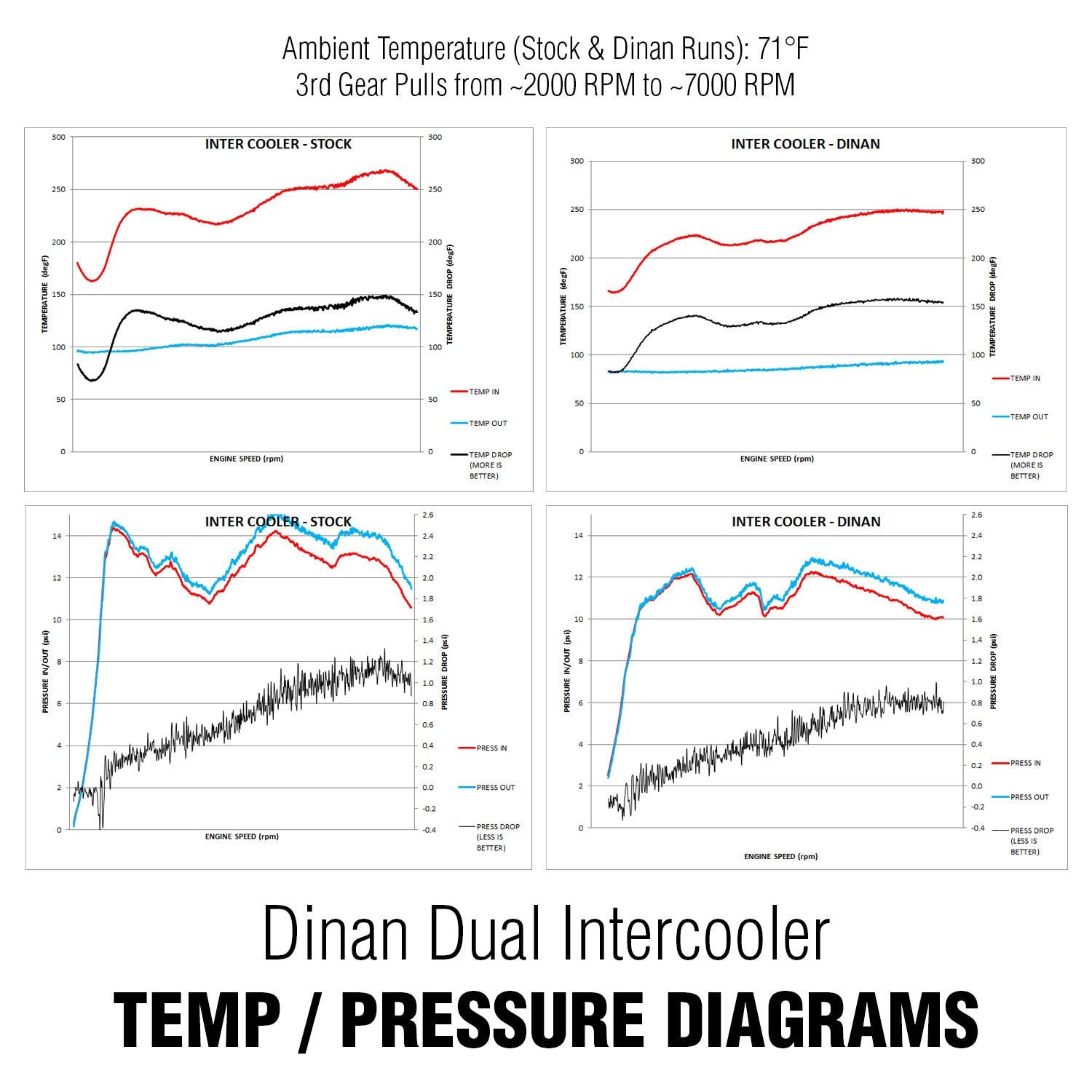

Description_FAB	Max gains (N55 engine) of 15 HP and 13 lb-ft of torque @ 6250 RPM. Max gains (N20/N26 engine) of 6 HP and 5 lb-ft of torque @ 5500 RPM. Face area  240% larger than the stock intercooler setup for maximum cooling efficiency to deter heat soak. Charge Air Pressure drop: 0.80 PSI (25% improvement over stock). Charge Air Temperature drop: 155º F (11% improvement over stock). Charge Air Temperature / Ambient Temperature Delta: 18º F @ 6250 RPM (60% improvement over stock). 50 State Emissions Legal: CARB EO D-176-51

This Part Fits:

Year	Make	Model	Submodel	Notes
2014	BMW	228i	Base
2015	BMW	228i	Base
2016	BMW	228i	Base
2015	BMW	228i xDrive	Base
2016	BMW	228i xDrive	Base
2012	BMW	328i	Base
2013	BMW	328i	Base
2014	BMW	328i	Base
2015	BMW	328i	Base
2016	BMW	328i	Base
2014	BMW	328i GT xDrive	Base
2015	BMW	328i GT xDrive	Base
2016	BMW	328i GT xDrive	Base
2013	BMW	328i xDrive	Base
2014	BMW	328i xDrive	Base
2015	BMW	328i xDrive	Base
2016	BMW	328i xDrive	Base
2012	BMW	335i	Base
2013	BMW	335i	Base
2014	BMW	335i	Base
2015	BMW	335i	Base
2014	BMW	335i GT xDrive	Base
2015	BMW	335i GT xDrive	Base
2016	BMW	335i GT xDrive	Base
2013	BMW	335i xDrive	Base
2014	BMW	335i xDrive	Base
2015	BMW	335i xDrive	Base
2014	BMW	428i	Base
2015	BMW	428i	Base
2016	BMW	428i	Base
2015	BMW	428i Gran Coupe	Base
2016	BMW	428i Gran Coupe	Base
2014	BMW	428i xDrive	Base
2015	BMW	428i xDrive	Base
2016	BMW	428i xDrive	Base
2015	BMW	428i xDrive Gran Coupe	Base
2016	BMW	428i xDrive Gran Coupe	Base
2014	BMW	435i	Base
2015	BMW	435i	Base
2016	BMW	435i	Base
2015	BMW	435i Gran Coupe	Base
2016	BMW	435i Gran Coupe	Base
2014	BMW	435i xDrive	Base
2015	BMW	435i xDrive	Base
2016	BMW	435i xDrive	Base
2015	BMW	435i xDrive Gran Coupe	Base
2016	BMW	435i xDrive Gran Coupe	Base
2014	BMW	M235i	Base
2015	BMW	M235i	Base
2016	BMW	M235i	Base
2015	BMW	M235i xDrive	Base
2016	BMW	M235i xDrive	Base
