The addition of the Ram Air Intake Duct maximizes intake system efficiency for even greater improvements in overall performance.

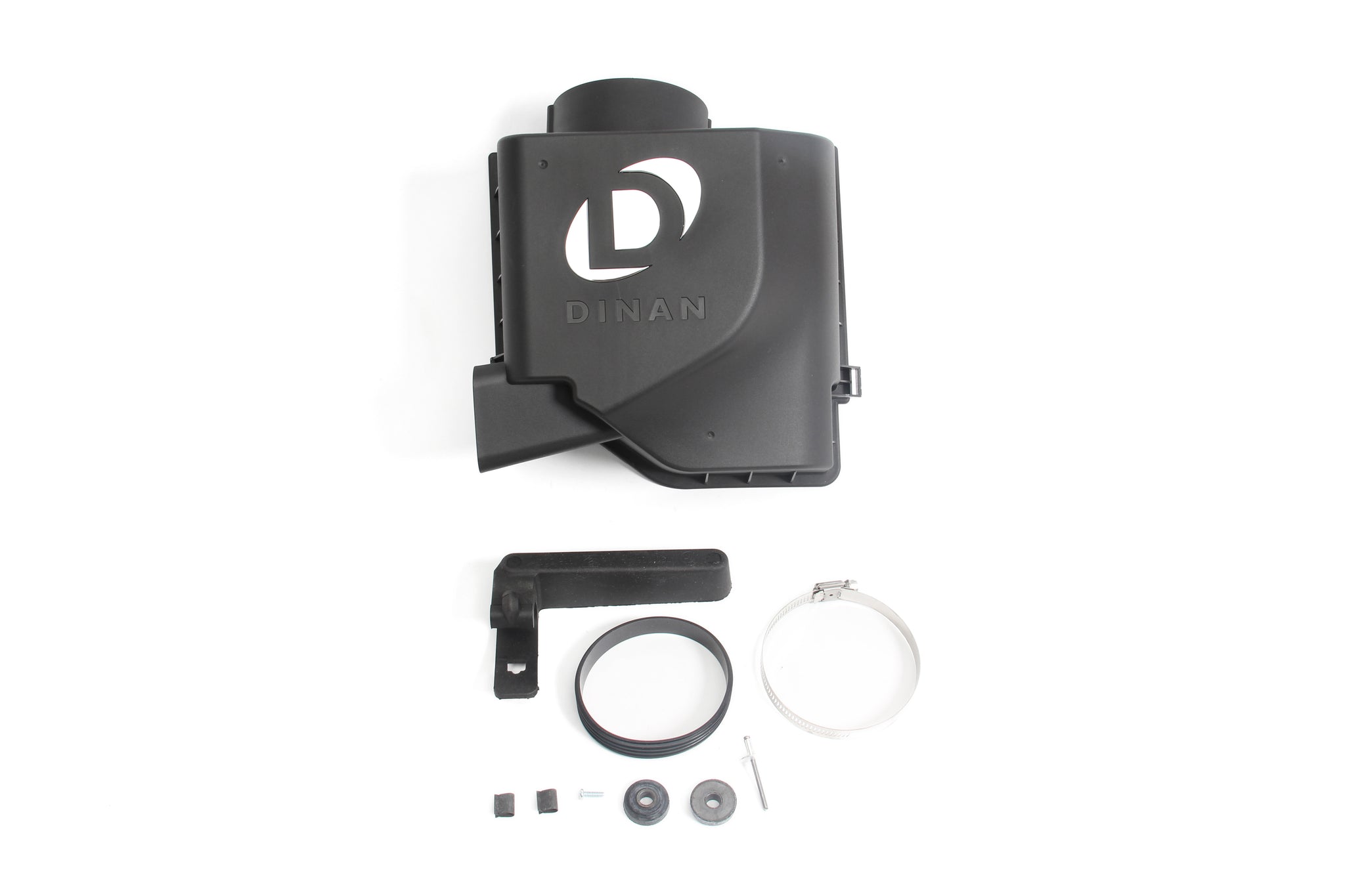

Dinan Dinan High Flow Intake System - 2003-2005 BMW Z4 D760-0011
Specifications:
| Brand | Dinan |
| Category | Air and Fuel Delivery |
| Dinan Point Value | 3 |
| Emission Code | 1 |
| Height | 8 |
| Labor Time (Hours) | 0.5 |
| Length | 24 |
| Max HP Gain | 8 @ 6500 RPM |
| Max Torque (lb-ft) Gain | 7 @ 6500 RPM |
| part type | Air Intake Kit |
| Product Type | Cold Air Intake |
| Sub Category | Service Kits |
| Warning | California Proposition 65 |
| Weight | 5.9 |
| Width | 12 |
| Description_INV | OBS COLD AIR INTAKE Z4 3.0 |
| Description_ASC | Not compatible with the Z4 3.0i (E85) from 2006-2008. Stage 2 Engine Software recommended for optimum performance and drivability. |
| Description_DES | Dinan High Flow Intake System - 2003-2005 BMW Z4 |
| Description_EXT | Injection-Molded Composite - E85 |

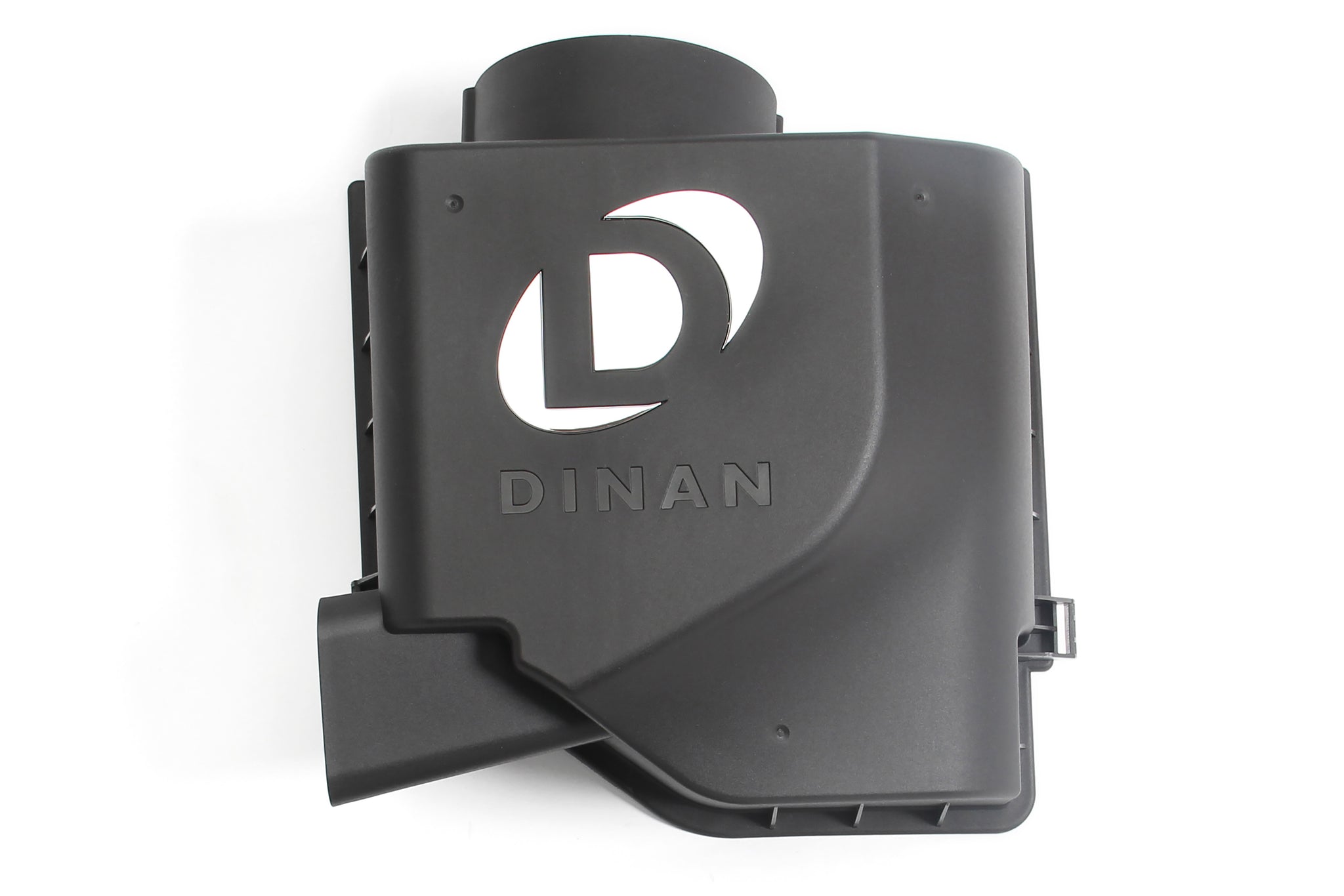

| Description_MKT | This seemingly simple yet very effective approach to the business of improved intake efficiency consists of a replacement lid for the stock airbox designed to increase overall volume and accommodate a high flow filter element. The lid is molded from a special composite material, chosen for its ability to resist power robbing under-hood heat. The lid also provides for a completely sealed air box, maximizing pressurization for optimum performance. |
| Description_MKT | The addition of the Ram Air Intake Duct maximizes intake system efficiency for even greater improvements in overall performance. |
| Description_FAB | More Power: + 8 HP @ 6500 RPM, + 7 LB-FT @ 6500 RPM (coupled w/ engine software) |
| Description_FAB | Sealed system for maximum insulation from power robbing heat |
| Description_FAB | Additional ram air intake duct for additional air flow |
| Description_FAB | Enlarged filter element for optimum flow |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2003 | BMW | Z4 | 3.0i | |
| 2004 | BMW | Z4 | 3.0i | |
| 2005 | BMW | Z4 | 3.0i |
