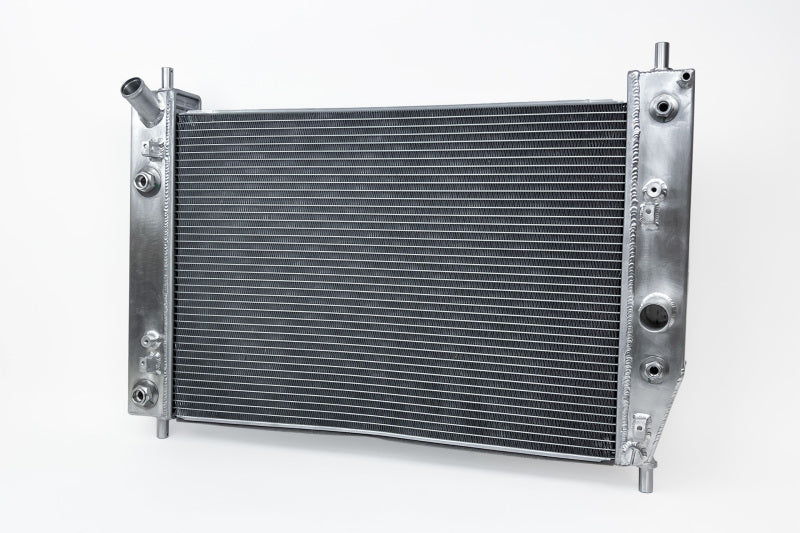

CSF is quite familiar with GM performance vehicles so creating a high-performance radiator for the C6 Corvette made a lot of sense. Also given the age of the C6, there are a lot of owners ready to upgrade or looking to replace their original radiators. The goal was to create a model that could fit all of the C6 Corvette trims and work with the majority of upgrades and modifications. CSF teamed up with A&A Corvette to develop this radiator. As experts exclusively developing products for Corvettes for over 20 years, they were the perfect R&D Partner for this radiator. This new design coupled with a core that has 193% more volume than the factory radiator offers a massive upgrade in cooling capacity. The CSF Radiator also offers the best value of any aftermarket radiator coming in hundreds of dollars less than competitors.
- Built In Engine Oil cooler & Automatic Transmission Cooler with Factory-style Quick Connect Fittings
- 8mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

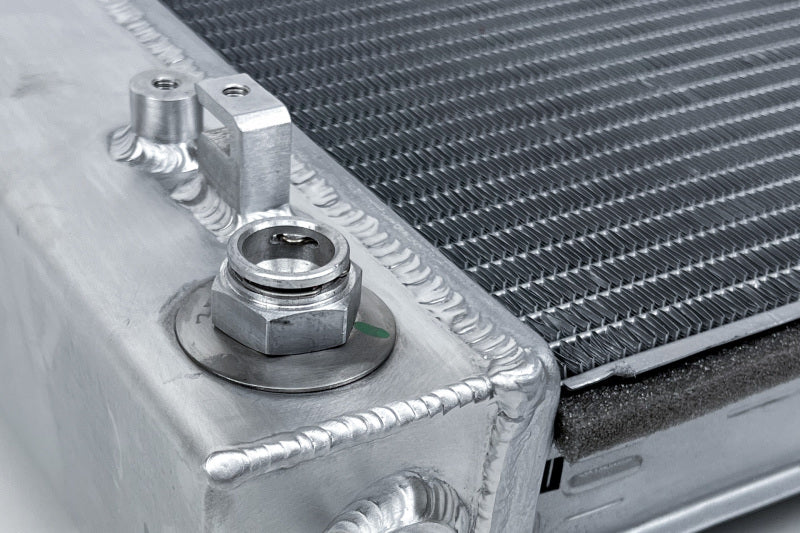

- Mounting Pins have Cotter Pin Holes for securing A&A Corvette's Top Shroud
- Shorter core height provides clearance for supercharger installations
- No need to modify the radiator core support or trim the radiator

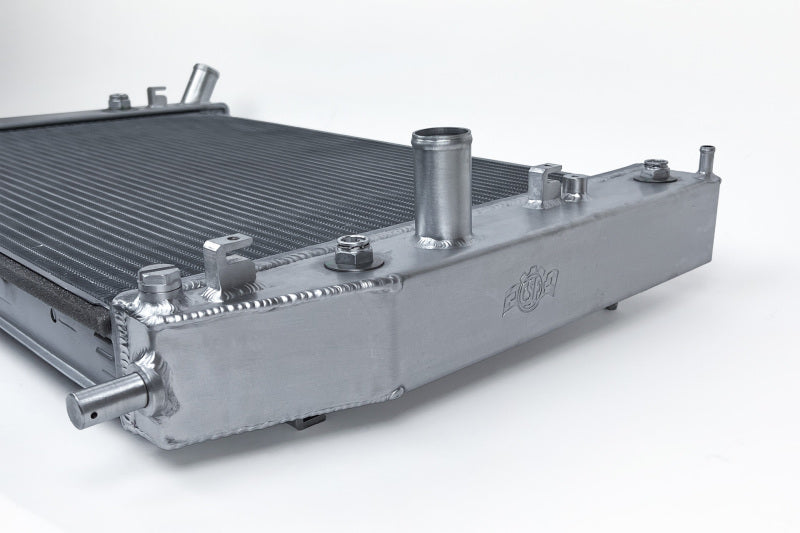

- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet

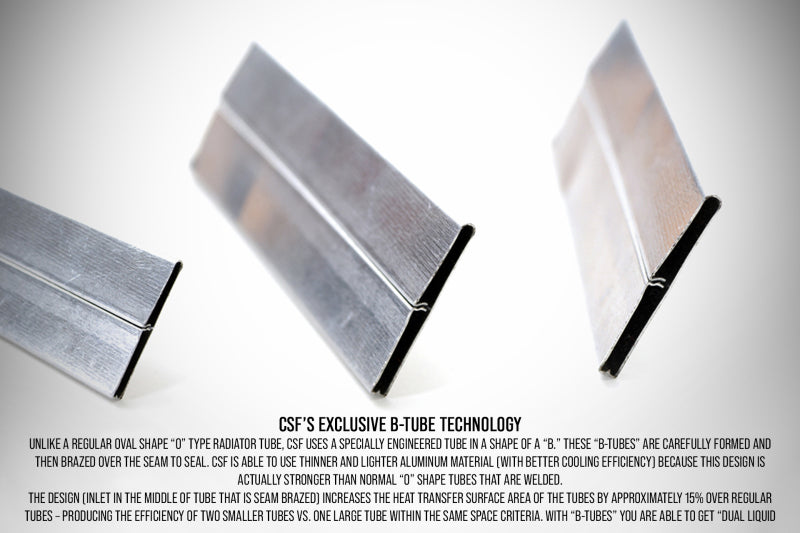

- Cooling Tubes with CSF's Exclusive B-Tube Technology
- Fits all OEM and Aftermarket Intake Systems
- 100% All Aluminum TIG-Welded Construction
- 2-Row, 52mm Ultra-High-Performance Core
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
- Smooth Satin Finish
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2008 | Chevrolet | Corvette | 427 Limited Edition Z06 |
| 2005-2013 | Chevrolet | Corvette | Base |
| 2010-2013 | Chevrolet | Corvette | Grand Sport |
| 2006-2010 | Chevrolet | Corvette | Z06 |
| 2009-2013 | Chevrolet | Corvette | ZR1 |
