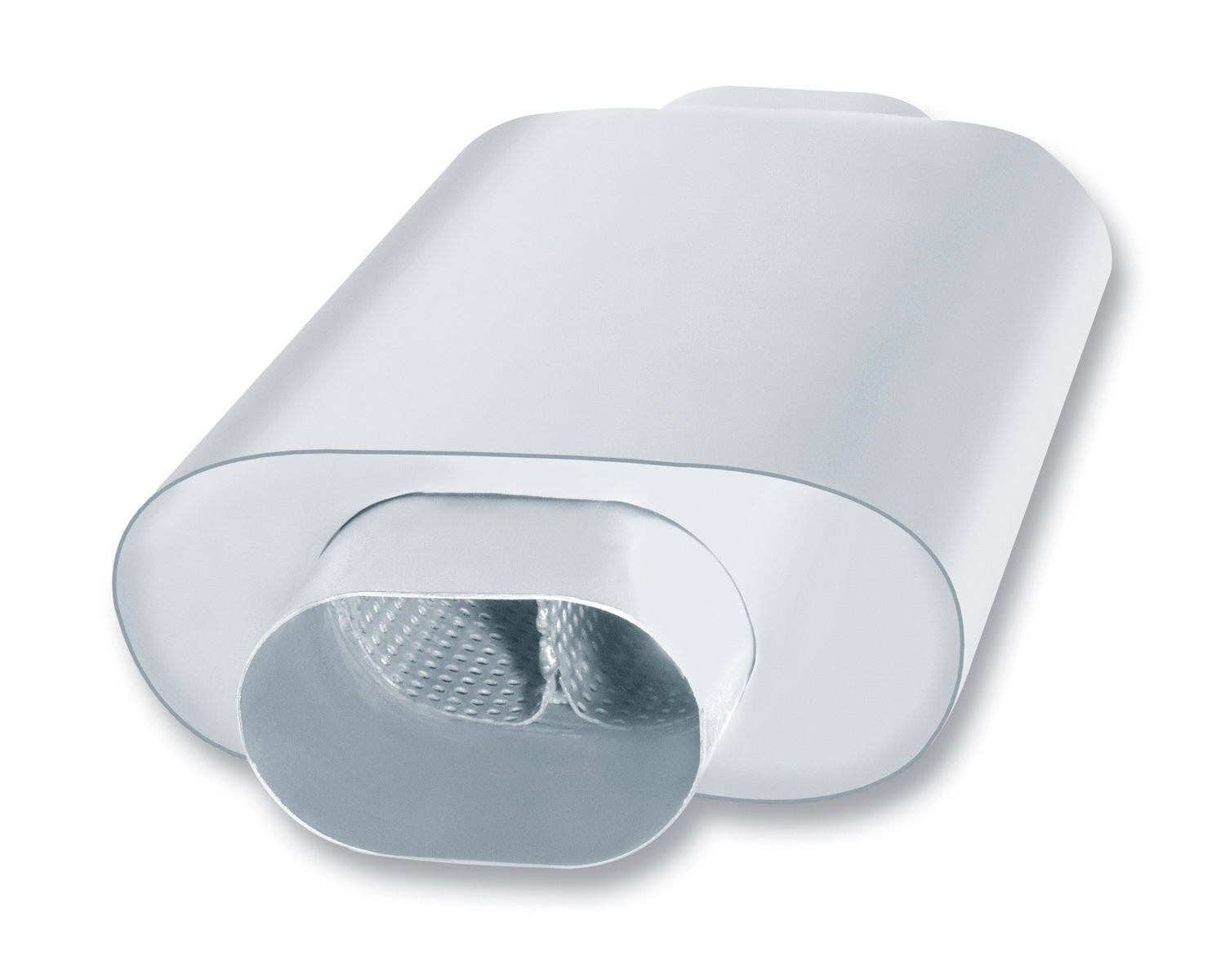

Slim Line Racing Muffler. Designed for low profile vehicles with limited space. It features a 3" x 7.88" oval body. Necks are 3.5" tubing formed into 4.13" x 2.61" oval. Reversible design for installation flexibility. Patented Multicore design for maximum power. Recommend for high horsepower applications. T-304 Stainless steel will never rust. 100% welded construction for strength. High temperature T-304 stainless steel wool for sound control. Free Flow design for improved performance. There is no logo embossment on this part. Best of all, it's made in the USA. Just what you'd expect from the world's most experienced (and most winning) exhaust brand.

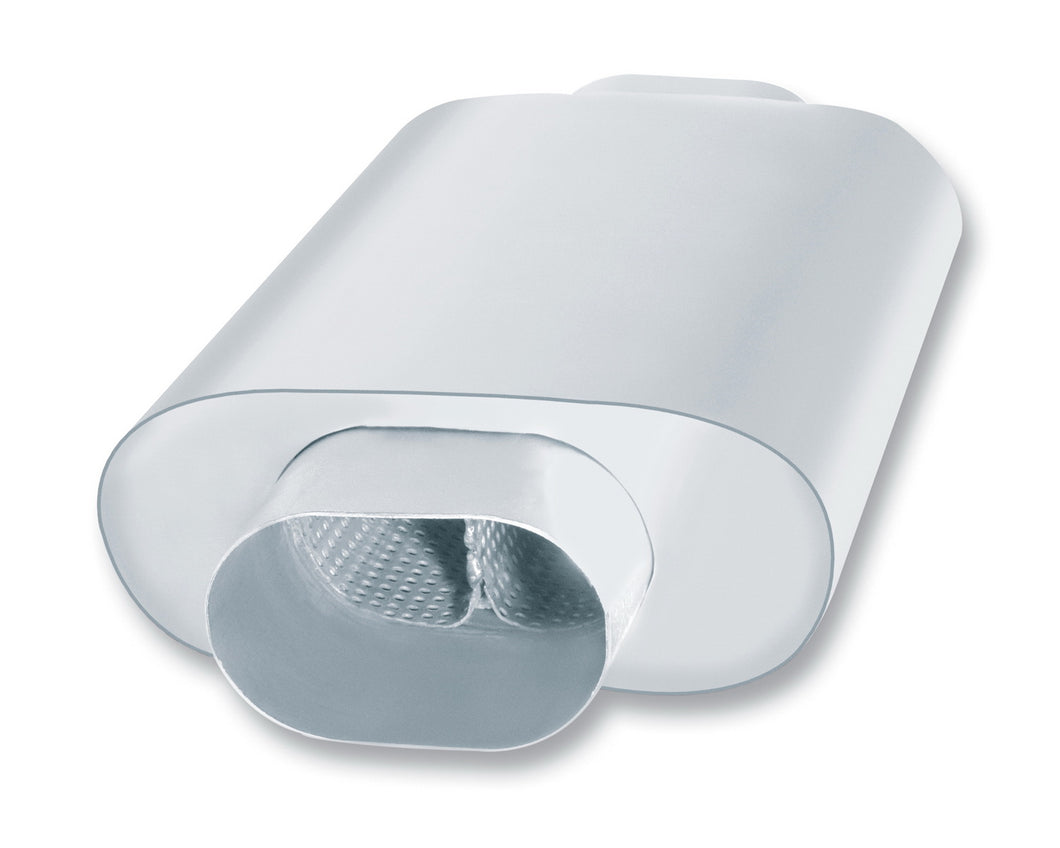

Borla XR-1 Multicore Muffler 40536
Specifications:
| Body Height | 7.880 in. |
| Outlet Position | Center |
| Title Extended | XR-1 Multi-Core Racing Muffler Slim Line 3.5in (4.13in x 2.61in Oval) Center Inlet/ 3.5in Center (4.13in x 2.61in Oval) Outlet 3in x 7.88in Oval x 12in Long Body Part # 40536 |
| Tip / Outlet Finish | N/A |
| Shape | Oval |
| Prop 65 Yes/No | Yes |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Short Label | Proposition 65 Warning.JPG |
| Prop 65 - Long Label | WARNING: This product in the physical form it is sold does not present a hazard. However, operations including, but not limited to welding, brazing, or thermal cutting can expose you to chemicals including Chromium, Nickel, Cobalt, Arsenic, Cadmium and Lead which are known to the State Of California to cause cancer, birth defects and other reproductive harm. For more information go towww.P65Warnings.ca.gov |
| Overall Length | 17.000 in. |
| Outlet Type | Single Center Outlet |
| Outlet Outside Diameter | 3.500 in. |
| Body Length | 12.000 in. |
| Off Road Use Only | No |
| Muffler Count | 1 |
| Material | T-304 Stainless Steel |
| Main Piping Diameter | 3.500 in. |
| Inlet Type | Single Center |
| Inlet Position | Center |
| Inlet Connection Type | Pipe |
| Grade Type | Performance |
| Construction | All Welded |
| Body Width | 3.000 in. |
| Title | XR-1 Multi-Core Racing Muffler Slim Line 3.5in (4.13in x 2.61in Oval) Center Inlet/ 3.5in Center (4.13in x 2.61in Oval) Outlet 3in x 7.88in Oval x 12in Long Body |
| Description_SHO | XR-1 Multi-Core |
| Description_INV | BORLA XR-1 Multi-Core Muffler |
| Description_DEF | Exhaust Muffler |
| Description_DES | XR-1 Multicore Muffler |
| Description_ASM | XR-1 Multi-Core Slim Line Racing Muffler - 3.5" (4.13" x 2.61" Oval) Center Inlet/ 3.5" (4.13" x 2.61" Oval) Center Outlet 3" x 7.88 Oval x 12" Long Body 17" Overall Length. Universal Part. Reversible Design. |
| Description_EXT | XR-1 Multi-Core Slim Line Racing Muffler - 3.5" Oval Pipe Center Inlet/ 3.5" Oval Pipe Center Outlet 3" x 7.88 Oval x 12" Long Body 17" Overall Length. Universal Part. Reversible Design. |
| Description_MKT | Slim Line Racing Muffler. Designed for low profile vehicles with limited space. It features a 3" x 7.88" oval body. Necks are 3.5" tubing formed into 4.13" x 2.61" oval. Reversible design for installation flexibility. Patented Multicore design for maximum power. Recommend for high horsepower applications. T-304 Stainless steel will never rust. 100% welded construction for strength. High temperature T-304 stainless steel wool for sound control. Free Flow design for improved performance. There is no logo embossment on this part. Best of all, it's made in the USA. Just what you'd expect from the world's most experienced (and most winning) exhaust brand. |
