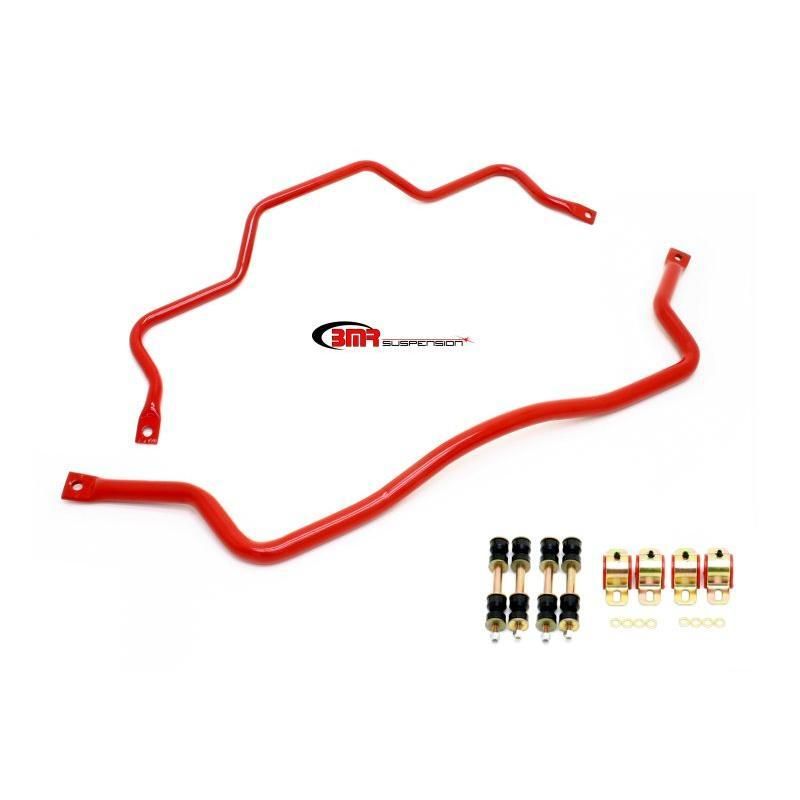

The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR's suspensions SB026 front and rear sway bar kit was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-wall 35mm (front) and 25mm (rear) DOM tubing, the SB026 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The sway bar mounts to the car using polyurethane bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The steel sway bar mounting brackets are reinforced to minimize deflection.BMR's suspension designed the SB026 sway bar for street performance, autocross, and road race applications.
Application GuideThis Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1993-2002 | Chevrolet | Camaro | Base |
| 1993 | Chevrolet | Camaro | Indianapolis 500 Pace Car |
| 1996-1997 | Chevrolet | Camaro | RS |
| 1993-2002 | Chevrolet | Camaro | Z28 |
| 1998-2002 | Chevrolet | Camaro | Z28 SS |
| 1993-2002 | Pontiac | Firebird | Base |
| 1993-2002 | Pontiac | Firebird | Formula |
| 1993-2002 | Pontiac | Firebird | Trans Am |
| 1994 | Pontiac | Firebird | Trans Am GT |
