Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.

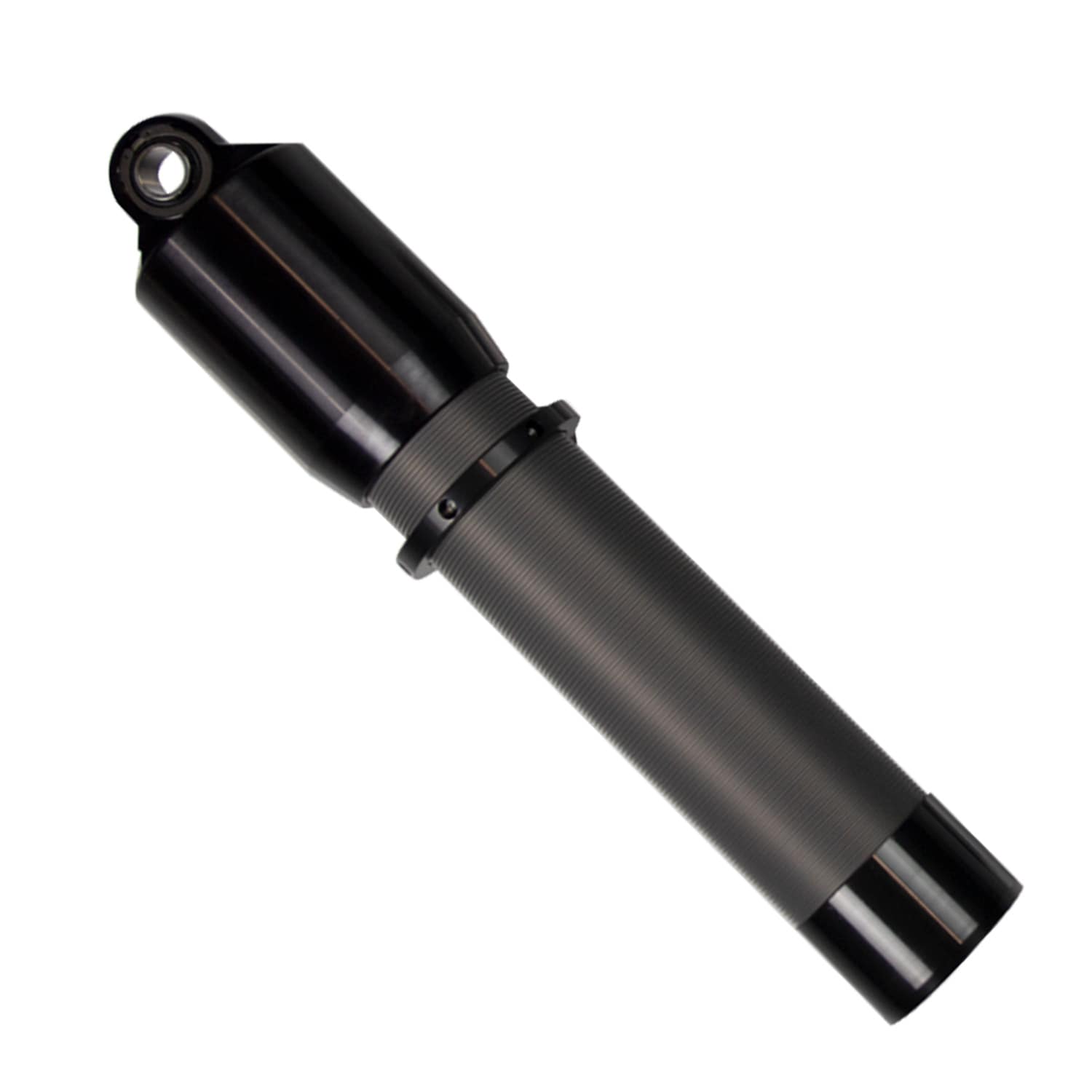

Bilstein XVA Series - Suspension Shock Absorber 33-314587
Specifications:
| PartType | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Segment | Motorsports |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Lower Mount Type | 1/2in Heim |
| Title | Bilstein Shock Absorbers |
| Collapsed Length (MM) | 325.5 |
| Upper Mount Type | 1/2in Heim |
| Extended Length (MM) | 471.5 |
| Extended Length (IN) | 18.56 |
| Internal Design | Monotube |
| Finish | Clear Anodized |
| Spring Seat Included | No |
| Boot Included | No |
| Body Material | Aluminum |
| Series | XVA Series |
| Collapsed Length (IN) | 12.81 |
| Adjustable Damping | Non-Adjustable |
| Piston Type | Sold Separately |
| Body Diameter (ID) | 46mm |
| Body Design | Threaded Body Large Bulb Screw Top (Coilover) |
| Description_SHO | Shock |
| Description_DEF | Suspension Shock Absorber |
| Description_DES | XVA Series - Suspension Shock Absorber |
| Description_EXT | 46mm Monotube Shock Absorber |
| Description_INV | XVA, 6" Non Adjustable |
| Description_LAB | XVA Series - Suspension Shock Absorber |
| Description_ASM | No Applications |
| Description_MKT | Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance. |
| Description_FAB | Dual-zone gas bulb decreases gas pressure while increasing grip levels |
| Description_FAB | Dual-zone gas bulb decreases gas pressure while increasing grip levels |
| Description_FAB | 46mm extruded aluminum threaded body improves durability and heat dissipation |
