*item may differ from images
Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

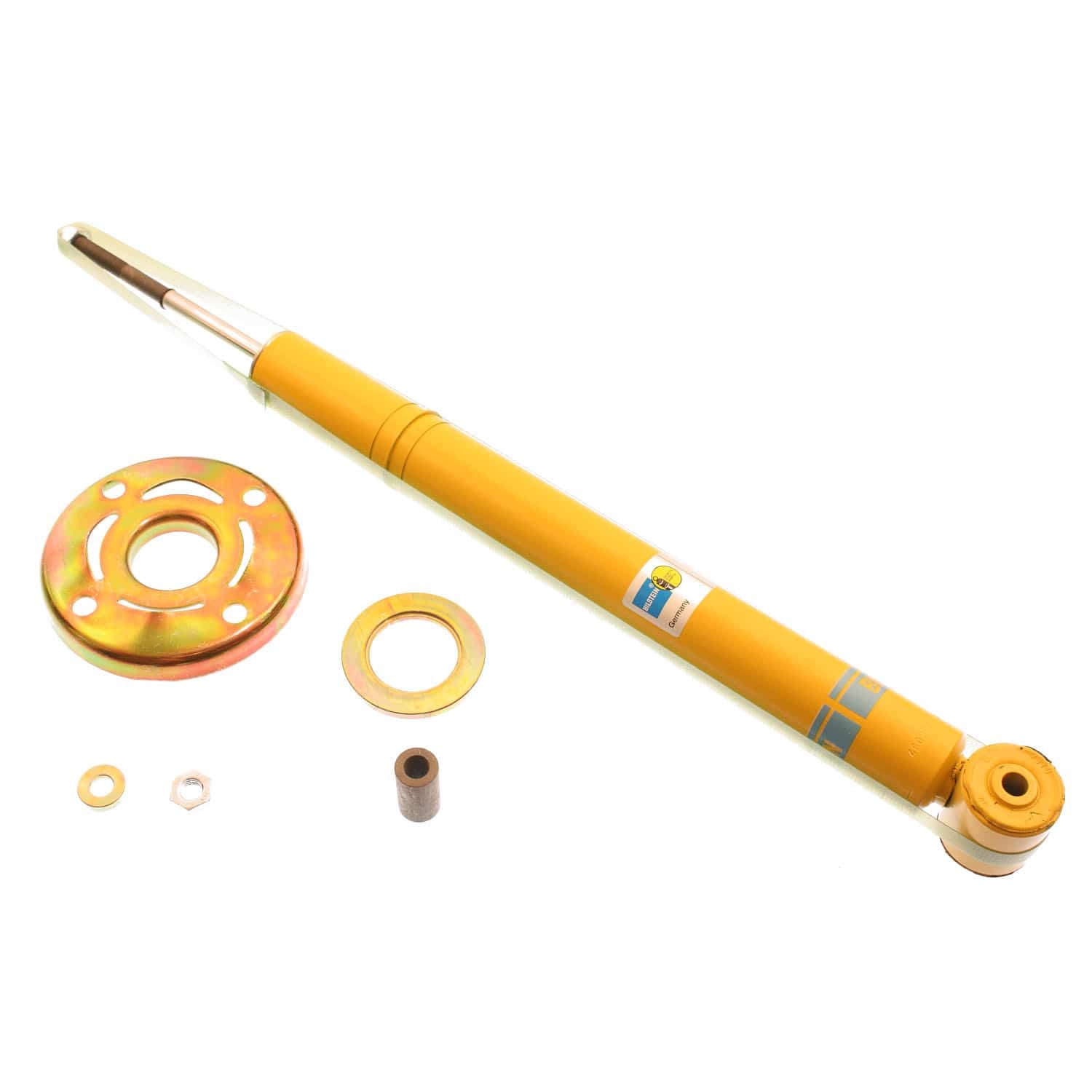

Bilstein Motorsports - Suspension Shock Absorber 24-006552
Specifications:
| Segment | Motorsports |
| Prop 65 (Y/N) | Y |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Position | Rear |
| Body Design | Smooth Body (Non-Coilover) |
| Compression @0.52m/s | 905 |
| Body Material | Steel |
| Extended Length (MM) | 627.5 |
| Body Diameter (ID) | 36mm |
| Internal Design | Monotube |
| Adjustable Damping | Non-Adjustable |
| Finish | Yellow Paint |
| Spring Hardware | N/A |
| Series | Motorsports |
| Lower Mount Type | Eye 10.2mm |
| Extended Length (IN) | 24.70 |

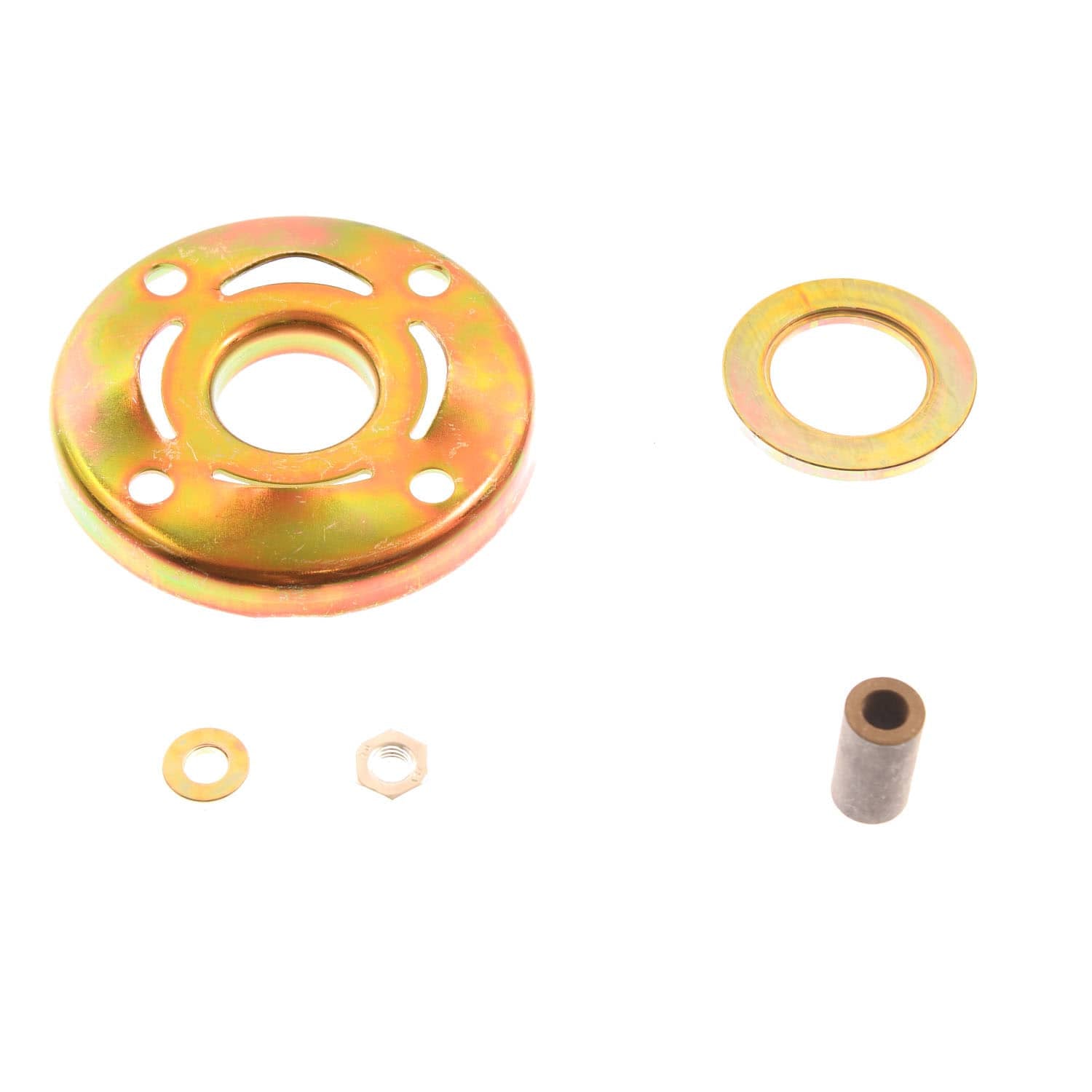

| Spring Seat Included | Yes |
| Collapsed Length (IN) | 16.61 |
| Title | Bilstein Shock Absorbers |
| Boot Included | No |
| Upper Mount Type | Stem |
| Piston Type | Linear |
| Rebound @0.52m/s | 2280 |
| Collapsed Length (MM) | 422.0 |
| PartType | Shocks / Struts |
| Description_INV | VW Golf 2;R;msp |
| Description_LAB | Motorsports - Suspension Shock Absorber |
| Description_ASM | Volkswagen Golf 1992-1985 |
| Description_MKT | Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance. |
| Description_SHO | Shock |
| Description_DEF | Suspension Shock Absorber |
| Description_DES | Motorsports - Suspension Shock Absorber |
| Description_EXT | 36mm Monotube Shock Absorber |
| Description_FAB | Larger working piston with deflective disc valving |
| Description_FAB | Larger working piston with deflective disc valving |
| Description_FAB | Monotube design ensures consistent, fade-free performance in all conditions |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1987 | Volkswagen | Golf | GL | |
| 1988 | Volkswagen | Golf | GL | |
| 1989 | Volkswagen | Golf | GL | |
| 1990 | Volkswagen | Golf | GL | |
| 1991 | Volkswagen | Golf | GL | |
| 1992 | Volkswagen | Golf | GL | |
| 1987 | Volkswagen | Golf | GT | |
| 1988 | Volkswagen | Golf | GT | |
| 1985 | Volkswagen | Golf | GTI | |
| 1986 | Volkswagen | Golf | GTI | |
| 1987 | Volkswagen | Golf | GTI | |
| 1987 | Volkswagen | Golf | GTI 16-Valve | |
| 1988 | Volkswagen | Golf | GTI 16-Valve | |
| 1989 | Volkswagen | Golf | GTI 16-Valve | |
| 1990 | Volkswagen | Golf | GTI 16-Valve | |
| 1991 | Volkswagen | Golf | GTI 16-Valve | |
| 1992 | Volkswagen | Golf | GTI 16-Valve | |
| 1990 | Volkswagen | Golf | GTI 8-Valve | |
| 1991 | Volkswagen | Golf | GTI 8-Valve | |
| 1992 | Volkswagen | Golf | GTI 8-Valve |
