Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

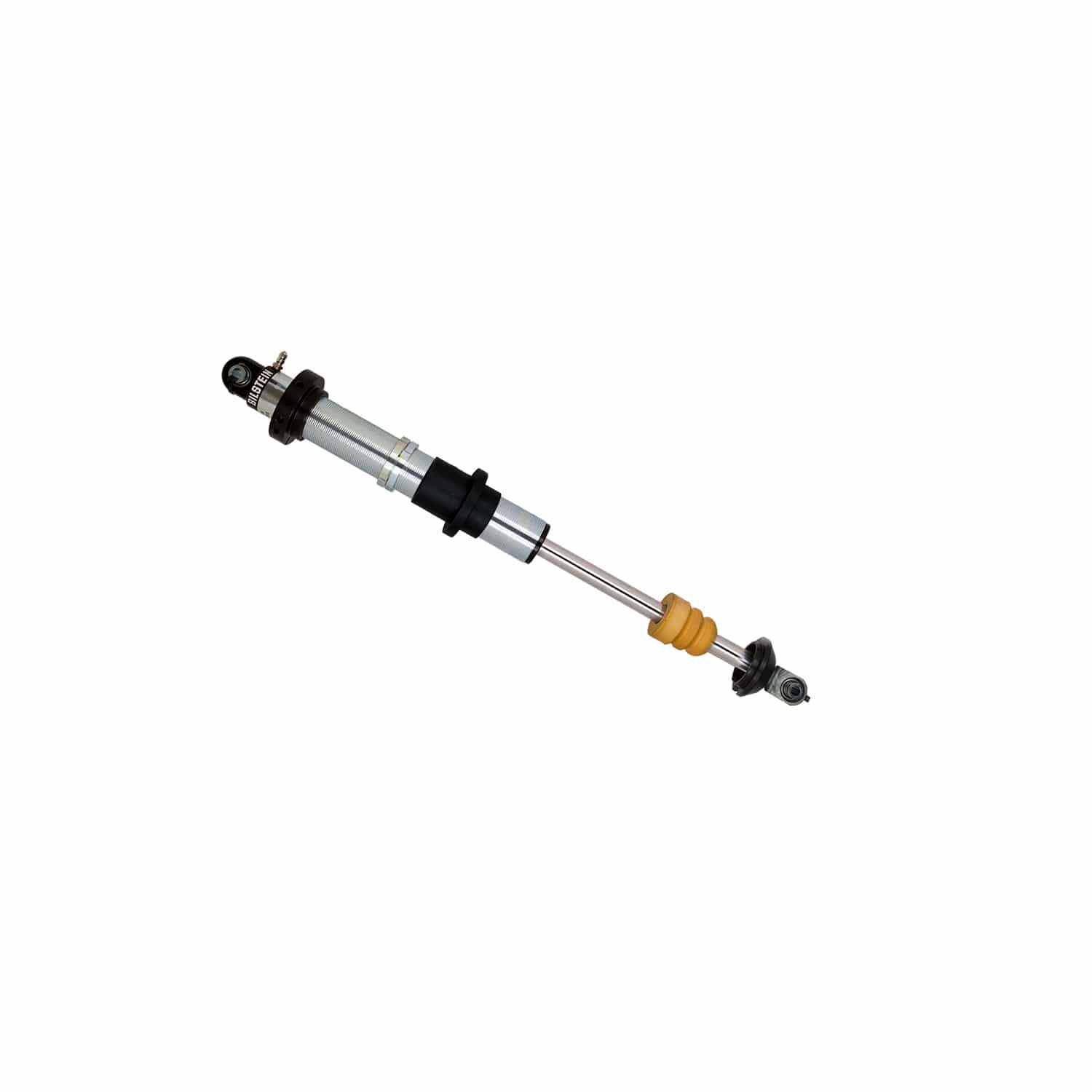

Bilstein M 9200 (Coil Carrier) - Suspension Shock Absorber 33-243535
Specifications:
| Lower Mount Type | Eye .5x1.5in |
| Extended Length (IN) Rounded | 27 |
| Collapsed Length (IN) Rounded | 17 |
| Internal Design | Monotube |
| Series | M 9200 (Coil Carrier) |
| Boot Included | N/A |
| Rebound @0.52m/s | Coil Carrier No Valving |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | Eye .5x1.5in |
| Extended Length (IN) | 27.00 |
| PartType | Shocks / Struts |
| Collapsed Length (IN) | 17.00 |
| Reservoir | Yes |
| Body Diameter (ID) | 46mm |
| Compression @0.52m/s | Coil Carrier No Valving |
| Collapsed Length (MM) | 431.8 |
| Mount Type | Eye-to-Eye |
| Finish | Zinc Plated |
| Optional Reservoir Clamp | N/A |
| Extended Length (MM) | 685.8 |
| Body Design | Threaded Body (Coilover) |
| Spring Seat Included | No |
| Prop 65 (Y/N) | Y |
| Segment | Motorsports |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Description_FAB | Designed to hold the coils in place |
| Description_DES | M 9200 (Coil Carrier) - Suspension Shock Absorber |
| Description_SHO | Shock |
| Description_INV | 46mm Coil-Carrier, 10", 9200 Series |
| Description_DEF | Suspension Shock Absorber |
| Description_LAB | M 9200 (Coil Carrier) - Suspension Shock Absorber |
| Description_ASM | No Applications |
| Description_EXT | 46mm Monotube Shock Absorber |
| Description_MKT | Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance. |
| Description_FAB | 46mm monotube design |
| Description_FAB | Designed to hold the coils in place |
