Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

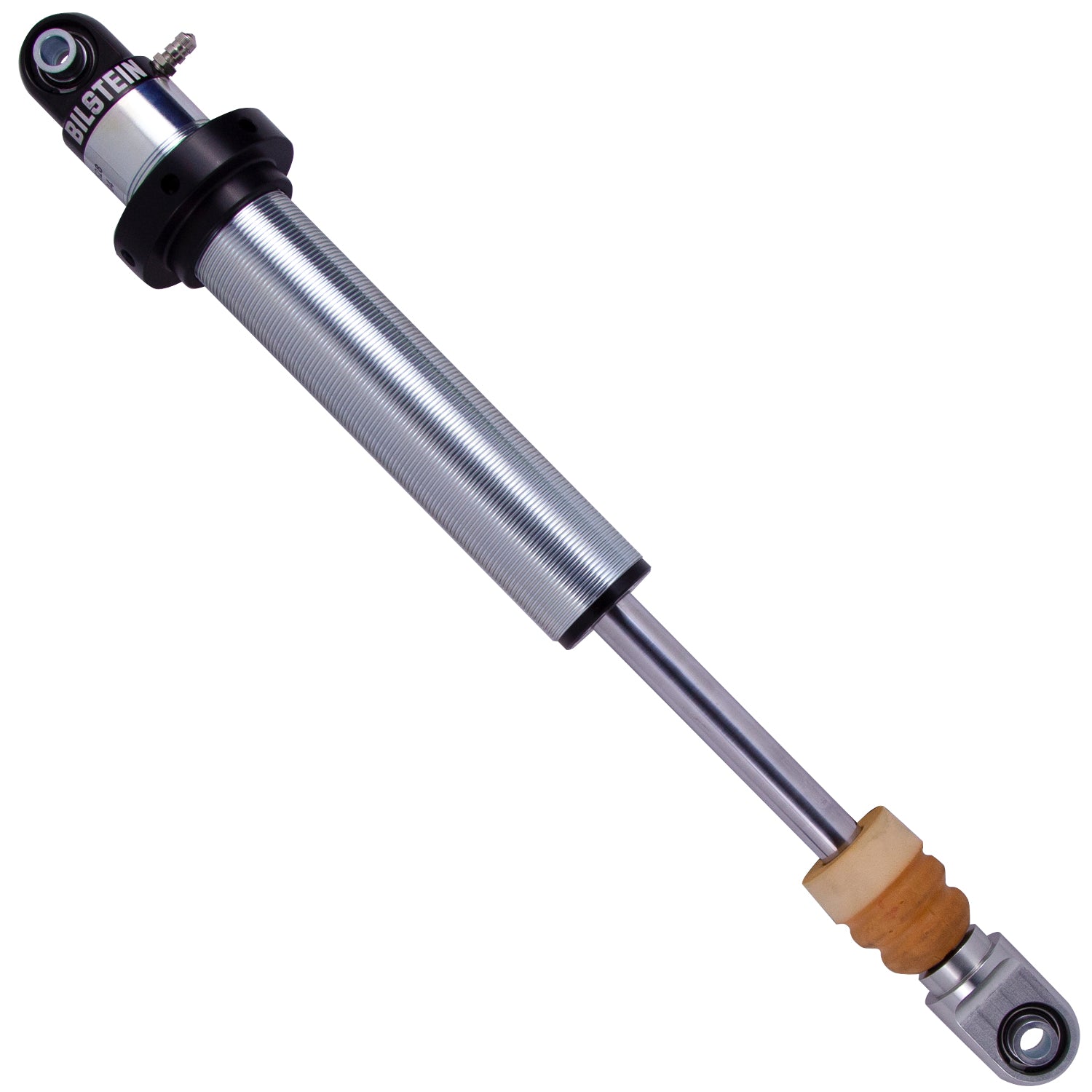

Bilstein M 9200 (Coil Carrier) - Suspension Shock Absorber 33-243528
Specifications:
| Lower Mount Type | Eye .5x1.5in |
| Mount Type | Eye-to-Eye |
| Reservoir | Yes |
| Collapsed Length (MM) | 381.0 |
| Extended Length (IN) Rounded | 23 |
| Boot Included | N/A |
| Compression @0.52m/s | Coil Carrier No Valving |
| Collapsed Length (IN) Rounded | 15 |
| Spring Seat Included | No |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | Eye .5x1.5in |
| Internal Design | Monotube |
| Extended Length (MM) | 584.2 |
| Finish | Zinc Plated |
| Extended Length (IN) | 23.00 |
| Series | M 9200 (Coil Carrier) |
| Body Diameter (ID) | 46mm |
| Optional Reservoir Clamp | N/A |
| Body Design | Threaded Body (Coilover) |
| Rebound @0.52m/s | Coil Carrier No Valving |
| Collapsed Length (IN) | 15.00 |
| PartType | Shocks / Struts |
| Segment | Motorsports |
| Prop 65 (Y/N) | Y |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Description_FAB | Designed to hold the coils in place |
| Description_ASM | No Applications |
| Description_EXT | 46mm Monotube Shock Absorber |
| Description_SHO | Shock |
| Description_INV | 46mm Coil-Carrier, 8", 9200 Series |
| Description_DEF | Suspension Shock Absorber |
| Description_LAB | M 9200 (Coil Carrier) - Suspension Shock Absorber |
| Description_DES | M 9200 (Coil Carrier) - Suspension Shock Absorber |
| Description_MKT | Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance. |
| Description_FAB | 46mm monotube design |
| Description_FAB | Designed to hold the coils in place |
