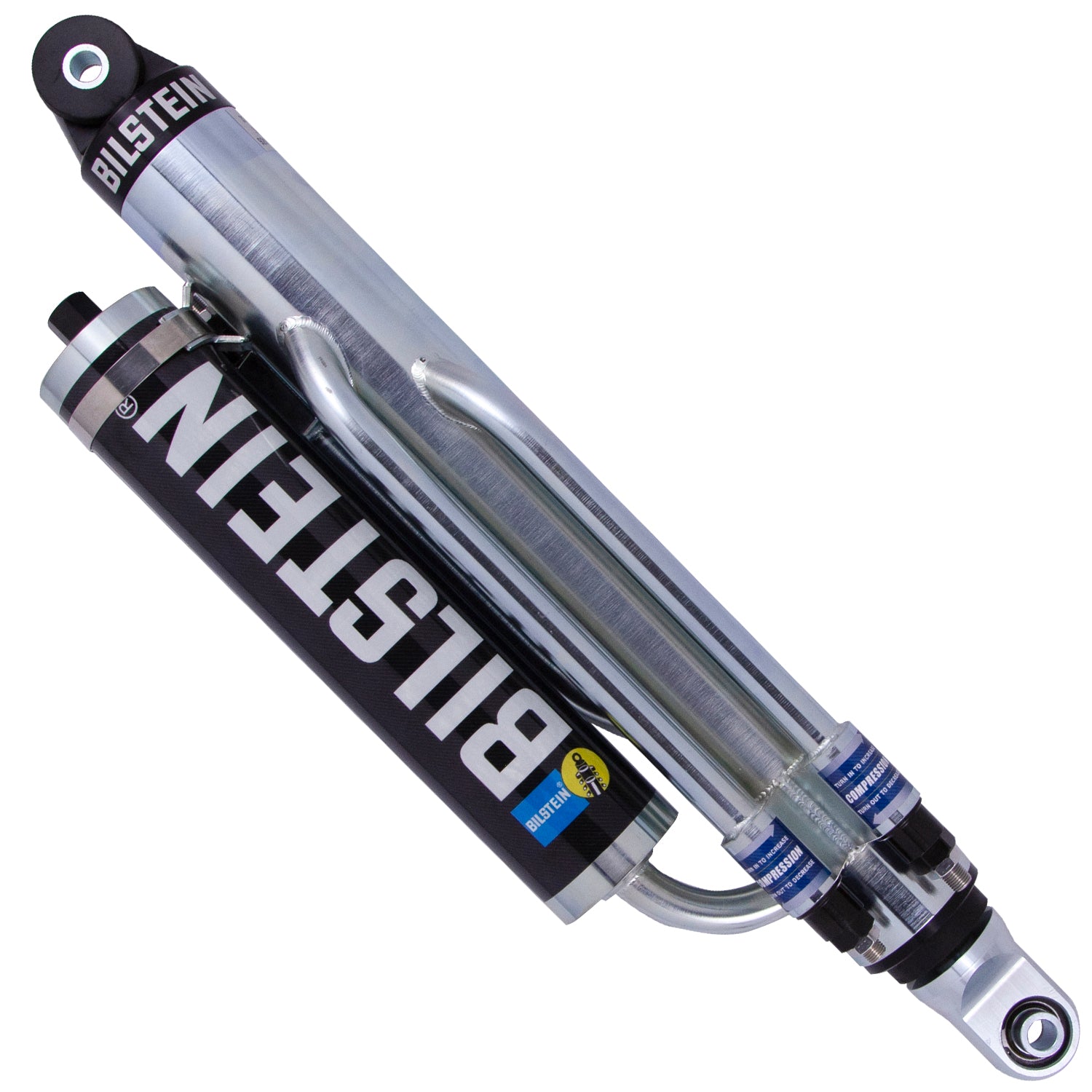

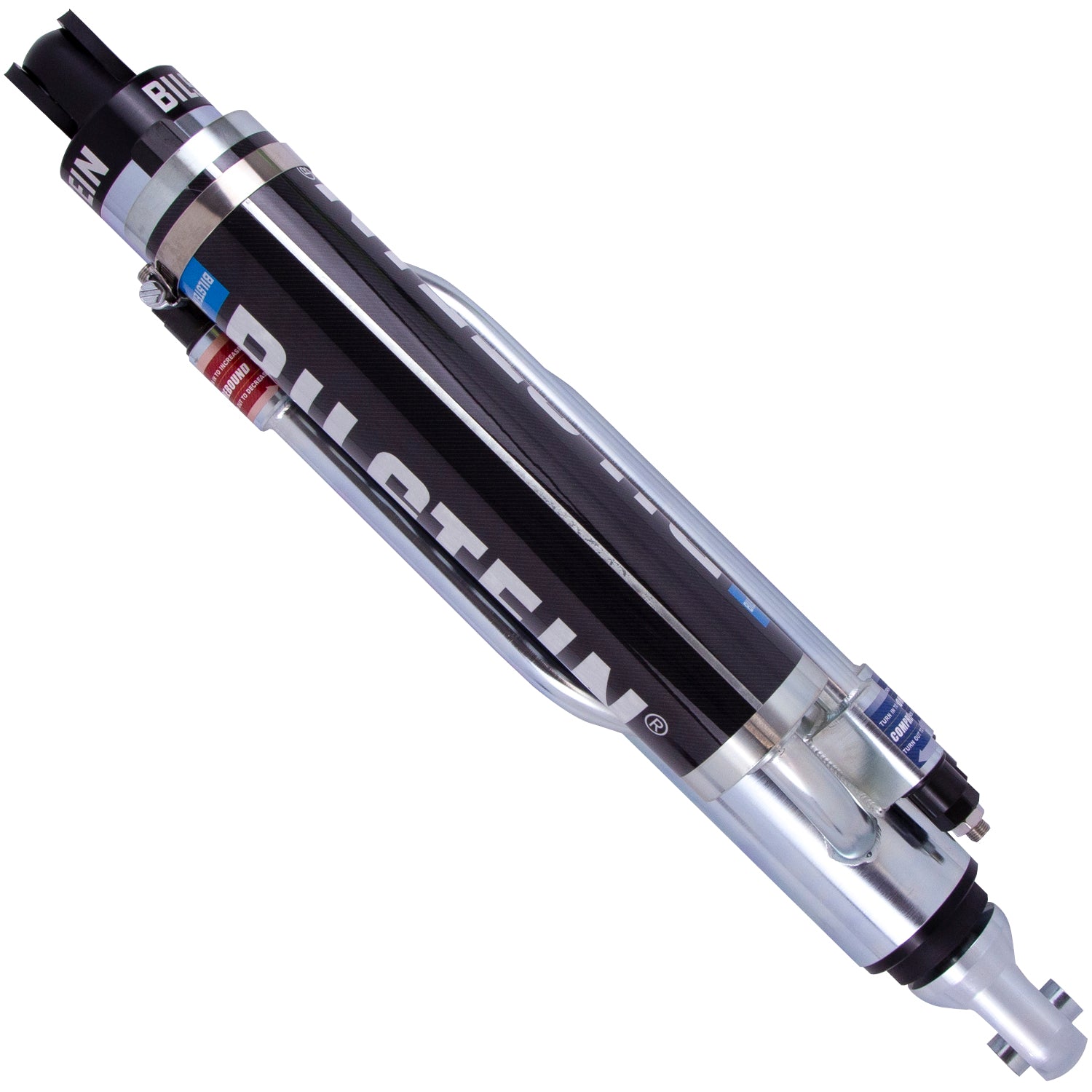

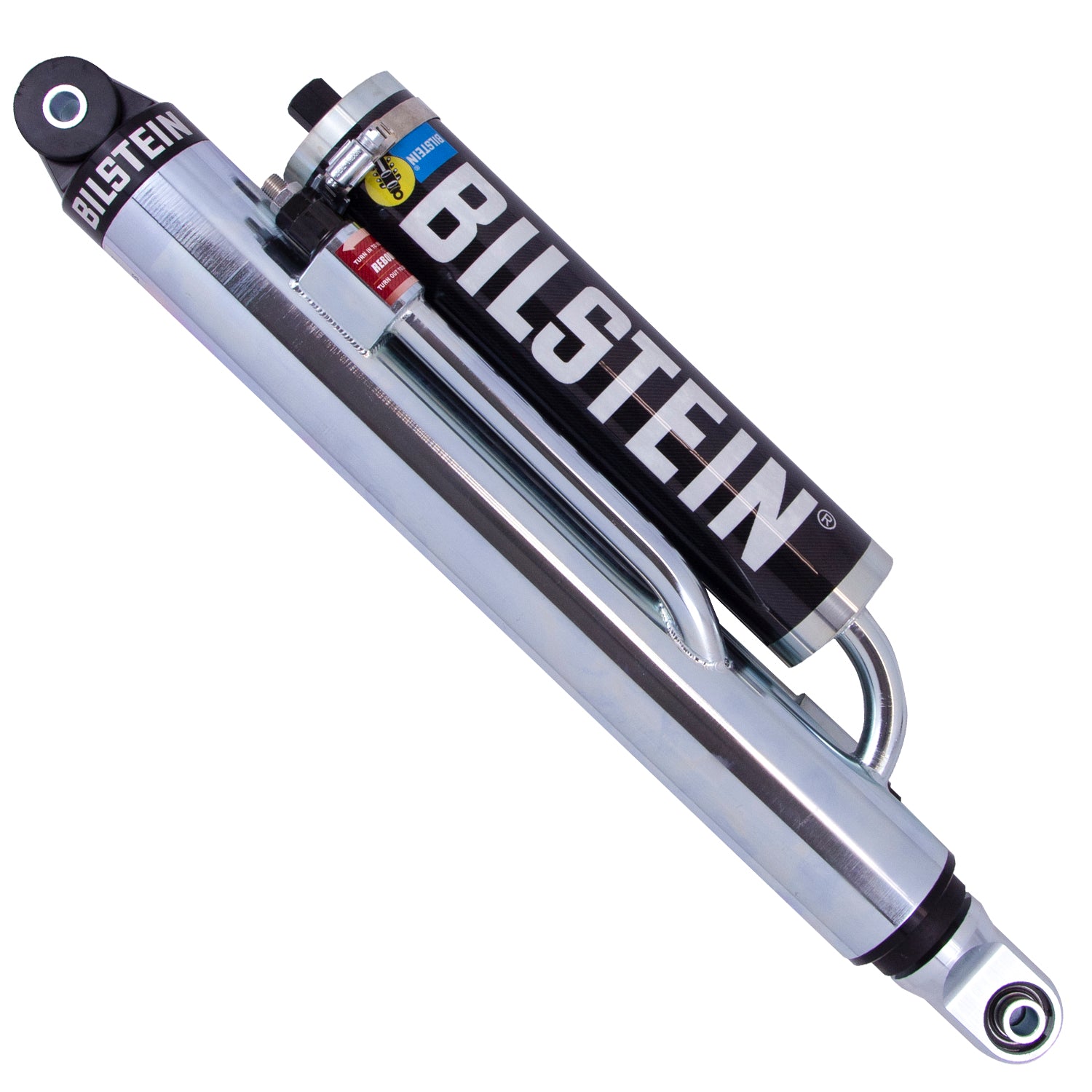

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
Bilstein M 9200 (Bypass) - Suspension Shock Absorber 33-269573
Specifications:
| Position | Right |
| Finish | Zinc Plated |
| Boot Included | N/A |
| Series | M 9200 (Bypass) |
| Collapsed Length (MM) | 546.1 |
| Extended Length (IN) Rounded | 34 |
| Collapsed Length (IN) Rounded | 22 |
| Optional Reservoir Clamp | N/A |
| Mount Type | Eye-to-Eye |
| Body Design | 3-Tube Bypass Screw Top |
| Spring Seat Included | No |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| PartType | Shocks / Struts |
| Title | Bilstein Shock Absorbers |
| Reservoir | Yes |
| Rebound @0.52m/s | Custom |
| Extended Length (MM) | 850.9 |
| Upper Mount Type | Eye .5x1.5in |
| Body Diameter (ID) | 60mm |
| Lower Mount Type | Eye .5x1.5in |
| Compression @0.52m/s | Custom |
| Internal Design | Monotube |
| Collapsed Length (IN) | 21.50 |
| Extended Length (IN) | 33.50 |
| Segment | Motorsports |
| Prop 65 (Y/N) | Y |
| Description_FAB | 4-tube, position sensitive with adjustable rebound and compression |
| Description_FAB | 4-tube, position sensitive with adjustable rebound and compression |
| Description_FAB | Available in 60mm, 70mm and 83mm monotubes |
| Description_SHO | Shock |
| Description_INV | 60mm, 3-Tube, 12" Stroke, Right, Stand |
| Description_DEF | Suspension Shock Absorber |
| Description_LAB | M 9200 (Bypass) - Suspension Shock Absorber |
| Description_DES | M 9200 (Bypass) - Suspension Shock Absorber |
| Description_ASM | No Applications |
| Description_EXT | 60mm Monotube Shock Absorber |
| Description_MKT | Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance. |
