*item may differ from images
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

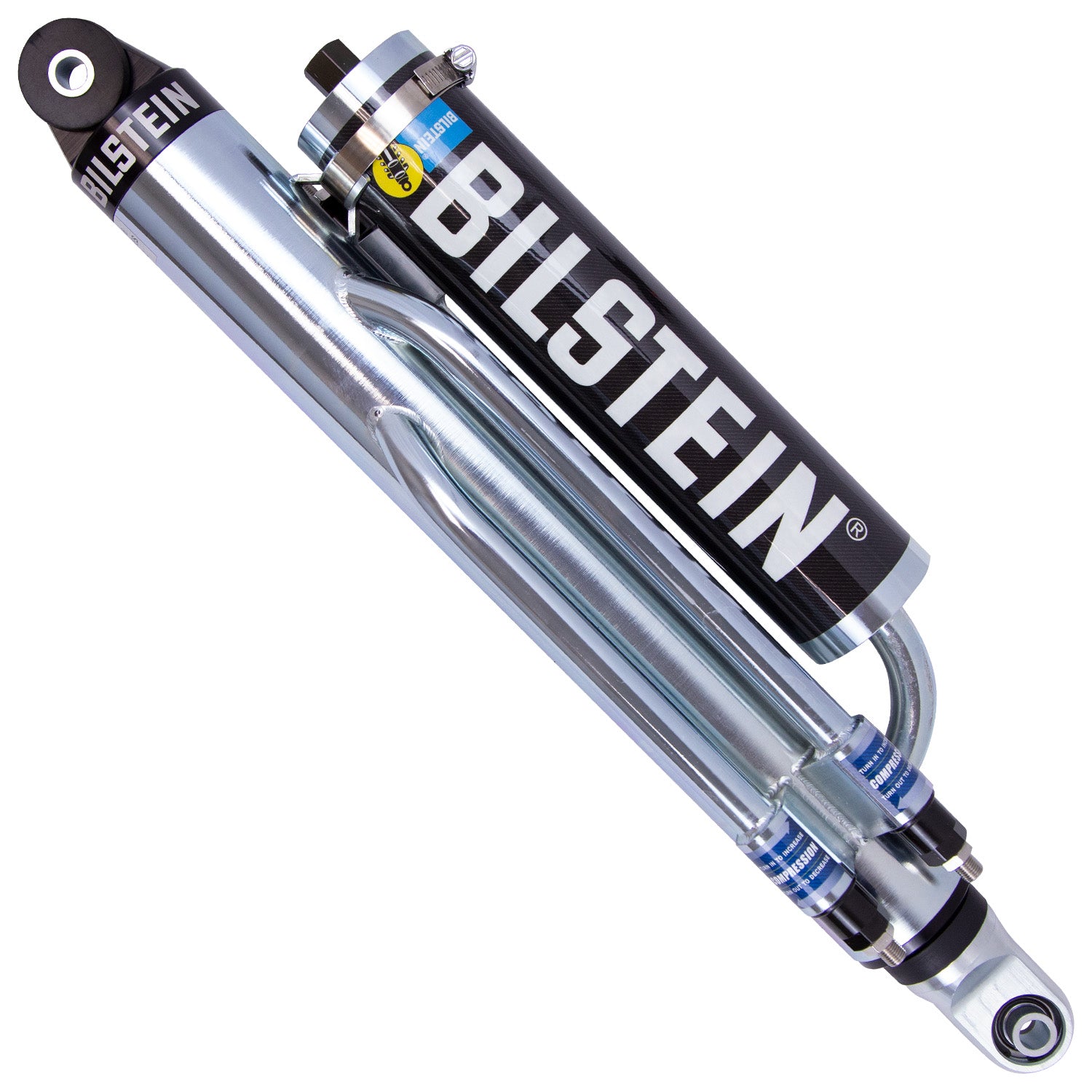

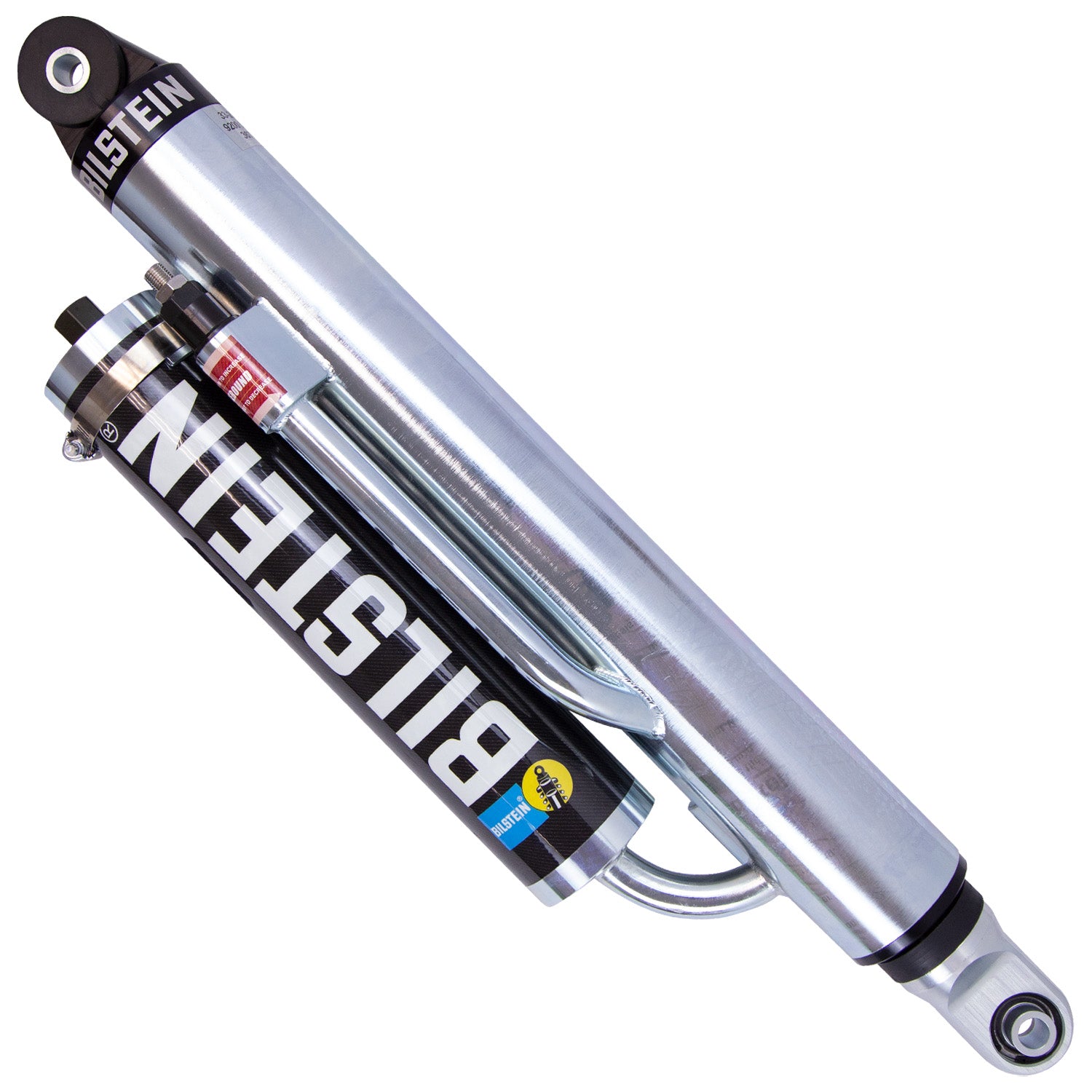

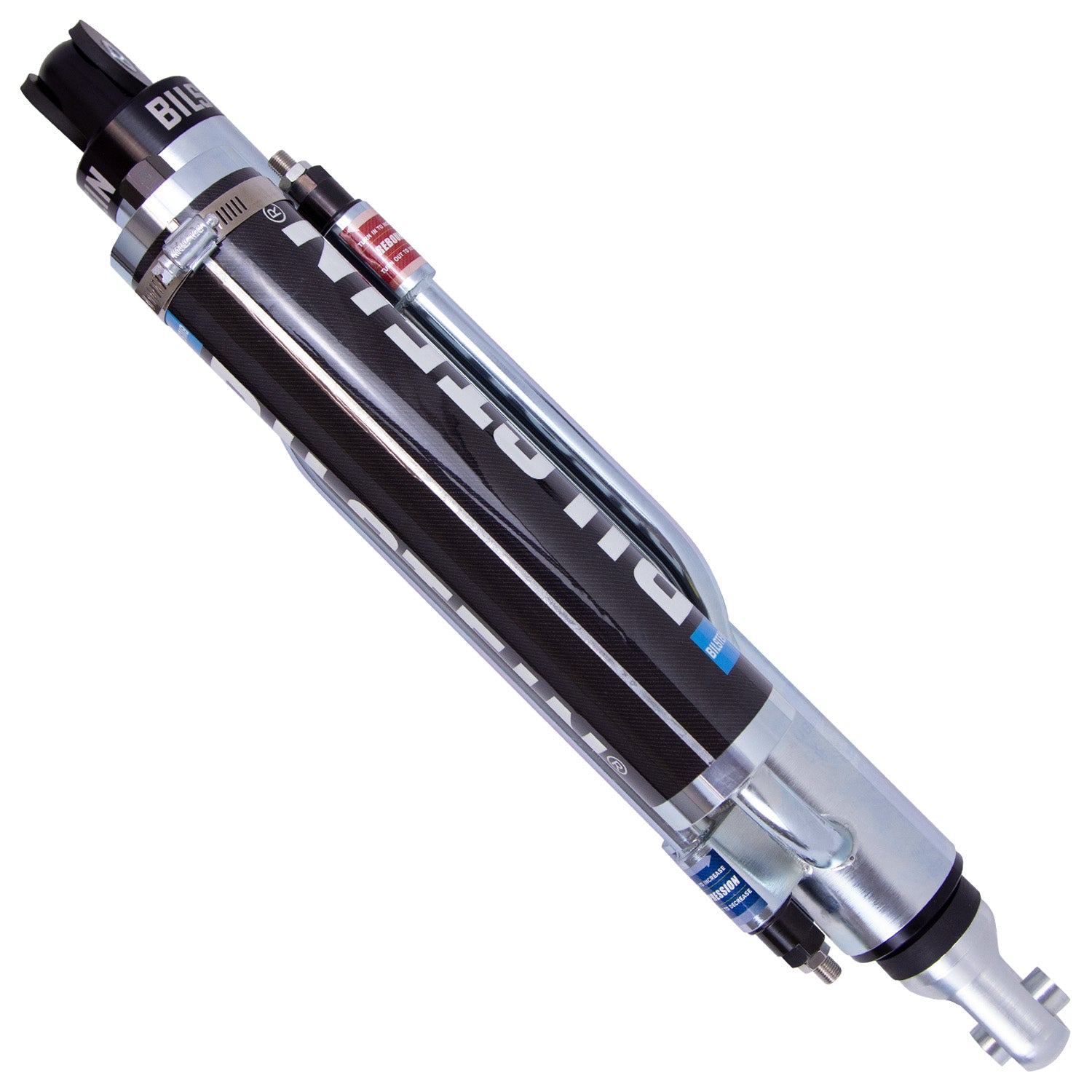

Bilstein M 9200 (Bypass) - Suspension Shock Absorber 33-269566
Specifications:
| PartType | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Internal Design | Monotube |
| Spring Seat Included | No |
| Mount Type | Eye-to-Eye |
| Reservoir | Yes |
| Series | M 9200 (Bypass) |
| Optional Reservoir Clamp | N/A |
| Body Diameter (ID) | 60mm |
| Extended Length (IN) | 33.50 |
| Upper Mount Type | Eye .5x1.5in |
| Position | Left |
| Compression @0.52m/s | Custom |
| Segment | Motorsports |
| Boot Included | N/A |
| Extended Length (IN) Rounded | 34 |
| Lower Mount Type | Eye .5x1.5in |
| Collapsed Length (IN) | 21.50 |
| Finish | Zinc Plated |
| Rebound @0.52m/s | Custom |
| Collapsed Length (IN) Rounded | 22 |
| Extended Length (MM) | 850.9 |
| Title | Bilstein Shock Absorbers |
| Collapsed Length (MM) | 546.1 |
| Body Design | 3-Tube Bypass Screw Top |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Description_FAB | 4-tube, position sensitive with adjustable rebound and compression |
| Description_FAB | 4-tube, position sensitive with adjustable rebound and compression |
| Description_FAB | Available in 60mm, 70mm and 83mm monotubes |
| Description_SHO | Shock |
| Description_INV | 60mm, 3-Tube, 12" Stroke, Left, Standard |
| Description_DEF | Suspension Shock Absorber |
| Description_LAB | M 9200 (Bypass) - Suspension Shock Absorber |
| Description_DES | M 9200 (Bypass) - Suspension Shock Absorber |
| Description_ASM | No Applications |
| Description_EXT | 60mm Monotube Shock Absorber |
| Description_MKT | Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance. |
