Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

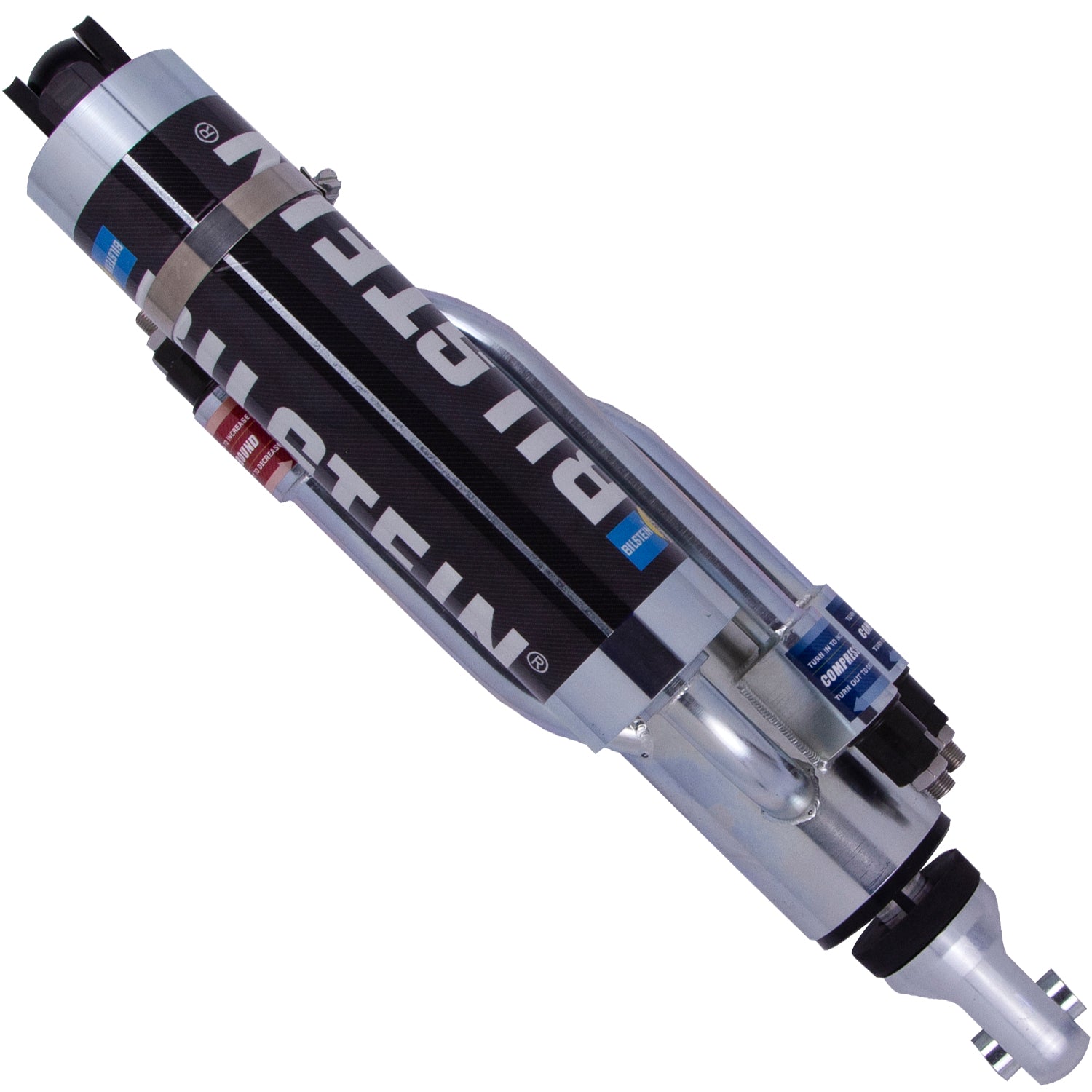

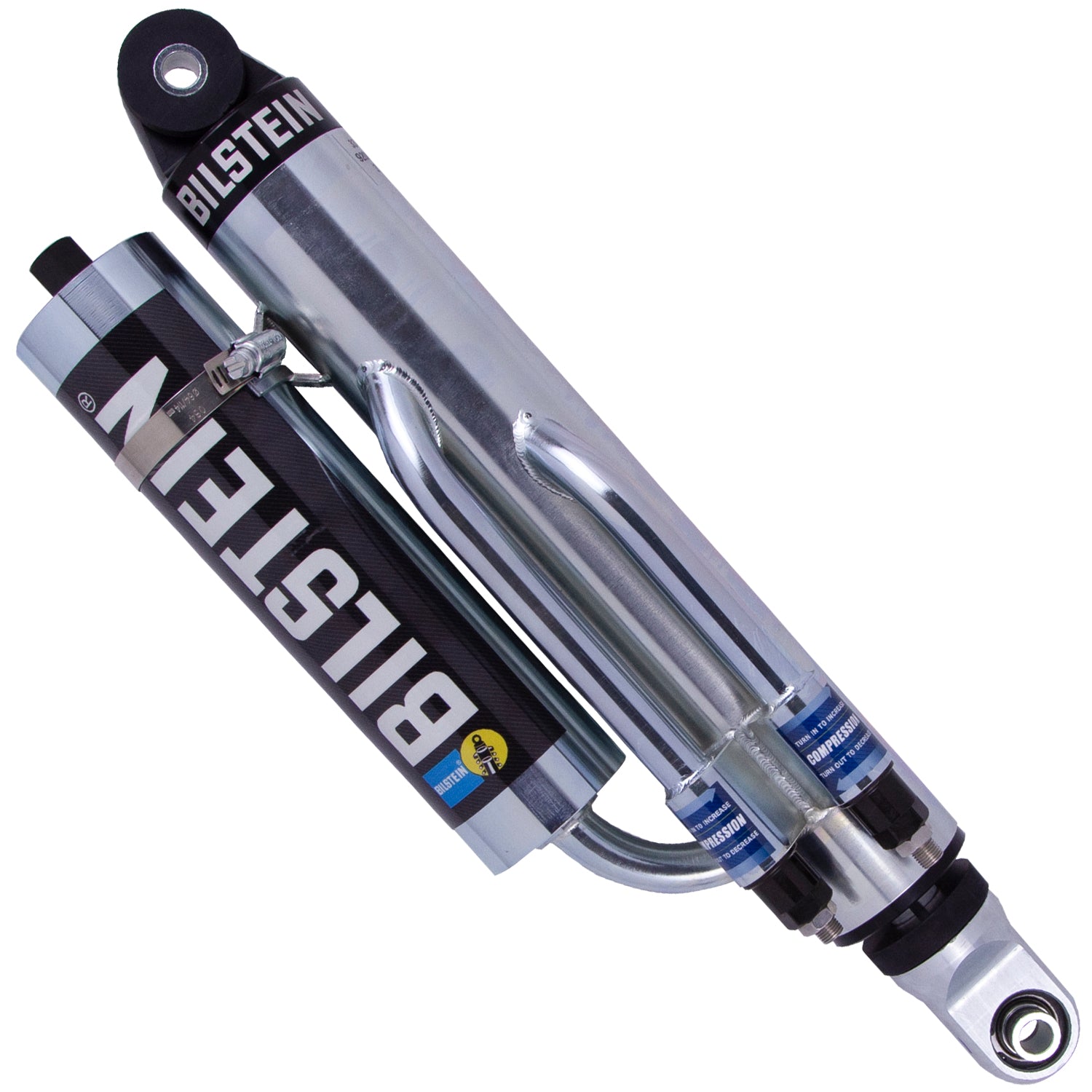

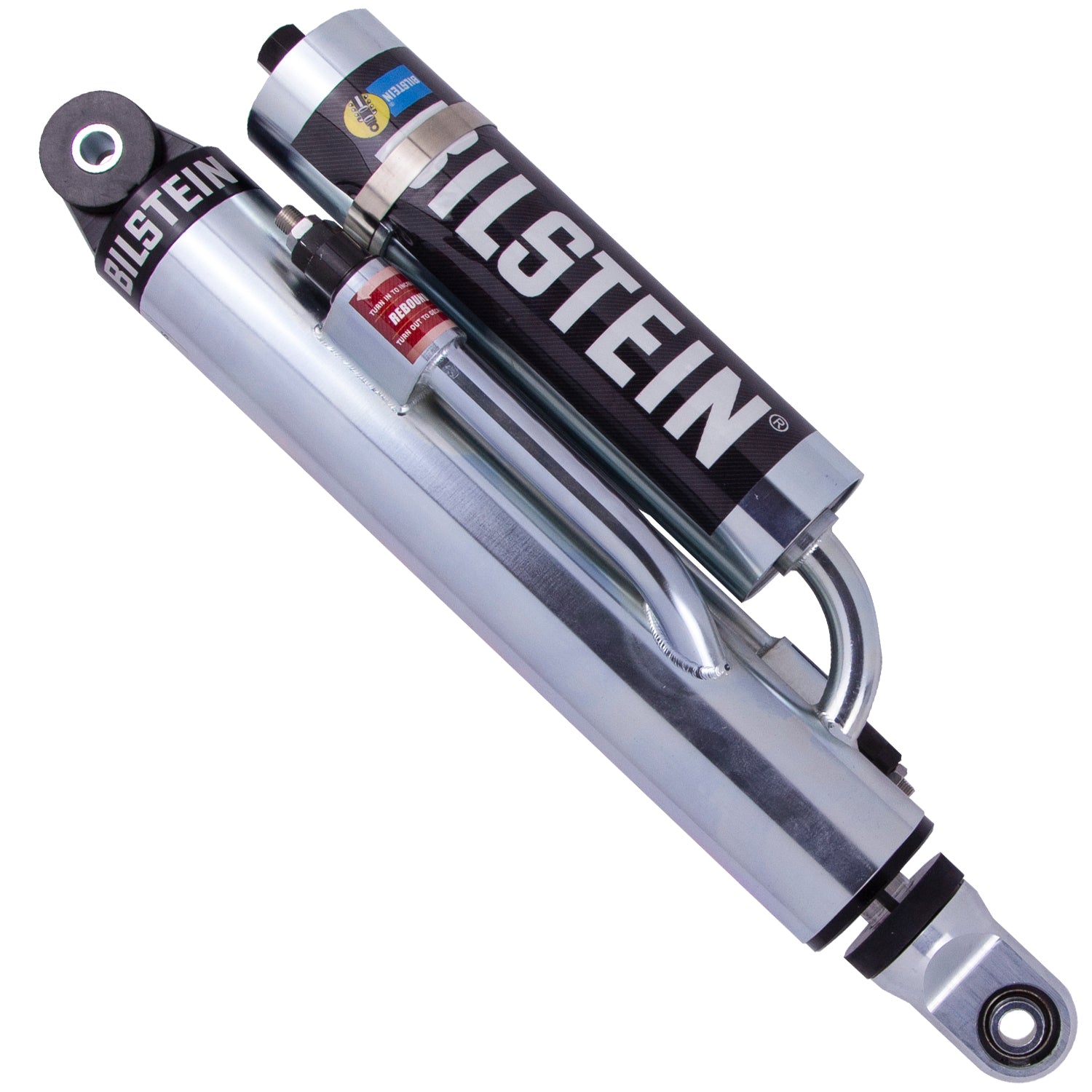

Bilstein M 9200 (Bypass) - Suspension Shock Absorber 33-269559
Specifications:
| Extended Length (IN) | 29.50 |
| Optional Reservoir Clamp | N/A |
| Upper Mount Type | Eye .5x1.5in |
| Body Diameter (ID) | 60mm |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Mount Type | Eye-to-Eye |
| Extended Length (IN) Rounded | 30 |
| Position | Right |
| Extended Length (MM) | 749.3 |
| Spring Seat Included | No |
| Finish | Zinc Plated |
| Collapsed Length (IN) | 19.50 |
| Boot Included | N/A |
| Collapsed Length (MM) | 495.3 |
| Series | M 9200 (Bypass) |
| Internal Design | Monotube |
| Compression @0.52m/s | Custom |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Prop 65 (Y/N) | Y |
| Body Design | 3-Tube Bypass Screw Top |
| Collapsed Length (IN) Rounded | 20 |
| Rebound @0.52m/s | Custom |
| Reservoir | Yes |
| Lower Mount Type | Eye .5x1.5in |
| Title | Bilstein Shock Absorbers |
| Description_FAB | 4-tube, position sensitive with adjustable rebound and compression |
| Description_FAB | 4-tube, position sensitive with adjustable rebound and compression |
| Description_FAB | Available in 60mm, 70mm and 83mm monotubes |
| Description_SHO | Shock |
| Description_DEF | Suspension Shock Absorber |
| Description_DES | M 9200 (Bypass) - Suspension Shock Absorber |
| Description_INV | 60mm, 3-Tube, 10" Stroke, Right, Stand |
| Description_LAB | M 9200 (Bypass) - Suspension Shock Absorber |
| Description_ASM | No Applications |
| Description_EXT | 60mm Monotube Shock Absorber |
| Description_MKT | Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance. |
