*item may differ from images
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

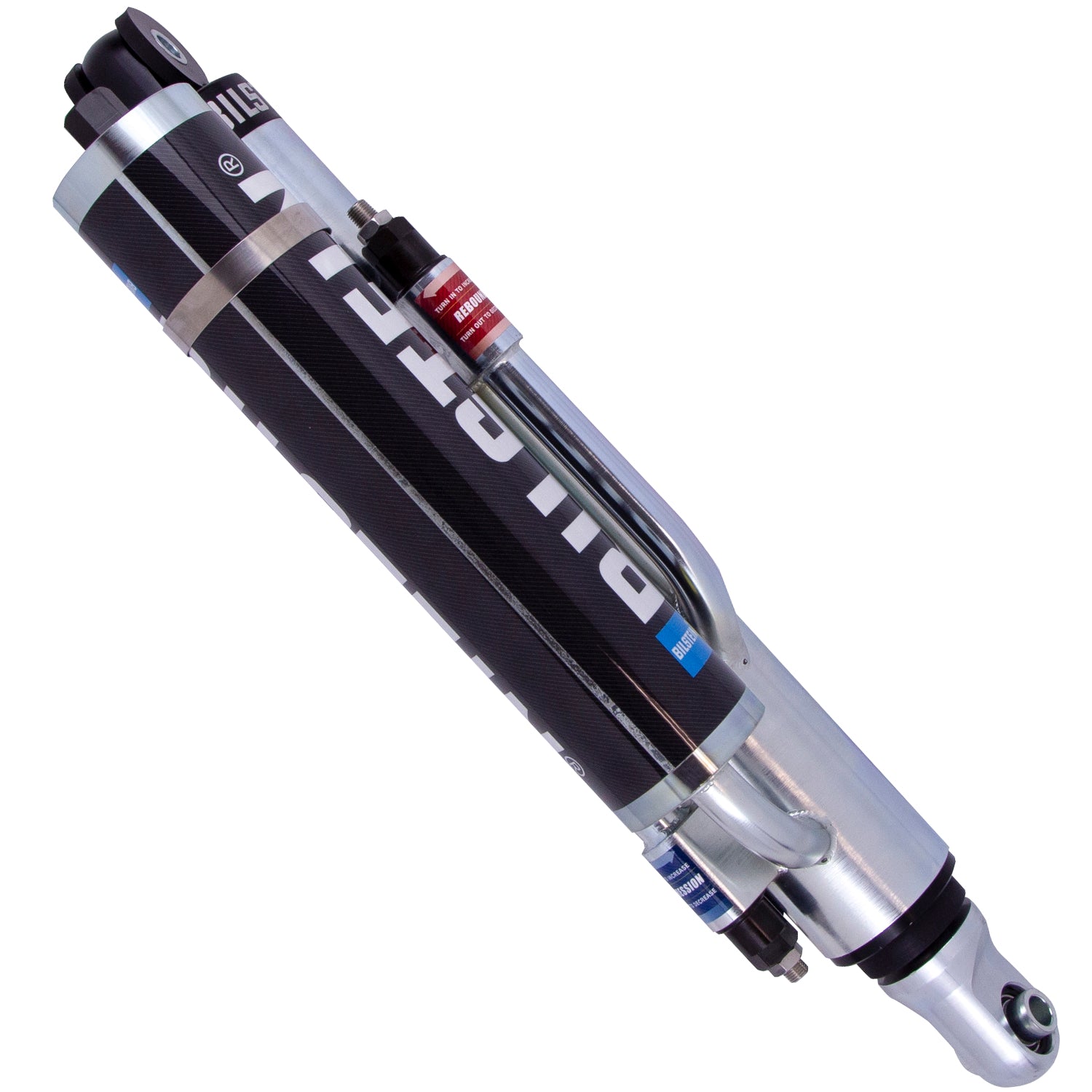

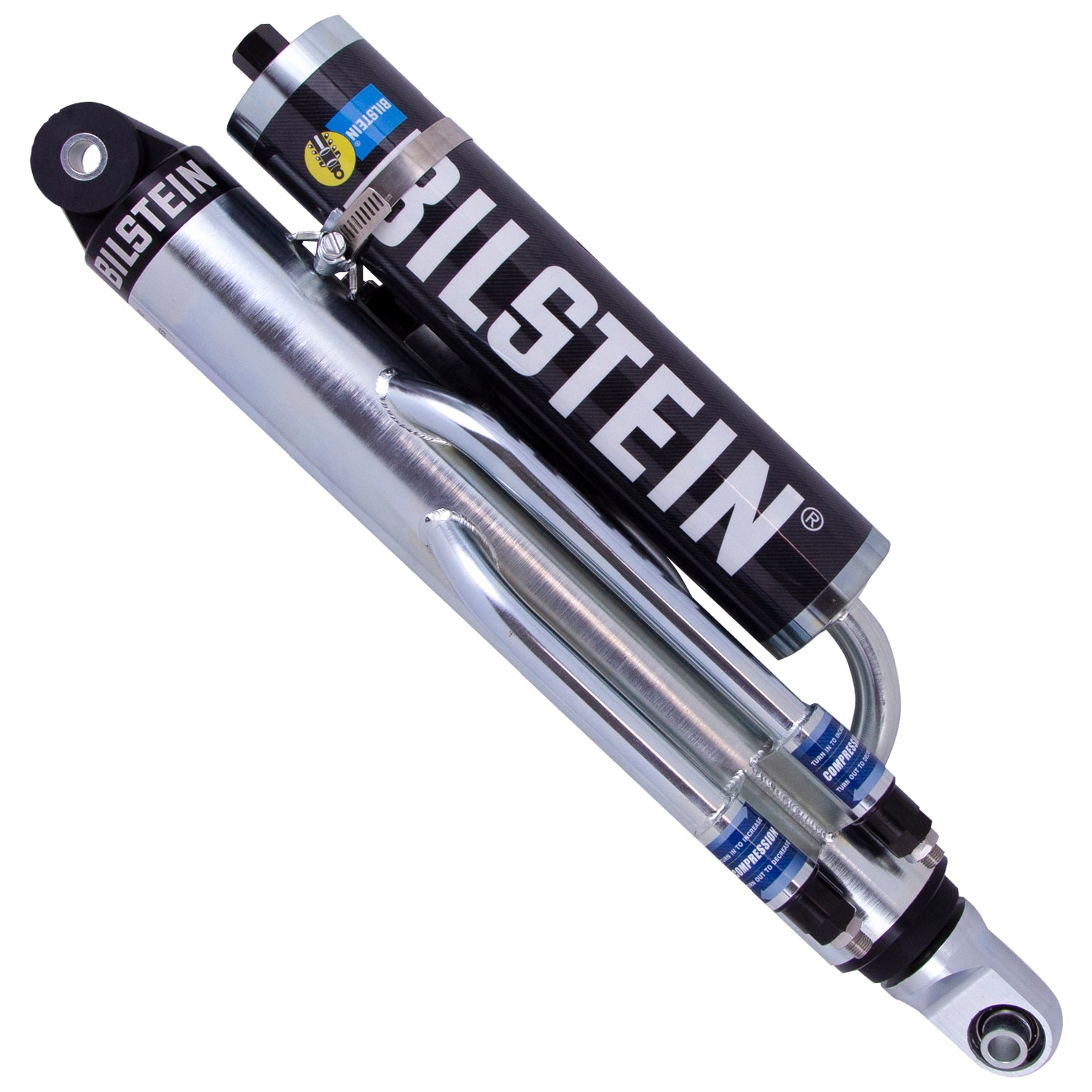

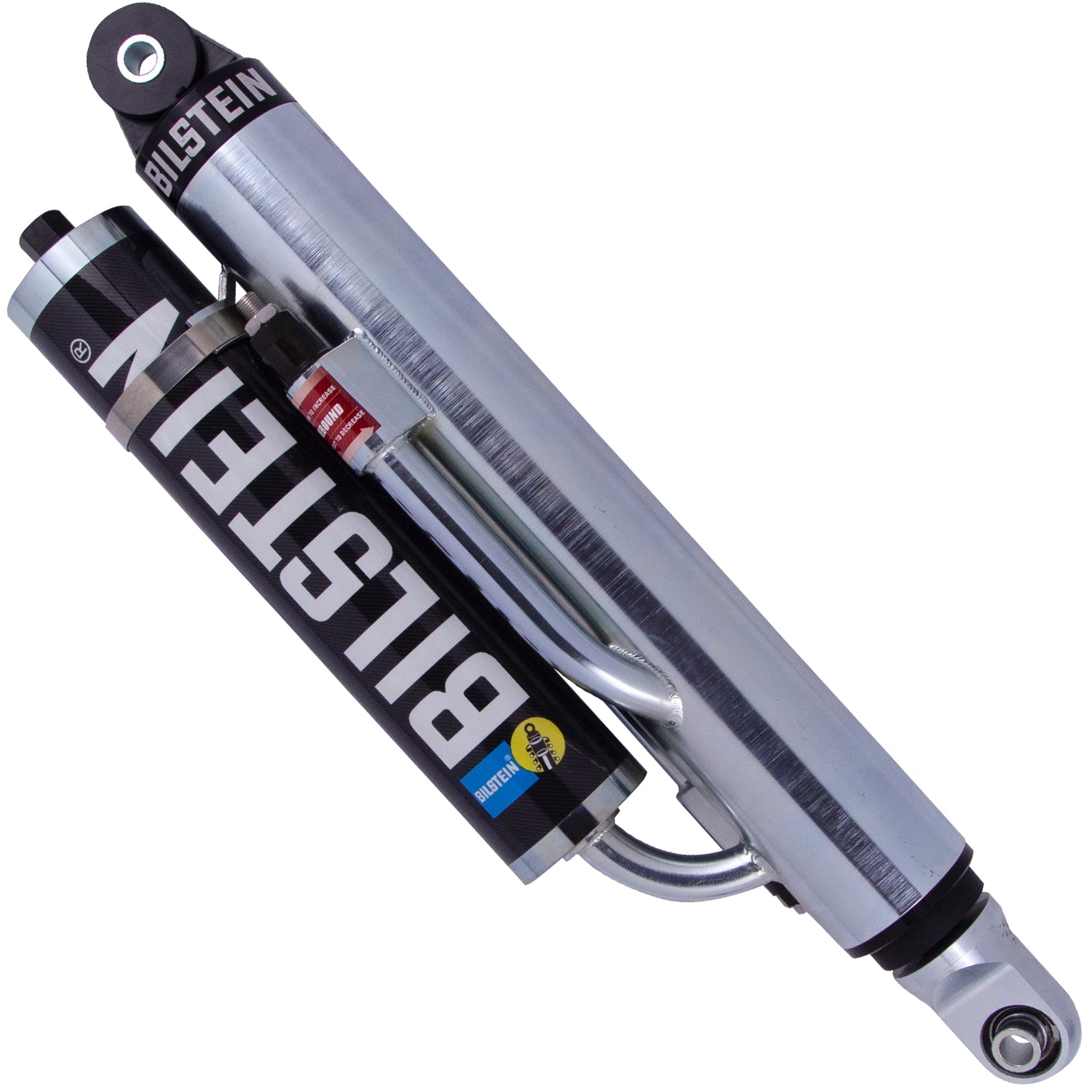

Bilstein M 9200 (Bypass) - Suspension Shock Absorber 33-269542
Specifications:
| PartType | Shocks / Struts |
| Segment | Motorsports |
| Prop 65 (Y/N) | Y |
| Title | Bilstein Shock Absorbers |
| Body Diameter (ID) | 60mm |
| Extended Length (IN) Rounded | 30 |
| Compression @0.52m/s | Custom |
| Internal Design | Monotube |
| Lower Mount Type | Eye .5x1.5in |
| Reservoir | Yes |
| Collapsed Length (IN) | 19.50 |
| Body Design | 3-Tube Bypass Screw Top |
| Position | Left |
| Series | M 9200 (Bypass) |
| Extended Length (MM) | 749.3 |
| Collapsed Length (MM) | 495.3 |
| Finish | Zinc Plated |
| Rebound @0.52m/s | Custom |
| Upper Mount Type | Eye .5x1.5in |
| Extended Length (IN) | 29.50 |
| Mount Type | Eye-to-Eye |
| Optional Reservoir Clamp | N/A |
| Spring Seat Included | No |
| Boot Included | N/A |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length (IN) Rounded | 20 |
| Description_FAB | 4-tube, position sensitive with adjustable rebound and compression |
| Description_FAB | 4-tube, position sensitive with adjustable rebound and compression |
| Description_FAB | Available in 60mm, 70mm and 83mm monotubes |
| Description_INV | 60mm, 3-Tube, 10" Stroke, Left, Standard |
| Description_LAB | M 9200 (Bypass) - Suspension Shock Absorber |
| Description_ASM | No Applications |
| Description_MKT | Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance. |
| Description_SHO | Shock |
| Description_DEF | Suspension Shock Absorber |
| Description_DES | M 9200 (Bypass) - Suspension Shock Absorber |
| Description_EXT | 60mm Monotube Shock Absorber |
