Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

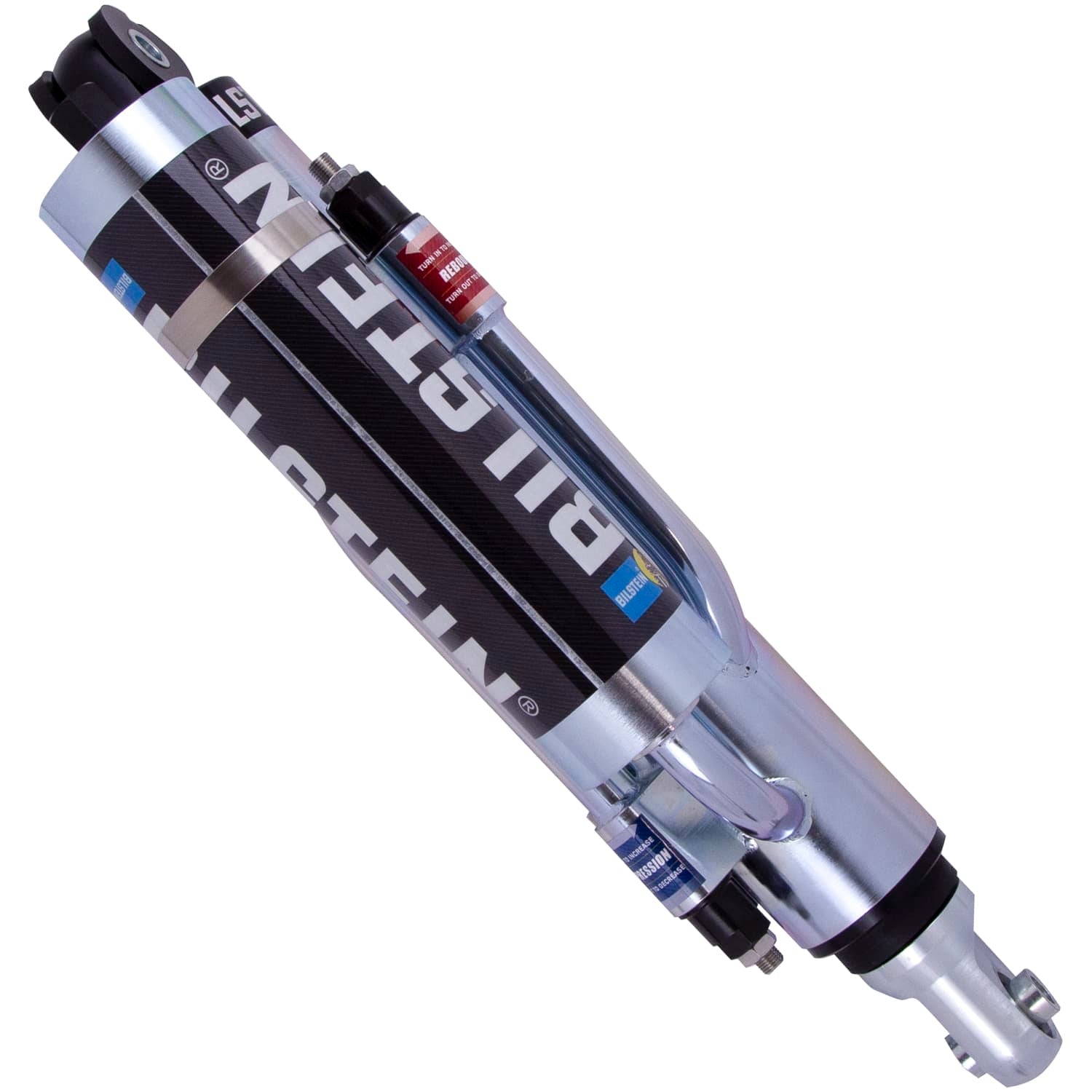

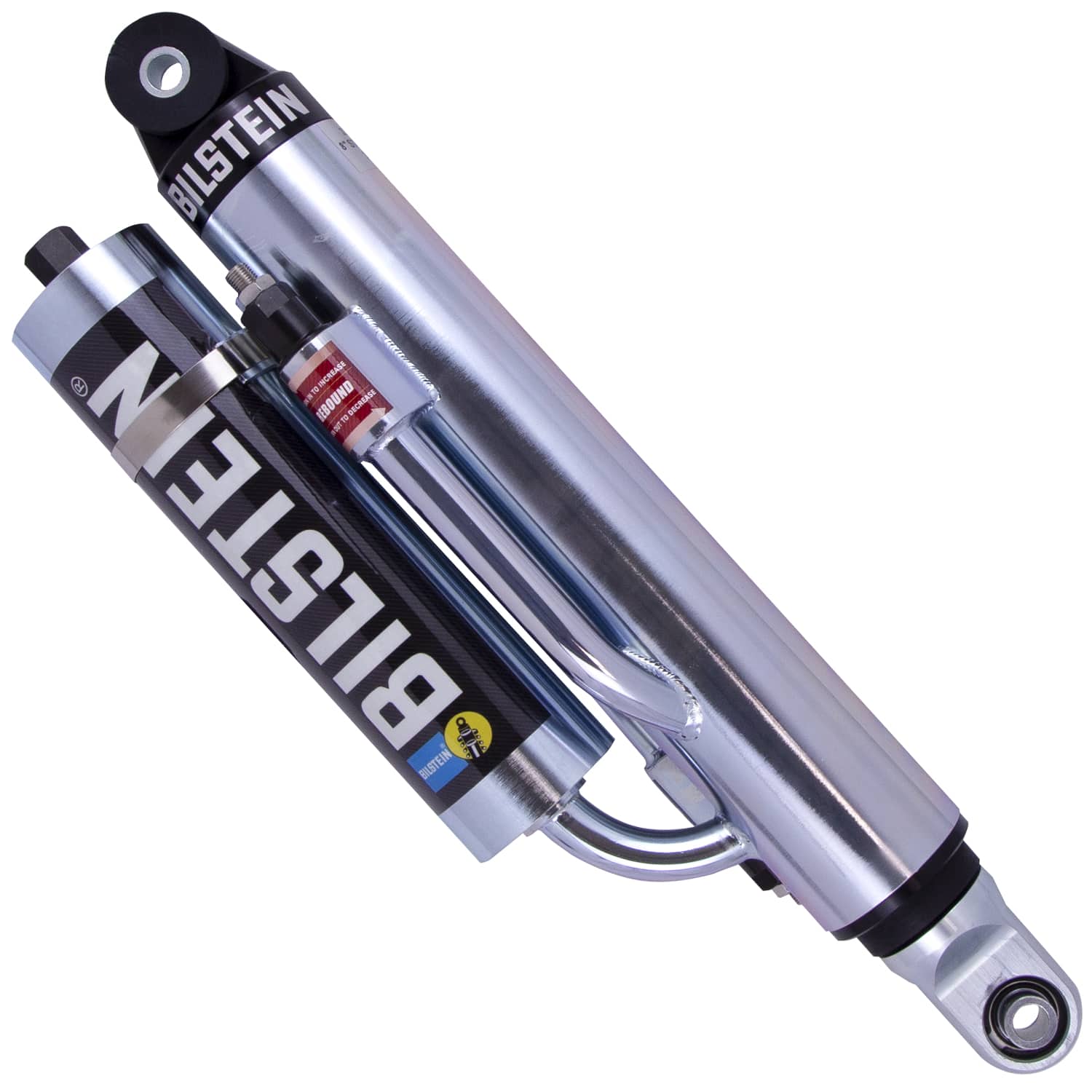

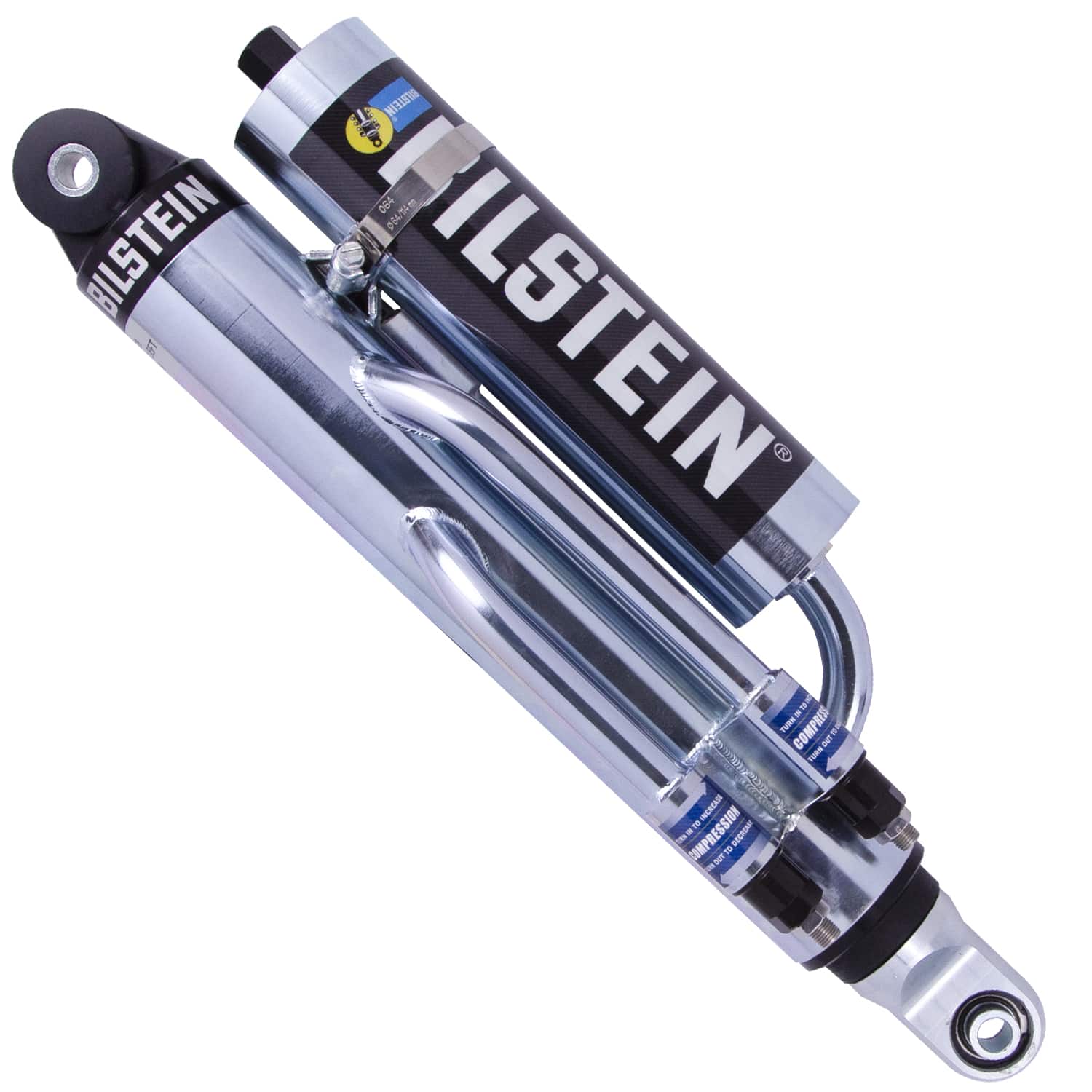

Bilstein M 9200 (Bypass) - Suspension Shock Absorber 33-269528
Specifications:
| PartType | Shocks / Struts |
| Segment | Motorsports |
| Prop 65 (Y/N) | Y |
| Optional Reservoir Clamp | N/A |
| Reservoir | Yes |
| Lower Mount Type | Eye .5x1.5in |
| Upper Mount Type | Eye .5x1.5in |
| Extended Length (IN) Rounded | 26 |
| Rebound @0.52m/s | Custom |
| Finish | Zinc Plated |
| Mount Type | Eye-to-Eye |
| Extended Length (MM) | 647.7 |
| Collapsed Length (MM) | 444.5 |
| Position | Left |
| Title | Bilstein Shock Absorbers |
| Compression @0.52m/s | Custom |
| Body Diameter (ID) | 60mm |
| Series | M 9200 (Bypass) |
| Collapsed Length (IN) Rounded | 18 |
| Collapsed Length (IN) | 17.50 |
| Spring Seat Included | No |
| Extended Length (IN) | 25.50 |
| Boot Included | N/A |
| Internal Design | Monotube |
| Body Design | 3-Tube Bypass Screw Top |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Description_FAB | 4-tube, position sensitive with adjustable rebound and compression |
| Description_FAB | 4-tube, position sensitive with adjustable rebound and compression |
| Description_SHO | Shock |
| Description_DEF | Suspension Shock Absorber |
| Description_DES | M 9200 (Bypass) - Suspension Shock Absorber |
| Description_EXT | 60mm Monotube Shock Absorber |
| Description_FAB | Available in 60mm, 70mm and 83mm monotubes |
| Description_INV | 60mm, 3-Tube, 8" Stroke, Left, Standard |
| Description_LAB | M 9200 (Bypass) - Suspension Shock Absorber |
| Description_ASM | No Applications |
| Description_MKT | Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance. |
