Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

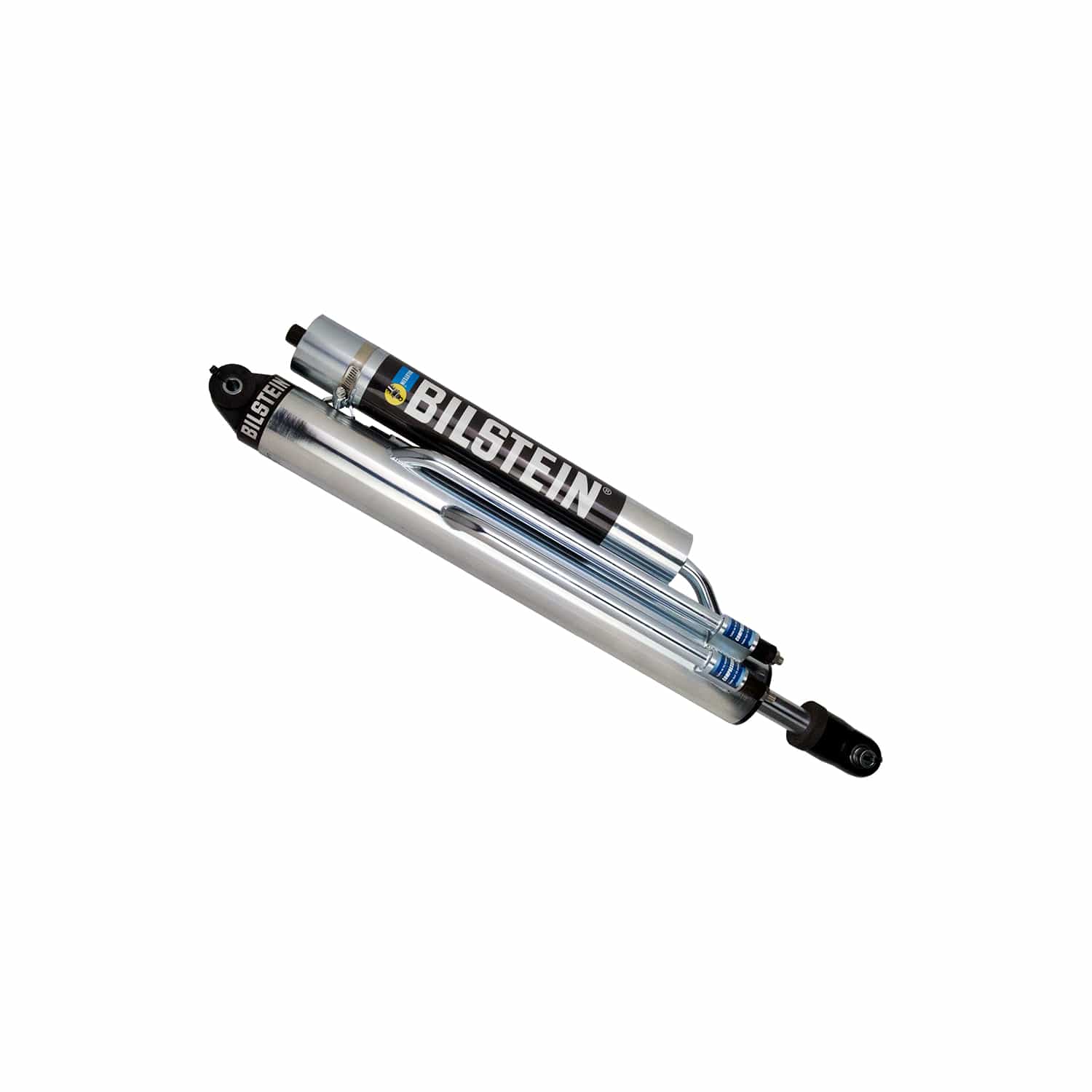

Bilstein M 9200 (Bypass) - Suspension Shock Absorber 33-250809
Specifications:
| Extended Length (IN) Rounded | 43 |
| Collapsed Length (IN) Rounded | 27 |
| Reservoir | Yes |
| Extended Length (MM) | 1079.5 |
| Prop 65 (Y/N) | Y |
| Segment | Motorsports |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| PartType | Shocks / Struts |
| Optional Reservoir Clamp | N/A |
| Extended Length (IN) | 42.50 |
| Body Design | 4-Tube Bypass Screw Top |
| Boot Included | N/A |
| Mount Type | Eye-to-Eye |
| Collapsed Length (MM) | 673.1 |
| Finish | Zinc Plated |
| Spring Seat Included | No |
| Body Diameter (ID) | 70mm |
| Rebound @0.52m/s | Custom |
| Title | Bilstein Shock Absorbers |
| Lower Mount Type | Eye .5x1.5in |
| Position | Left |
| Collapsed Length (IN) | 26.50 |
| Compression @0.52m/s | Custom |
| Internal Design | Monotube |
| Series | M 9200 (Bypass) |
| Upper Mount Type | Eye .5x1.5in |
| Description_FAB | 4-tube, position sensitive with adjustable rebound and compression |
| Description_FAB | 4-tube, position sensitive with adjustable rebound and compression |
| Description_SHO | Shock |
| Description_INV | 70mm, 4 Tube Bypass, 16" Stroke, Left |
| Description_DEF | Suspension Shock Absorber |
| Description_LAB | M 9200 (Bypass) - Suspension Shock Absorber |
| Description_DES | M 9200 (Bypass) - Suspension Shock Absorber |
| Description_ASM | No Applications |
| Description_EXT | 70mm Monotube Shock Absorber |
| Description_MKT | Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance. |
| Description_FAB | Available in 60mm, 70mm and 83mm monotubes |
