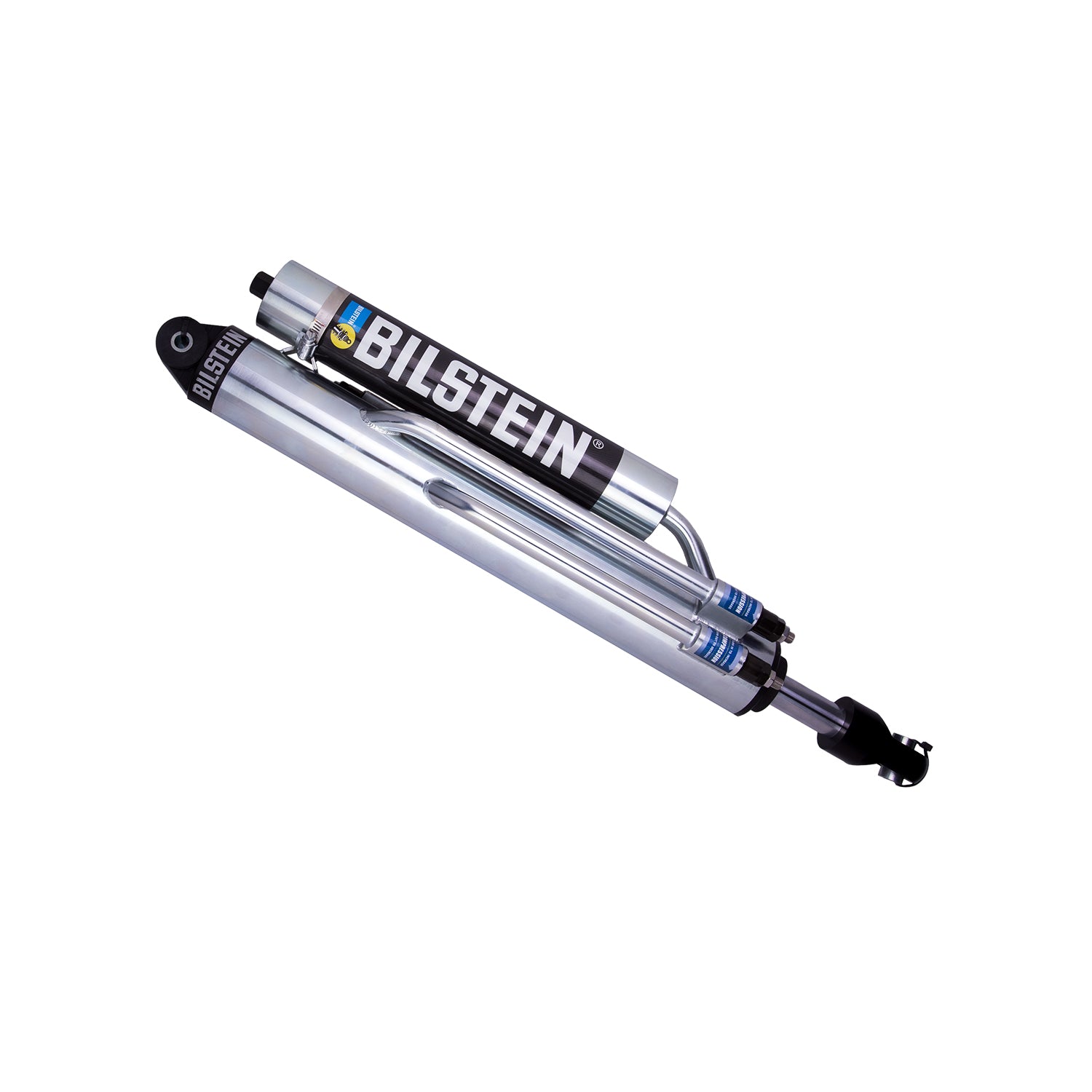

*item may differ from images
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
Bilstein M 9200 (Bypass) - Suspension Shock Absorber 33-250786
Specifications:
| Extended Length (MM) | 977.9 |
| Body Diameter (ID) | 70mm |
| Spring Seat Included | No |
| Collapsed Length (IN) | 24.50 |
| Lower Mount Type | Eye .5x1.5in |
| Rebound @0.52m/s | Custom |
| Reservoir | Yes |
| Series | M 9200 (Bypass) |
| Compression @0.52m/s | Custom |
| Optional Reservoir Clamp | N/A |
| Body Design | 4-Tube Bypass Screw Top |
| Title | Bilstein Shock Absorbers |
| Position | Left |
| Boot Included | N/A |
| Internal Design | Monotube |
| Collapsed Length (IN) Rounded | 25 |
| Collapsed Length (MM) | 622.3 |
| Extended Length (IN) Rounded | 39 |
| Upper Mount Type | Eye .5x1.5in |
| Extended Length (IN) | 38.50 |
| Prop 65 (Y/N) | Y |
| Segment | Motorsports |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| PartType | Shocks / Struts |
| Finish | Zinc Plated |
| Mount Type | Eye-to-Eye |
| Description_FAB | 4-tube, position sensitive with adjustable rebound and compression |
| Description_FAB | 4-tube, position sensitive with adjustable rebound and compression |
| Description_SHO | Shock |
| Description_INV | 70mm, 4 Tube Bypass, 14" Stroke, Left |
| Description_DEF | Suspension Shock Absorber |
| Description_LAB | M 9200 (Bypass) - Suspension Shock Absorber |
| Description_DES | M 9200 (Bypass) - Suspension Shock Absorber |
| Description_ASM | No Applications |
| Description_EXT | 70mm Monotube Shock Absorber |
| Description_MKT | Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance. |
| Description_FAB | Available in 60mm, 70mm and 83mm monotubes |
