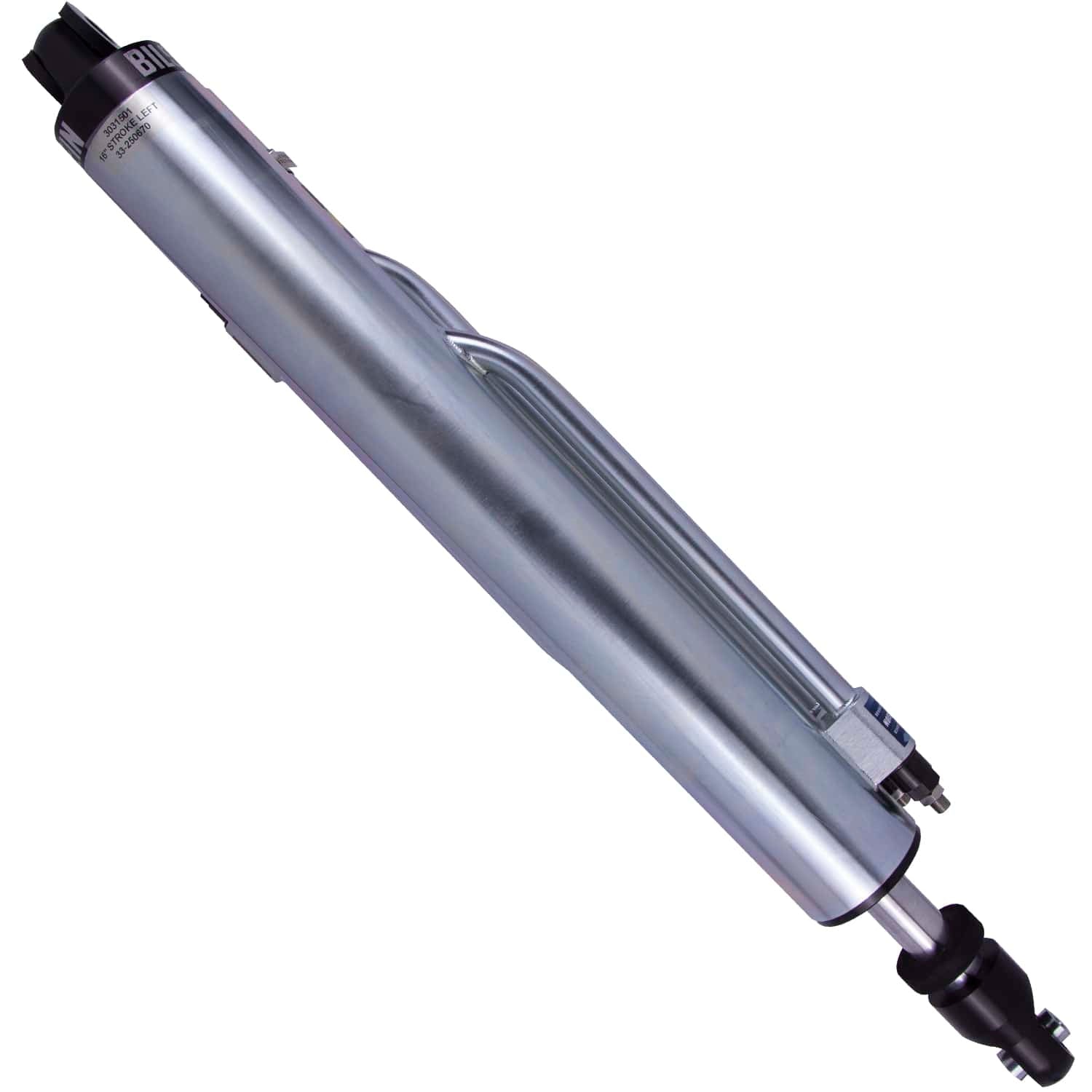

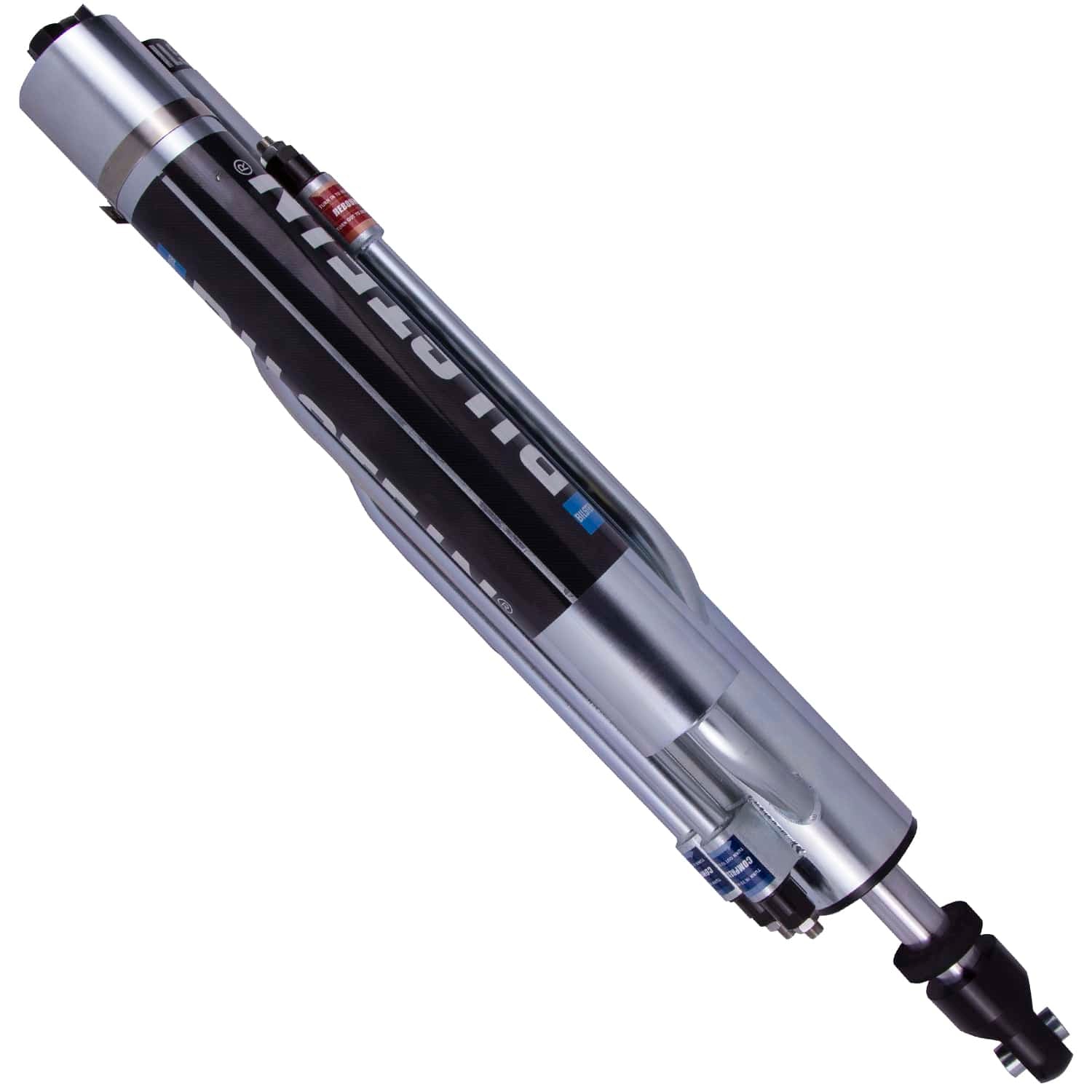

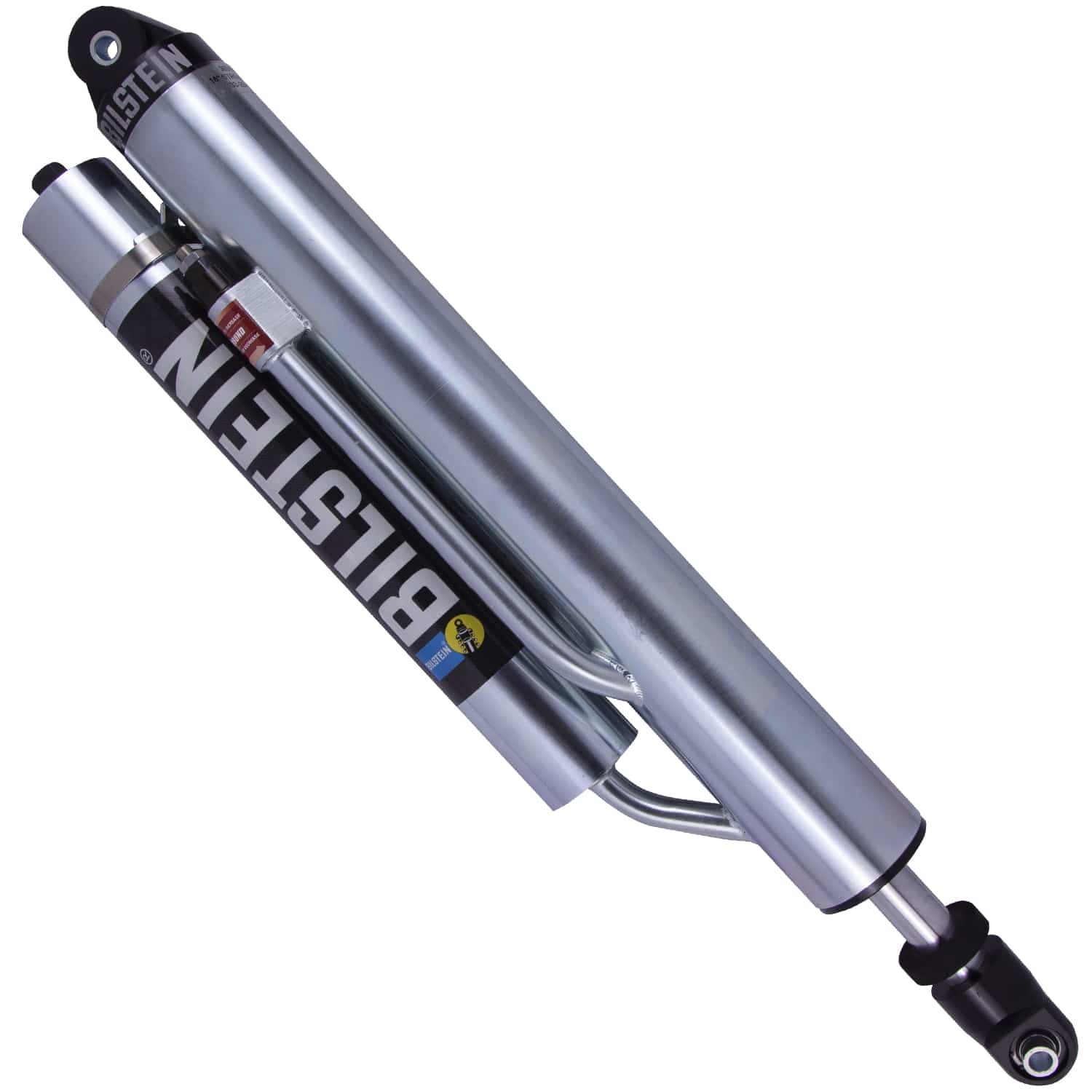

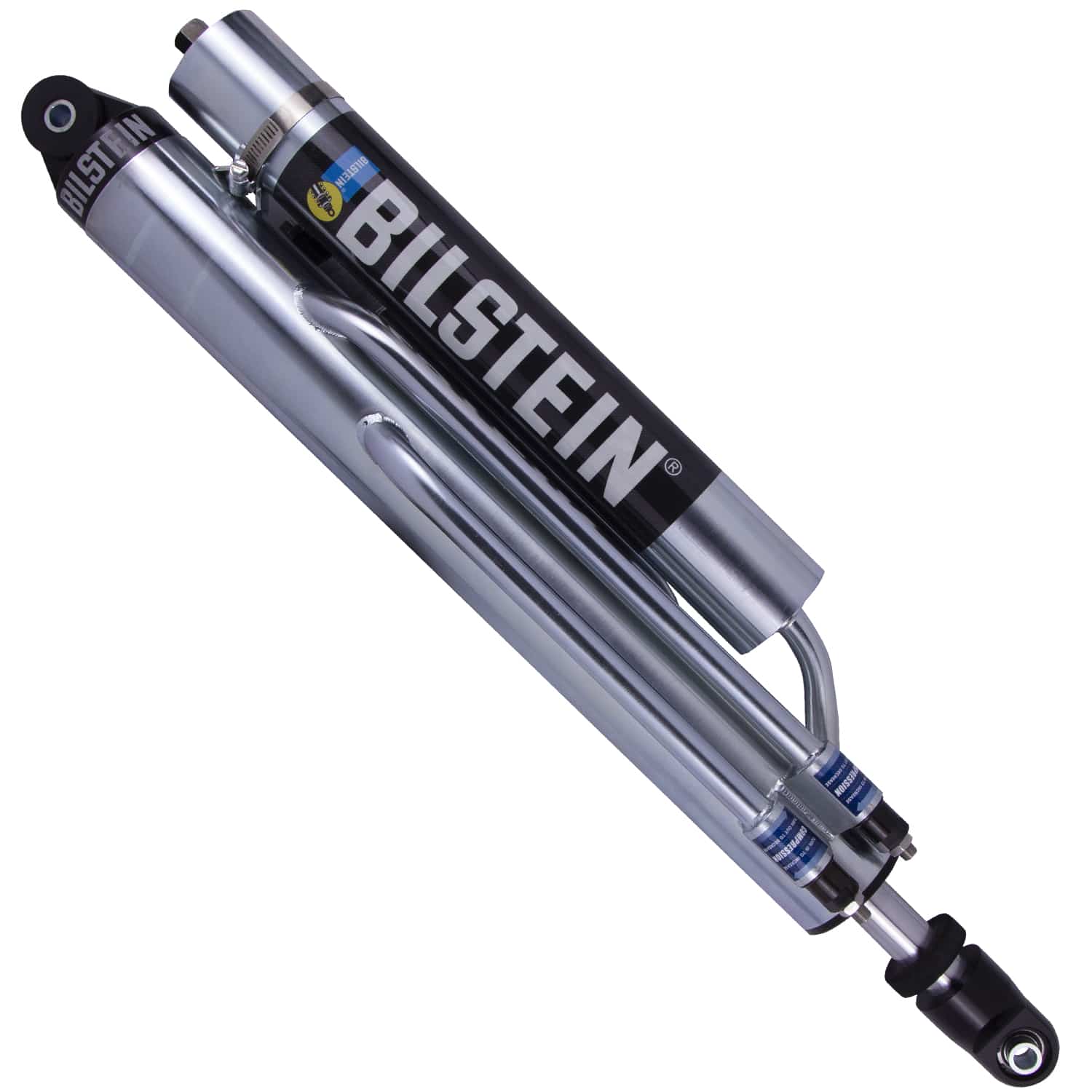

*item may differ from images
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
Bilstein M 9200 (Bypass) - Suspension Shock Absorber 33-250670
Specifications:
| PartType | Shocks / Struts |
| Collapsed Length (MM) | 673.1 |
| Lower Mount Type | Eye .5x1.5in |
| Body Diameter (ID) | 70mm |
| Boot Included | N/A |
| Reservoir | Yes |
| Body Design | 3-Tube Bypass Screw Top |
| Optional Reservoir Clamp | N/A |
| Internal Design | Monotube |
| Extended Length (MM) | 1079.5 |
| Series | M 9200 (Bypass) |
| Upper Mount Type | Eye .5x1.5in |
| Mount Type | Eye-to-Eye |
| Finish | Zinc Plated |
| Extended Length (IN) | 42.50 |
| Compression @0.52m/s | Custom |
| Title | Bilstein Shock Absorbers |
| Position | Left |
| Extended Length (IN) Rounded | 43 |
| Spring Seat Included | No |
| Collapsed Length (IN) Rounded | 27 |
| Collapsed Length (IN) | 26.50 |
| Rebound @0.52m/s | Custom |
| Prop 65 (Y/N) | Y |
| Segment | Motorsports |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Description_LAB | M 9200 (Bypass) - Suspension Shock Absorber |
| Description_ASM | No Applications |
| Description_MKT | Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance. |
| Description_FAB | Available in 60mm, 70mm and 83mm monotubes |
| Description_FAB | 4-tube, position sensitive with adjustable rebound and compression |
| Description_FAB | 4-tube, position sensitive with adjustable rebound and compression |
| Description_SHO | Shock |
| Description_DEF | Suspension Shock Absorber |
| Description_DES | M 9200 (Bypass) - Suspension Shock Absorber |
| Description_EXT | 70mm Monotube Shock Absorber |
| Description_INV | 70mm, 3 Tube Bypass, 16" Stroke, Left |
