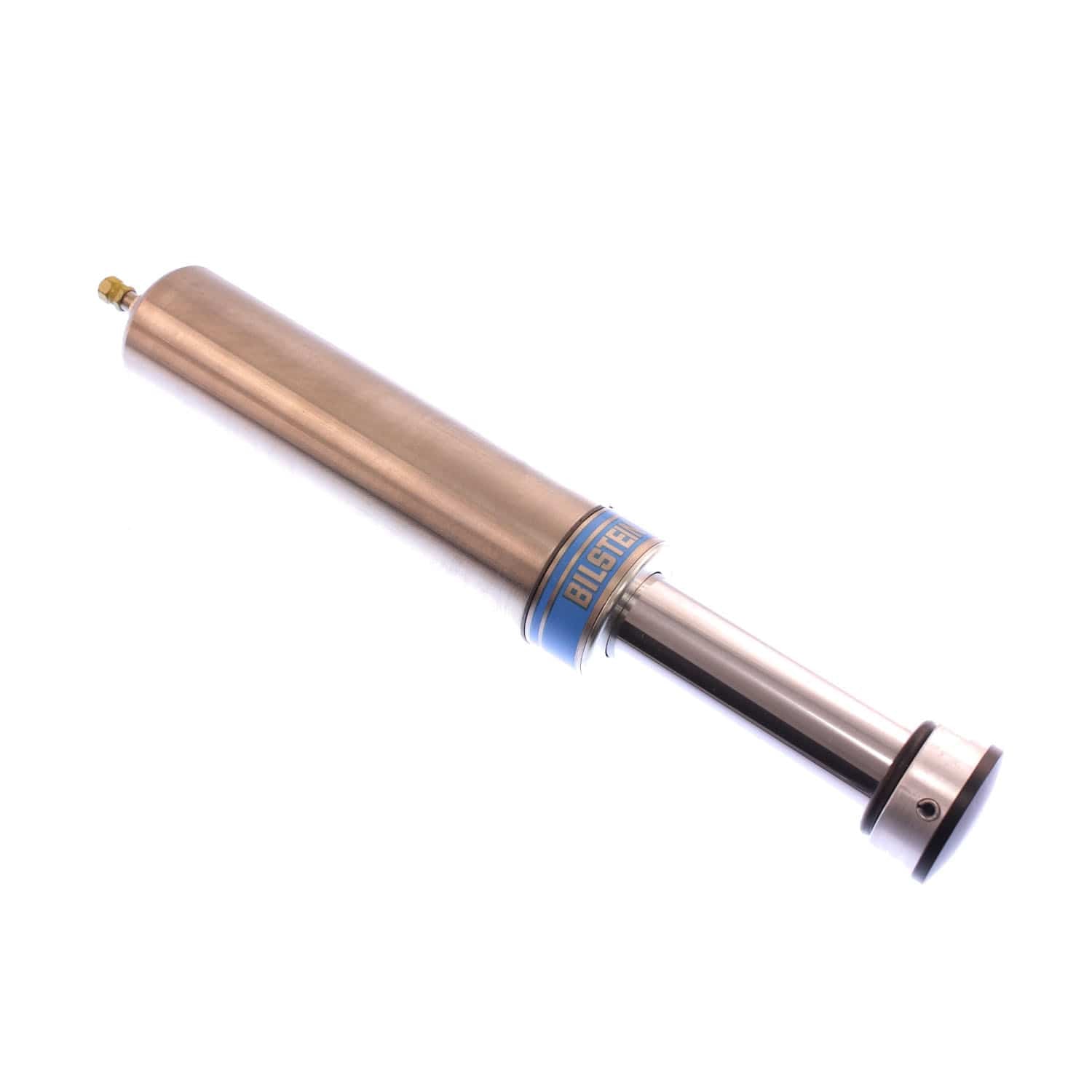

Bilstein M 9100 (Bump Stop) is designed to provide a significant increase in compression control over the last few inches of suspension travel on custom off-road applications. M 9100 (Bump Stop) is available in 3 different stroke lengths ranging from 2-4 inch travel that can accommodate a wide range of custom mount configurations. M 9100 (Bump Stop) has a replaceable strike pad for easy maintenance. This bump stop utilizes a nitrogen fill valve which can be used to fully adjust the compression force. When properly applied, M 9100 (Bump Stop) will effectively decelerate the suspension and prevent harsh bottoming on custom off-road applications.
Bilstein M 9100 (Bump Stop) - Suspension Bump Stop F4-BE5-G724-M0
Specifications:
| Prop 65 (Y/N) | Y |
| Spring Seat Included | No |
| Optional Reservoir Clamp | N/A |
| Reservoir | No |
| Compression @0.52m/s | Custom |
| Extended Length (MM) | 342.1 |
| Body Diameter (ID) | 46mm |
| Rebound @0.52m/s | Custom |
| Collapsed Length (MM) | 244.1 |
| Lower Mount Type | Special |
| Finish | Nickel Plated |
| PartType | Bump Stop |
| Mount Type | Special |
| Extended Length (IN) | 13.47 |
| Series | M 9100 (Bump Stop) |
| Title | Bilstein Shock Absorbers |
| Collapsed Length (IN) Rounded | 10 |
| Extended Length (IN) Rounded | 13 |
| Upper Mount Type | Special |
| Internal Design | Monotube |
| Body Design | Smooth Body (Non-Coilover) |
| Collapsed Length (IN) | 9.61 |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Segment | Motorsports |
| Description_SHO | Bump Stop |
| Description_INV | 4" TRAVEL BUMP STOP SHOCK |
| Description_DEF | Suspension Bump Stop |
| Description_LAB | M 9100 (Bump Stop) - Suspension Bump Stop |
| Description_DES | M 9100 (Bump Stop) - Suspension Bump Stop |
| Description_ASM | No Applications |
| Description_EXT | 46mm Monotube Bump Stop |
| Description_MKT | Bilstein M 9100 (Bump Stop) is designed to provide a significant increase in compression control over the last few inches of suspension travel on custom off-road applications. M 9100 (Bump Stop) is available in 3 different stroke lengths ranging from 2-4 inch travel that can accommodate a wide range of custom mount configurations. M 9100 (Bump Stop) has a replaceable strike pad for easy maintenance. This bump stop utilizes a nitrogen fill valve which can be used to fully adjust the compression force. When properly applied, M 9100 (Bump Stop) will effectively decelerate the suspension and prevent harsh bottoming on custom off-road applications. |
| Description_FAB | Monotube gas pressure design maximizes heat dissipation |
| Description_FAB | Monotube gas pressure design maximizes heat dissipation |
| Description_FAB | Filled with technology perfected over 3 decades of off-road dominance |
