Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

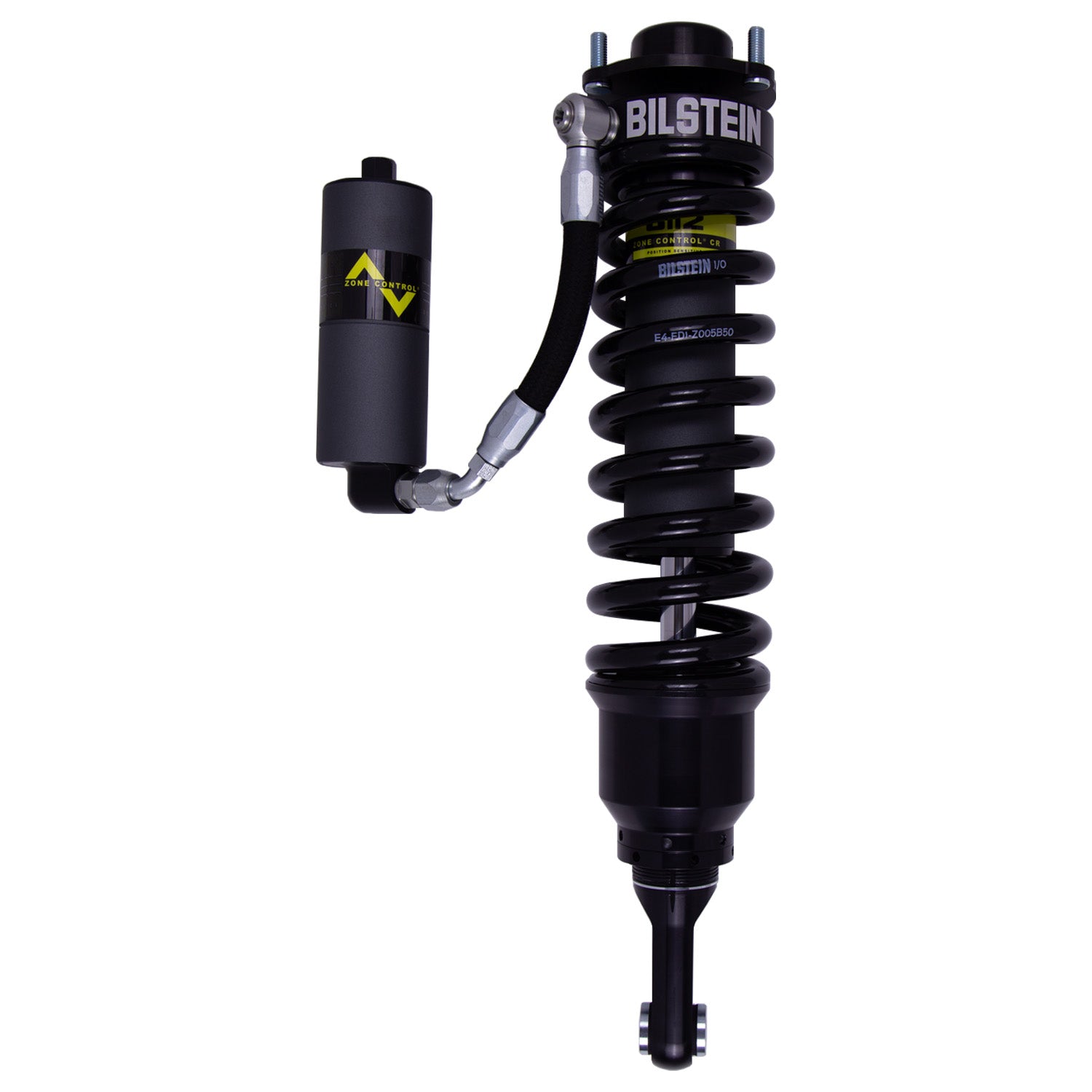

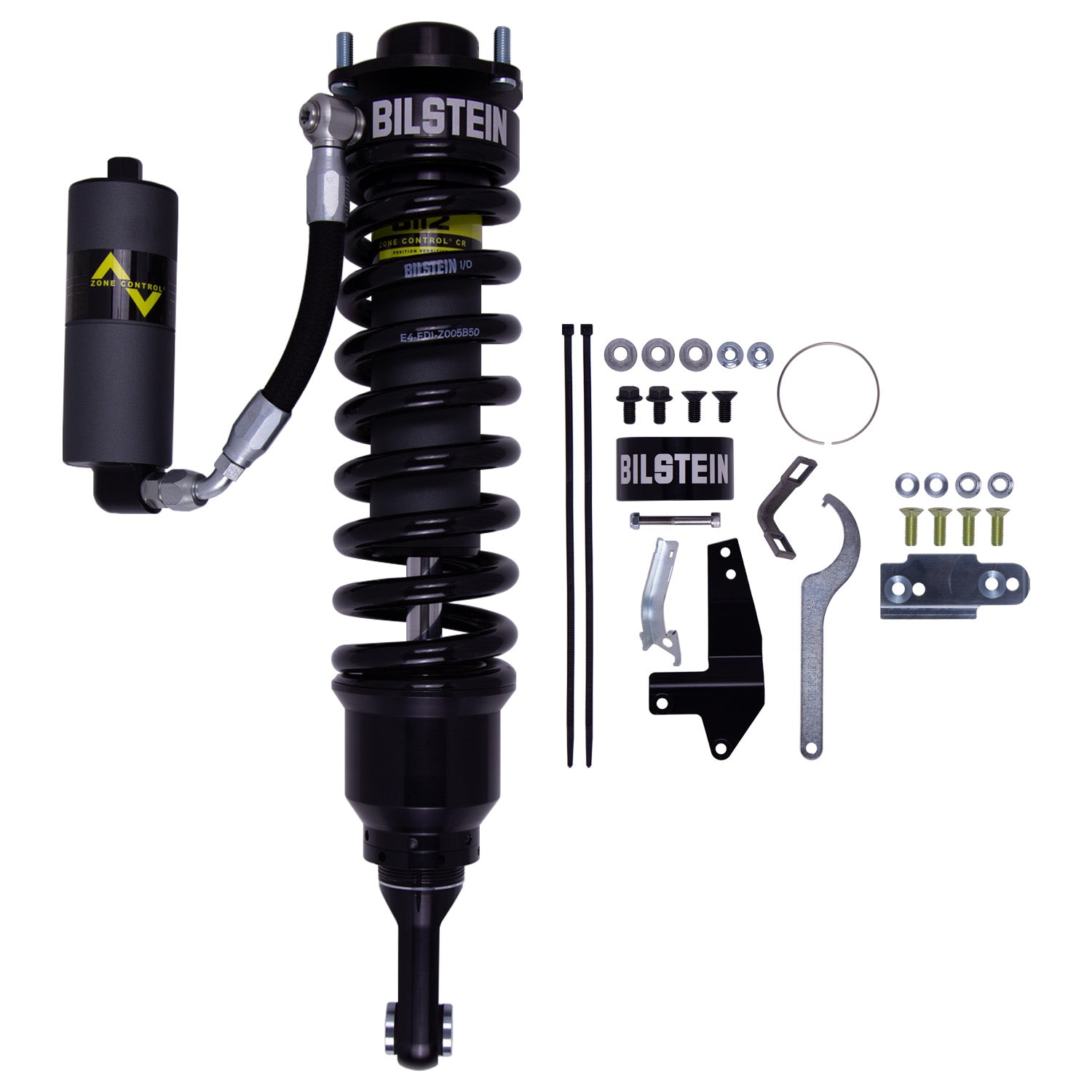

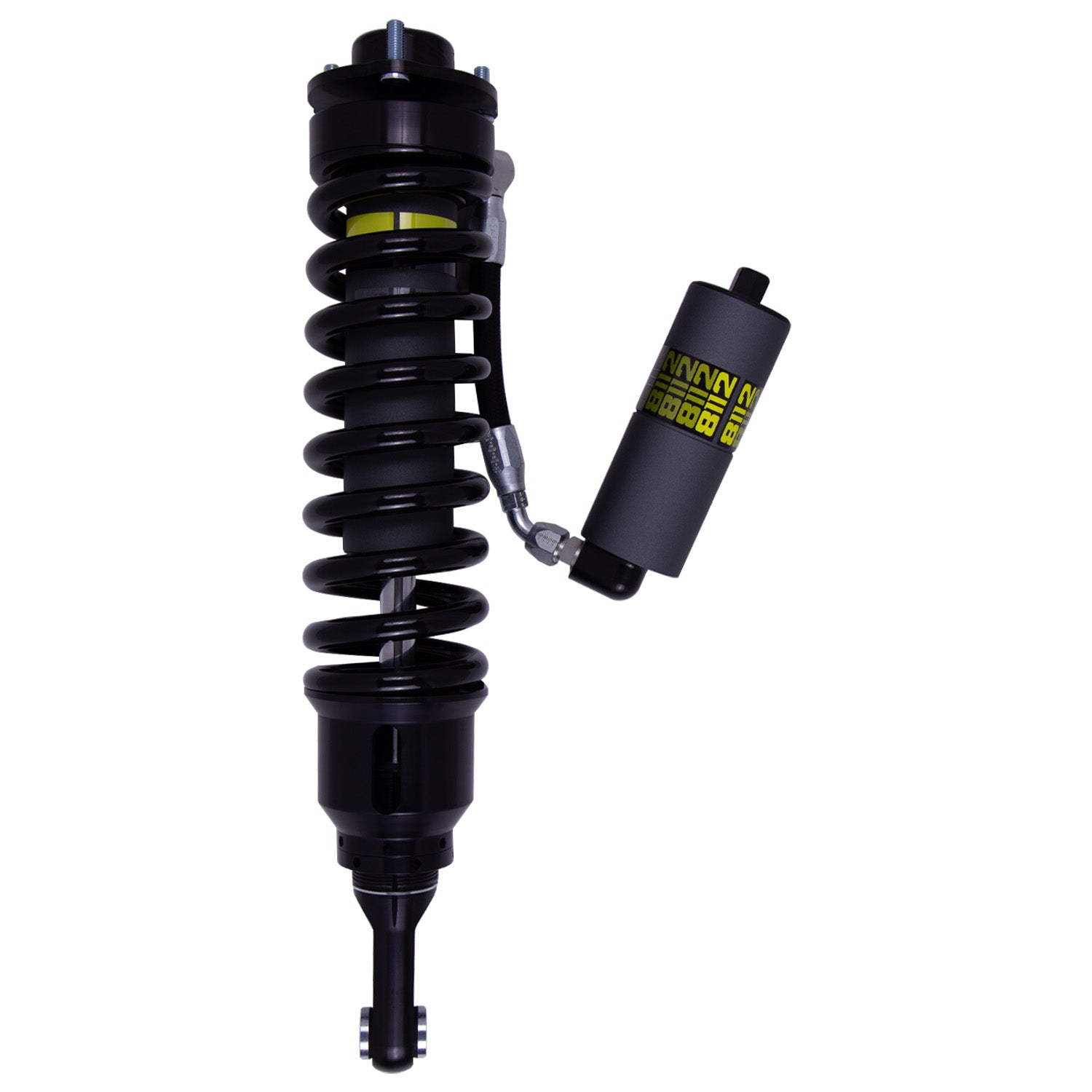

Bilstein B8 8112 (ZoneControl CR) - Front Left Corner Module 41-326329
Specifications:
| Boot Included | No |
| Adjustable Damping | Non-Adjustable |
| Finish | Dampers: EVO Grey / Springs: Black |
| Collapsed Length (IN) | 17.99 |
| Body Design | Smooth Body (Coilover) |
| Extended Length (MM) | 579.1 |
| Reservoir | Yes |
| Body Diameter (ID) | 60mm |
| Spring Seat Included | Yes |
| Prop 65 (Y/N) | Y |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| PartType | Shocks / Struts |
| Upper Mount Type | Special |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Body Material | Steel |
| Title | Bilstein Shock Absorbers |
| Internal Design | Monotube |
| Extended Length (IN) | 22.80 |
| Series | B8 8112 (ZoneControl CR) |
| Lower Mount Type | Eye 14.1mm |
| Collapsed Length (MM) | 456.9 |
| Segment | Light Truck |
| Description_SHO | Front Corner Module |
| Description_DEF | Suspension Shock Absorber and Coil Spring Assembly |
| Description_DES | B8 8112 (ZoneControl CR) - Front Left Corner Module |
| Description_EXT | 60mm Front Left Corner Module |
| Description_INV | Toyota 4Runner '03-09; FL; B8 8112 EVO |
| Description_LAB | B8 8112 (ZoneControl CR) - Front Left Corner Module |
| Description_ASM | Lexus GX470 2009-2003, Toyota 4Runner 2009-2003, FJ Cruiser 2009-2007 |
| Description_MKT | Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs. |
| Description_FAB | Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs |
| Description_FAB | Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs |
| Description_FAB | ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2003 | Lexus | GX470 | Base | Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift |
| 2004 | Lexus | GX470 | Base | Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift |
| 2005 | Lexus | GX470 | Base | Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift |
| 2006 | Lexus | GX470 | Base | Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift |
| 2007 | Lexus | GX470 | Base | Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift |
| 2008 | Lexus | GX470 | Base | Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift |
| 2009 | Lexus | GX470 | Base | Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift,Provides 1.3-3" Front Lift |
| 2003 | Toyota | 4Runner | Limited | Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 2.2-3.3" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 2.2-3.3" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 1.3-3.4" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension |
| 2004 | Toyota | 4Runner | Limited | Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 2.2-3.3" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 2.2-3.3" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 1.3-3.4" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension |
| 2005 | Toyota | 4Runner | Limited | Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 2.2-3.3" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 2.2-3.3" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 1.3-3.4" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension |
| 2006 | Toyota | 4Runner | Limited | Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 2.2-3.3" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 2.2-3.3" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 1.3-3.4" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension |
| 2007 | Toyota | 4Runner | Limited | Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 2.2-3.3" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 2.2-3.3" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 1.3-3.4" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension |
| 2008 | Toyota | 4Runner | Limited | Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 2.2-3.3" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 2.2-3.3" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 1.3-3.4" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension |
| 2009 | Toyota | 4Runner | Limited | Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 2.2-3.3" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 2.2-3.3" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension,Provides 1.3-3.4" Front Lift; Without X-REAS Suspension,Provides 2.8-4" Front Lift; Without X-REAS Suspension |
| 2003 | Toyota | 4Runner | SR5 | Provides 1.3-3.4" Front Lift,Provides 2.8-4" Front Lift,Provides 2.8-4" Front Lift,Provides 1.3-3.4" Front Lift,Provides 1.3-3.4" Front Lift,Provides 2.2-3.3" Front Lift,Provides 2.2-3.3" Front Lift |
| 2004 | Toyota | 4Runner | SR5 | Provides 1.3-3.4" Front Lift,Provides 2.8-4" Front Lift,Provides 2.8-4" Front Lift,Provides 1.3-3.4" Front Lift,Provides 1.3-3.4" Front Lift,Provides 2.2-3.3" Front Lift,Provides 2.2-3.3" Front Lift |
| 2005 | Toyota | 4Runner | SR5 | Provides 1.3-3.4" Front Lift,Provides 2.8-4" Front Lift,Provides 2.8-4" Front Lift,Provides 1.3-3.4" Front Lift,Provides 1.3-3.4" Front Lift,Provides 2.2-3.3" Front Lift,Provides 2.2-3.3" Front Lift |
| 2006 | Toyota | 4Runner | SR5 | Provides 1.3-3.4" Front Lift,Provides 2.8-4" Front Lift,Provides 2.8-4" Front Lift,Provides 1.3-3.4" Front Lift,Provides 1.3-3.4" Front Lift,Provides 2.2-3.3" Front Lift,Provides 2.2-3.3" Front Lift |
| 2007 | Toyota | 4Runner | SR5 | Provides 1.3-3.4" Front Lift,Provides 2.8-4" Front Lift,Provides 2.8-4" Front Lift,Provides 1.3-3.4" Front Lift,Provides 1.3-3.4" Front Lift,Provides 2.2-3.3" Front Lift,Provides 2.2-3.3" Front Lift |
| 2008 | Toyota | 4Runner | SR5 | Provides 1.3-3.4" Front Lift,Provides 2.8-4" Front Lift,Provides 2.8-4" Front Lift,Provides 1.3-3.4" Front Lift,Provides 1.3-3.4" Front Lift,Provides 2.2-3.3" Front Lift,Provides 2.2-3.3" Front Lift |
| 2009 | Toyota | 4Runner | SR5 | Provides 1.3-3.4" Front Lift,Provides 2.8-4" Front Lift,Provides 2.8-4" Front Lift,Provides 1.3-3.4" Front Lift,Provides 1.3-3.4" Front Lift,Provides 2.2-3.3" Front Lift,Provides 2.2-3.3" Front Lift |
| 2007 | Toyota | FJ Cruiser | Base | Provides 2.2-3.3" Front Lift,Provides 2.2-3.3" Front Lift,Provides 2.2-3.3" Front Lift |
| 2008 | Toyota | FJ Cruiser | Base | Provides 2.2-3.3" Front Lift,Provides 2.2-3.3" Front Lift,Provides 2.2-3.3" Front Lift |
| 2009 | Toyota | FJ Cruiser | Base | Provides 2.2-3.3" Front Lift,Provides 2.2-3.3" Front Lift,Provides 2.2-3.3" Front Lift |
| 2008 | Toyota | FJ Cruiser | Trail Teams Special Edition | Provides 2.2-3.3" Front Lift |
| 2007 | Toyota | FJ Cruiser | TRD Special Edition | Provides 2.2-3.3" Front Lift |
