Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 60mm, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-2.6” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.

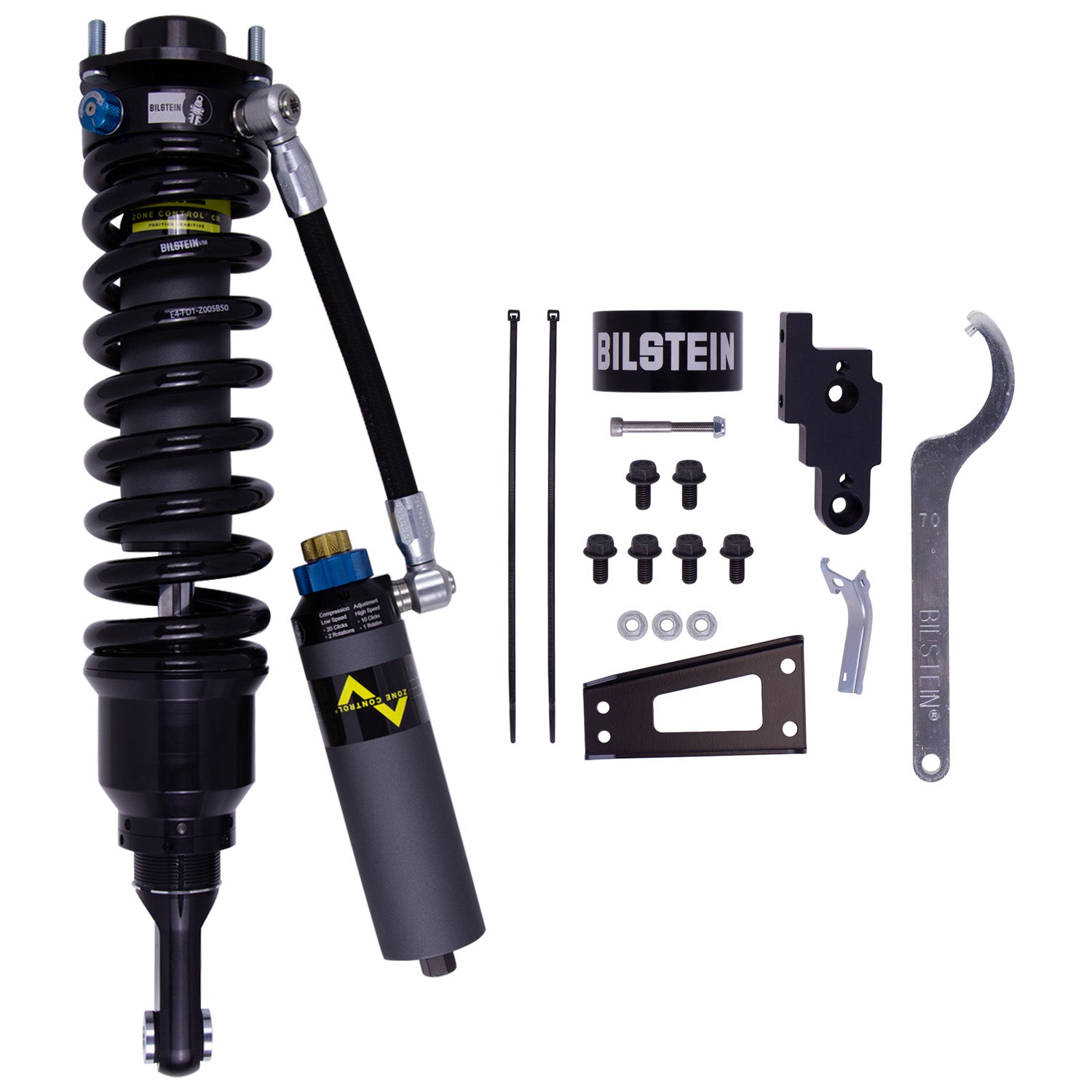

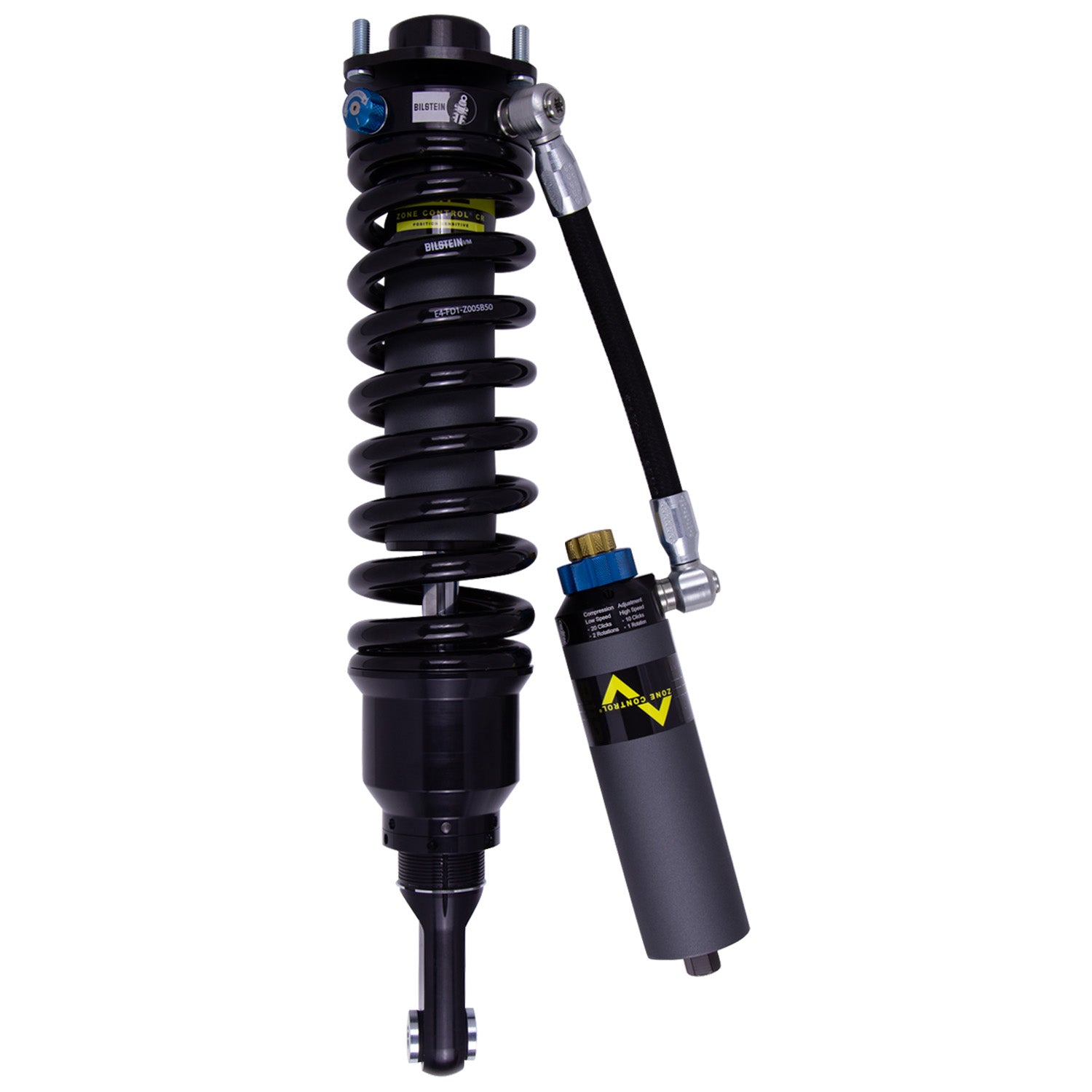

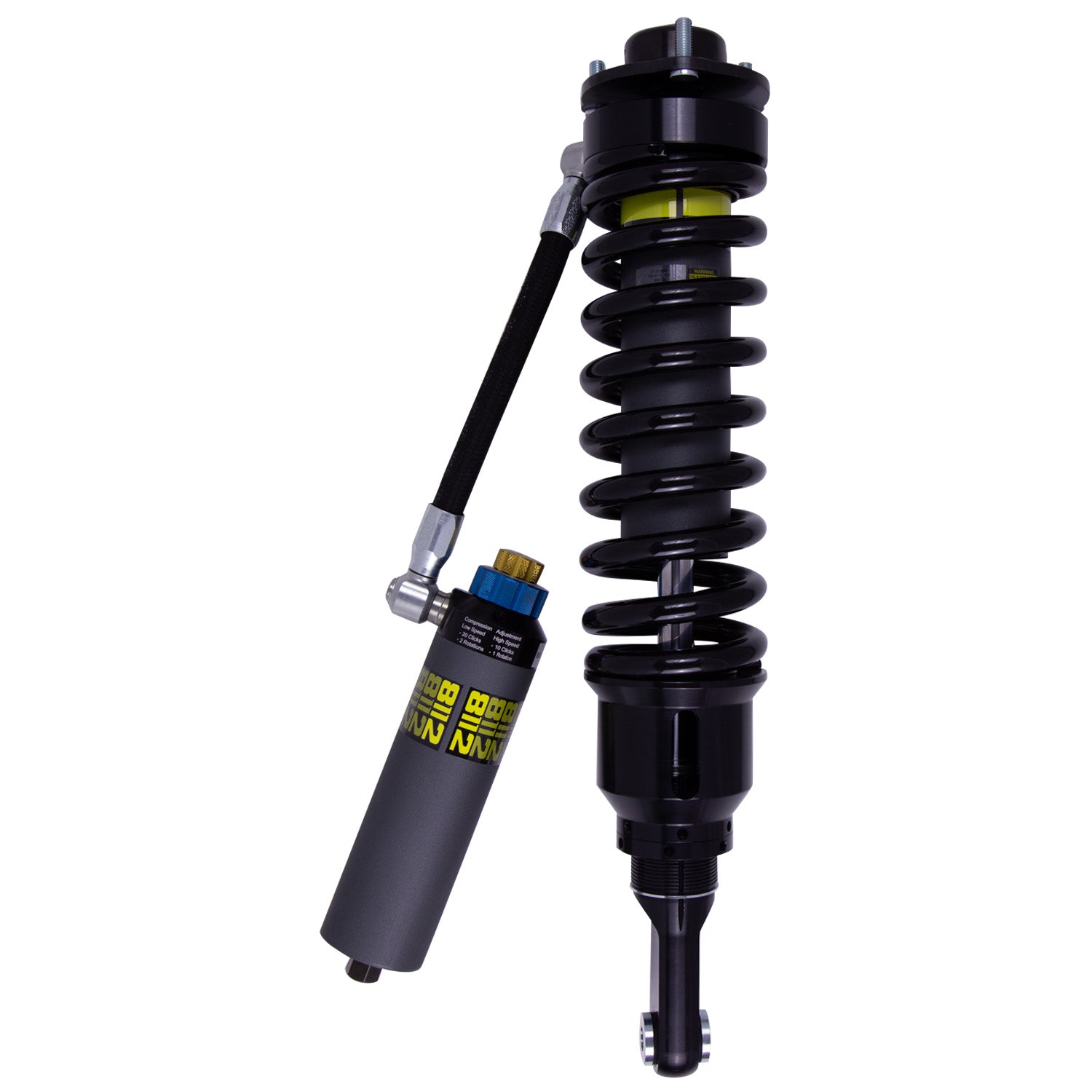

Bilstein B8 8112 (ZoneControl CR DSA+) - Front Right Corner Module 41-319581
Specifications:
| Body Material | Steel |
| Series | B8 8112 (ZoneControl CR DSA+) |

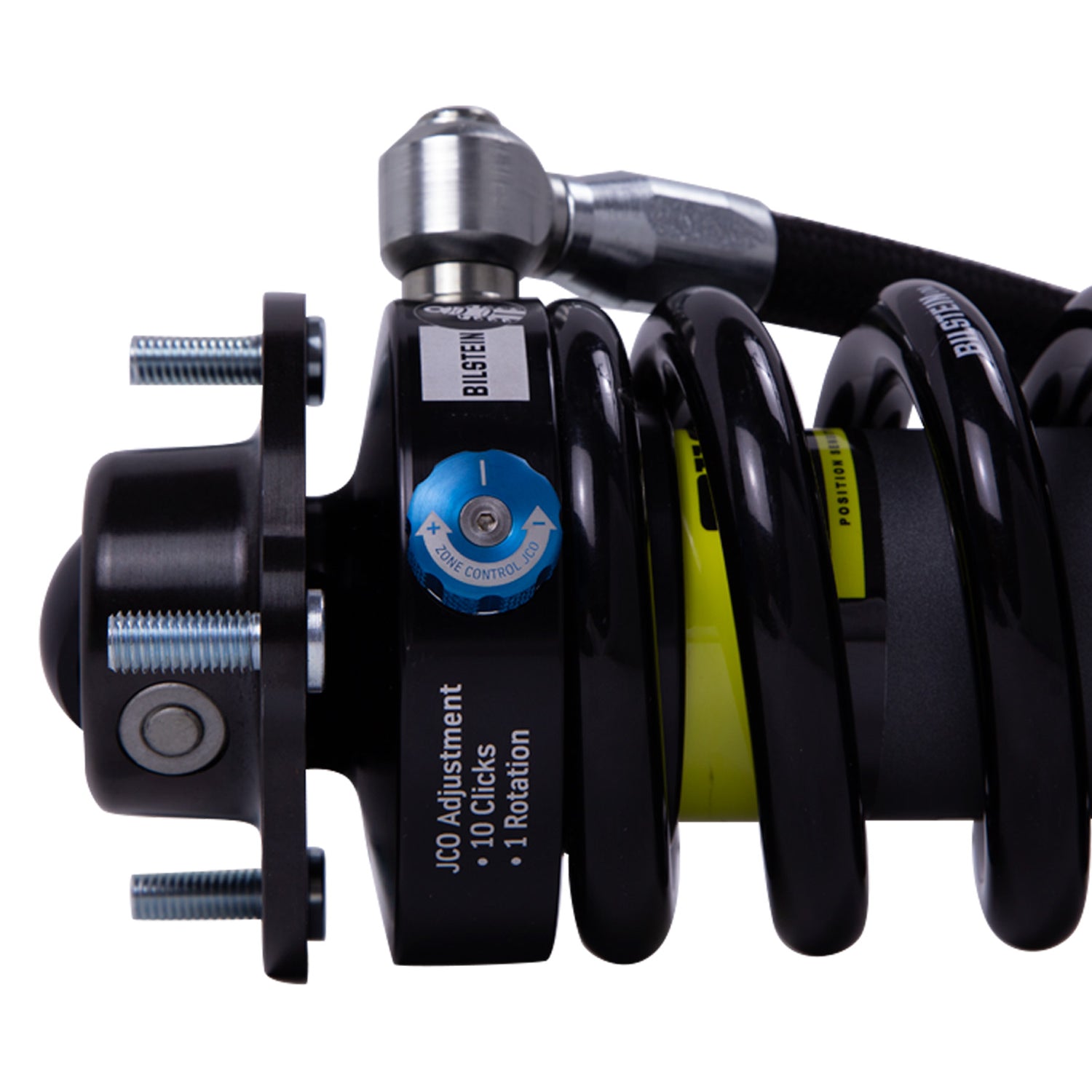

| Adjustable Damping | Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO) |
| Prop 65 (Y/N) | Y |
| Segment | Light Truck |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| PartType | Shocks / Struts |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Extended Length (MM) | 568.8 |
| Title | Bilstein Shock Absorbers |
| Finish | Dampers: EVO Grey/Springs: Black |
| Upper Mount Type | Special |
| Reservoir | Yes |
| Spring Seat Included | Yes |
| Body Design | Smooth Body (Coilover) |
| Collapsed Length (MM) | 442.6 |
| Collapsed Length (IN) | 17.42 |
| Boot Included | No |
| Internal Design | Monotube |
| Extended Length (IN) | 22.39 |
| Lower Mount Type | Eye 15.88mm |
| Body Diameter (ID) | 60mm |
| Description_EXT | 60mm Front Right Corner Module |
| Description_INV | Tacoma; FR; EVO 8112 Adj Res/JCO; Module |
| Description_LAB | B8 8112 (ZoneControl CR DSA+) - Front Right Corner Module |
| Description_ASM | Toyota Tacoma 2023-2005 |
| Description_MKT | Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 60mm, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-2.6” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain. |
| Description_FAB | ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons |

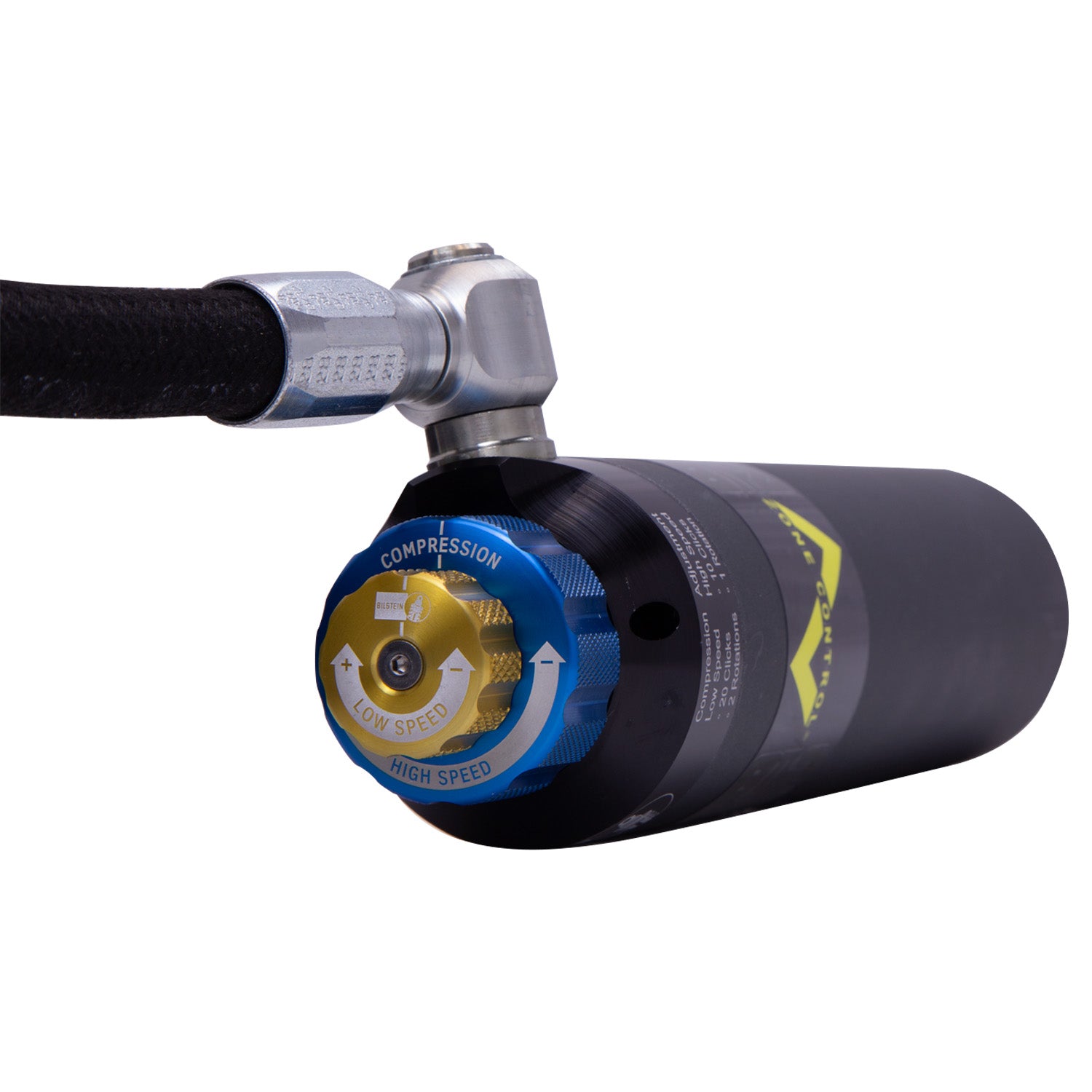

| Description_FAB | Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop) |
| Description_FAB | Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop) |
| Description_SHO | Front Corner Module |
| Description_DEF | Suspension Shock Absorber and Coil Spring Assembly |
| Description_DES | B8 8112 (ZoneControl CR DSA+) - Front Right Corner Module |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2005 | Toyota | Tacoma | Base | Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2006 | Toyota | Tacoma | Base | Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2007 | Toyota | Tacoma | Base | Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2008 | Toyota | Tacoma | Base | Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2009 | Toyota | Tacoma | Base | Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2010 | Toyota | Tacoma | Base | Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2011 | Toyota | Tacoma | Base | Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2012 | Toyota | Tacoma | Base | Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2013 | Toyota | Tacoma | Base | Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2014 | Toyota | Tacoma | Base | Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2015 | Toyota | Tacoma | Base | Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.9-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2016 | Toyota | Tacoma | Limited | Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift |
| 2017 | Toyota | Tacoma | Limited | Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift |
| 2018 | Toyota | Tacoma | Limited | Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift |
| 2019 | Toyota | Tacoma | Limited | Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift |
| 2020 | Toyota | Tacoma | Limited | Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift |
| 2021 | Toyota | Tacoma | Limited | Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift |
| 2022 | Toyota | Tacoma | Limited | Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift |
| 2023 | Toyota | Tacoma | Limited | Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift |
| 2021 | Toyota | Tacoma | Nightshade | Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2022 | Toyota | Tacoma | Nightshade | Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2005 | Toyota | Tacoma | Pre Runner | Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift |
| 2006 | Toyota | Tacoma | Pre Runner | Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift |
| 2007 | Toyota | Tacoma | Pre Runner | Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift |
| 2008 | Toyota | Tacoma | Pre Runner | Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift |
| 2009 | Toyota | Tacoma | Pre Runner | Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift |
| 2010 | Toyota | Tacoma | Pre Runner | Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift |
| 2011 | Toyota | Tacoma | Pre Runner | Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift |
| 2012 | Toyota | Tacoma | Pre Runner | Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift |
| 2013 | Toyota | Tacoma | Pre Runner | Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift |
| 2014 | Toyota | Tacoma | Pre Runner | Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift |
| 2015 | Toyota | Tacoma | Pre Runner | Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.2-2.6" Front Lift |
| 2016 | Toyota | Tacoma | SR | Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2017 | Toyota | Tacoma | SR | Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2018 | Toyota | Tacoma | SR | Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2019 | Toyota | Tacoma | SR | Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2020 | Toyota | Tacoma | SR | Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2021 | Toyota | Tacoma | SR | Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2022 | Toyota | Tacoma | SR | Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2023 | Toyota | Tacoma | SR | Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 1.7-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2016 | Toyota | Tacoma | SR5 | Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2017 | Toyota | Tacoma | SR5 | Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2018 | Toyota | Tacoma | SR5 | Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2019 | Toyota | Tacoma | SR5 | Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2020 | Toyota | Tacoma | SR5 | Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2021 | Toyota | Tacoma | SR5 | Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2022 | Toyota | Tacoma | SR5 | Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2023 | Toyota | Tacoma | SR5 | Provides 1.7-2.2" Front Lift,Provides 1.7-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.6-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2021 | Toyota | Tacoma | Trail | Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2023 | Toyota | Tacoma | Trail Special Edition | Provides 0.4-2" Front Lift |
| 2016 | Toyota | Tacoma | TRD Off-Road | Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift |
| 2017 | Toyota | Tacoma | TRD Off-Road | Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift |
| 2018 | Toyota | Tacoma | TRD Off-Road | Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift |
| 2019 | Toyota | Tacoma | TRD Off-Road | Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift |
| 2020 | Toyota | Tacoma | TRD Off-Road | Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift |
| 2021 | Toyota | Tacoma | TRD Off-Road | Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift |
| 2022 | Toyota | Tacoma | TRD Off-Road | Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift |
| 2023 | Toyota | Tacoma | TRD Off-Road | Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.8-2.2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.4-2" Front Lift |
| 2016 | Toyota | Tacoma | TRD Sport | Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2017 | Toyota | Tacoma | TRD Sport | Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2018 | Toyota | Tacoma | TRD Sport | Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2019 | Toyota | Tacoma | TRD Sport | Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2020 | Toyota | Tacoma | TRD Sport | Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2021 | Toyota | Tacoma | TRD Sport | Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2022 | Toyota | Tacoma | TRD Sport | Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
| 2023 | Toyota | Tacoma | TRD Sport | Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.8-2.2" Front Lift,Provides 0.4-2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended,Provides 0.4-2" Front Lift,Provides 0.8-2.2" Front Lift; Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304683 recommended |
