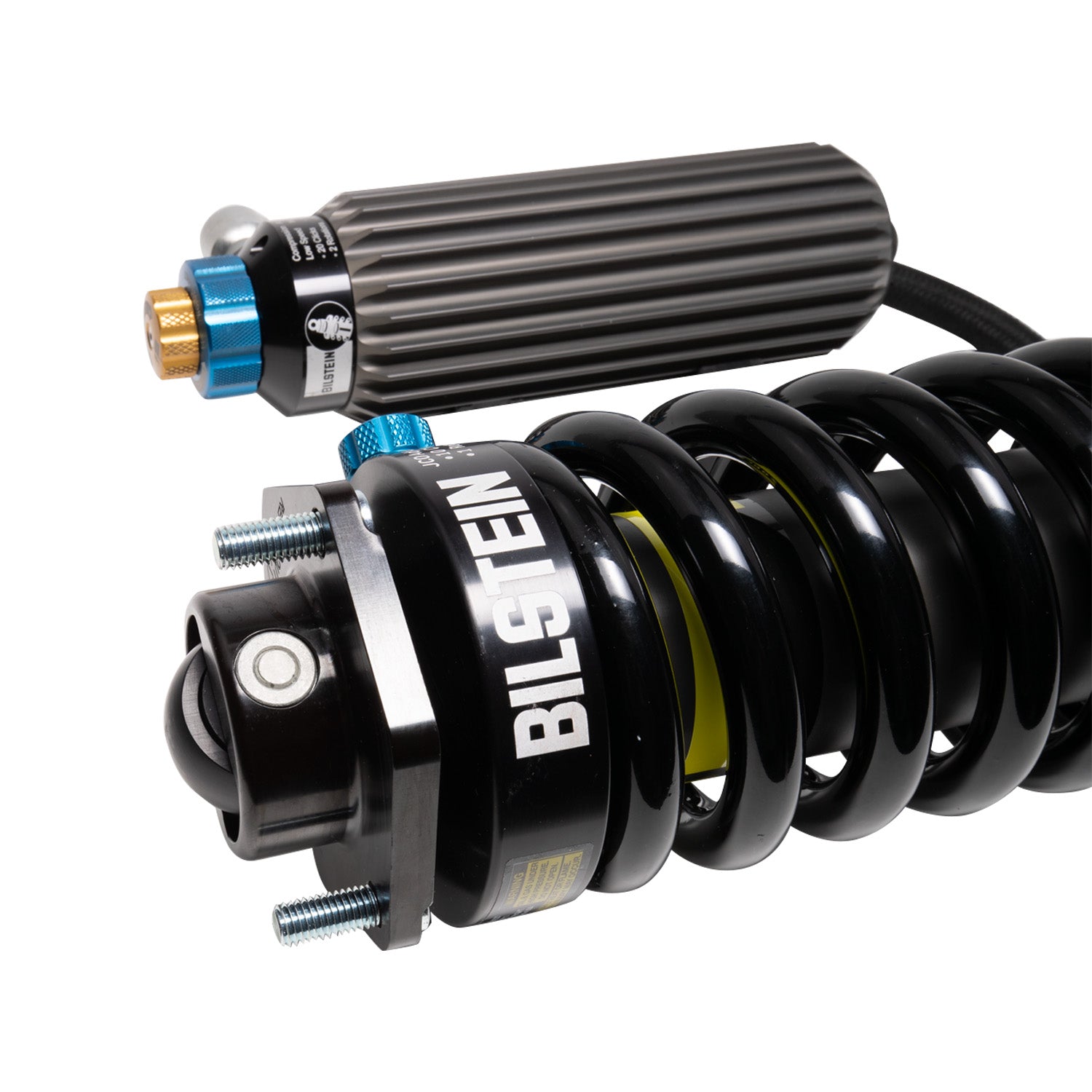

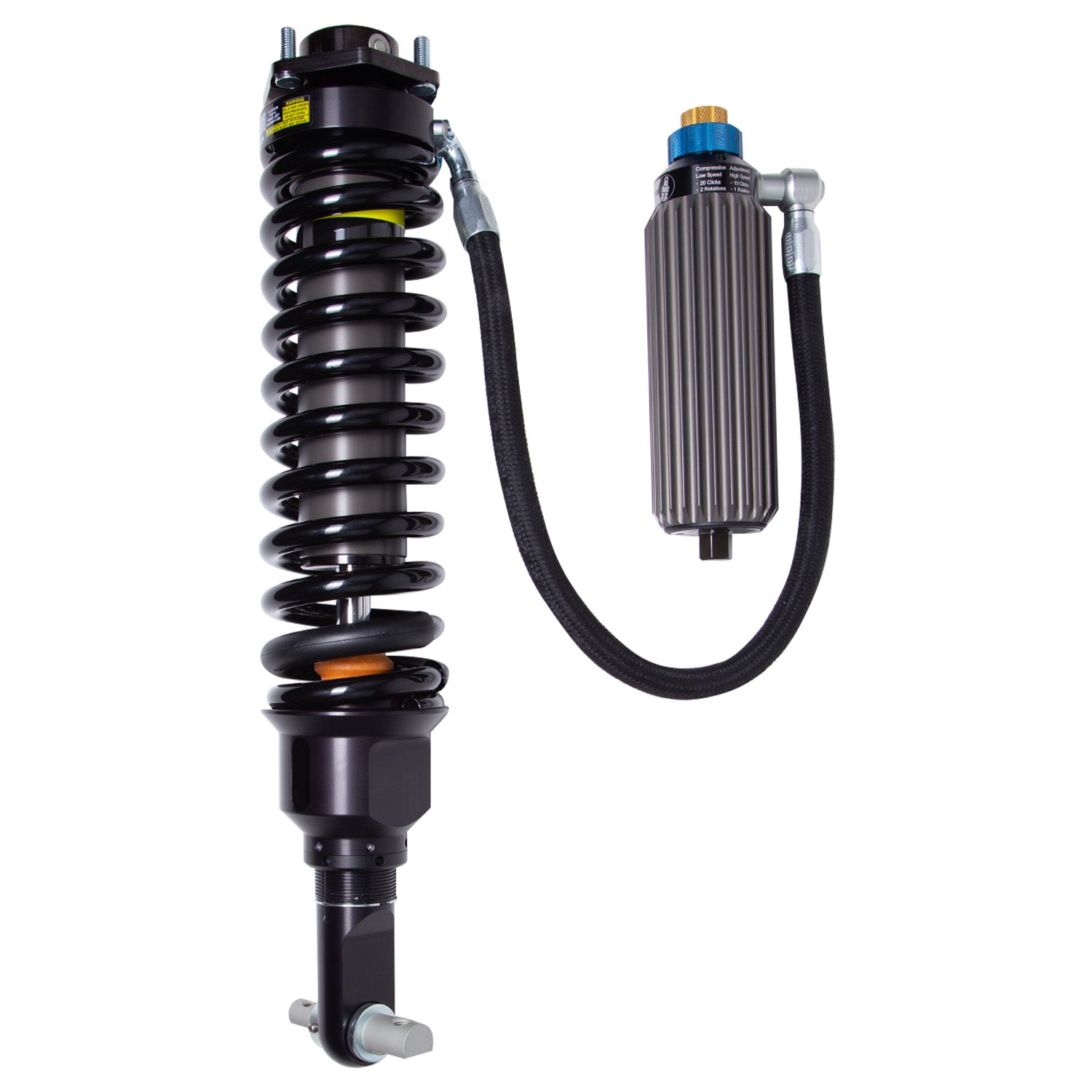

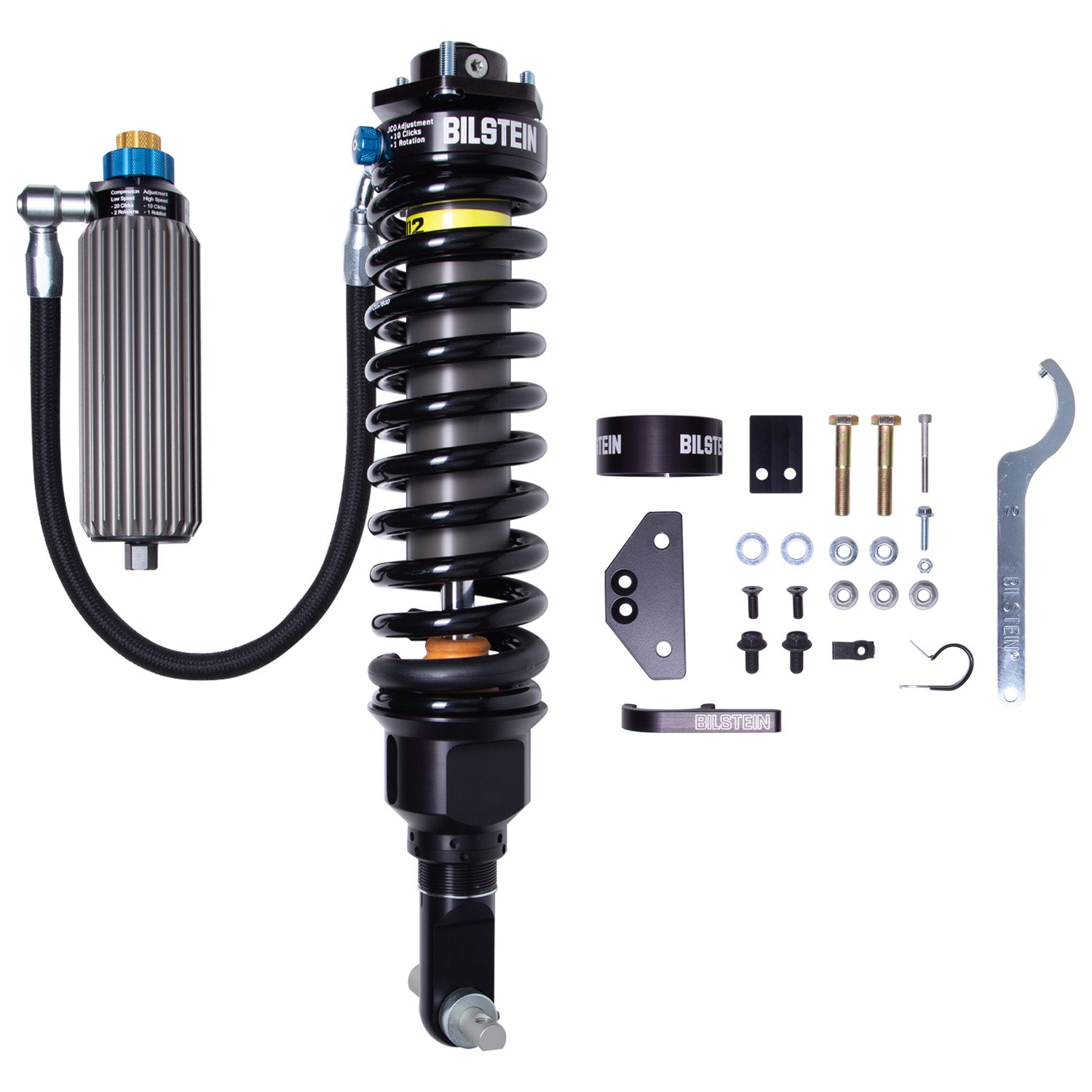

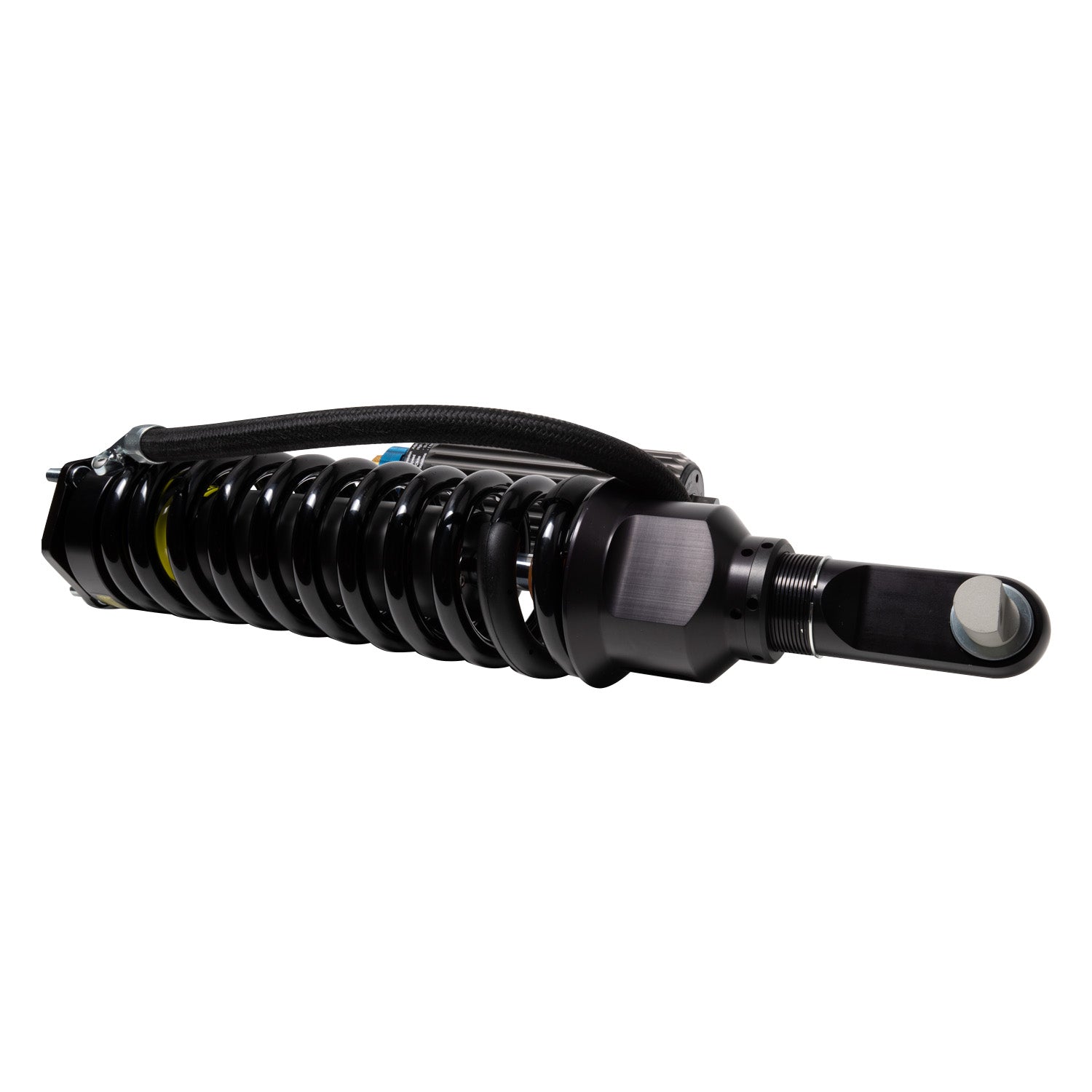

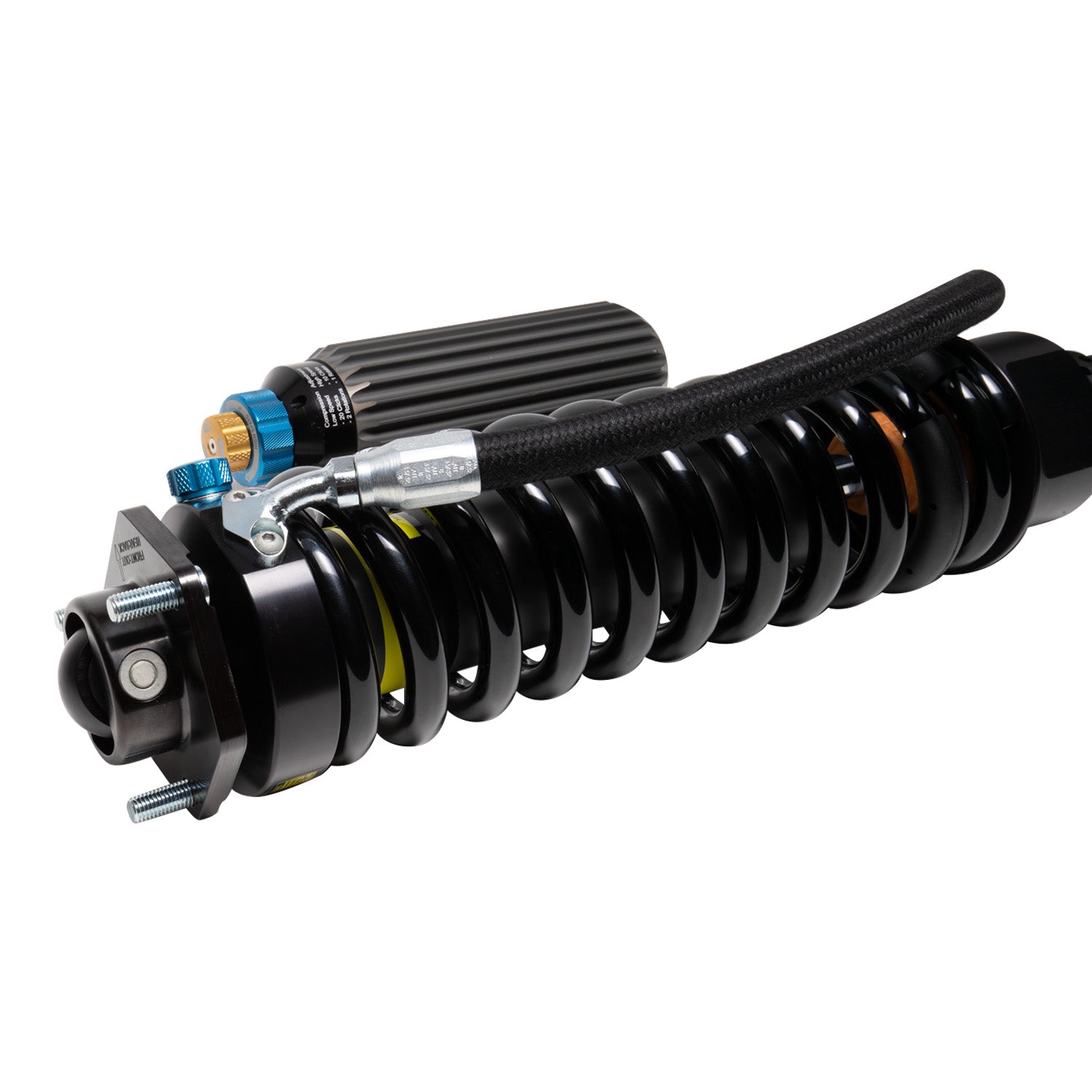

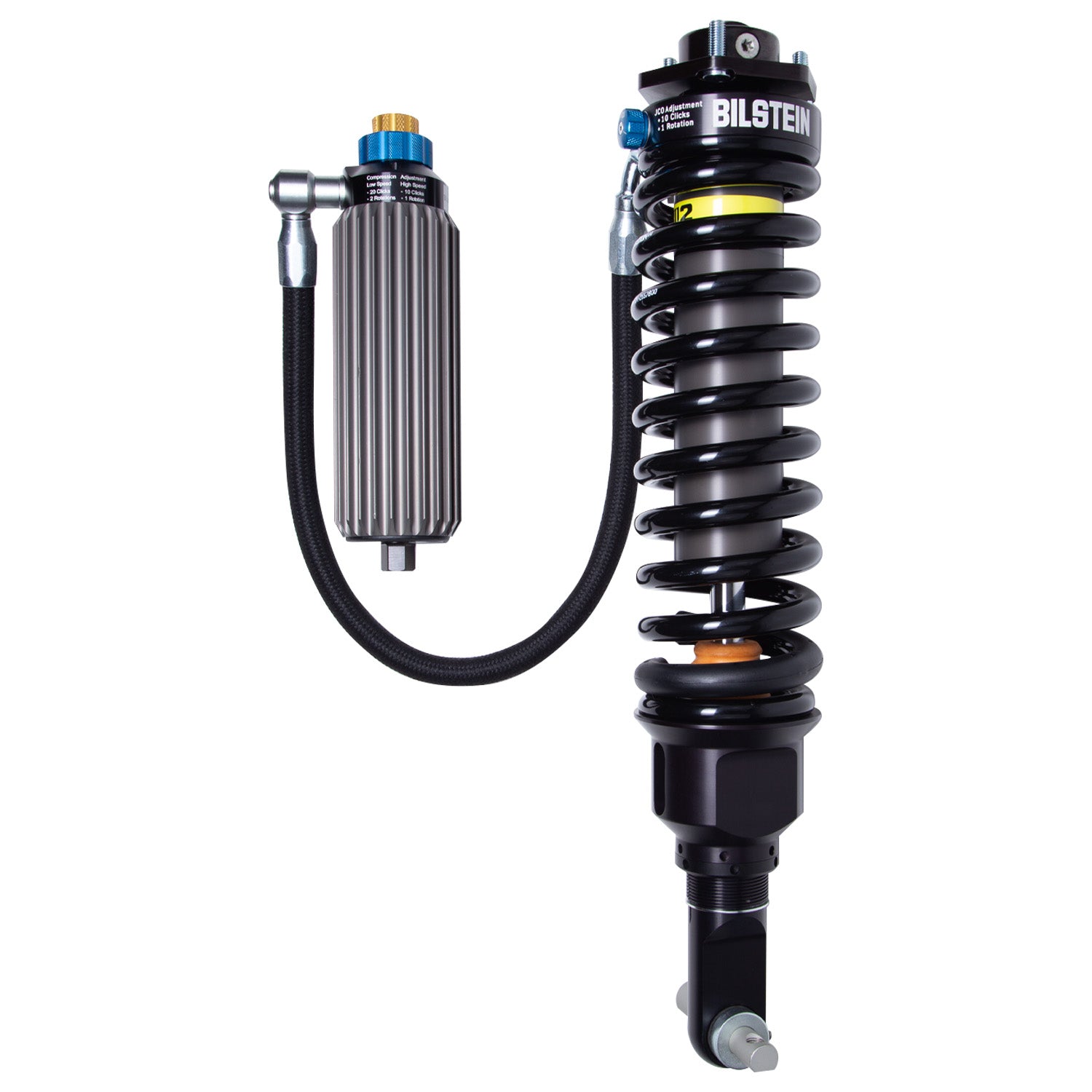

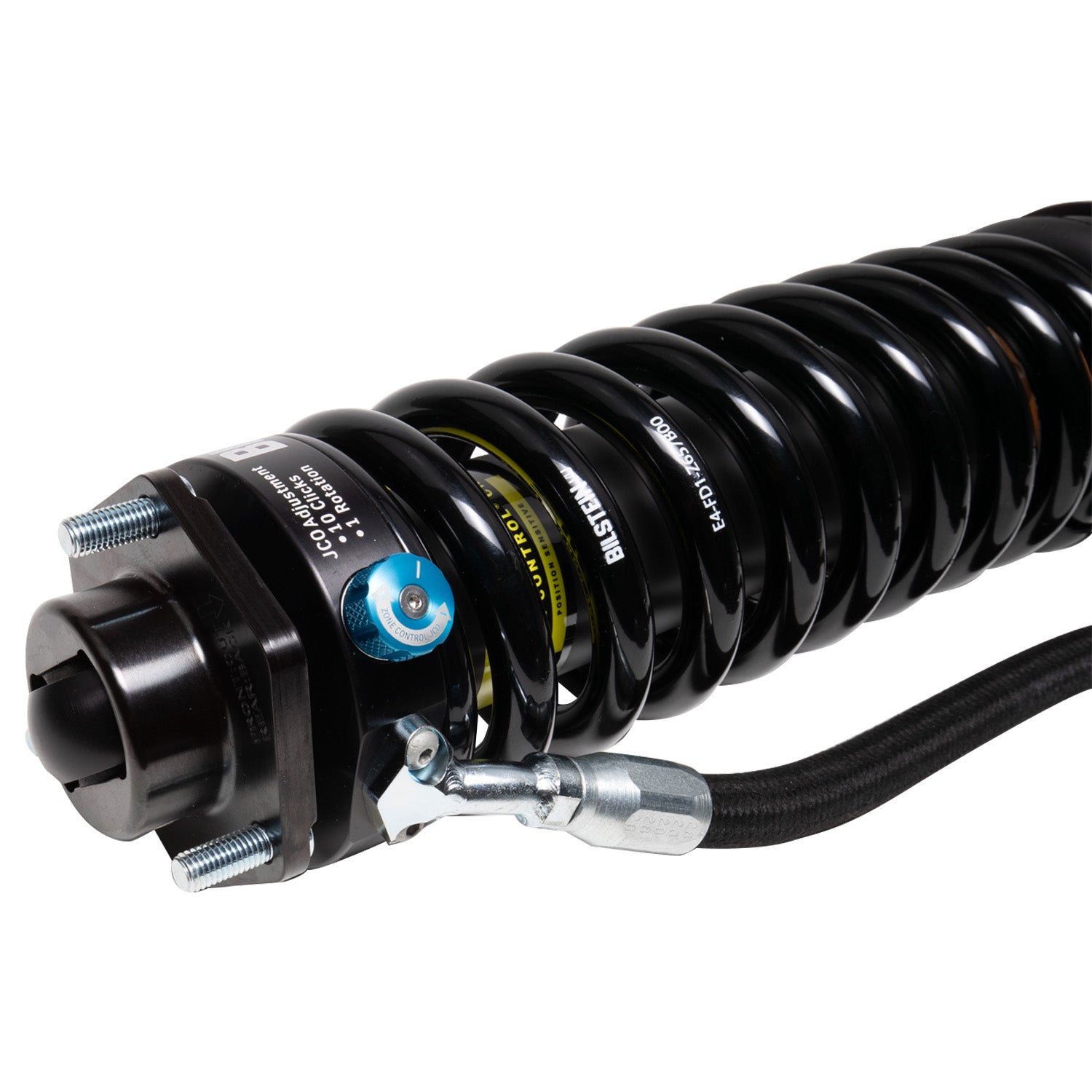

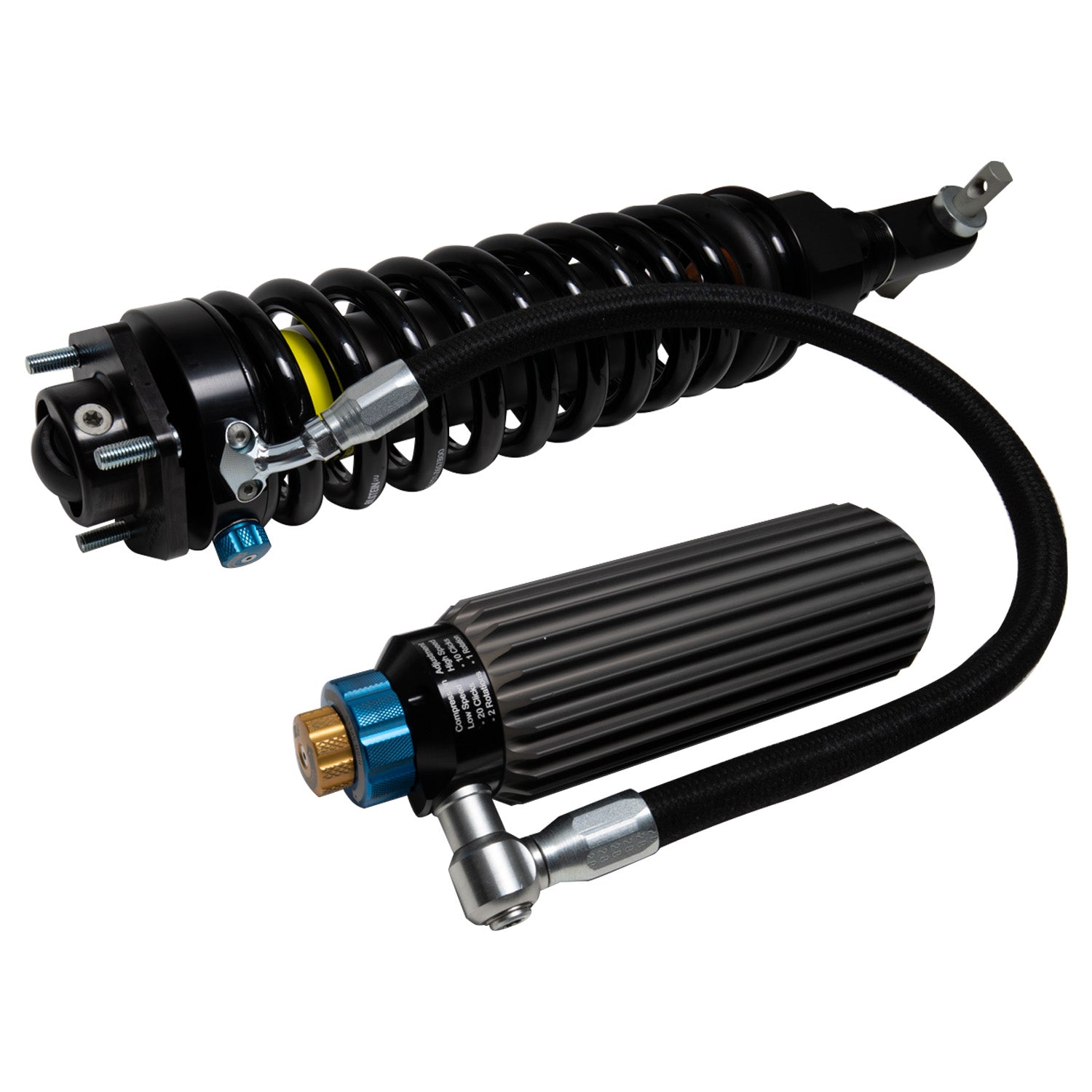

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 60mm, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.
Bilstein B8 8112 (ZoneControl CR DSA+) - Front Left Corner Module 41-314319
Specifications:
| Collapsed Length (MM) | 446.2 |
| Finish | Dampers: EVO Grey/Springs: Black |
| Extended Length (MM) | 594.7 |
| Prop 65 (Y/N) | Y |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Internal Design | Monotube |
| Adjustable Damping | Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO) |
| Lower Mount Type | Crossbar |
| Collapsed Length (IN) | 17.59 |

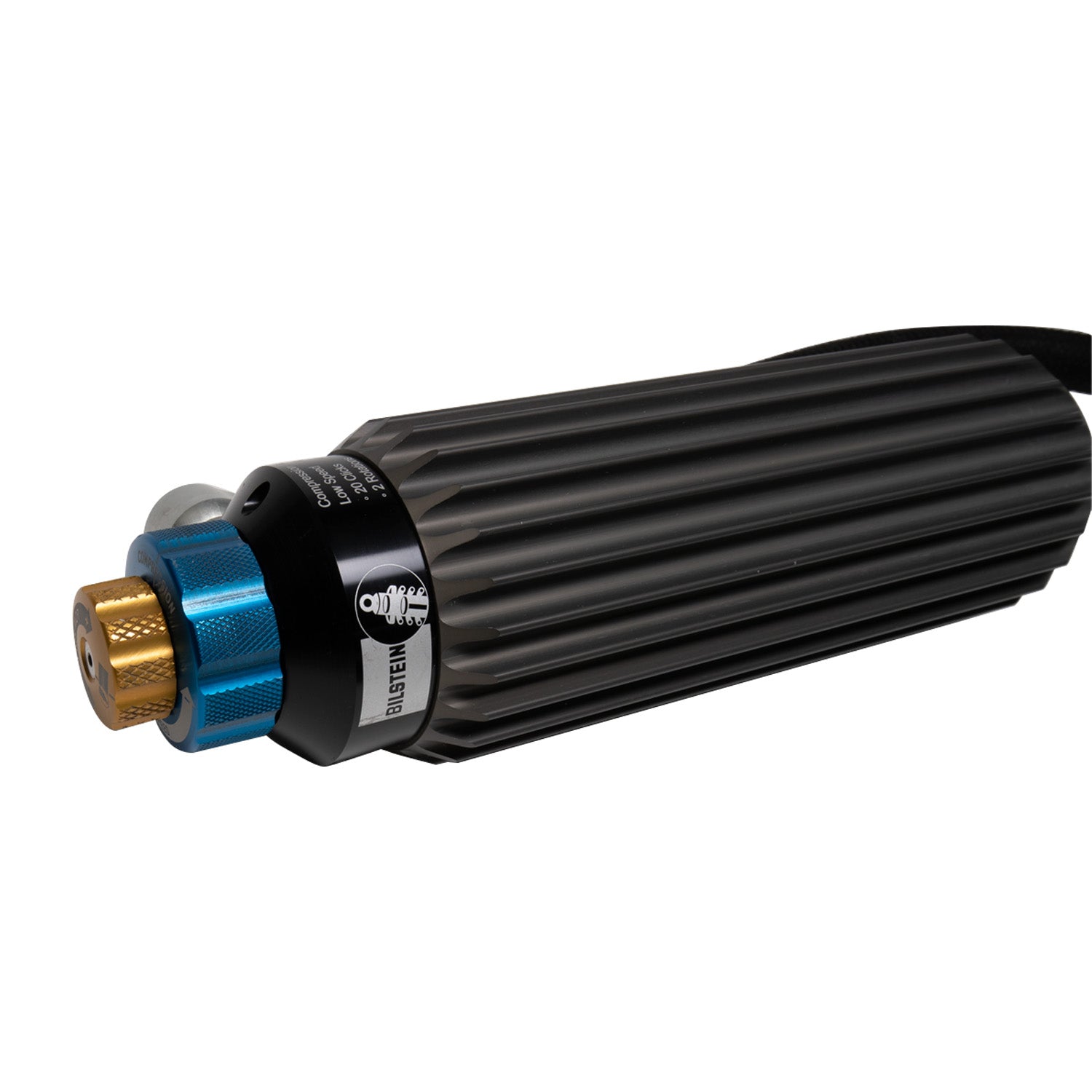

| Reservoir | Yes - Finned Aluminum |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | Special |
| Extended Length (IN) | 23.40 |
| Body Material | Aluminum |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Boot Included | No |
| Spring Seat Included | Yes |
| Series | B8 8112 (ZoneControl CR DSA+) |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60mm |
| Description_SHO | Front Corner Module |
| Description_DEF | Suspension Shock Absorber and Coil Spring Assembly |
| Description_INV | Ford Bronco;'21+; FL; B8 8112 DSA+ EVO-A |
| Description_LAB | B8 8112 (ZoneControl CR DSA+) - Front Left Corner Module |
| Description_ASM | Ford Bronco 2024-2021 |
| Description_MKT | Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 60mm, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain. |
| Description_FAB | Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop) |
| Description_FAB | Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop) |
| Description_DES | B8 8112 (ZoneControl CR DSA+) - Front Left Corner Module |
| Description_EXT | 60mm Front Left Corner Module |
| Description_FAB | ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2021 | Ford | Bronco | Badlands | Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package,Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package,Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package |
| 2022 | Ford | Bronco | Badlands | Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package,Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package,Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package |
| 2023 | Ford | Bronco | Badlands | Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package,Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package,Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package |
| 2024 | Ford | Bronco | Badlands | Provides 1.2-2.1" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package,Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package,Provides 0.7-2.0" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package |
| 2021 | Ford | Bronco | Base | Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" |
| 2022 | Ford | Bronco | Base | Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" |
| 2023 | Ford | Bronco | Base | Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" |
| 2021 | Ford | Bronco | Big Bend | Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" |
| 2022 | Ford | Bronco | Big Bend | Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" |
| 2023 | Ford | Bronco | Big Bend | Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" |
| 2024 | Ford | Bronco | Big Bend | Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" |
| 2021 | Ford | Bronco | Black Diamond | Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" |
| 2022 | Ford | Bronco | Black Diamond | Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" |
| 2023 | Ford | Bronco | Black Diamond | Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" |
| 2024 | Ford | Bronco | Black Diamond | Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5",Provides 1.7-2.6" Front Lift Without Sasquatch Package; 0-1.4" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5" |
| 2022 | Ford | Bronco | Everglades | Provides 0-1.4" Front Lift,Provides 0-1.4" Front Lift,Provides 0-1.4" Front Lift |
| 2023 | Ford | Bronco | Everglades | Provides 0-1.4" Front Lift,Provides 0-1.4" Front Lift,Provides 0-1.4" Front Lift |
| 2024 | Ford | Bronco | Everglades | Provides 0-1.4" Front Lift,Provides 0-1.4" Front Lift,Provides 0-1.4" Front Lift |
| 2021 | Ford | Bronco | First Edition | Provides 0.6-1.7" Front Lift |
| 2023 | Ford | Bronco | Heritage Edition | Provides 0-1.4" Front Lift,Provides 0.6-1.7" Front Lift |
| 2024 | Ford | Bronco | Heritage Edition | Provides 0-1.4" Front Lift,Provides 0.6-1.7" Front Lift |
| 2023 | Ford | Bronco | Heritage Limited Edition | Provides 0.6-1.7" Front Lift,Provides 0-1.4" Front Lift |
| 2024 | Ford | Bronco | Heritage Limited Edition | Provides 0.6-1.7" Front Lift,Provides 0-1.4" Front Lift |
| 2021 | Ford | Bronco | Outer Banks | Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package |
| 2022 | Ford | Bronco | Outer Banks | Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package |
| 2023 | Ford | Bronco | Outer Banks | Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package |
| 2024 | Ford | Bronco | Outer Banks | Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package,Provides 2.4" Front Lift Without Sasquatch Package; 0.6-1.7" Front Lift With Sasquatch Package |
| 2021 | Ford | Bronco | Wildtrak | Provides 0-1.4" Front Lift,Provides 0.6-1.7" Front Lift,Provides 0.6-1.7" Front Lift,Provides 0.6-1.7" Front Lift |
| 2022 | Ford | Bronco | Wildtrak | Provides 0-1.4" Front Lift,Provides 0.6-1.7" Front Lift,Provides 0.6-1.7" Front Lift,Provides 0.6-1.7" Front Lift |
| 2023 | Ford | Bronco | Wildtrak | Provides 0-1.4" Front Lift,Provides 0.6-1.7" Front Lift,Provides 0.6-1.7" Front Lift,Provides 0.6-1.7" Front Lift |
| 2024 | Ford | Bronco | Wildtrak | Provides 0-1.4" Front Lift,Provides 0.6-1.7" Front Lift,Provides 0.6-1.7" Front Lift,Provides 0.6-1.7" Front Lift |
