*item may differ from images

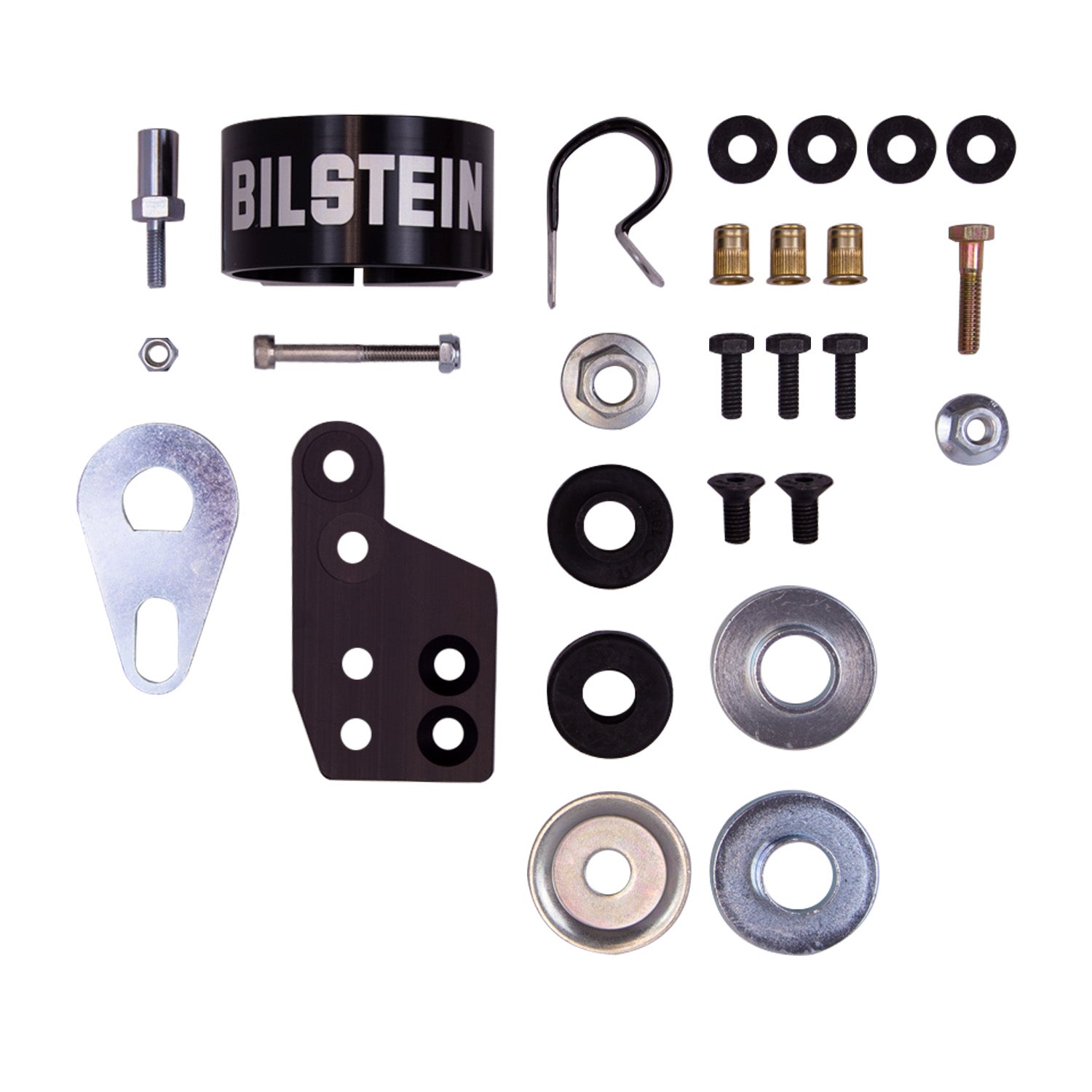

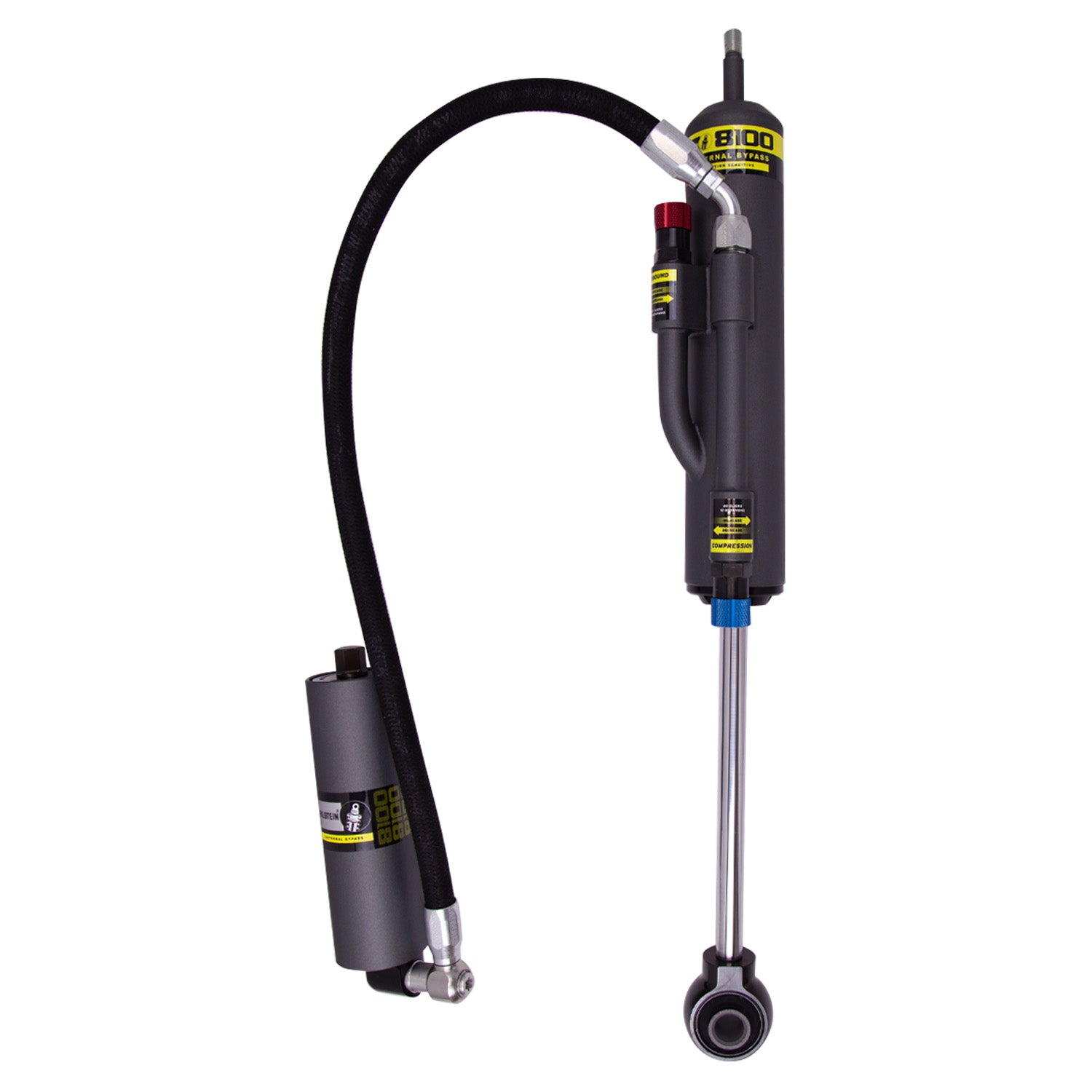

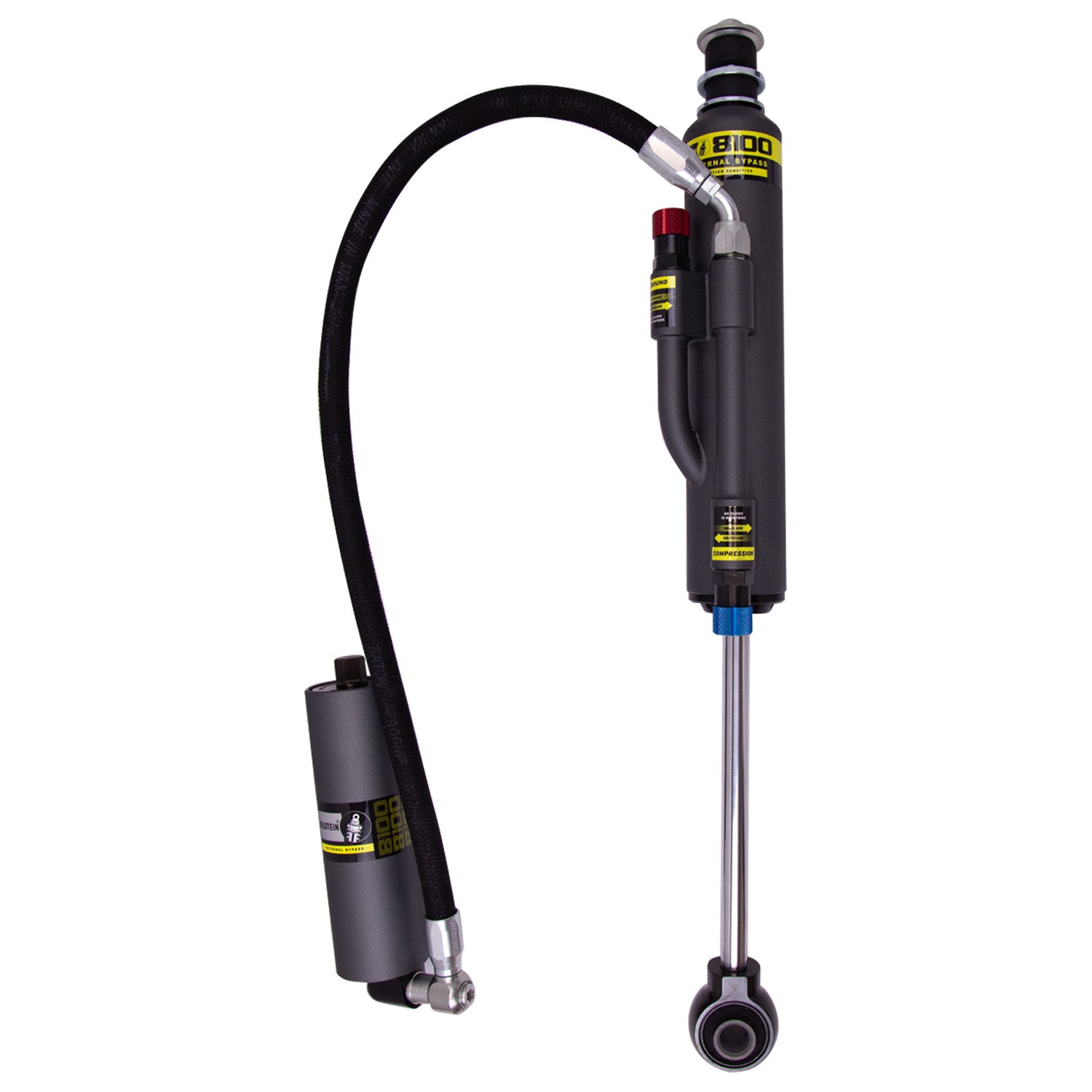

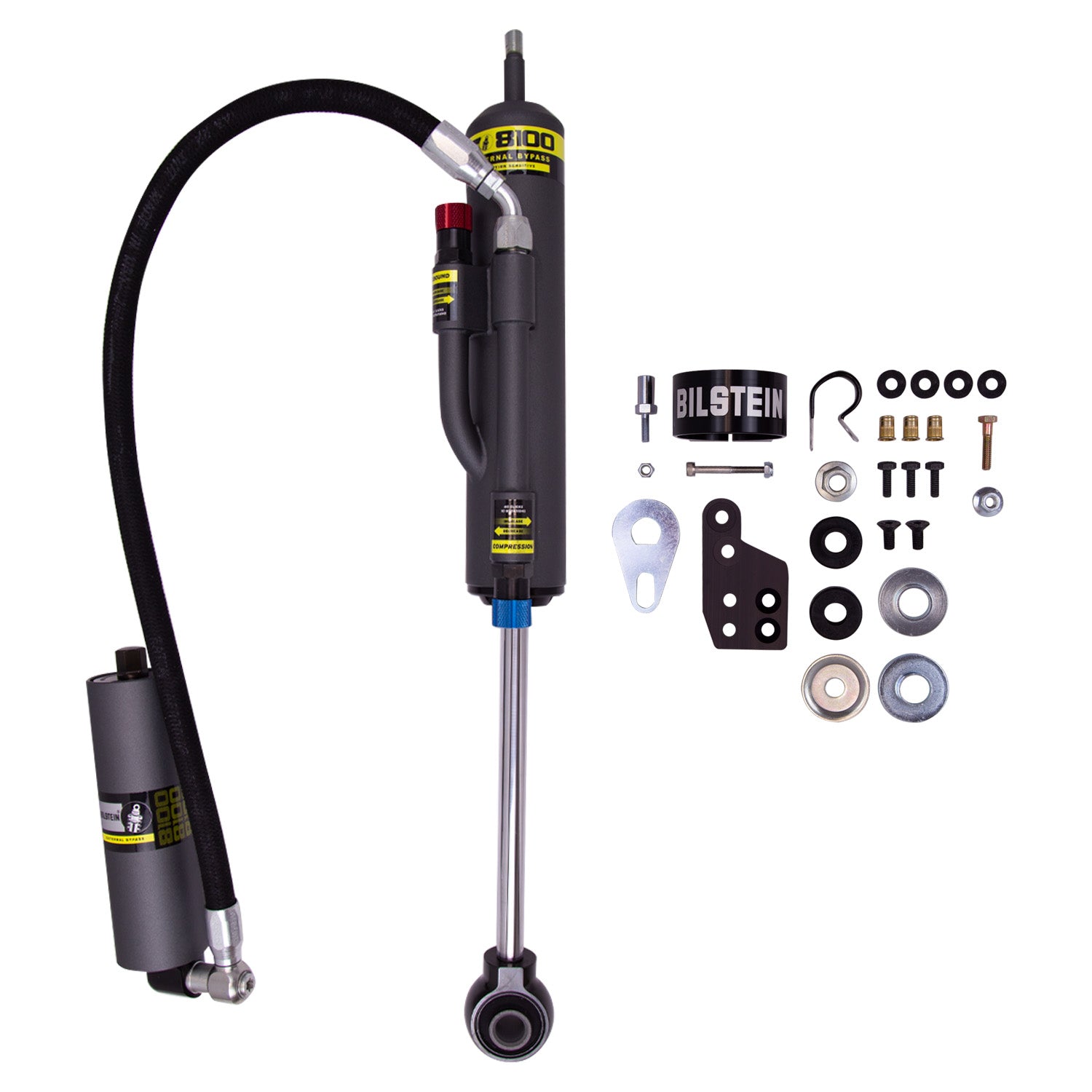

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Bilstein B8 8100 (Bypass) - Suspension Shock Absorber 25-288162
Specifications:
| PartType | Shocks / Struts |
| Upper Mount Type | Stem |
| Internal Design | Monotube |
| Body Design | Bypass Body (Non-Coilover) |
| Extended Length (MM) | 612.0 |
| Reservoir | Yes |
| Boot Included | No |
| Series | B8 8100 (Bypass) |
| Adjustable Damping | Double Adjustable – Compression and Rebound |
| Segment | Light Truck |
| Lower Mount Type | Eye 19.25mm |
| Finish | EVO Grey |
| Collapsed Length (IN) | 14.72 |
| Title | Bilstein Shock Absorbers |
| Spring Seat Included | No |
| Collapsed Length (MM) | 374.0 |
| Body Diameter (ID) | 60mm |
| Extended Length (IN) | 24.09 |
| Prop 65 (Y/N) | Y |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Description_FAB | Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments |
| Description_INV | Toyota FJ 4x4; RR; 8100 Bypass; 0-1.5" |
| Description_LAB | B8 8100 (Bypass) - Suspension Shock Absorber |
| Description_ASM | Toyota FJ Cruiser 2014-2007 |
| Description_MKT | Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control. |
| Description_SHO | Shock |
| Description_DEF | Suspension Shock Absorber |
| Description_DES | B8 8100 (Bypass) - Suspension Shock Absorber |
| Description_EXT | 60mm Shock Absorber |
| Description_FAB | Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression |
| Description_FAB | Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2007 | Toyota | FJ Cruiser | Base | Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift |
| 2008 | Toyota | FJ Cruiser | Base | Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift |
| 2009 | Toyota | FJ Cruiser | Base | Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift |
| 2010 | Toyota | FJ Cruiser | Base | Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift |
| 2011 | Toyota | FJ Cruiser | Base | Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift |
| 2012 | Toyota | FJ Cruiser | Base | Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift |
| 2013 | Toyota | FJ Cruiser | Base | Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift |
| 2014 | Toyota | FJ Cruiser | Base | Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift,Fits Vehicles With 0-2" Rear Lift |
| 2008 | Toyota | FJ Cruiser | Trail Teams Special Edition | Fits Vehicles With 0-2" Rear Lift |
| 2007 | Toyota | FJ Cruiser | TRD Special Edition | Fits Vehicles With 0-2" Rear Lift |
