*item may differ from images

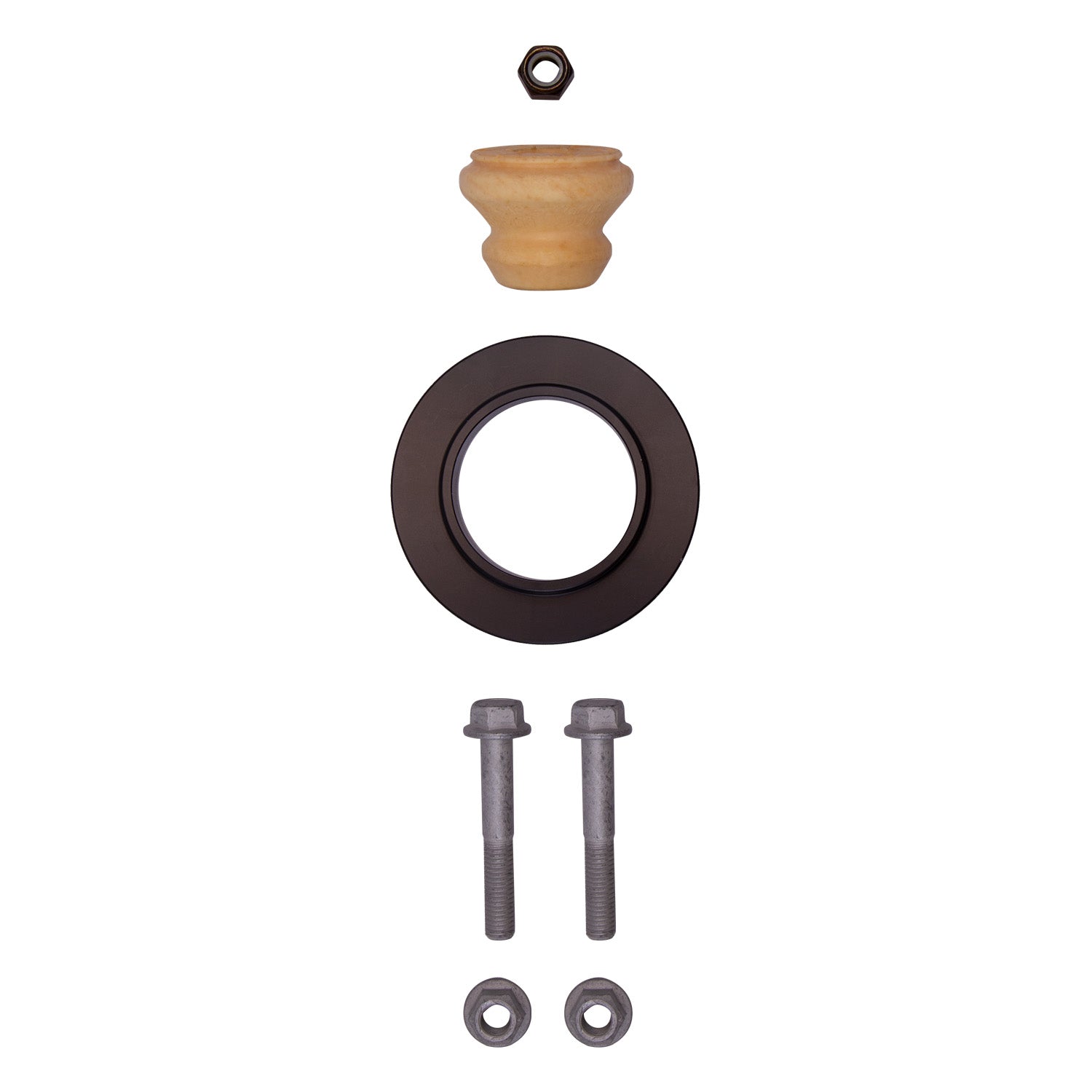

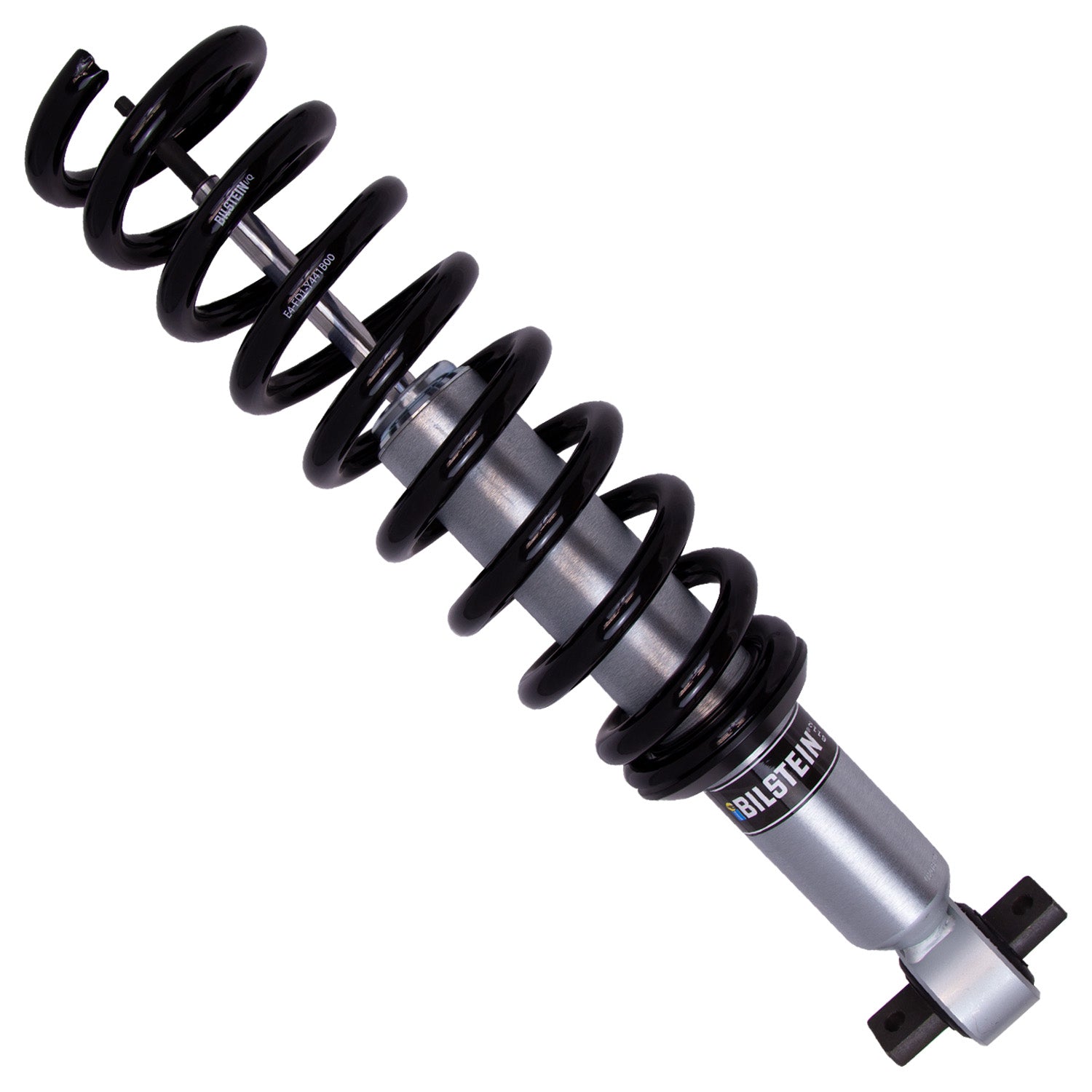

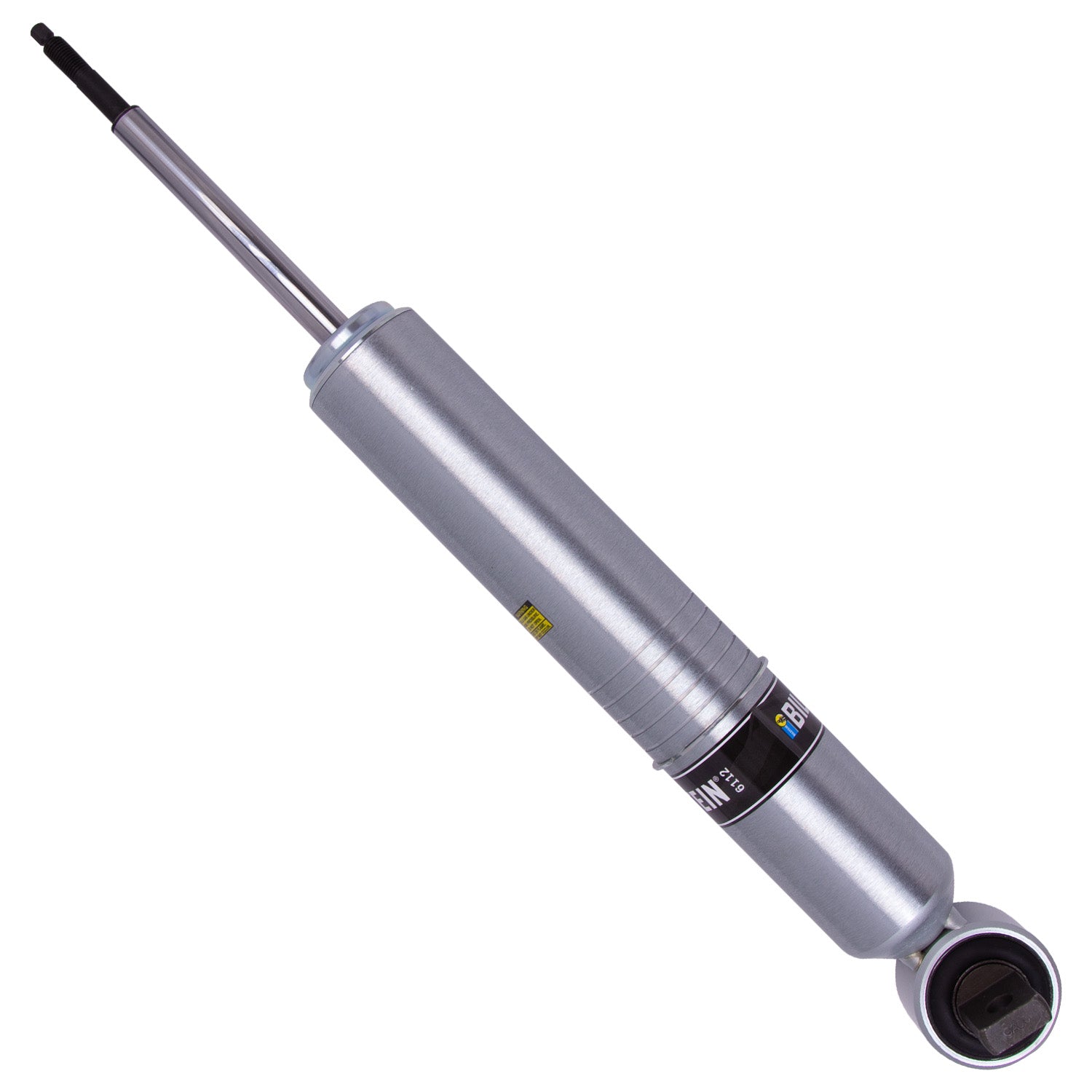

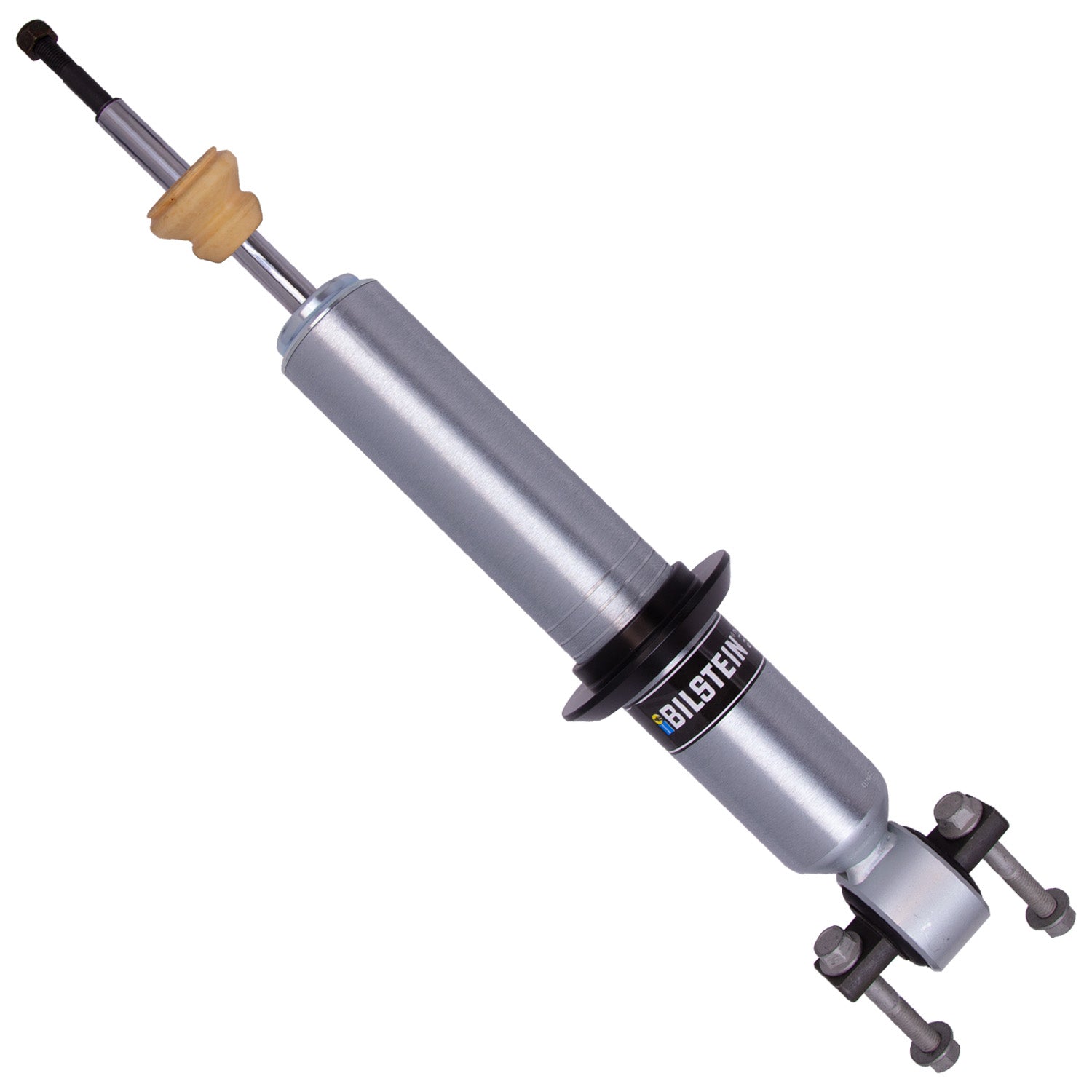

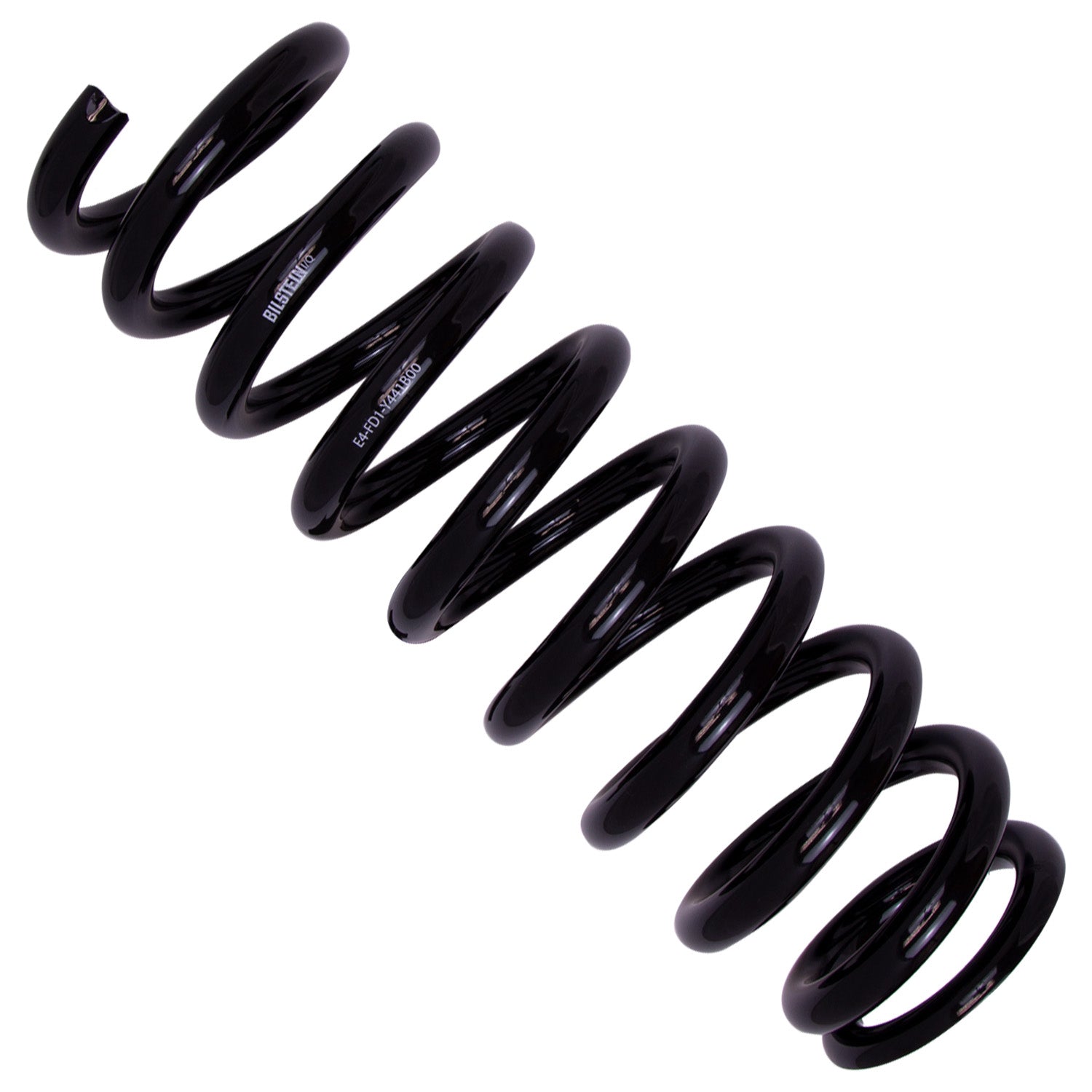

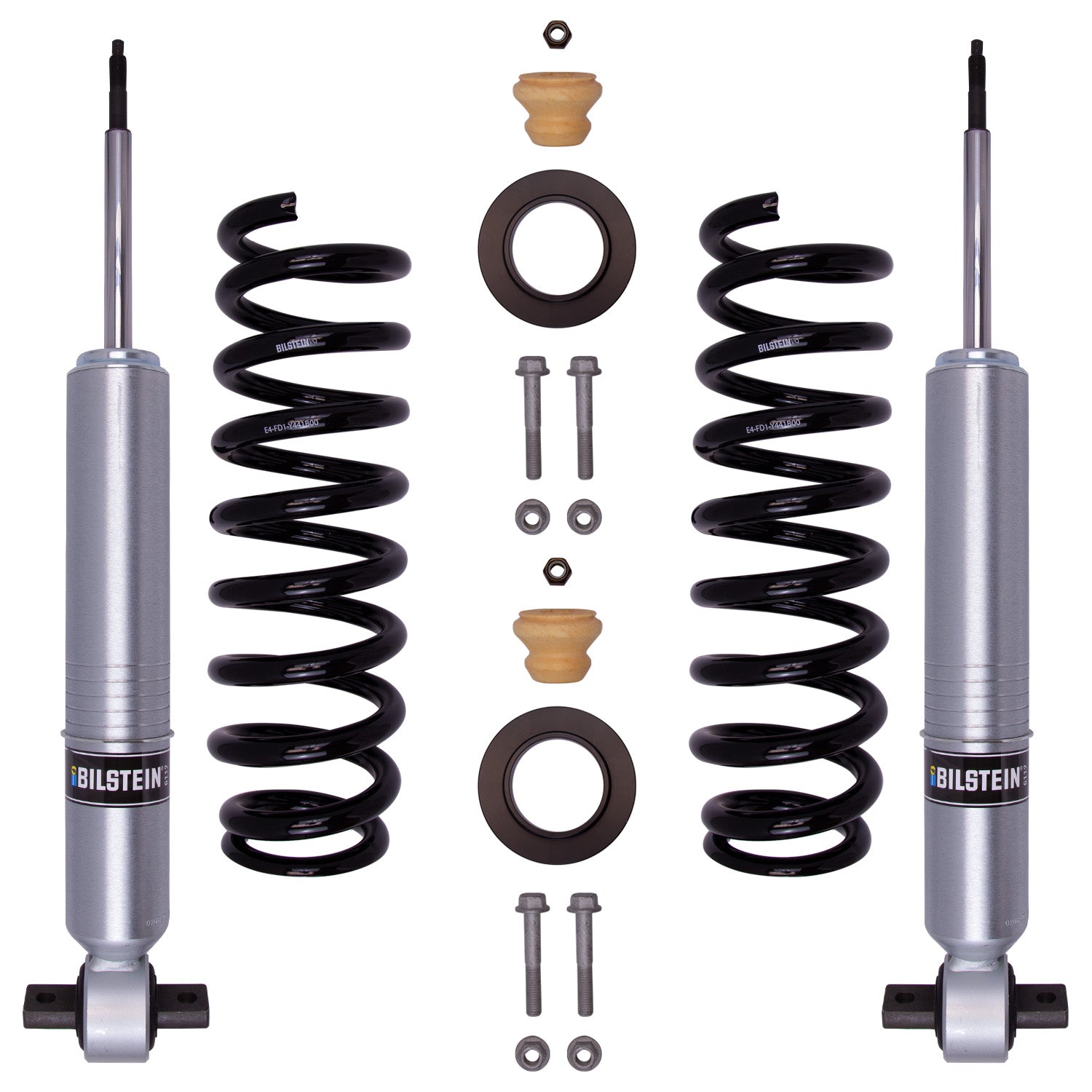

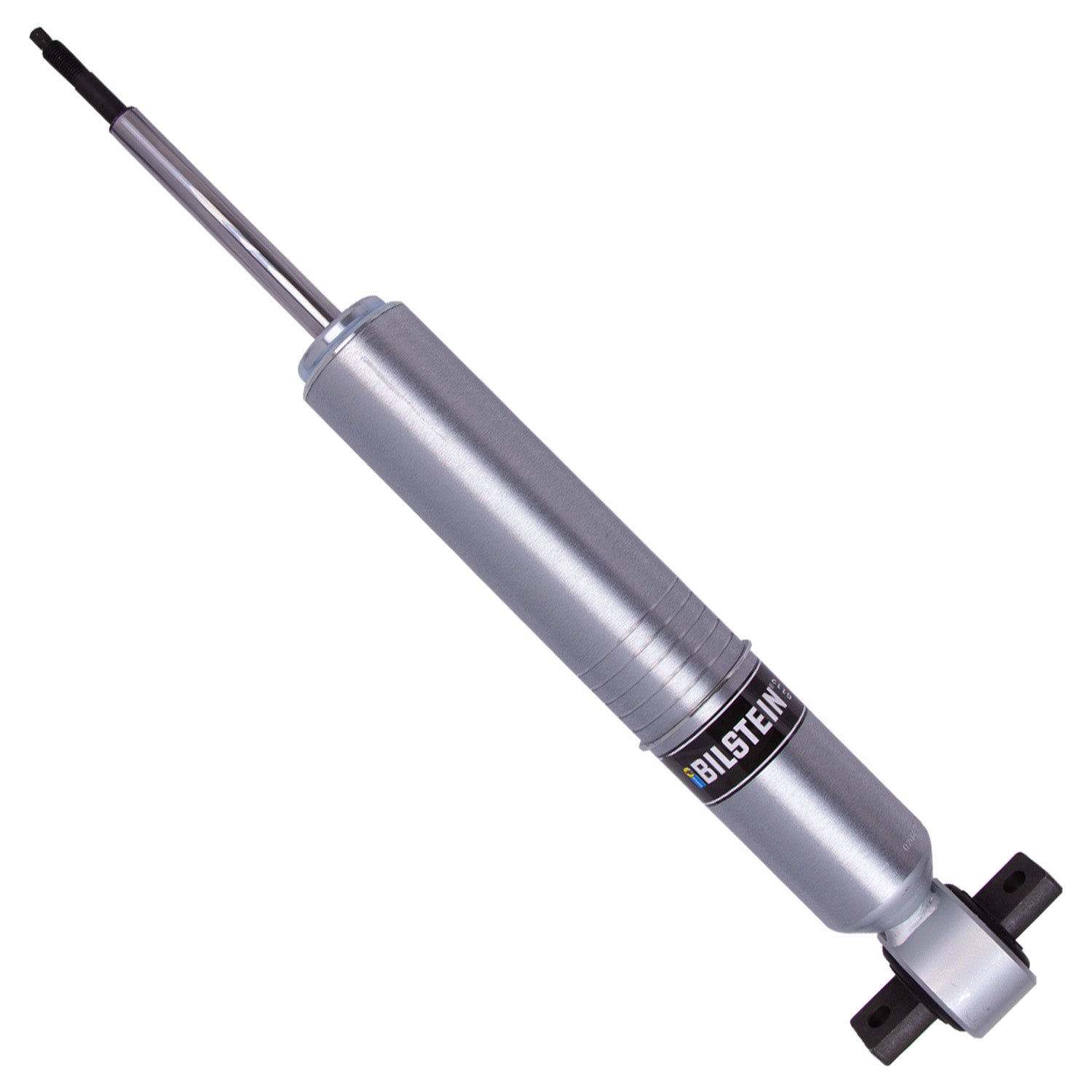

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Bilstein B8 6112 - Suspension Kit 47-323841
Specifications:
| Prop 65 (Y/N) | Y |
| Reservoir | No |
| Adjustable Damping | Non-Adjustable |
| Internal Design | Monotube |
| Spring Seat Included | Yes |
| Series | B8 6112 |
| Title | Bilstein Shock Absorbers |
| Finish | Dampers: Zinc Plated/Springs: Black |
| Boot Included | No |
| Body Diameter (ID) | 60mm |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| PartType | Suspension Kit |
| Segment | Light Truck |
| Description_SHO | Front Kit |
| Description_DEF | Suspension Kit |
| Description_DES | B8 6112 - Suspension Kit |
| Description_EXT | Front Suspension Kit |
| Description_INV | Ford F150 4WD '21+; F; 6112 Kit; 0-2.5" |
| Description_LAB | B8 6112 - Suspension Kit |
| Description_ASM | Ford F-150 2024-2021 |
| Description_MKT | Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV. |
| Description_FAB | 60mm digressive piston improves ride comfort and control over rough terrain |
| Description_FAB | 60mm digressive piston improves ride comfort and control over rough terrain |
| Description_FAB | Large 60mm body for increased oil capacity, cooling, and long-term durability |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2021 | Ford | F-150 | King Ranch | Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2022 | Ford | F-150 | King Ranch | Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2023 | Ford | F-150 | King Ranch | Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2024 | Ford | F-150 | King Ranch | Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2021 | Ford | F-150 | Lariat | Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping,Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2022 | Ford | F-150 | Lariat | Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping,Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2023 | Ford | F-150 | Lariat | Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping,Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2024 | Ford | F-150 | Lariat | Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping,Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2021 | Ford | F-150 | Limited | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2022 | Ford | F-150 | Limited | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2023 | Ford | F-150 | Limited | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2021 | Ford | F-150 | Platinum | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid,Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2022 | Ford | F-150 | Platinum | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid,Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2023 | Ford | F-150 | Platinum | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid,Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2024 | Ford | F-150 | Platinum | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid,Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2024 | Ford | F-150 | STX | Provides 0-2.5" Front Lift; Without Continuously Controlled Damping |
| 2021 | Ford | F-150 | Tremor | Provides 0-1.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.5" Front Lift; Without Continuously Controlled Damping |
| 2022 | Ford | F-150 | Tremor | Provides 0-1.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.5" Front Lift; Without Continuously Controlled Damping |
| 2023 | Ford | F-150 | Tremor | Provides 0-1.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.5" Front Lift; Without Continuously Controlled Damping |
| 2024 | Ford | F-150 | Tremor | Provides 0-1.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.5" Front Lift; Without Continuously Controlled Damping |
| 2021 | Ford | F-150 | XL | PowerBoost Hybrid; Without Continuously Controlled Damping; Provides 0-1.9" Front Lift,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping |
| 2022 | Ford | F-150 | XL | PowerBoost Hybrid; Without Continuously Controlled Damping; Provides 0-1.9" Front Lift,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping |
| 2023 | Ford | F-150 | XL | PowerBoost Hybrid; Without Continuously Controlled Damping; Provides 0-1.9" Front Lift,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping |
| 2024 | Ford | F-150 | XL | PowerBoost Hybrid; Without Continuously Controlled Damping; Provides 0-1.9" Front Lift,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping,Provides 0-1.9" Front Lift; Without Continuously Controlled Damping; PowerBoost Hybrid,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping |
| 2021 | Ford | F-150 | XLT | Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping,Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2022 | Ford | F-150 | XLT | Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping,Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2023 | Ford | F-150 | XLT | Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping,Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
| 2024 | Ford | F-150 | XLT | Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping,Provides 0.4-2.4" Front Lift; Without Continuously Controlled Damping,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine,Provides 0-2.5" Front Lift; Without Continuously Controlled Damping; EcoBoost Engine |
