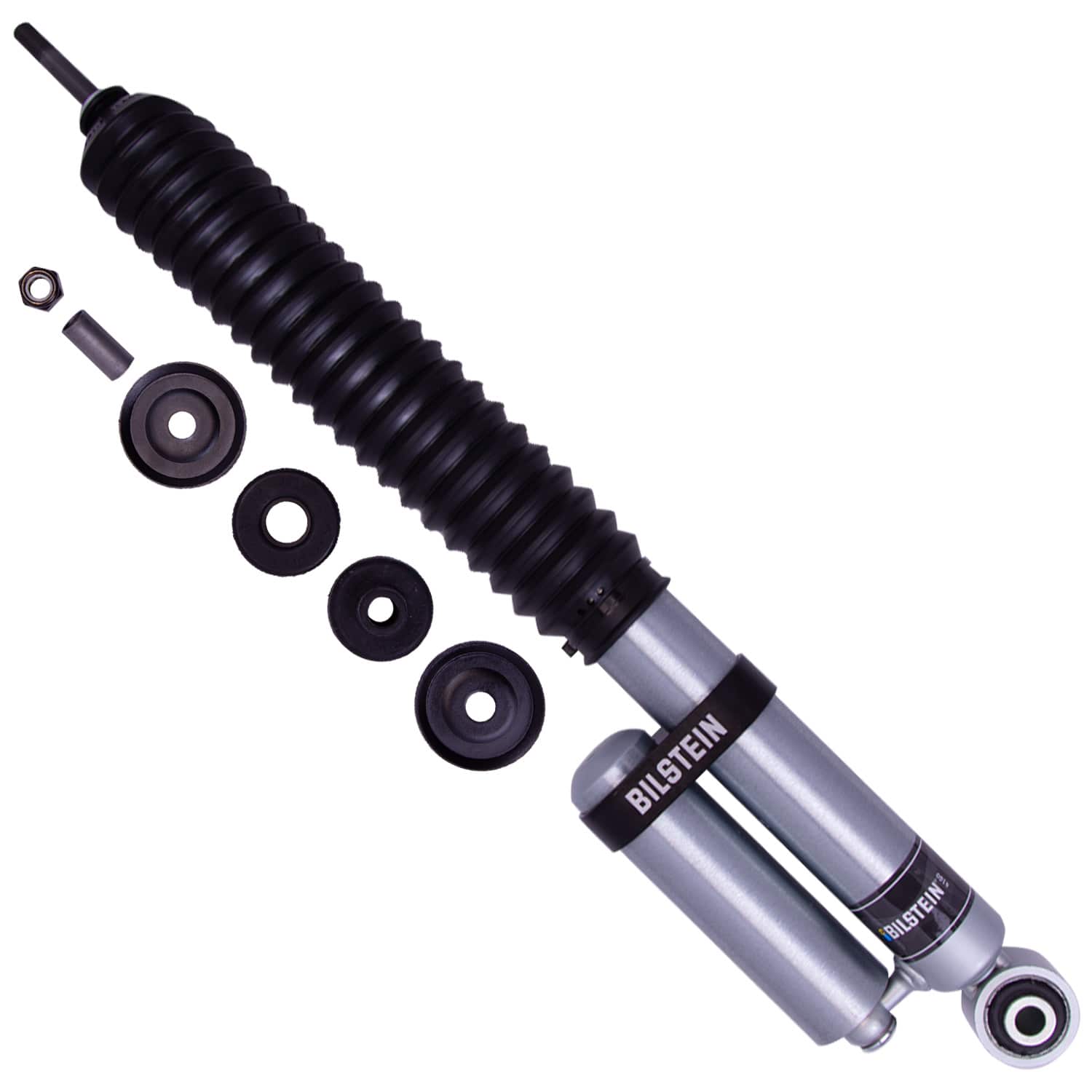

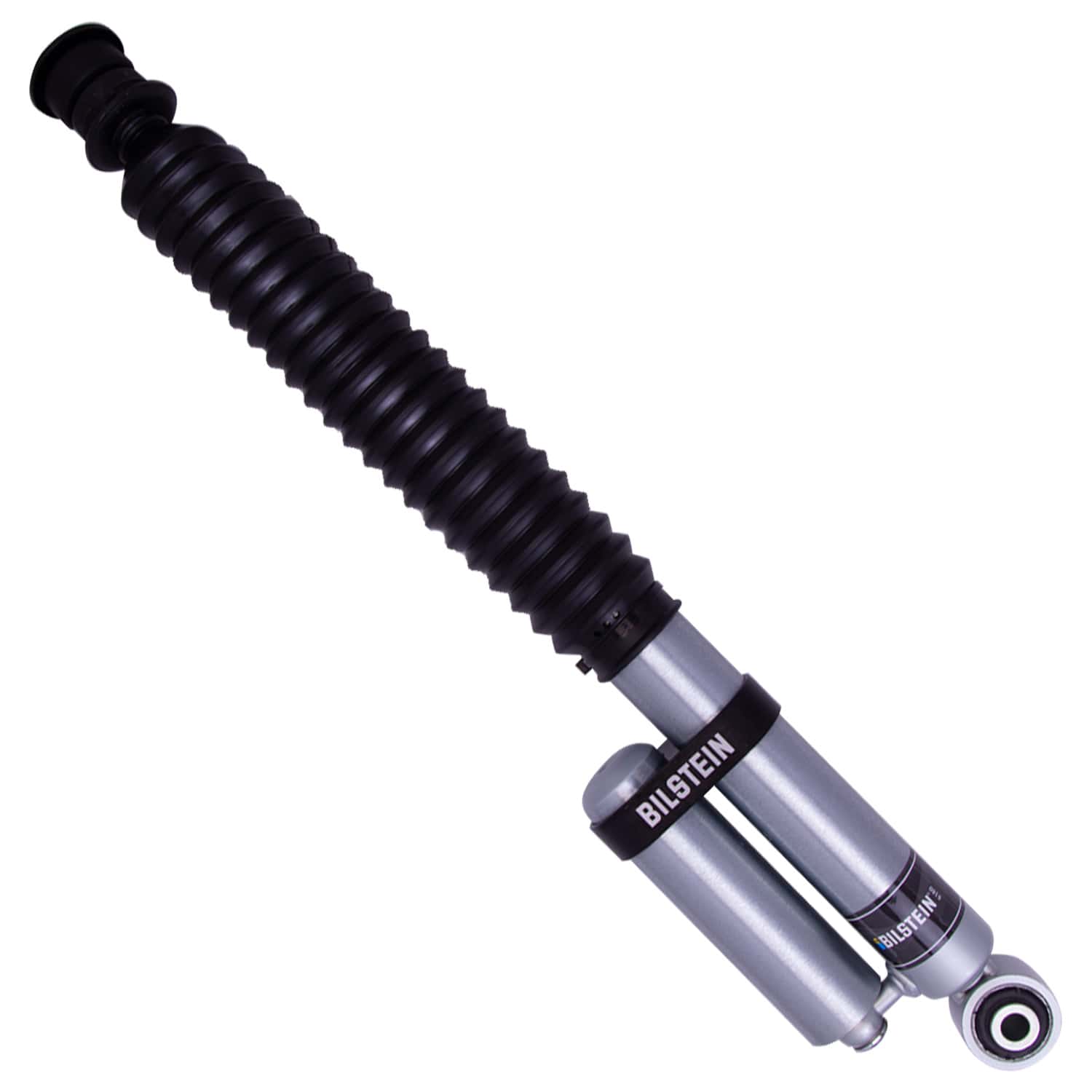

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
Bilstein B8 5160 - Suspension Shock Absorber 25-325102
Specifications:
| PartType | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Reservoir | Yes |
| Billet Reservoir Clamp Included | Yes |
| Collapsed Length (MM) | 398.5 |
| Boot Included | Black Bellows |
| Series | B8 5160 |
| Upper Mount Type | Stem |
| Internal Design | Monotube |
| Adjustable Damping | Non-Adjustable |
| Lower Mount Type | Eye 14.1mm |
| Segment | Light Truck |
| Collapsed Length (IN) | 15.69 |
| Spring Seat Included | No |
| Extended Length (IN) | 25.75 |
| Title | Bilstein Shock Absorbers |
| Body Diameter (ID) | 46mm |
| Body Design | Smooth Body (Non-Coilover) |
| Extended Length (MM) | 654.0 |
| Finish | Zinc Plated |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Description_FAB | Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control |
| Description_SHO | Shock |
| Description_DEF | Suspension Shock Absorber |
| Description_DES | B8 5160 - Suspension Shock Absorber |
| Description_EXT | 46mm Monotube Shock Absorber |
| Description_FAB | 46mm monotube design ensures consistent, fade-free performance in all conditions |
| Description_INV | RAM 1500 4WD; '19+; RL; B8 5160MD |
| Description_LAB | B8 5160 - Suspension Shock Absorber |
| Description_ASM | Ram 1500 2024-2019 |
| Description_MKT | Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments. |
| Description_FAB | Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2019 | Ram | 1500 | Big Horn | |
| 2020 | Ram | 1500 | Big Horn | |
| 2021 | Ram | 1500 | Big Horn | |
| 2022 | Ram | 1500 | Big Horn | |
| 2023 | Ram | 1500 | Big Horn | |
| 2024 | Ram | 1500 | Big Horn | |
| 2019 | Ram | 1500 | HFE | |
| 2020 | Ram | 1500 | HFE | |
| 2021 | Ram | 1500 | HFE | |
| 2019 | Ram | 1500 | Laramie | |
| 2020 | Ram | 1500 | Laramie | |
| 2021 | Ram | 1500 | Laramie | |
| 2022 | Ram | 1500 | Laramie | |
| 2023 | Ram | 1500 | Laramie | |
| 2024 | Ram | 1500 | Laramie | |
| 2019 | Ram | 1500 | Laramie Longhorn | |
| 2020 | Ram | 1500 | Laramie Longhorn | |
| 2021 | Ram | 1500 | Laramie Longhorn | |
| 2021 | Ram | 1500 | Limited Longhorn | |
| 2022 | Ram | 1500 | Limited Longhorn | |
| 2023 | Ram | 1500 | Limited Longhorn | |
| 2024 | Ram | 1500 | Limited Longhorn | |
| 2019 | Ram | 1500 | Lone Star | |
| 2020 | Ram | 1500 | Lone Star | |
| 2021 | Ram | 1500 | Lone Star | |
| 2022 | Ram | 1500 | Lone Star | |
| 2023 | Ram | 1500 | Lone Star | |
| 2024 | Ram | 1500 | Lone Star | |
| 2021 | Ram | 1500 | Longhorn | |
| 2019 | Ram | 1500 | Rebel | |
| 2020 | Ram | 1500 | Rebel | |
| 2021 | Ram | 1500 | Rebel | |
| 2022 | Ram | 1500 | Rebel | |
| 2023 | Ram | 1500 | Rebel | |
| 2019 | Ram | 1500 | Tradesman | |
| 2020 | Ram | 1500 | Tradesman | |
| 2021 | Ram | 1500 | Tradesman | |
| 2022 | Ram | 1500 | Tradesman | |
| 2023 | Ram | 1500 | Tradesman | |
| 2024 | Ram | 1500 | Tradesman |
