Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

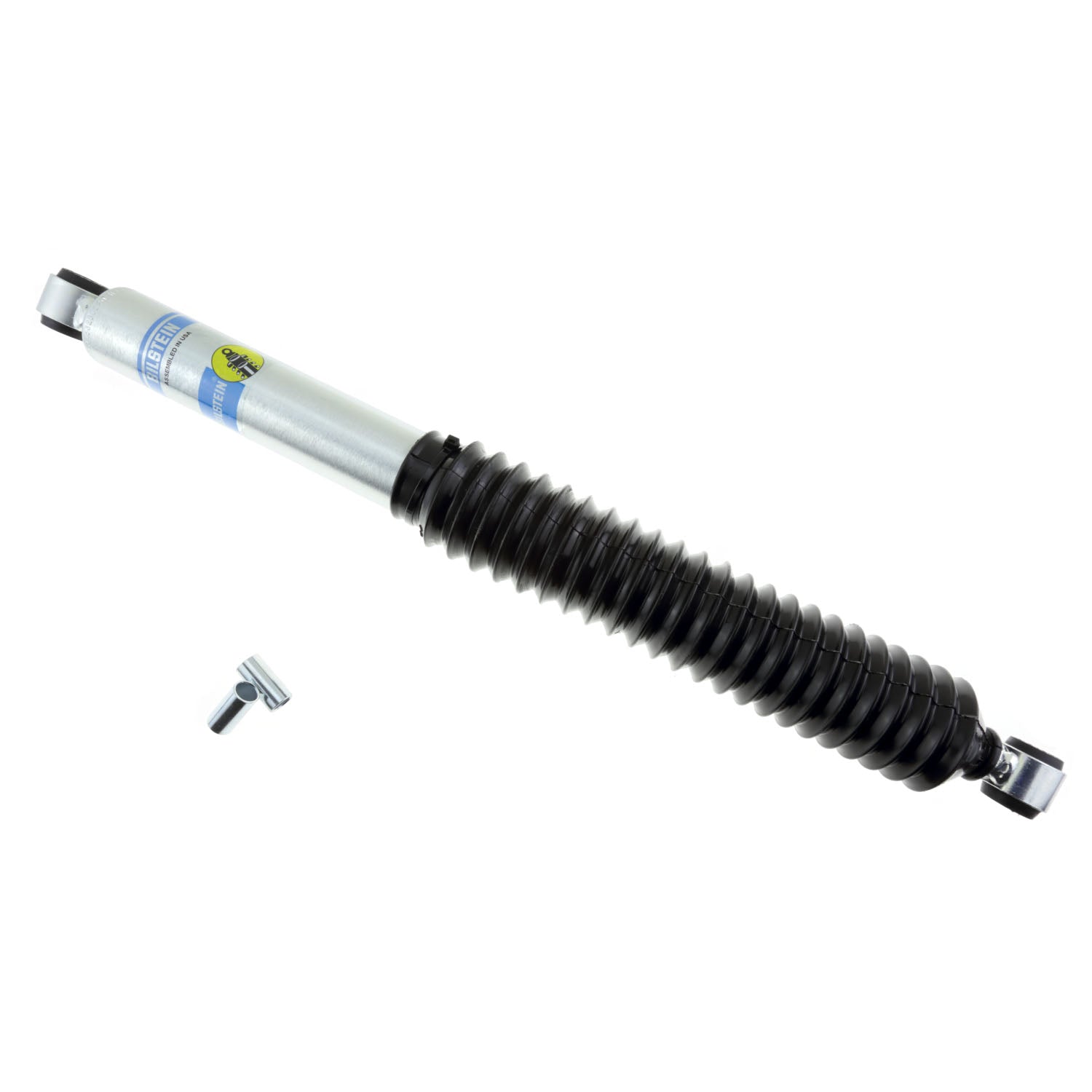

Bilstein B8 5125 - Suspension Shock Absorber 33-230320
Specifications:
| PartType | Shocks / Struts |
| Segment | Light Truck |
| Prop 65 (Y/N) | Y |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Extended Length (MM) | 618.2 |
| Body Diameter (ID) | 46mm |
| Spring Seat Included | No |
| Mount Type | Eye-to-Eye |
| Extended Length (IN) Rounded | 24 |
| Internal Design | Monotube |
| Rebound @0.52m/s | 3775 |
| Body Design | Smooth Body (Non-Coilover) |
| Collapsed Length (IN) | 15.12 |
| Upper Mount Type | Eye 5/8in |
| Compression @0.52m/s | 755 |
| Lower Mount Type | Eye 5/8in |
| Collapsed Length (IN) Rounded | 15 |
| Extended Length (IN) | 24.34 |
| Finish | Zinc Plated |
| Reservoir | No |
| Adjustable Damping | Non-Adjustable |
| Collapsed Length (MM) | 384 |
| Title | Bilstein Shock Absorbers |
| Boot Included | Black Bellows |
| Series | B8 5125 |
| Description_SHO | Shock |
| Description_INV | Lifted Truck; B8 5125; 236.5mm Stroke |
| Description_DEF | Suspension Shock Absorber |
| Description_LAB | B8 5125 - Suspension Shock Absorber |
| Description_DES | B8 5125 - Suspension Shock Absorber |
| Description_ASM | No Applications |
| Description_EXT | 46mm Monotube Shock Absorber |
| Description_MKT | Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders. |
| Description_FAB | Patented digressive valving instantly reacts to changing surface conditions |
| Description_FAB | 46mm monotube design ensures consistent, fade-free performance in all conditions |
| Description_FAB | Patented digressive valving instantly reacts to changing surface conditions |
