*item may differ from images
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

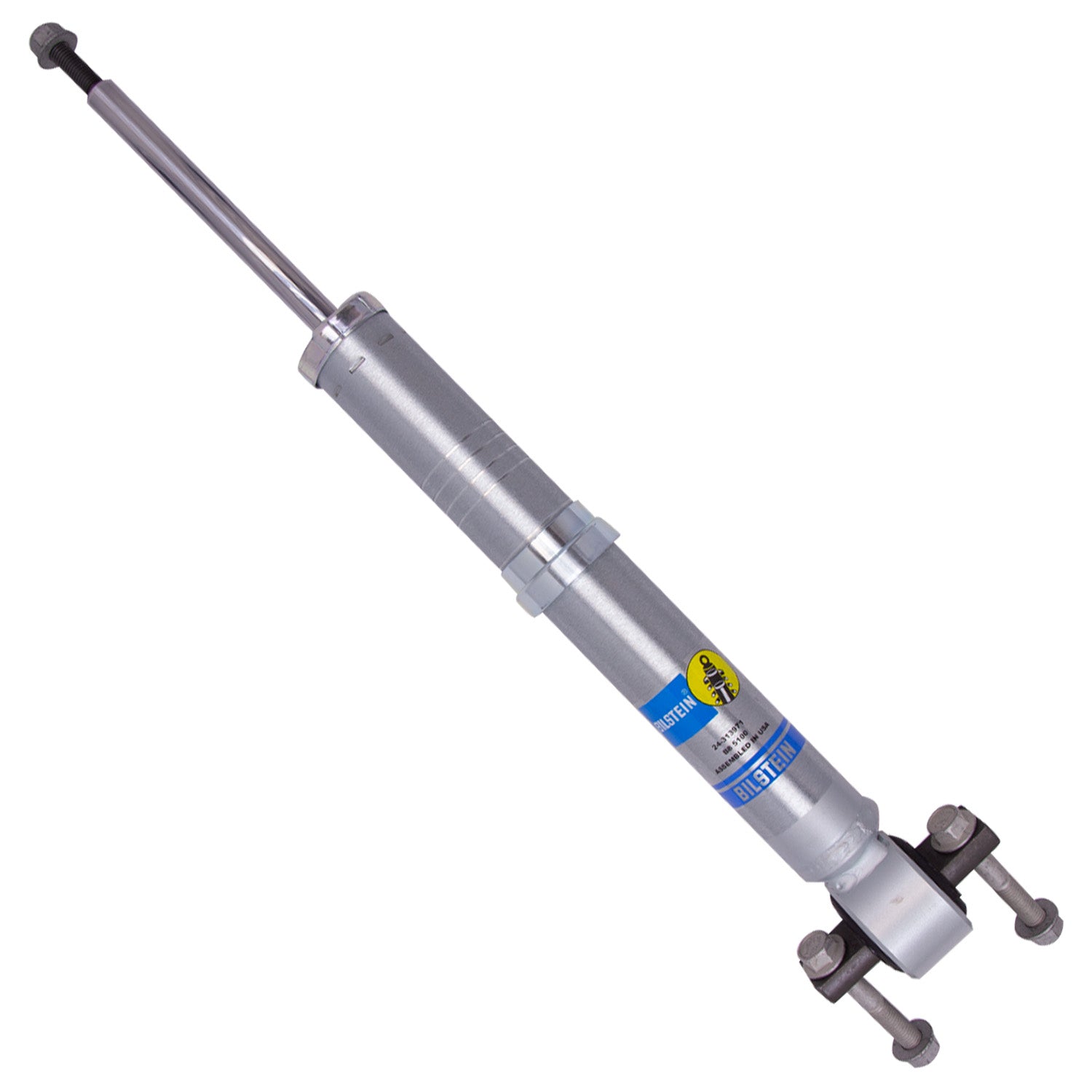

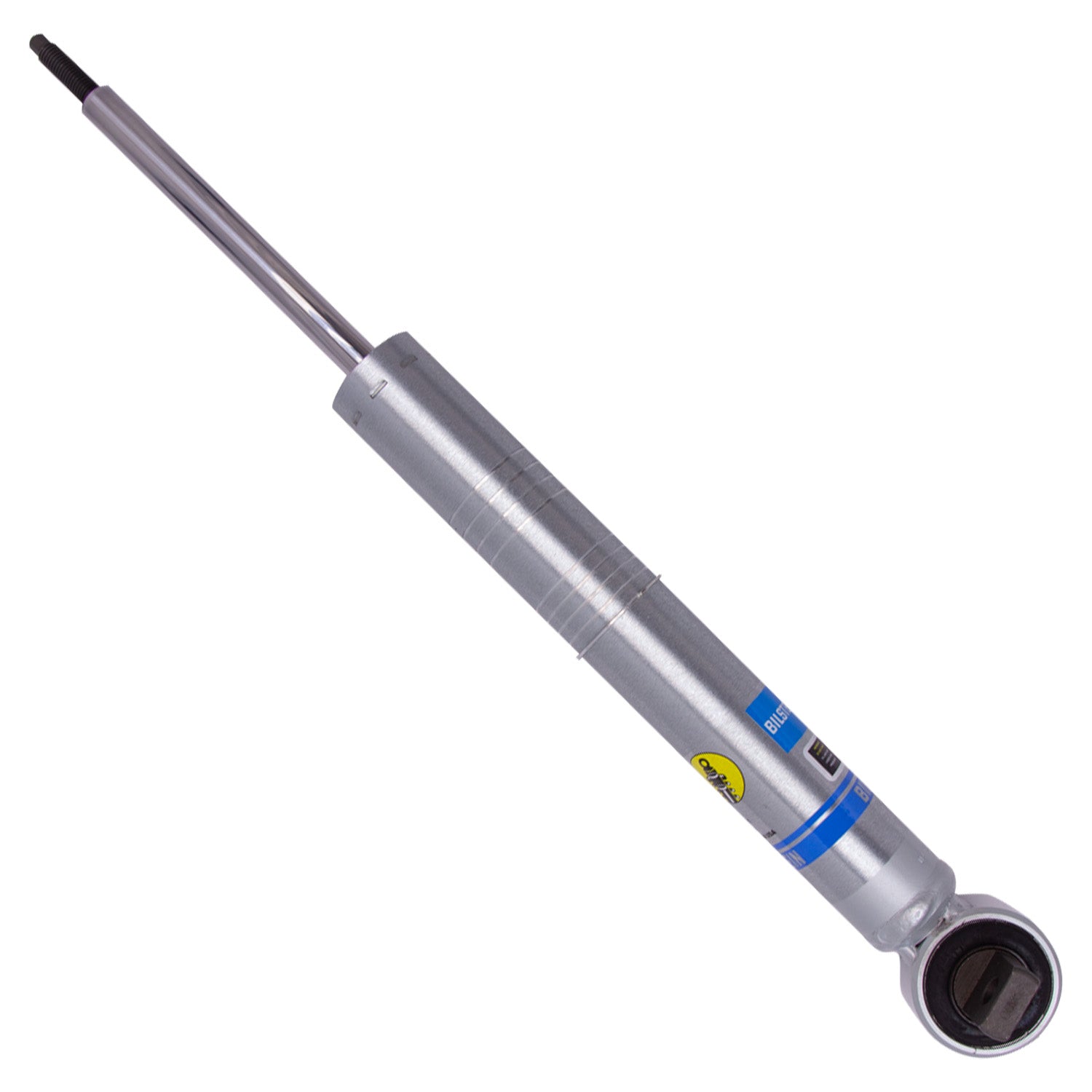

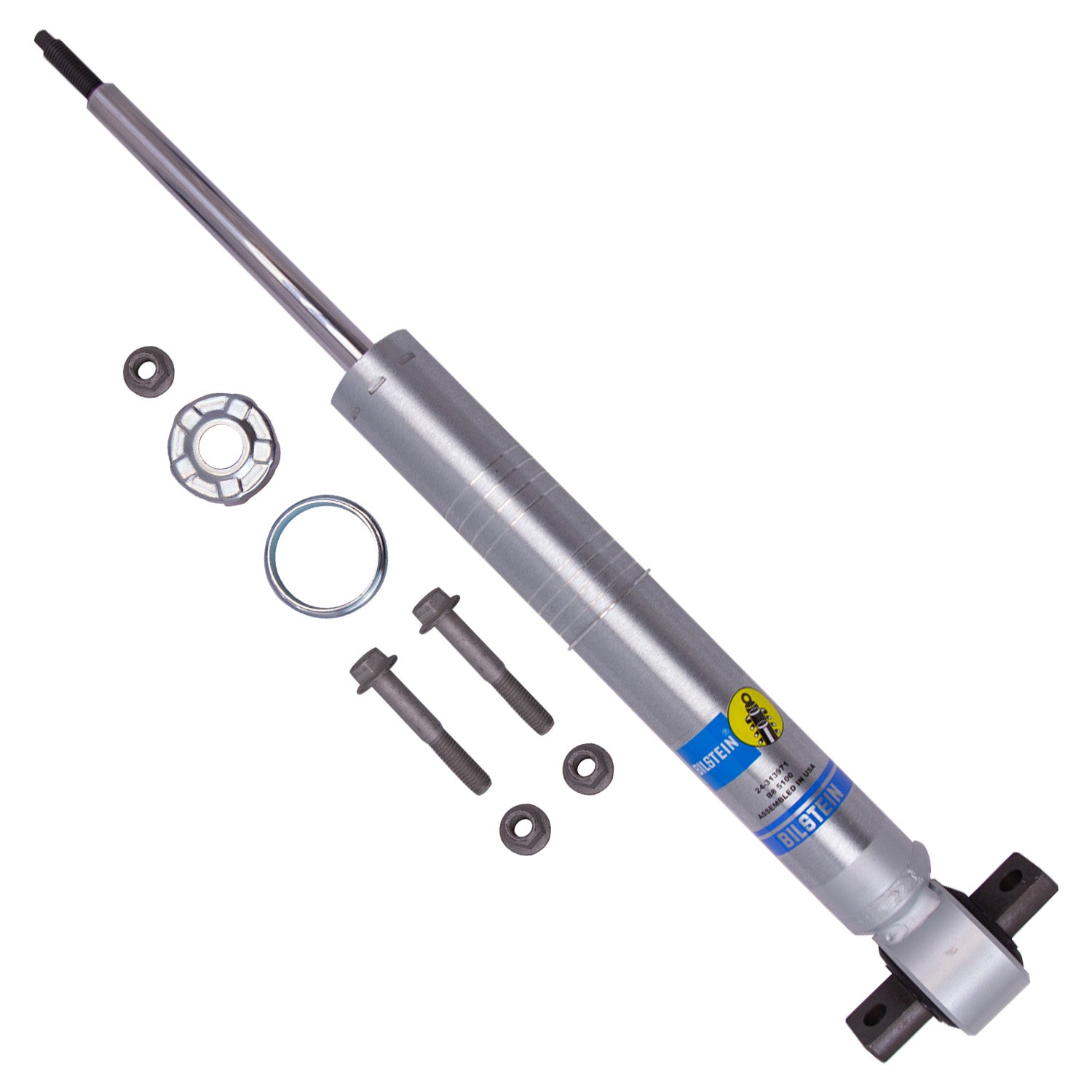

Bilstein B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber 24-313971
Specifications:
| PartType | Shocks / Struts |
| Collapsed Length (IN) | 16.62 |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Extended Length (IN) | 22.80 |
| Title | Bilstein Shock Absorbers |
| Prop 65 (Y/N) | Y |
| Extended Length (MM) | 579.2 |
| Collapsed Length (MM) | 422.2 |
| Series | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included | No - Reuse OEM |
| Adjustable Damping | Non-Adjustable |
| Upper Mount Type | Stem |
| Internal Design | Monotube |
| Reservoir | No |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Segment | Light Truck |
| Lower Mount Type | Crossbar |
| Boot Included | No |
| Body Diameter (ID) | 46mm |
| Finish | Zinc Plated |
| Description_FAB | Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology |
| Description_FAB | 46mm monotube design ensures consistent, fade-free performance in all conditions |
| Description_INV | Bronco 4WD; Base 4dr; '21+; F; B8 5100 |
| Description_LAB | B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber |
| Description_ASM | Ford Bronco 2024-2021 |
| Description_MKT | Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle. |
| Description_SHO | Shock |
| Description_DEF | Suspension Shock Absorber |
| Description_DES | B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber |
| Description_EXT | 46mm Monotube Shock Absorber |
| Description_FAB | Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2021 | Ford | Bronco | Badlands | Provides 0.7-2.5" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 0.7-2.5" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 0.7-2.5" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 0.7-2.5" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2022 | Ford | Bronco | Badlands | Provides 0.7-2.5" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 0.7-2.5" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 0.7-2.5" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 0.7-2.5" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2023 | Ford | Bronco | Badlands | Provides 0.7-2.5" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 0.7-2.5" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 0.7-2.5" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 0.7-2.5" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2024 | Ford | Bronco | Badlands | Provides 0.7-2.5" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 0.7-2.5" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 0.7-2.5" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 0.7-2.5" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2021 | Ford | Bronco | Base | Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2022 | Ford | Bronco | Base | Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2023 | Ford | Bronco | Base | Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2021 | Ford | Bronco | Big Bend | Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2022 | Ford | Bronco | Big Bend | Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2023 | Ford | Bronco | Big Bend | Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2024 | Ford | Bronco | Big Bend | Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2021 | Ford | Bronco | Black Diamond | Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2022 | Ford | Bronco | Black Diamond | Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2023 | Ford | Bronco | Black Diamond | Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2024 | Ford | Bronco | Black Diamond | Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2022 | Ford | Bronco | Everglades | Provides 0-1.7" Front Lift,Provides 0-1.7" Front Lift,Provides 0-1.7" Front Lift |
| 2023 | Ford | Bronco | Everglades | Provides 0-1.7" Front Lift,Provides 0-1.7" Front Lift,Provides 0-1.7" Front Lift |
| 2024 | Ford | Bronco | Everglades | Provides 0-1.7" Front Lift,Provides 0-1.7" Front Lift,Provides 0-1.7" Front Lift |
| 2021 | Ford | Bronco | First Edition | Provides 0-1.7" Front Lift |
| 2023 | Ford | Bronco | Heritage Edition | Provides 0-1.7" Front Lift,Provides 0-1.7" Front Lift |
| 2024 | Ford | Bronco | Heritage Edition | Provides 0-1.7" Front Lift,Provides 0-1.7" Front Lift |
| 2023 | Ford | Bronco | Heritage Limited Edition | Provides 0-1.7" Front Lift,Provides 0-1.7" Front Lift |
| 2024 | Ford | Bronco | Heritage Limited Edition | Provides 0-1.7" Front Lift,Provides 0-1.7" Front Lift |
| 2021 | Ford | Bronco | Outer Banks | Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2022 | Ford | Bronco | Outer Banks | Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2023 | Ford | Bronco | Outer Banks | Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2024 | Ford | Bronco | Outer Banks | Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package,Provides 1-2.9" Front Lift Without Sasquatch Package; 0-1.7" Front Lift With Sasquatch Package |
| 2021 | Ford | Bronco | Wildtrak | Provides 0-1.7" Front Lift,Provides 0-1.7" Front Lift |
| 2022 | Ford | Bronco | Wildtrak | Provides 0-1.7" Front Lift,Provides 0-1.7" Front Lift |
