*item may differ from images
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

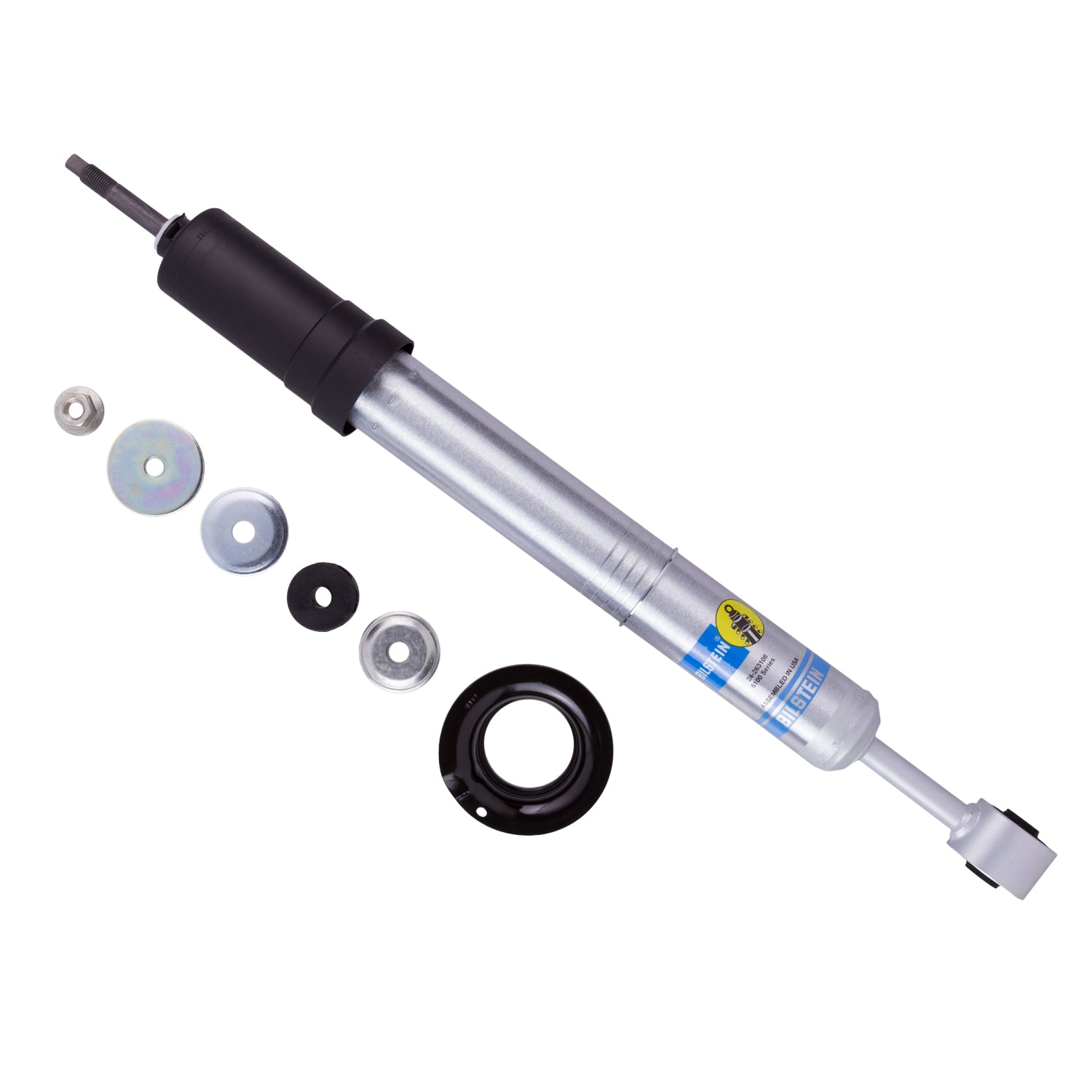

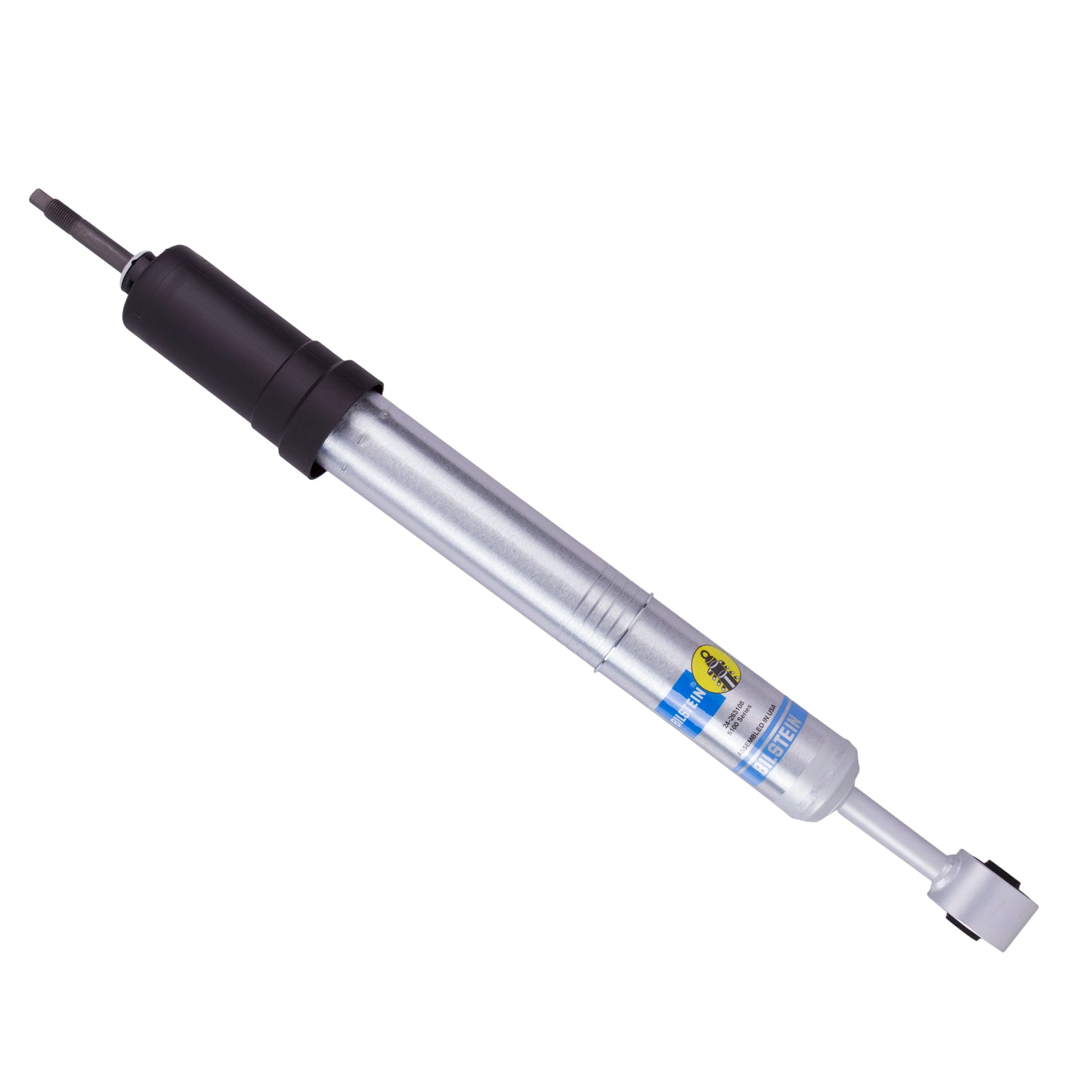

Bilstein B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber 24-263108
Specifications:
| Segment | Light Truck |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Prop 65 (Y/N) | Y |
| Internal Design | Monotube |
| Adjustable Damping | Non-Adjustable |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Collapsed Length (IN) | 17.58 |
| Lower Mount Type | Eye 14.2mm |
| Series | B8 5100 (Ride Height Adjustable) |
| Collapsed Length (MM) | 446.5 |
| Extended Length (MM) | 564.5 |
| Upper Mount Type | Stem |
| Finish | Zinc Plated |
| Boot Included | Black Straight |
| Reservoir | No |
| Title | Bilstein Shock Absorbers |
| Extended Length (IN) | 22.22 |
| Spring Seat Included | Yes |
| Body Diameter (ID) | 46mm |
| PartType | Shocks / Struts |
| Description_FAB | Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology |
| Description_SHO | Shock |
| Description_DEF | Suspension Shock Absorber |
| Description_INV | Toyota Tacoma 4WD; '16+; F; B8 5100; 2" |
| Description_LAB | B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber |
| Description_ASM | Toyota Tacoma 2023-2016 |
| Description_MKT | Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle. |
| Description_DES | B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber |
| Description_EXT | 46mm Monotube Shock Absorber |
| Description_FAB | 46mm monotube design ensures consistent, fade-free performance in all conditions |
| Description_FAB | Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2016 | Toyota | Tacoma | Limited | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2017 | Toyota | Tacoma | Limited | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2018 | Toyota | Tacoma | Limited | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2019 | Toyota | Tacoma | Limited | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2020 | Toyota | Tacoma | Limited | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2021 | Toyota | Tacoma | Limited | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2022 | Toyota | Tacoma | Limited | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2023 | Toyota | Tacoma | Limited | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2021 | Toyota | Tacoma | Nightshade | Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2022 | Toyota | Tacoma | Nightshade | Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2016 | Toyota | Tacoma | SR | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2017 | Toyota | Tacoma | SR | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2018 | Toyota | Tacoma | SR | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2019 | Toyota | Tacoma | SR | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2020 | Toyota | Tacoma | SR | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2021 | Toyota | Tacoma | SR | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2022 | Toyota | Tacoma | SR | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2023 | Toyota | Tacoma | SR | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2016 | Toyota | Tacoma | SR5 | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2017 | Toyota | Tacoma | SR5 | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2018 | Toyota | Tacoma | SR5 | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2019 | Toyota | Tacoma | SR5 | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2020 | Toyota | Tacoma | SR5 | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2021 | Toyota | Tacoma | SR5 | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2022 | Toyota | Tacoma | SR5 | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2023 | Toyota | Tacoma | SR5 | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2021 | Toyota | Tacoma | Trail | Provides 0-2" Front Lift |
| 2023 | Toyota | Tacoma | Trail Special Edition | Provides 0-2" Front Lift |
| 2016 | Toyota | Tacoma | TRD Off-Road | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2017 | Toyota | Tacoma | TRD Off-Road | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2018 | Toyota | Tacoma | TRD Off-Road | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2019 | Toyota | Tacoma | TRD Off-Road | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2020 | Toyota | Tacoma | TRD Off-Road | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2021 | Toyota | Tacoma | TRD Off-Road | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2022 | Toyota | Tacoma | TRD Off-Road | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2023 | Toyota | Tacoma | TRD Off-Road | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2016 | Toyota | Tacoma | TRD Sport | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2017 | Toyota | Tacoma | TRD Sport | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2018 | Toyota | Tacoma | TRD Sport | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2019 | Toyota | Tacoma | TRD Sport | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2020 | Toyota | Tacoma | TRD Sport | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2021 | Toyota | Tacoma | TRD Sport | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2022 | Toyota | Tacoma | TRD Sport | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
| 2023 | Toyota | Tacoma | TRD Sport | Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift,Provides 0-2" Front Lift |
