*item may differ from images

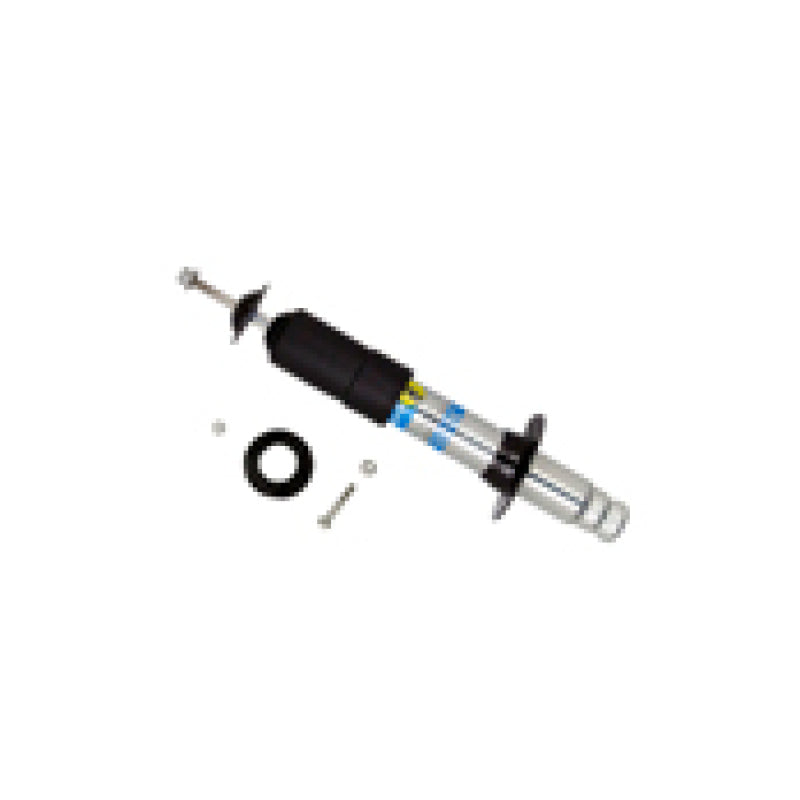

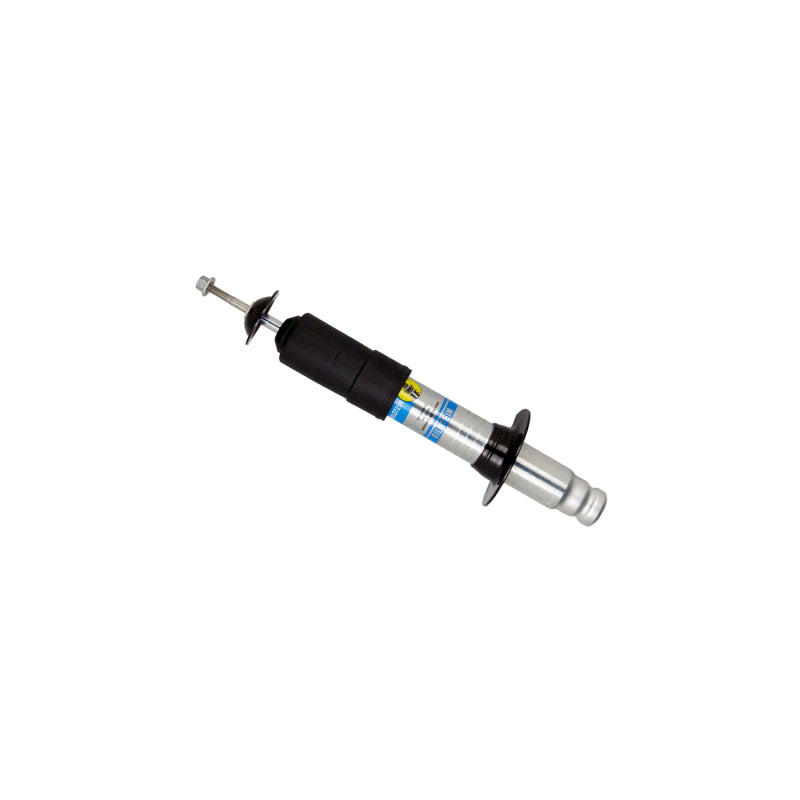

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Installation InstructionsWarranty
Material Safety Data Sheet
Product Brochure - a specific brochure describing a Product
Material Safety Data Sheet
Warranty
Catalog
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
- Vehicle Specific Ride Tuning
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004-2007 | Buick | Rainier | CXL |
| 2004-2005 | Buick | Rainier | CXL Plus |
| 2008 | Chevrolet | Trailblazer | Base |
| 2002-2007 | Chevrolet | Trailblazer | LS |
| 2002-2009 | Chevrolet | Trailblazer | LT |
| 2002-2003 | Chevrolet | Trailblazer | LTZ |
| 2002-2004 | Chevrolet | Trailblazer | North Face |
| 2003-2006 | Chevrolet | Trailblazer EXT | LS |
| 2002-2006 | Chevrolet | Trailblazer EXT | LT |
| 2002-2004 | Chevrolet | Trailblazer EXT | North Face |
| 2005-2009 | GMC | Envoy | Denali |
| 2002-2009 | GMC | Envoy | SLE |
| 2002-2009 | GMC | Envoy | SLT |
| 2005-2006 | GMC | Envoy XL | Denali |
| 2002-2006 | GMC | Envoy XL | SLE |
| 2002-2006 | GMC | Envoy XL | SLT |
| 2003,2006 | Isuzu | Ascender | Base |
| 2003-2005 | Isuzu | Ascender | Limited |
| 2003-2006 | Isuzu | Ascender | LS |
| 2004-2005,2007-2008 | Isuzu | Ascender | S |
| 2002-2004 | Oldsmobile | Bravada | Base |
| 2006-2009 | Saab | 9-7x | 4.2i |
| 2006-2009 | Saab | 9-7x | 5.3i |
| 2005 | Saab | 9-7x | Arc |
| 2005 | Saab | 9-7x | Linear |
