*item may differ from images

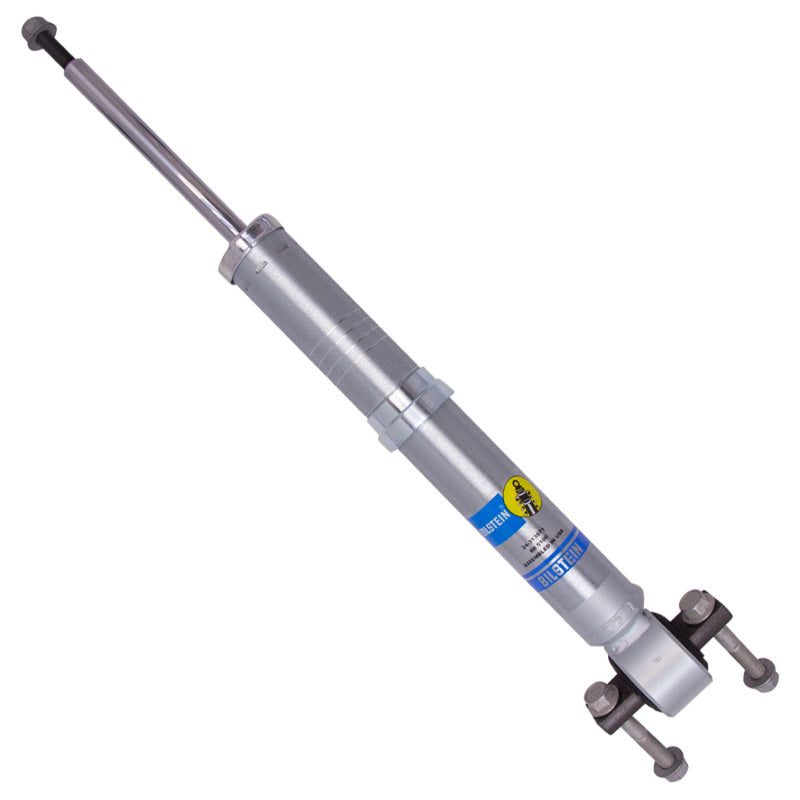

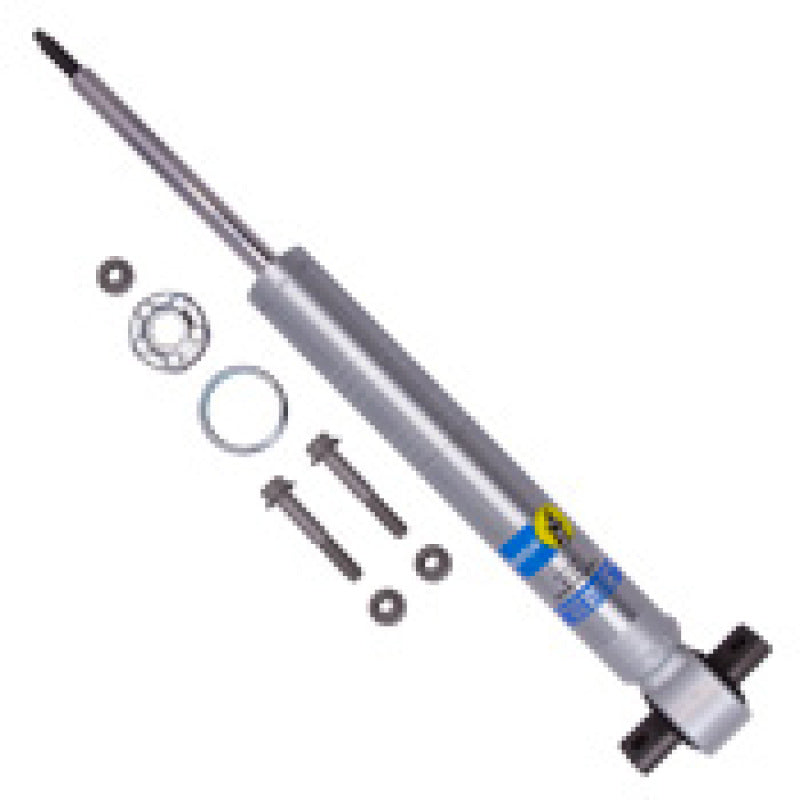

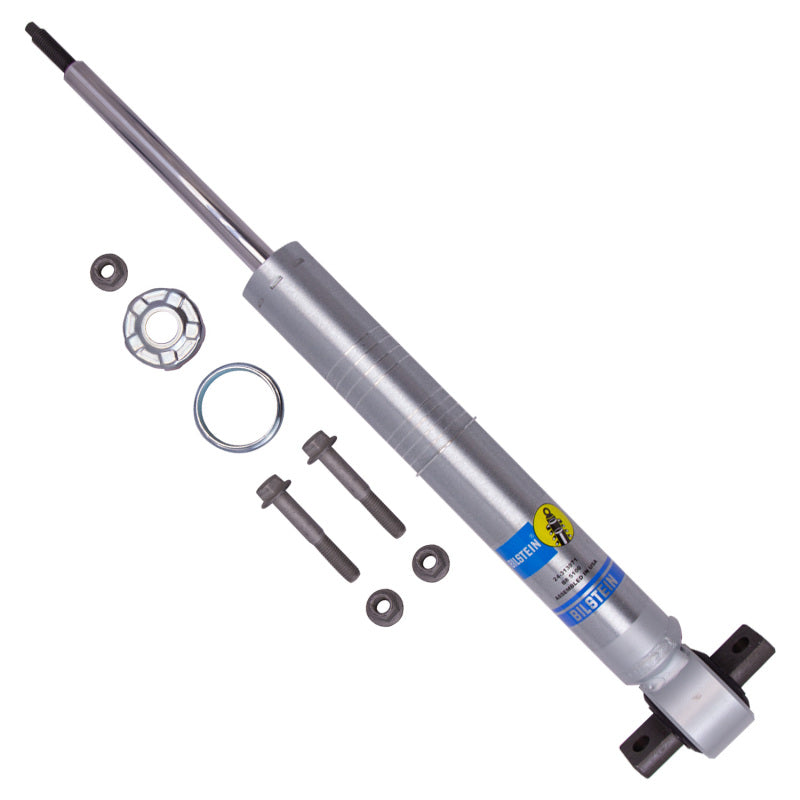

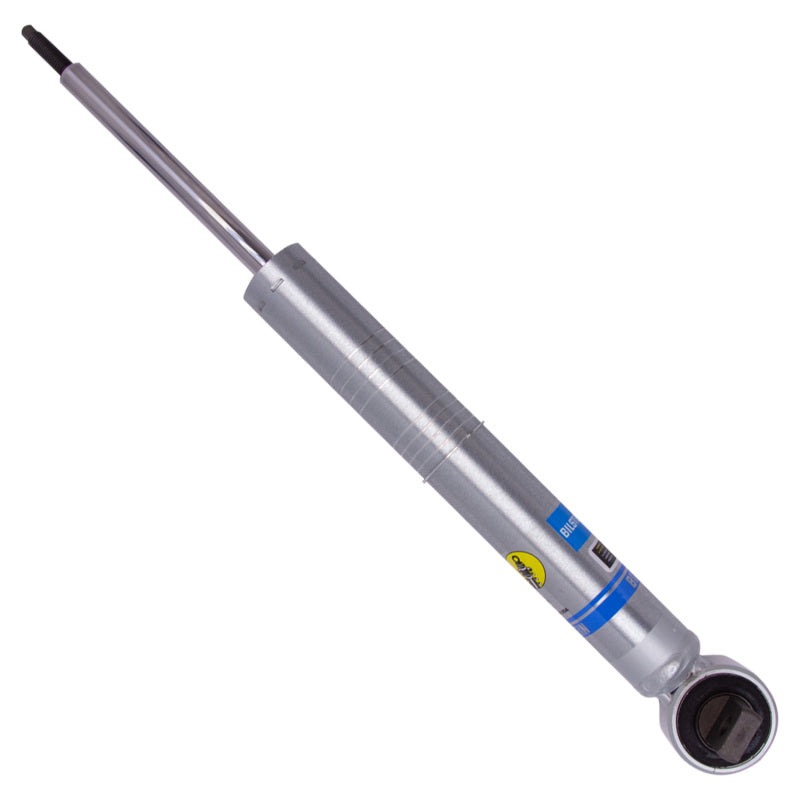

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Installation InstructionsProduct Brochure - a specific brochure describing a Product
Warranty
Catalog
Material Safety Data Sheet
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021-2025 | Ford | Bronco | Badlands |
| 2021-2023,2025 | Ford | Bronco | Base |
| 2021-2025 | Ford | Bronco | Big Bend |
| 2021-2024 | Ford | Bronco | Black Diamond |
| 2022-2024 | Ford | Bronco | Everglades |
| 2021 | Ford | Bronco | First Edition |
| 2023-2025 | Ford | Bronco | Heritage Edition |
| 2023-2024 | Ford | Bronco | Heritage Limited Edition |
| 2021-2025 | Ford | Bronco | Outer Banks |
| 2021-2022 | Ford | Bronco | Wildtrak |
