*item may differ from images

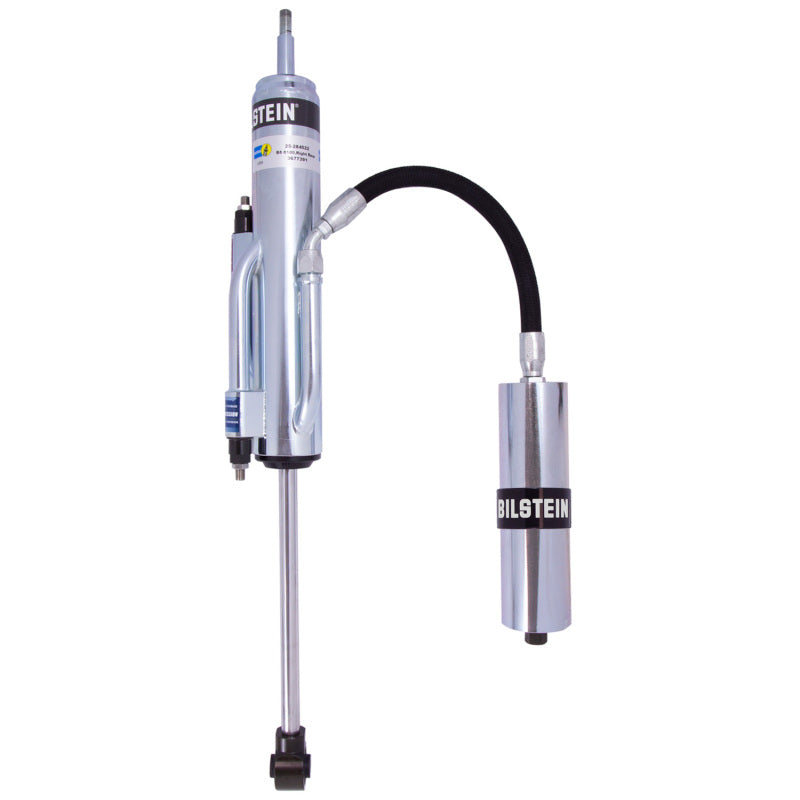

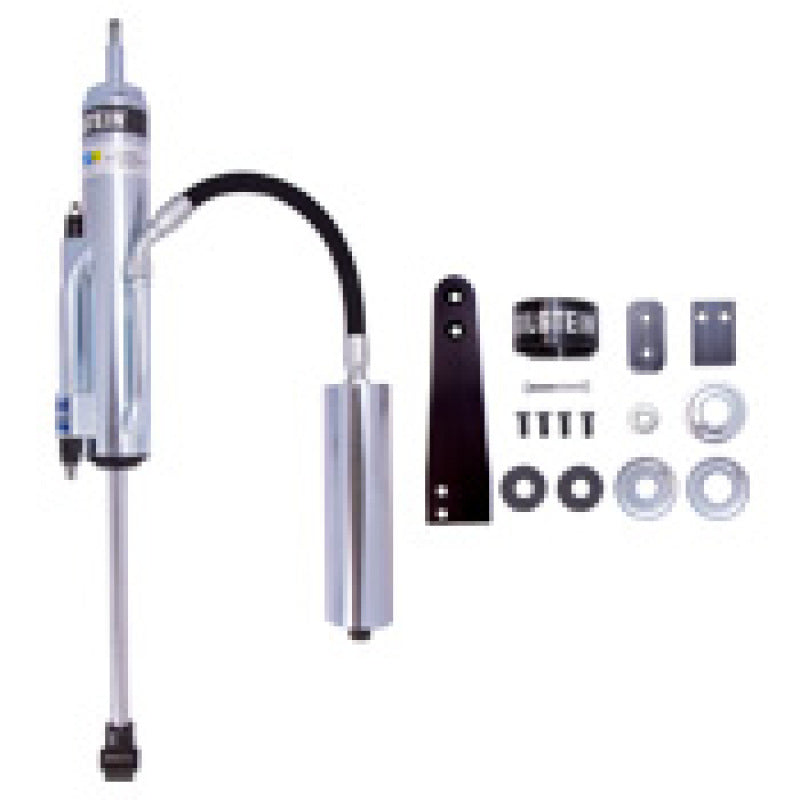

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Installation InstructionsProduct Brochure - a specific brochure describing a Product
Warranty
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014-2021 | Toyota | Tundra | 1794 Edition |
| 2007-2013 | Toyota | Tundra | Base |
| 2007-2021 | Toyota | Tundra | Limited |
| 2021 | Toyota | Tundra | Nightshade |
| 2013-2021 | Toyota | Tundra | Platinum |
| 2014-2021 | Toyota | Tundra | SR |
| 2007-2011,2014-2021 | Toyota | Tundra | SR5 |
| 2021 | Toyota | Tundra | Trail |
| 2015-2017,2019-2021 | Toyota | Tundra | TRD Pro |
