To optimize steering geometry once lifted a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

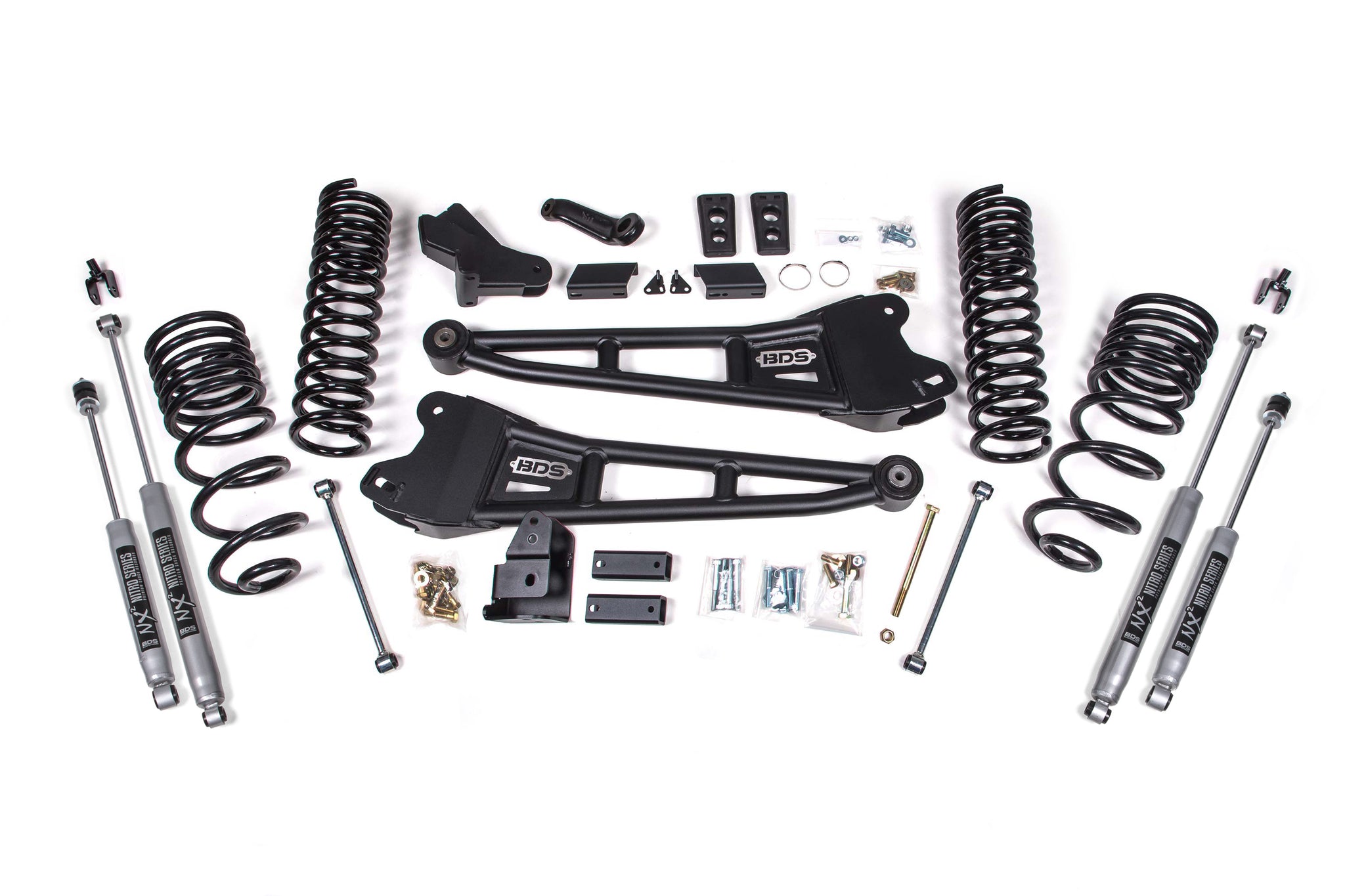

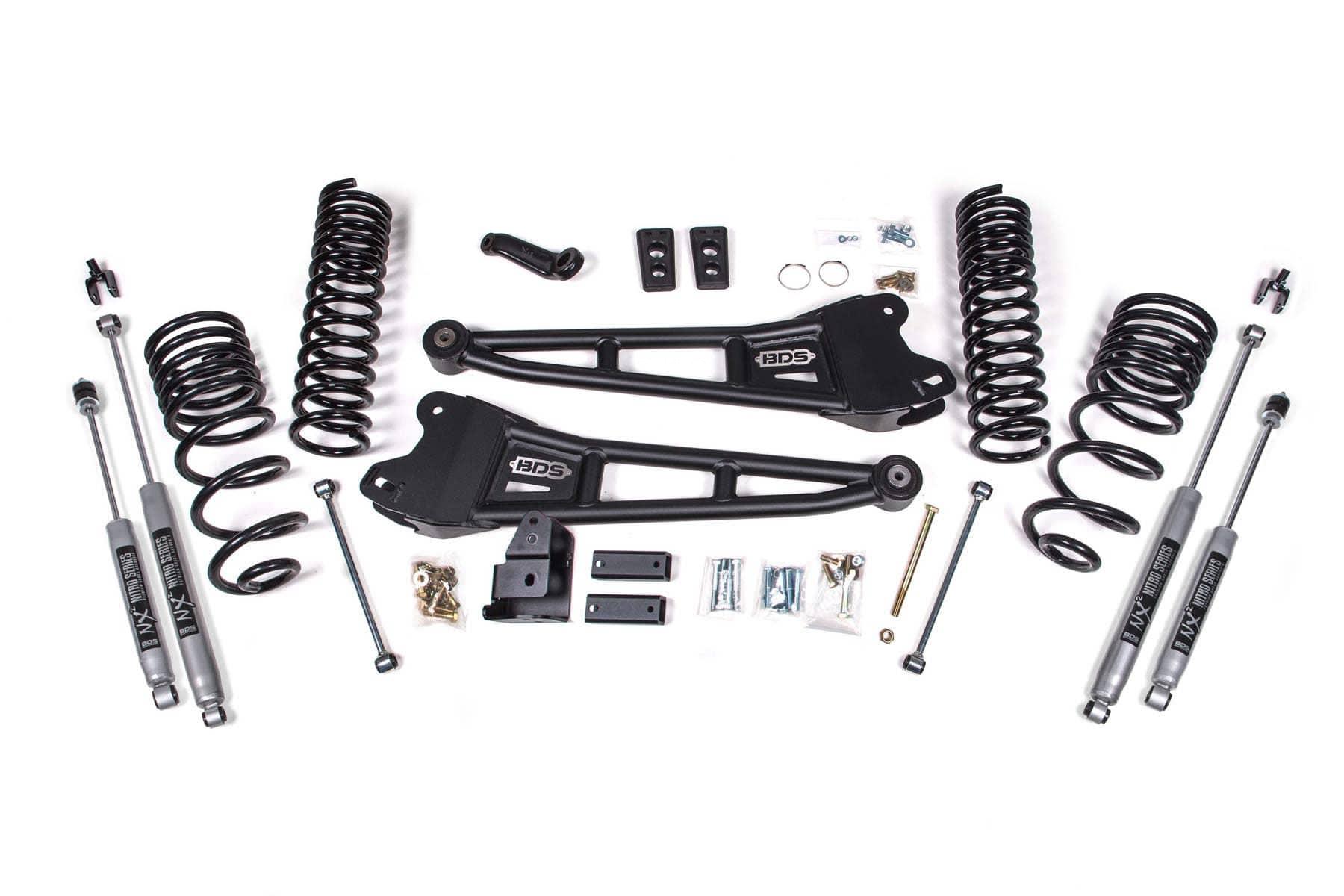

BDS Suspension BDS1762H 2014-2018 Ram 2500 4in. Radius Arm Diesel engine
Specifications:
| Description_DES | 2014-2018 Ram 2500 4in. Radius Arm Diesel engine |
| Description_EXT | 2014-2018 Ram 2500 4in. Radius Arm Diesel engine - rear shocks Coil spring - NX2 Shocks |
| Description_FAB | Heavy duty tubular radius arms improve strength handling and caster control |
| Description_FAB | High strength progressive rate coil springs for a great ride on any terrain |
| Description_FAB | Track bar relocation brackets to re-position axle |
| Description_FAB | Forged drop pitman arm to correct steering angles |
| Description_FAB | Front sway bar correction to maintain handling performance |
| Description_FAB | HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts |
| Description_FAB | BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance |
| Description_MKT | Take your 2014-2018 RAM 2500 diesel powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. |
| Description_MKT | Up front the lift kit includes diesel-specific Pro-Ride coil springs heavy-duty replacement radius arms forged drop pitman arm and track bar bracket for steering correction sway bar relocation brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. |
| Description_MKT | In the rear this kit utilizes progressive rate Pro-Ride coil springs track bar relocation bracket to correct axle positioning bump stop extensions sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks. |
| Description_MKT | HD Radius Arms |
| Description_MKT | In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth quiet service-free operation. |
| Description_MKT | Pro-Ride Coil Springs |
| Description_MKT | A pair of full-length diesel-specific progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth predictable ride across various terrains. Manufactured from high tensile steel our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind. |
| Description_MKT | Steering Correction |
| Description_MKT | To optimize steering geometry once lifted a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle. |
| Description_SHO | Suspension lift kit |
| Description_DEF | Suspension Lift Kit |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2014 | Ram | 2500 | Big Horn | |
| 2015 | Ram | 2500 | Big Horn | |
| 2016 | Ram | 2500 | Big Horn | |
| 2017 | Ram | 2500 | Big Horn | |
| 2018 | Ram | 2500 | Big Horn | |
| 2014 | Ram | 2500 | Laramie | |
| 2015 | Ram | 2500 | Laramie | |
| 2016 | Ram | 2500 | Laramie | |
| 2017 | Ram | 2500 | Laramie | |
| 2018 | Ram | 2500 | Laramie | |
| 2014 | Ram | 2500 | Laramie Limited | |
| 2015 | Ram | 2500 | Laramie Limited | |
| 2016 | Ram | 2500 | Laramie Limited | |
| 2017 | Ram | 2500 | Laramie Limited | |
| 2018 | Ram | 2500 | Laramie Limited | |
| 2014 | Ram | 2500 | Laramie Longhorn | |
| 2015 | Ram | 2500 | Laramie Longhorn | |
| 2016 | Ram | 2500 | Laramie Longhorn | |
| 2017 | Ram | 2500 | Laramie Longhorn | |
| 2018 | Ram | 2500 | Laramie Longhorn | |
| 2016 | Ram | 2500 | Limited | |
| 2017 | Ram | 2500 | Limited | |
| 2018 | Ram | 2500 | Limited | |
| 2014 | Ram | 2500 | Lone Star | |
| 2015 | Ram | 2500 | Lone Star | |
| 2014 | Ram | 2500 | Outdoorsman | |
| 2015 | Ram | 2500 | Outdoorsman | |
| 2016 | Ram | 2500 | Outdoorsman | |
| 2017 | Ram | 2500 | Outdoorsman | |
| 2018 | Ram | 2500 | Outdoorsman | |
| 2014 | Ram | 2500 | SLT | |
| 2015 | Ram | 2500 | SLT | |
| 2016 | Ram | 2500 | SLT | |
| 2017 | Ram | 2500 | SLT | |
| 2018 | Ram | 2500 | SLT | |
| 2014 | Ram | 2500 | ST | |
| 2015 | Ram | 2500 | ST | |
| 2016 | Ram | 2500 | ST | |
| 2017 | Ram | 2500 | ST | |
| 2018 | Ram | 2500 | ST | |
| 2014 | Ram | 2500 | Tradesman | |
| 2015 | Ram | 2500 | Tradesman | |
| 2016 | Ram | 2500 | Tradesman | |
| 2017 | Ram | 2500 | Tradesman | |
| 2018 | Ram | 2500 | Tradesman |
