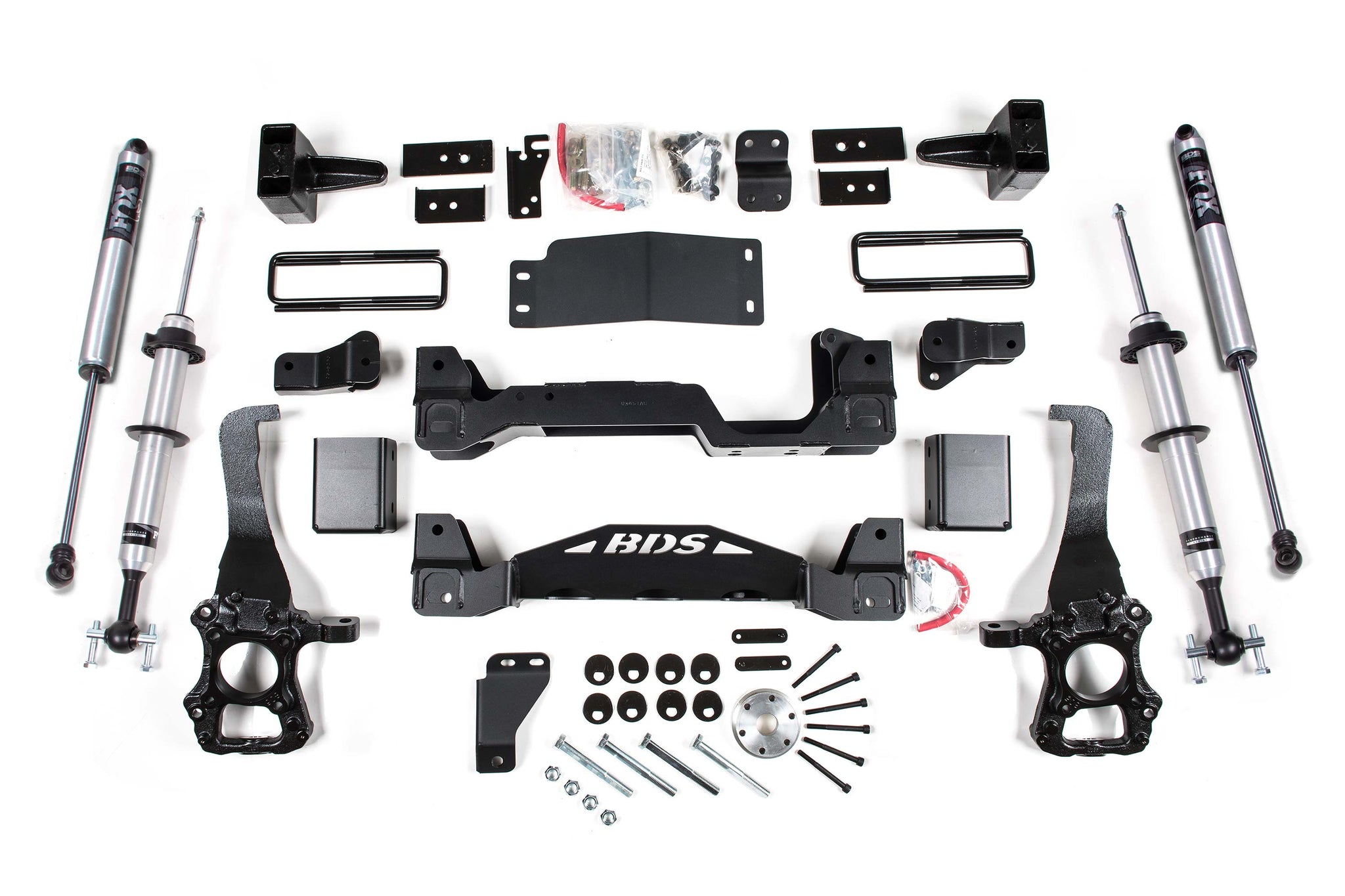

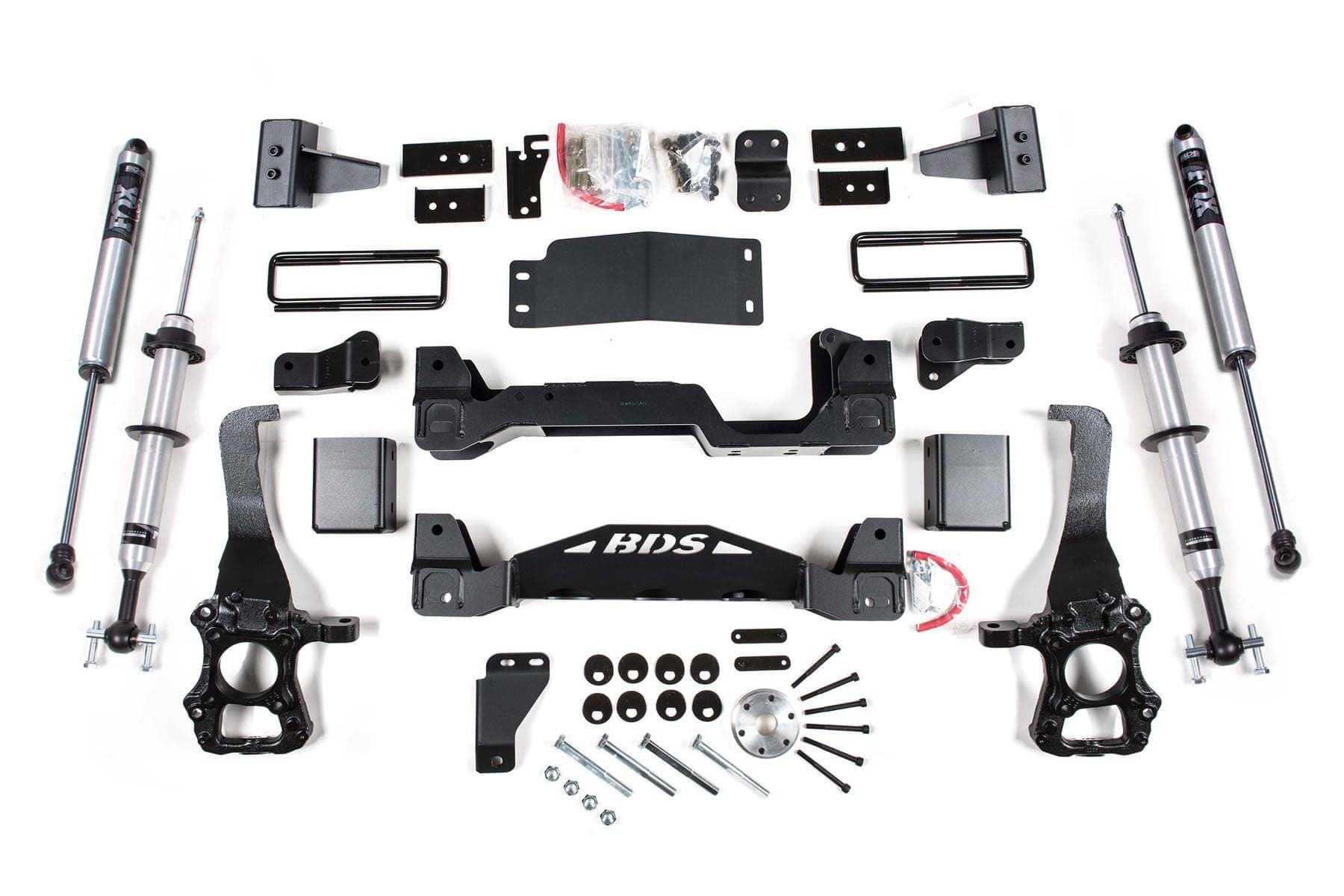

2015-2020 Ford F150 4wd 6in. Suspension Lift Kit| 4in. rear block - Fox 2.0 Performance Series Snap Ring front shocks| Fox 2.0 Performance Series rear shocks
BDS Suspension BDS1532FSR 2015-2020 Ford F150 4wd 6in. Suspension Lift Kit|
Specifications:
| Description_MKT | These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion along with an internal floating piston (IFP) to eliminate oil aeration FOX's proprietary internals 5/8" hard chrome plated heat-treated alloy shaft. |
| Description_MKT | High Clearance Crossmemebers |
| Description_MKT | BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. |
| Description_MKT | Heavy Duty Steering Knuckles |
| Description_MKT | BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility. |
| Description_SHO | Suspension lift kit |
| Description_DEF | Suspension Lift Kit |
| Description_ASC | 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle. |
| Description_ASC | 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires. |
| Description_ASC | E-brake bracket required for factory powersteps (123018) |
| Description_ASC | Block kits replace factory 1-1/4" block. |
| Description_ASC | Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406 |
| Description_ASC | Will not fit HD models (7 lug). |
| Description_DES | 2015-2020 Ford F150 4wd 6in. Suspension Lift Kit| |
| Description_EXT | 2015-2020 Ford F150 4wd 6in. Suspension Lift Kit| 4in. rear block - Fox 2.0 Performance Series Snap Ring front shocks| Fox 2.0 Performance Series rear shocks |
| Description_FAB | FOX 2.0 Performance IFP shocks eliminates oil aeration allowing maximum performance from the factory-tuned precision valving |
| Description_FAB | High clearance crossmembers improve strength and offroad capability |
| Description_FAB | Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility |
| Description_FAB | Top mounted strut spacers to provide lift and install easily |
| Description_FAB | Differential skid plate for improved offroad protection |
| Description_FAB | Rear lift blocks and u-bolts to lift and level the stance |
| Description_MKT | Prepare to get your 2015-2020 Ford F150 4WD truck dirty after installing a 6-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 6 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 37" tires. |
| Description_MKT | This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.0 strut shocks high-arched 1/4-inch thick steel crossmembers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. |
| Description_MKT | In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks. |
| Description_MKT | FOX 2.0 Struts |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2015 | Ford | F-150 | King Ranch | |
| 2016 | Ford | F-150 | King Ranch | |
| 2017 | Ford | F-150 | King Ranch | |
| 2018 | Ford | F-150 | King Ranch | |
| 2019 | Ford | F-150 | King Ranch | |
| 2020 | Ford | F-150 | King Ranch | |
| 2015 | Ford | F-150 | Lariat | |
| 2016 | Ford | F-150 | Lariat | |
| 2017 | Ford | F-150 | Lariat | |
| 2018 | Ford | F-150 | Lariat | |
| 2019 | Ford | F-150 | Lariat | |
| 2020 | Ford | F-150 | Lariat | |
| 2016 | Ford | F-150 | Limited | |
| 2017 | Ford | F-150 | Limited | |
| 2018 | Ford | F-150 | Limited | |
| 2019 | Ford | F-150 | Limited | |
| 2020 | Ford | F-150 | Limited | |
| 2015 | Ford | F-150 | Platinum | |
| 2016 | Ford | F-150 | Platinum | |
| 2017 | Ford | F-150 | Platinum | |
| 2018 | Ford | F-150 | Platinum | |
| 2019 | Ford | F-150 | Platinum | |
| 2020 | Ford | F-150 | Platinum | |
| 2018 | Ford | F-150 | Police Responder | |
| 2019 | Ford | F-150 | Police Responder | |
| 2020 | Ford | F-150 | Police Responder | |
| 2016 | Ford | F-150 | SSV | |
| 2017 | Ford | F-150 | SSV | |
| 2018 | Ford | F-150 | SSV | |
| 2019 | Ford | F-150 | SSV | |
| 2020 | Ford | F-150 | SSV | |
| 2015 | Ford | F-150 | XL | |
| 2016 | Ford | F-150 | XL | |
| 2017 | Ford | F-150 | XL | |
| 2018 | Ford | F-150 | XL | |
| 2019 | Ford | F-150 | XL | |
| 2020 | Ford | F-150 | XL | |
| 2015 | Ford | F-150 | XLT | |
| 2016 | Ford | F-150 | XLT | |
| 2017 | Ford | F-150 | XLT | |
| 2018 | Ford | F-150 | XLT | |
| 2019 | Ford | F-150 | XLT | |
| 2020 | Ford | F-150 | XLT |
