BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
BDS Suspension 2020-2023 Ford Ranger 6in. Suspension Lift with Steel Knuckle - NX2 BDS1907H
Specifications:
| Description_ASC | Requires frame bracket and differential modification. If using a plasma cutter for frame bracket mod disconnecting the battery is highly recommended. |
| Description_ASC | Stock 17-18" wheels cannot be reinstalled. |
| Description_ASC | When balancing tires for 17-18" wheels wheel weights are best positioned towards the center of the wheel to avoid interference with the tie rod end. |
| Description_ASC | Rack and Pinion steering is sensitive to tire choice. Aggressive tires smaller backspacing or tires that require several wheel weights may induce steering wheel wobble. |
| Description_DES | 2020-2023 Ford Ranger 6in. Suspension Lift with Steel Knuckle - NX2 |
| Description_EXT | 2020-2023 Ford Ranger 6in. Suspension Lift with Steel Knuckle - NX2 |
| Description_FAB | High clearance crossmembers improve strength and offroad capability |
| Description_FAB | Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility |
| Description_FAB | Top mounted strut spacers to provide lift and install easily |
| Description_FAB | Differential skid plate for improved offroad protection |
| Description_FAB | Rear lift blocks and u-bolts to lift and level the stance |
| Description_FAB | Standard NX2 Nitro shocks with vehicle-specific valving for better control |
| Description_FAB | Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road |

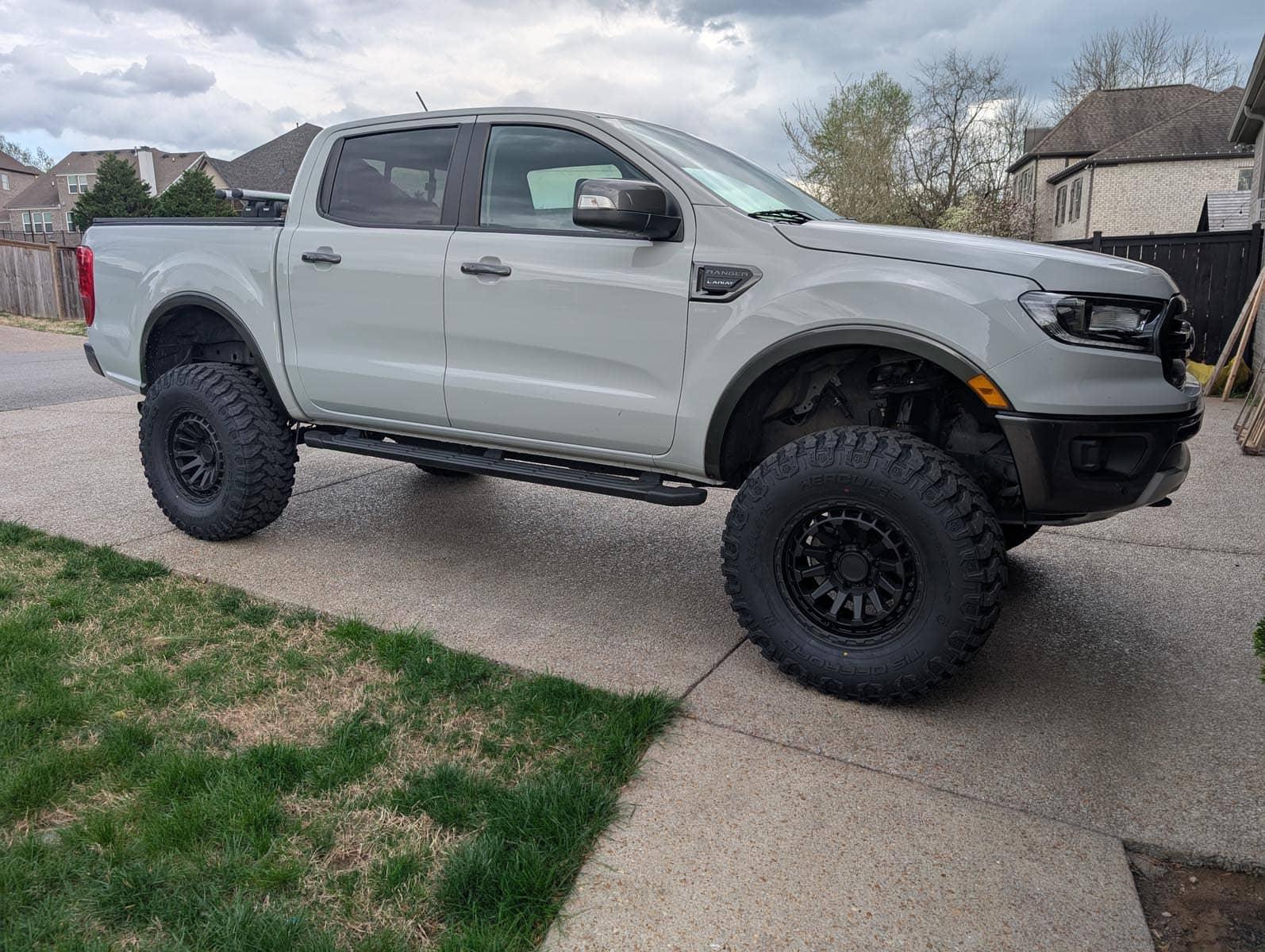

| Description_MKT | BDS steps up the performance and capability of the 2019-2023 Ford Ranger trucks with 6-inch suspension lift kits. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. |

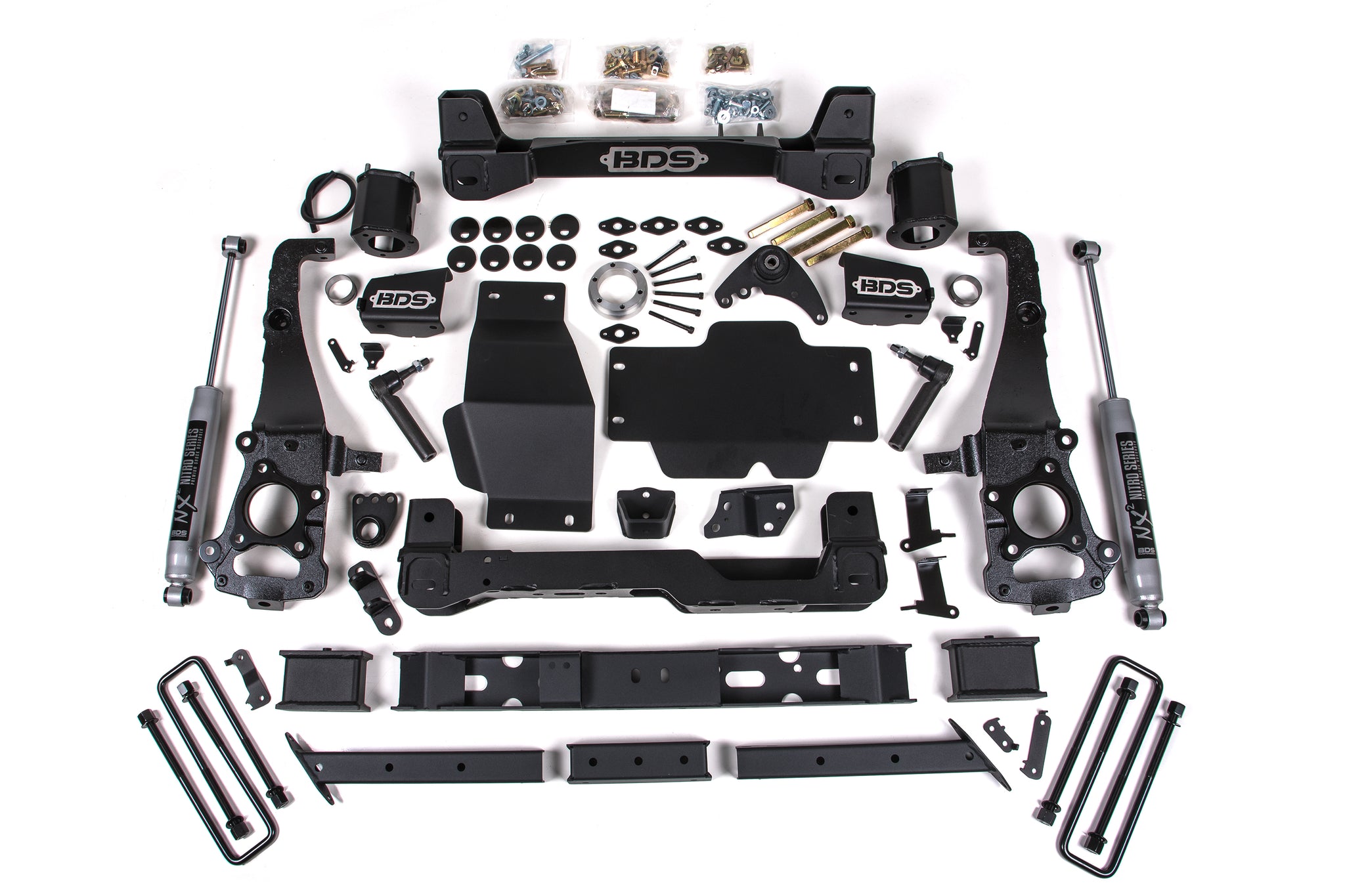

| Description_MKT | This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers top mounted strut spacers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. |
| Description_MKT | In the rear BDS utilizes a heavy duty replacement transfer case cross-member high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks. |
| Description_MKT | High Clearance Crossmemebers |
| Description_MKT | BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. |
| Description_MKT | Heavy Duty Steering Knuckles |
| Description_MKT | BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility. |
| Description_SHO | Suspension lift kit |
| Description_DEF | Suspension Lift Kit |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2019 | Ford | Ranger | Lariat | |
| 2020 | Ford | Ranger | Lariat | |
| 2021 | Ford | Ranger | Lariat | |
| 2022 | Ford | Ranger | Lariat | |
| 2023 | Ford | Ranger | Lariat | |
| 2019 | Ford | Ranger | XL | |
| 2020 | Ford | Ranger | XL | |
| 2021 | Ford | Ranger | XL | |
| 2022 | Ford | Ranger | XL | |
| 2023 | Ford | Ranger | XL | |
| 2019 | Ford | Ranger | XLT | |
| 2020 | Ford | Ranger | XLT | |
| 2021 | Ford | Ranger | XLT | |
| 2022 | Ford | Ranger | XLT | |
| 2023 | Ford | Ranger | XLT |
