All kits come with everything you need to allow for an easy install. Now get these kits with Borg Warner SX-E turbo options and expect even more. A BD exclusive feature of the SX-E turbos is that they are waste-gated to mount on stock T3 manifolds.
Installation InstructionsInstallation Instructions
Installation Instructions
- BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability
- Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
- Larger Compressor Blade Surface But w/Smaller Inducer Results In Quicker Spooling/More Flow Than Similar Sized Wheels
- The Sx-E Turbo Was Designed For Performance With A 360 Thrust Bearing And Enhanced Compressor Wheel And Housing
- BD Exclusive Feature Of A Heavy Sprung Waste-Gated T3 Turbine Housing That Mounts Onto Stock Exhaust Manifolds
- The High Strength Fmw Forged Milled Wheels Are Lighter And Stronger And Withstand Higher Wheel Speeds
- Turnbuckle Boost Control Allows For Ease Of Adjustment For Altitude And Extreme Tuning
- BD's HD Waste gate and bracket holds boost and prevents over speed damage
- BD HD Waste Gate And Bracket Holds Boost And Prevents Over Speed Damage
- Approximate rated 550hp (depending on truck configuration)

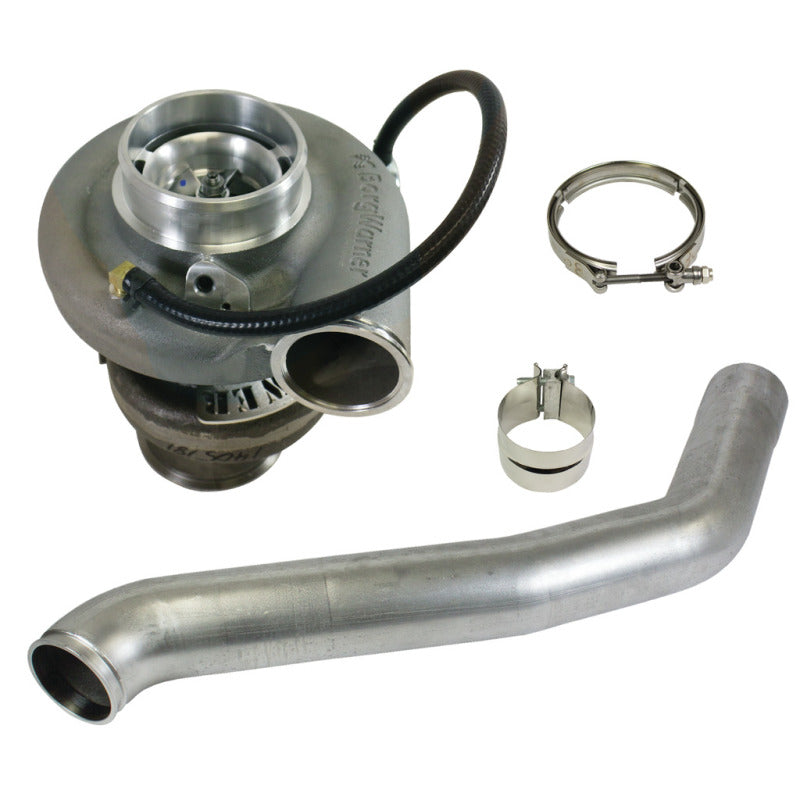

- Kit comes with downpipe, V-band clamp, band clamp
- Kit Comes With Downpipe/V-Band Clamp/Band Clamp
- Approx. Rated 550 hp - Depends On Truck Config
- Turbine Wheel: 76mm 2.99in
- Comp Wheel: 63mm 2.48in
- Flow: 79 Lb./min
- A/R Ratio: 0.80
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1994-2002 | Dodge | Ram 2500 | Base |
| 1994-2002 | Dodge | Ram 3500 | Base |
