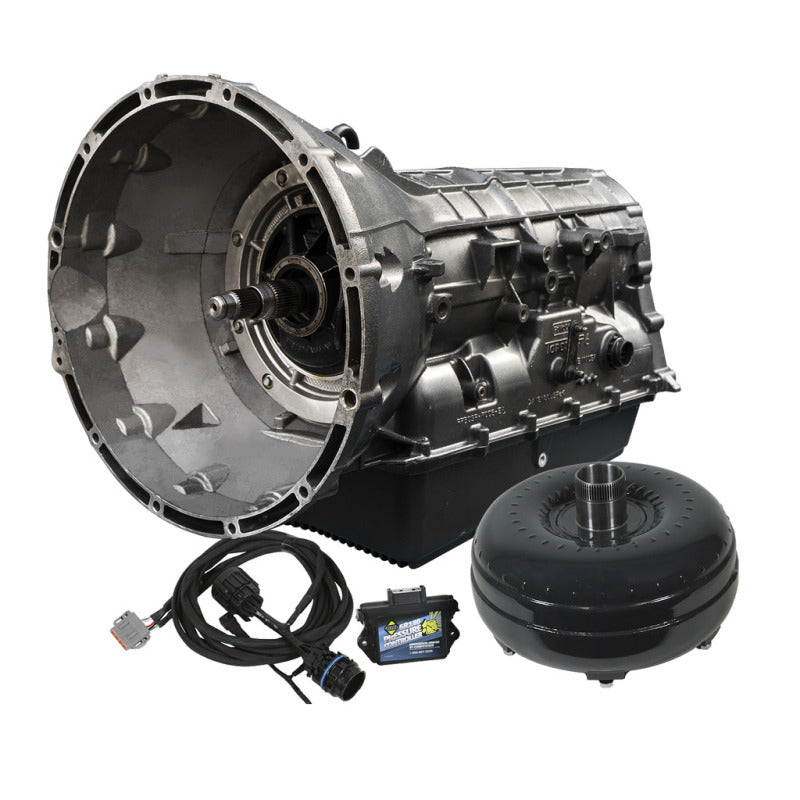

BD Diesel 2011-2016 Ford 6.7L Power Stroke 2WD/4WD 6R140 Transmission & Converter Package

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

• Only Active When Boost Over 15 Psi; Unlike Solenoid Foolers Or Plugs Which Are Active All The Time
• Only active when boost over 15psi, unlike solenoid foolers or plugs which are active all the time
• Custom BD patented pressure plates increase clutch count without sacrificing part strength

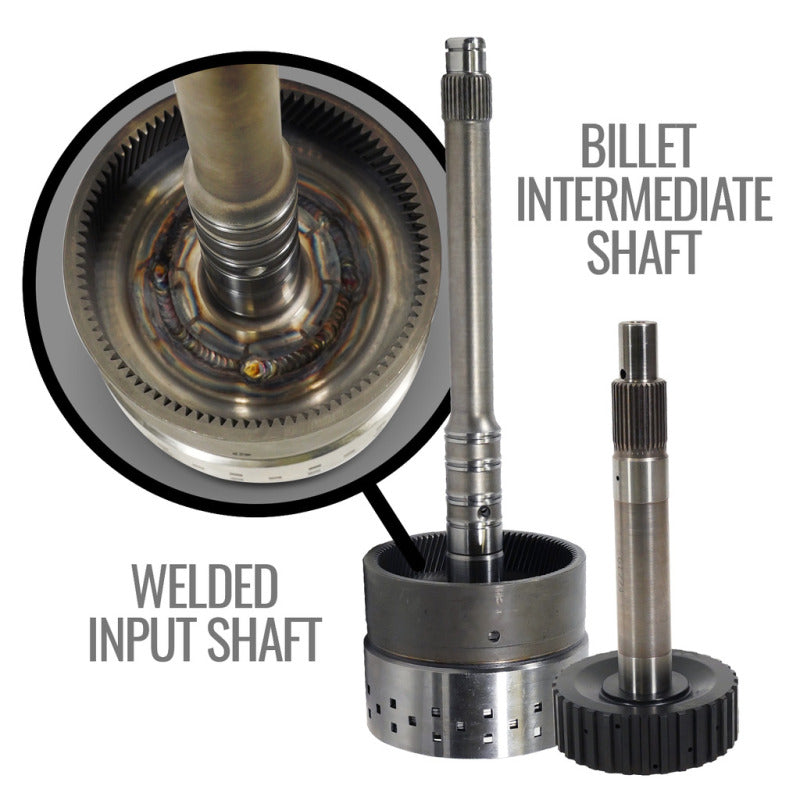

• Upgraded input shaft is tig welded to prevent OEM weld failure in demanding applications
• 23 Percent Increased Piston Area For Additional Clutch Clamping Force
• Electronic Line Pressure Controller for up to 300psi Line Pressure
• Ideal upgrade converter for heavy tow use or higher horsepower
• 23% increased piston area for additional clutch clamping force
• Four surface clutch assembly doubles the OEM friction area
• Does not create parasitic load or extra heat when inactive
• Captured clutch design maintains good drivability feel
• Clutch Count: INTERMEDIATE 8 (60% increase over stock)
• Increased count of steels increases heat dissipation
• Clutch Count: OVERDRIVE 8 (14% increase over stock)
• Clutch Count: FORWARD 6 (20% increase over stock)
• Billet intermediate shaft to handle higher power
• Clutch Count: DIRECT 6 (20% increase over stock)
• More clutches compared to stock and competitors
• Billet bearing hub, piston and clutch retainer
• Billet Bearing Hub; Piston And Clutch Retainer
• Delivers Up to 300 psi Line Pressure At WOT
• Delivers up to 300psi line pressure at WOT
• 76 Percent More Theoretical Holding Power
• Furnace-brazed pump and turbine fins
• 76% more theoretical holding power
• Clutch Count: LOW REVERSE 5
• Stamp forged 1-piece cover
• Brand new valve body
• PRESSURE CONTROLLER:
• TORQUE CONVERTER:
• TRANSMISSION:

This Part Fits:
