*item may differ from images
The Baja Designs XL80 auxiliary LED light will take your off-road lighting to the next level with greater visibility and increased brightness. Using our trademarked high speed spot reflectors that provide for a longer and wider beam pattern The XL80 uses Baja Designs trademarked high-speed spot reflectors providing for a longer and wider beam pattern with powerful next-generation LED technology that provides 18% greater distance and increased intensity over our previous generation model while pushing 9,022 raw lumens per light. Perfect for any off-road vehicle such as trucks, vans, UTVs and motorcycles. Similar to BD’s XL Pro model, the XL80 offers a 20 percent dimming feature,apowder coated housing and an anodized bezel. Designed for users who want reliable off-road lighting solutions, all Baja Designs lights are backed by a 30-day satisfaction guarantee and a limited lifetime warranty for the ultimate in purchase protection.

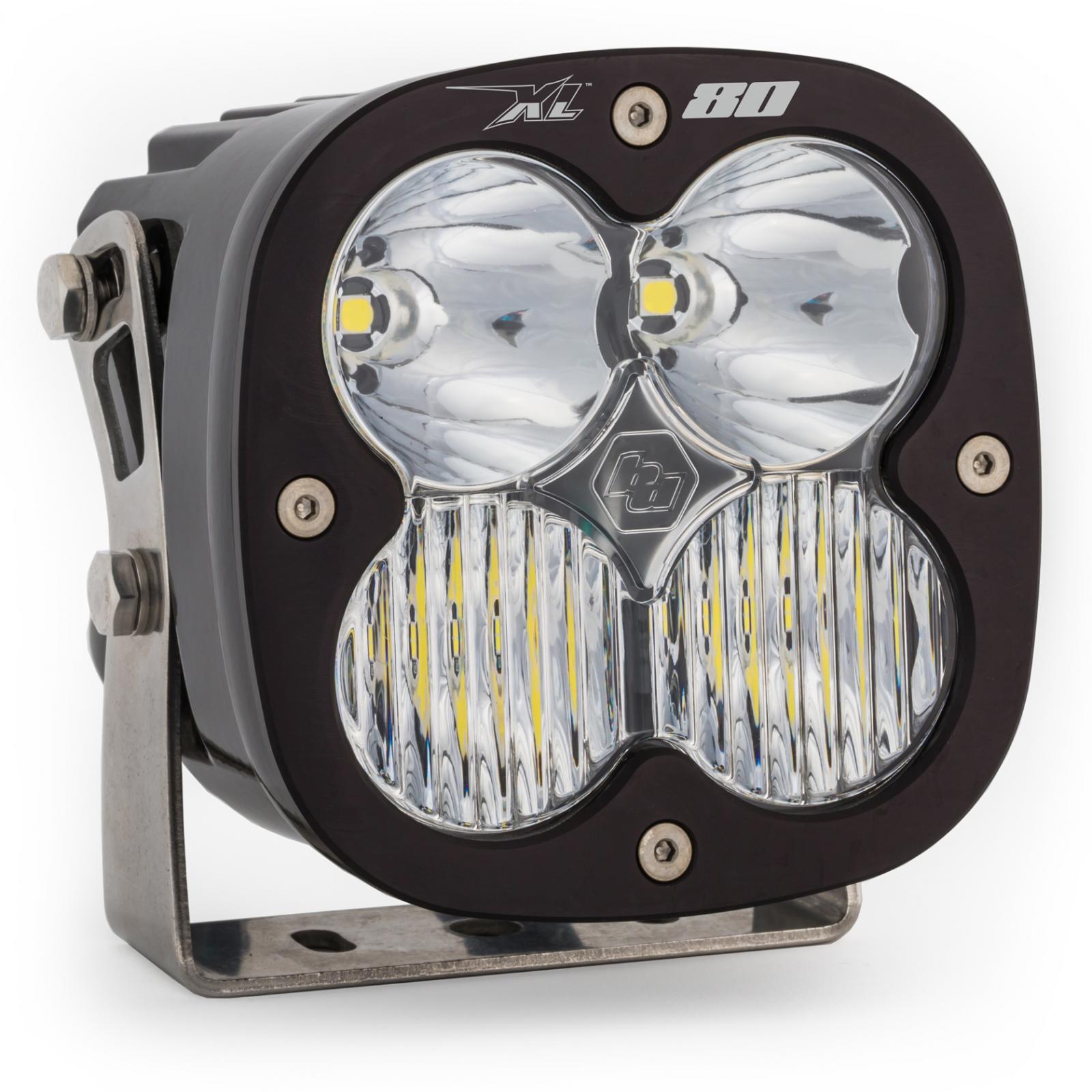

Baja Designs XL80 LED Light Pod (Driving/Combo; Clear) 670003
Specifications:
| Add-On | Accessories-668003-Rock Guard (Black) |
| Add-On | Accessories-668004-Light Cover (Amber) |
| Add-On | Accessories-668005-Light Cover (Clear) |
| Add-On | Accessories-660104-Lens Kit (Driving/Combo; Clear) |
| Add-On | Accessories-660105-Lens Kit (Wide Cornering; Clear) |
| Add-On | Accessories-660106-Lens Kit (Spot; Clear) |
| Add-On | Accessories-660107-Lens Kit (Wide Cornering; Amber) |
| Add-On | Accessories-660115-Lens Kit (Driving/Combo; Amber) |
| Add-On | Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts |
| Add-On | Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts |
| Add-On | Compatible Products-613608-Harness Splitter |
| Add-On | Compatible Products-613609-Harness/Splitter (55 Inch) |
| Add-On | Compatible Products-640094-Upfitter Harness |
| Add-On | Compatible Products-640119-Wiring Harness (Hi/Low) |
| Add-On | Compatible Products-660060-Wiring Harness (Off Road Mode Switch) |
| Depth (in.) | 3.650 |
| Height (in.) | 4.430 |
| Length (in.) | 4.430 |
| Weight (lbs.) | 2.450 |
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 9022 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL80 LED Light Pod |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Wiring Harness Included | No |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Prop 65 - Short Label | CR |
| Prop 65 Warning Label | Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Prop 65 Yes/No | Yes |
| Description_ASC | One Light Pod |
| Description_ASM | Universal |
| Description_DEF | Auxiliary Light |
| Description_DES | XL80 LED Auxiliary Light Pod |
| Description_EXT | XL80 LED Light Pod (Driving/Combo; Clear) |
| Description_TLE | XL80 LED Light Pod (Driving/Combo; Clear) |
| Description_FAB | Satisfaction Guarantee – 30-Day Money Back Guarantee |
| Description_FAB | Limited Lifetime Warranty – Complete Purchase Protection |
| Description_FAB | uService – Replaceable Lenses And Optics |
| Description_FAB | ClearView – All The Light, Right Where You Need It |
| Description_FAB | MoistureBlock – Waterproof, Rain Proof, Submersible |
| Description_FAB | CopperDrive – Only LED Driven At 100 Percent |
| Description_FAB | 5000K Daylight – Less Driver Fatigue, Natural Color |
| Description_INV | Baja Designs Light Pod |
| Description_FAB | Using our trademarked high speed spot reflectors that provide for a longer and wider beam pattern The XL80 uses Baja Designs trademarked high-speed spot reflectors providing for a longer and wider beam pattern with powerful next-generation LED technology that provides 18% greater distance and increased intensity over our previous generation model while pushing 9,022 raw lumens per light |
| Description_FAB | Perfect for any off-road vehicle such as trucks, vans, UTVs and motorcycles |
| Description_FAB | Similar to BD’s XL Pro model, the XL80 offers a 20 percent dimming feature,apowder coated housing and an anodized bezel |
| Description_MKT | The Baja Designs XL80 auxiliary LED light will take your off-road lighting to the next level with greater visibility and increased brightness. Using our trademarked high speed spot reflectors that provide for a longer and wider beam pattern The XL80 uses Baja Designs trademarked high-speed spot reflectors providing for a longer and wider beam pattern with powerful next-generation LED technology that provides 18% greater distance and increased intensity over our previous generation model while pushing 9,022 raw lumens per light. Perfect for any off-road vehicle such as trucks, vans, UTVs and motorcycles. Similar to BD’s XL Pro model, the XL80 offers a 20 percent dimming feature,apowder coated housing and an anodized bezel. Designed for users who want reliable off-road lighting solutions, all Baja Designs lights are backed by a 30-day satisfaction guarantee and a limited lifetime warranty for the ultimate in purchase protection. |
| Description_SHO | Light Pod |
