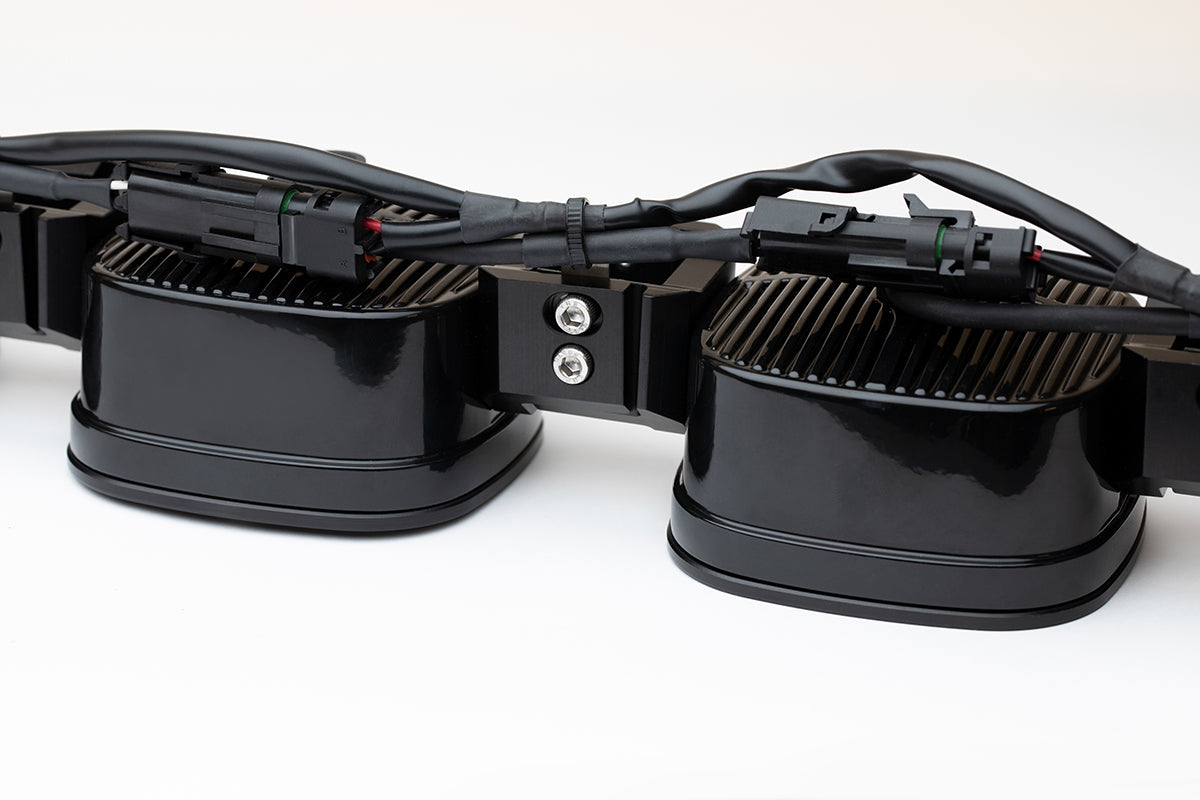

Experience full adjustment and total performance with the Baja Designs XL Linkable LED light bar kit, engineered for enthusiasts seeking to take charge with a lighting package that is completely customizable. Built around our popular XL Sport shallow moto housing, each light offers up 3,162 raw lumens each from our next generation LEDs, the XL Linkable can be built with 3 up to 8 forward projecting lights that provide a smooth blend due to the use of our wide cornering, driving combo and spot lenses illuminating zones 1, 2, 3 and 4 simultaneously. The unique feature of our XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your vehicle’s bumper or roofline. The wiring comes fully crimped and trimmed, allowing for easy installation and the ability to add links down the road, and black rock guards are included to protect the lights when not in use. If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!

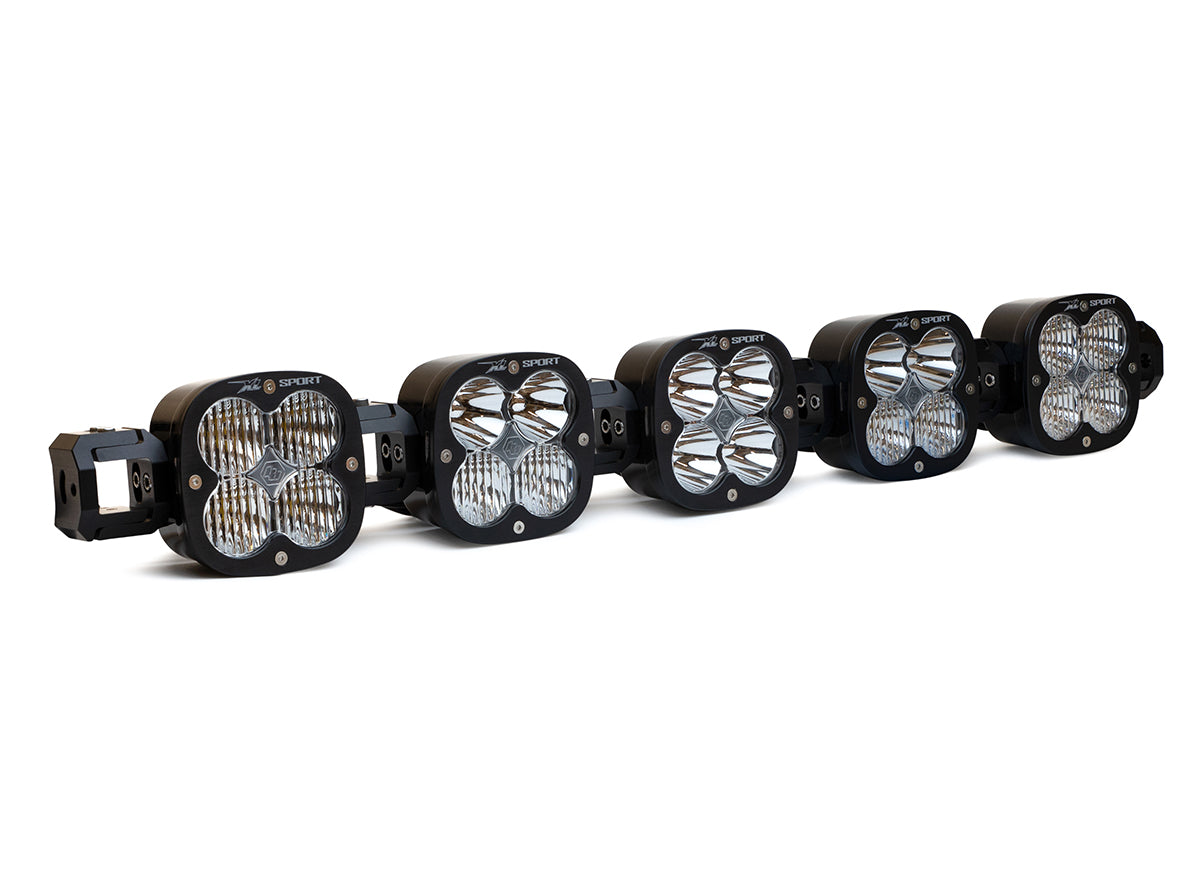

Baja Designs XL Linkable LED Light Bar (5 XL; Clear) 740003
Specifications:
| Add-On | Accessories-668003-Rock Guard (Black) |
| Add-On | Accessories-668004-Light Cover (Amber) |
| Add-On | Accessories-668005-Light Cover (Clear) |
| Add-On | Accessories-660104-Lens Kit (Driving/Combo; Clear) |
| Add-On | Accessories-660105-Lens Kit (Wide Cornering; Clear) |
| Add-On | Accessories-660106-Lens Kit (Spot; Clear) |
| Add-On | Accessories-660107-Lens Kit (Wide Cornering; Amber) |
| Add-On | Accessories-660115-Lens Kit (Driving/Combo; Amber) |
| Add-On | Associated Products-748000-Brackets |
| Add-On | Associated Products-748002-Pre-Load Mount |
| Add-On | Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts |
| Add-On | Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts |
| Add-On | Compatible Products-640094-Upfitter Harness |

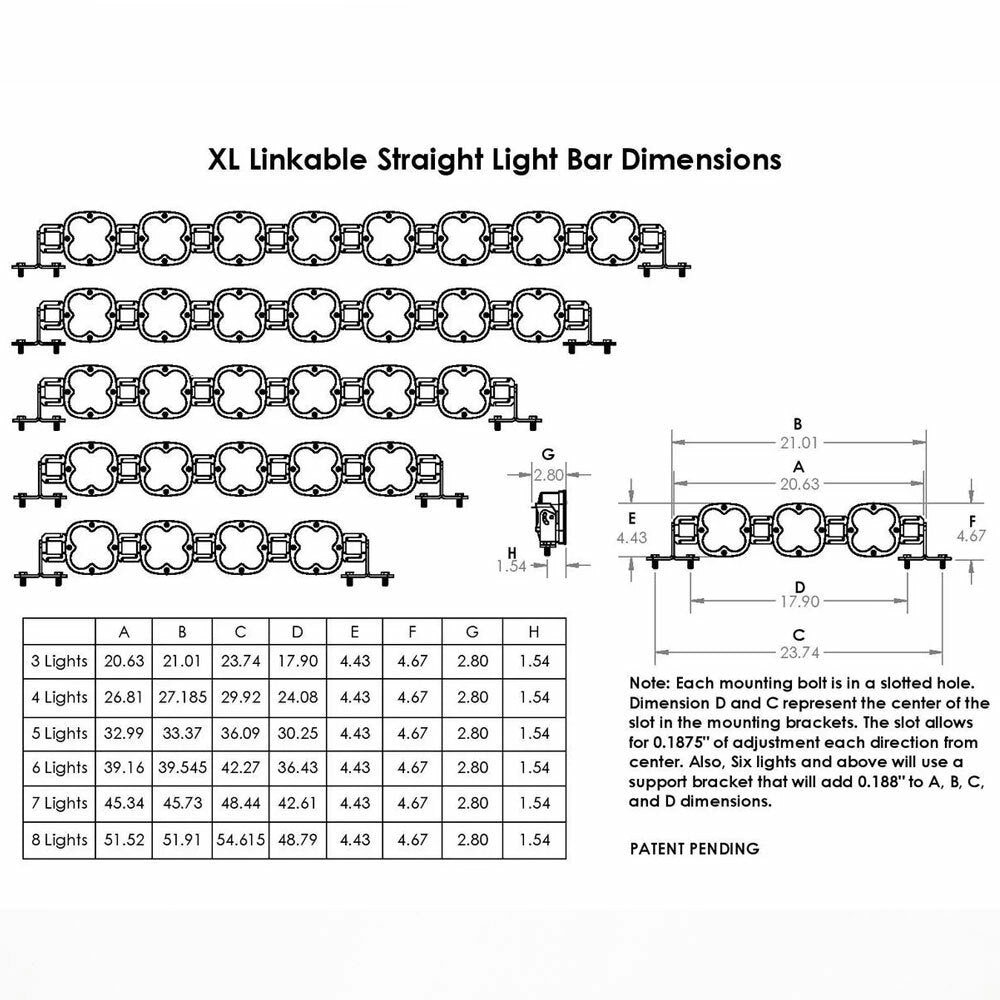

| Depth (in.) | 2.8 |
| Height (in.) | 4.43 |
| Length (in.) | 32.99 |
| Amperage Rating (A) | 10 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Multi-Pattern |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 15,750 |
| Description | 5XL Sport; Multi-Pattern; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 5 |
| Lighting Modes | Beam |
| Lighting Quantity | 20 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Links; Rock Guards |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL Linkable LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 130 |
| Wiring Harness Included | Yes |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Prop 65 - Short Label | CR |
| Prop 65 Warning Label | Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Prop 65 Yes/No | Yes |
| Description_FAB | ClearView – All The Light, Right Where You Need It |
| Description_FAB | MoistureBlock – Waterproof, Rain Proof, Submersible |
| Description_FAB | CopperDrive – Only LED Driven At 100 Percent |
| Description_FAB | 5000K Daylight – Less Driver Fatigue, Natural Color |
| Description_INV | Baja Designs Light Bar |
| Description_FAB | Built around our popular XL Sport shallow moto housing, each light offers up 3,162 raw lumens each from our next generation LEDs, the XL Linkable can be built with 3 up to 8 forward projecting lights that provide a smooth blend due to the use of our wide cornering, driving combo and spot lenses illuminating zones 1, 2, 3 and 4 simultaneously |
| Description_FAB | The unique feature of our XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit |
| Description_FAB | Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your vehicle’s bumper or roofline |
| Description_MKT | Experience full adjustment and total performance with the Baja Designs XL Linkable LED light bar kit, engineered for enthusiasts seeking to take charge with a lighting package that is completely customizable. Built around our popular XL Sport shallow moto housing, each light offers up 3,162 raw lumens each from our next generation LEDs, the XL Linkable can be built with 3 up to 8 forward projecting lights that provide a smooth blend due to the use of our wide cornering, driving combo and spot lenses illuminating zones 1, 2, 3 and 4 simultaneously. The unique feature of our XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your vehicle’s bumper or roofline. The wiring comes fully crimped and trimmed, allowing for easy installation and the ability to add links down the road, and black rock guards are included to protect the lights when not in use. If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you! |
| Description_SHO | Light Bar |
| Description_ASC | Five Light Pods |
| Description_ASM | Universal |
| Description_DEF | Light Bar |
| Description_DES | XL Linkable LED Light Bar |
| Description_EXT | XL Linkable LED Light Bar (5 XL; Clear) |
| Description_TLE | XL Linkable LED Light Bar (5 XL; Clear) |
| Description_FAB | Satisfaction Guarantee – 30-Day Money Back Guarantee |
| Description_FAB | Limited Lifetime Warranty – Complete Purchase Protection |
| Description_FAB | uService – Replaceable Lenses And Optics |
