*item may differ from images
The Baja Designs Squadron Racer Edition LED lights are meant for high-speed night driving where reaction time is paramount. Don’t let the compact size of these lights fool you, with our next generation LEDs offering 2,800 raw lumens at only 45.5W while making the Squadron Racer more efficient giving 81% greater distance over our prior generation model. The tight beam of the Squadron Racer is for those that drive near triple digits speeds, or need to see thousands of feet down the road illuminating Lighting Zone 5. Producing an even tighter beam pattern than our traditional spot offerings, the Squadron Racer Edition lights are recommended to be added to a well-balanced lighting package to avoid separation of spotlights due to the tight pattern. The sleek, black gloss aluminum housing offers enthusiasts the durability needed when traveling at higher speeds. Backed by our 30-Day Satisfaction Guarantee and Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117.

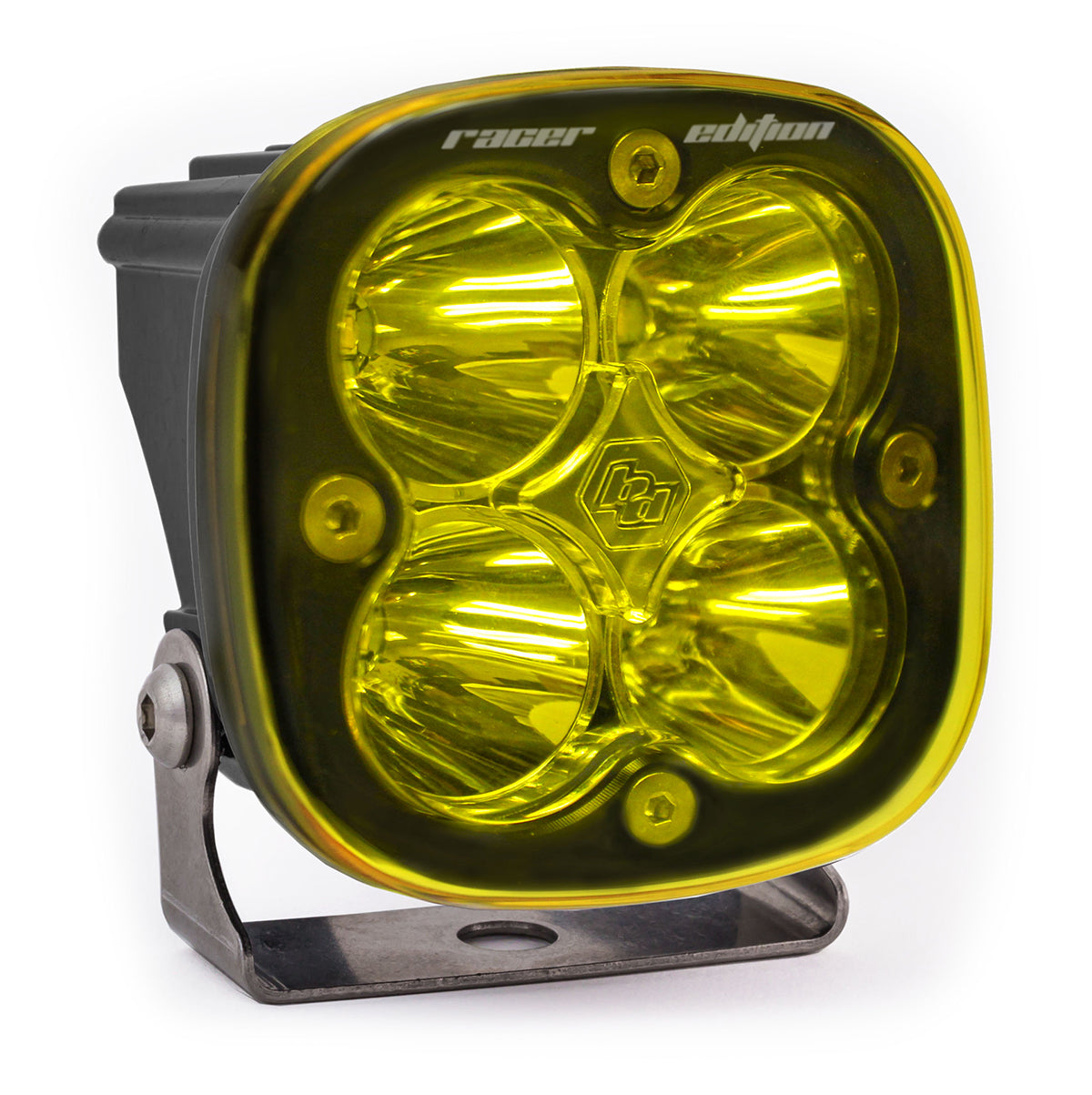

Baja Designs Squadron Racer Edition LED Light Pod (Racer Spot; Baja Amber) 720011
Specifications:
| Add-On | Accessories-447113-Angled Bezel |
| Add-On | Accessories-660019-Flush Mount Bezel |
| Add-On | Accessories-668001-Rock Guard (Black) |
| Add-On | Accessories-668002-Light Cover (Amber) |
| Add-On | Accessories-668006-Light Cover (Clear) |
| Add-On | Accessories-668401-Lens Kit (Spot; Clear) |
| Add-On | Accessories-668403-Lens Kit (Driving/Combo; Clear) |
| Add-On | Accessories-668405-Lens Kit (Wide Cornering; Clear) |
| Add-On | Accessories-668406-Lens Kit (Work/Scene; Clear) |
| Add-On | Accessories-668413-Lens Kit (Driving/Combo; Amber) |
| Add-On | Accessories-668415-Lens Kit (Wide Cornering; Amber) |
| Add-On | Accessories-668416-Lens Kit (Work/Scene; Amber) |
| Add-On | Associated Products-660300-Anti Theft Hardware Kit - M6x16 Socket Pin Head Bolts |
| Add-On | Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts |
| Add-On | Compatible Products-613600-Harness/Splitter (3 Light Max) |
| Add-On | Compatible Products-613607-Harness Splitter |
| Add-On | Compatible Products-613609-Harness/Splitter (55 Inch) |
| Add-On | Compatible Products-640093-Upfitter Harness |
| Add-On | Compatible Products-640117-Harness/Splitter (On/Off) |
| Add-On | Compatible Products-640164-Wiring Harness (Hi/Low) |
| Add-On | Compatible Products-640165-Harness Extension (10 ft.) |
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
| Amperage Rating (A) | 3.300 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Racer Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2800 |
| Description | Racer Spot; Amber |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | High Intensity Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Racer Edition LED Light Pod |
| Wattage (W) | 45.540 |
| Wiring Harness Included | No |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Prop 65 - Short Label | CR |
| Prop 65 Warning Label | Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Prop 65 Yes/No | Yes |
| Description_FAB | 5W while making the Squadron Racer more efficient giving 81% greater distance over our prior generation model |
| Description_FAB | The tight beam of the Squadron Racer is for those that drive near triple digits speeds, or need to see thousands of feet down the road illuminating Lighting Zone 5 |
| Description_MKT | The Baja Designs Squadron Racer Edition LED lights are meant for high-speed night driving where reaction time is paramount. Don’t let the compact size of these lights fool you, with our next generation LEDs offering 2,800 raw lumens at only 45.5W while making the Squadron Racer more efficient giving 81% greater distance over our prior generation model. The tight beam of the Squadron Racer is for those that drive near triple digits speeds, or need to see thousands of feet down the road illuminating Lighting Zone 5. Producing an even tighter beam pattern than our traditional spot offerings, the Squadron Racer Edition lights are recommended to be added to a well-balanced lighting package to avoid separation of spotlights due to the tight pattern. The sleek, black gloss aluminum housing offers enthusiasts the durability needed when traveling at higher speeds. Backed by our 30-Day Satisfaction Guarantee and Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117. |
| Description_SHO | Light Pod |
| Description_ASC | One Light Pod |
| Description_ASM | Universal |
| Description_DEF | Auxiliary Light |
| Description_DES | Squadron Racer Edition LED Auxiliary Light Pod |
| Description_EXT | Squadron Racer Edition LED Light Pod (Racer Spot; Baja Amber) |
| Description_TLE | Squadron Racer Edition LED Light Pod (Racer Spot; Baja Amber) |
| Description_INV | Baja Designs Light Pod |
| Description_FAB | Don’t let the compact size of these lights fool you, with our next generation LEDs offering 2,800 raw lumens at only 45 |
