The S8 LED light bar from Baja Designs offers a slim and sleek design utilizing eight LEDs per 10-inch section. Lumens start at 6,324 raw lumens per 10" section, the S8 is available from 10" to 50" and features high-performance reflectors along with the additional feature of an amber backlight making the S8 a light bar that shines with your vehicle. The S8 LED light bar is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection! NOTE:This light does NOT include a harness. The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10"-30").

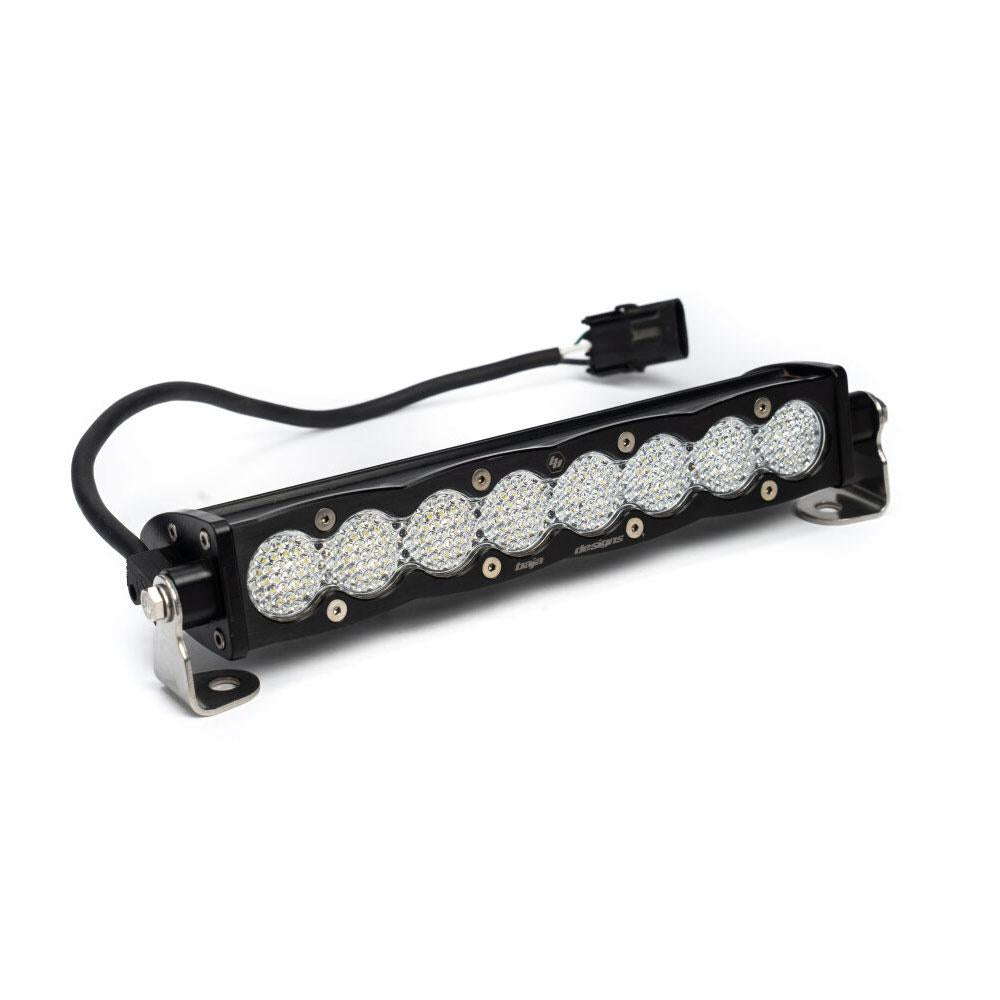

Baja Designs S8 Straight LED Light Bar (10 Inch; Work/Scene; Clear) 701006
Specifications:
| Lighting Quantity | 8 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S8 10 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 57.960 |
| Wiring Harness Included | No |
| Patent No. | D780,964 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Prop 65 - Short Label | CR |
| Prop 65 Warning Label | Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Prop 65 Yes/No | Yes |
| Add-On | Accessories-708201-Rock Guard (Black) |
| Add-On | Accessories-708202-Light Cover (Amber) |
| Add-On | Accessories-708203-Light Cover (Clear) |
| Add-On | Accessories-708301-Lens Kit (Spot; Clear) |
| Add-On | Accessories-708303-Lens Kit (Driving/Combo; Clear) |
| Add-On | Accessories-708304-Lens Kit (Wide Cornering; Clear) |
| Add-On | Accessories-708313-Lens Kit (Driving/Combo; Amber) |
| Add-On | Accessories-708314-Lens Kit (Wide Cornering; Amber) |
| Add-On | Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts |
| Add-On | Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts |
| Add-On | Compatible Products-613608-Harness Splitter |
| Add-On | Compatible Products-613609-Harness/Splitter (55 Inch) |
| Add-On | Compatible Products-640094-Upfitter Harness |
| Add-On | Compatible Products-640115-Wiring Harness (On/Off) |
| Add-On | Compatible Products-640122-Wiring Harness (Mode Switch) |
| Add-On | Compatible Products-640163-Harness/Splitter (Hi Beam) |
| Add-On | Compatible Products-640177-Backlit Add-On |

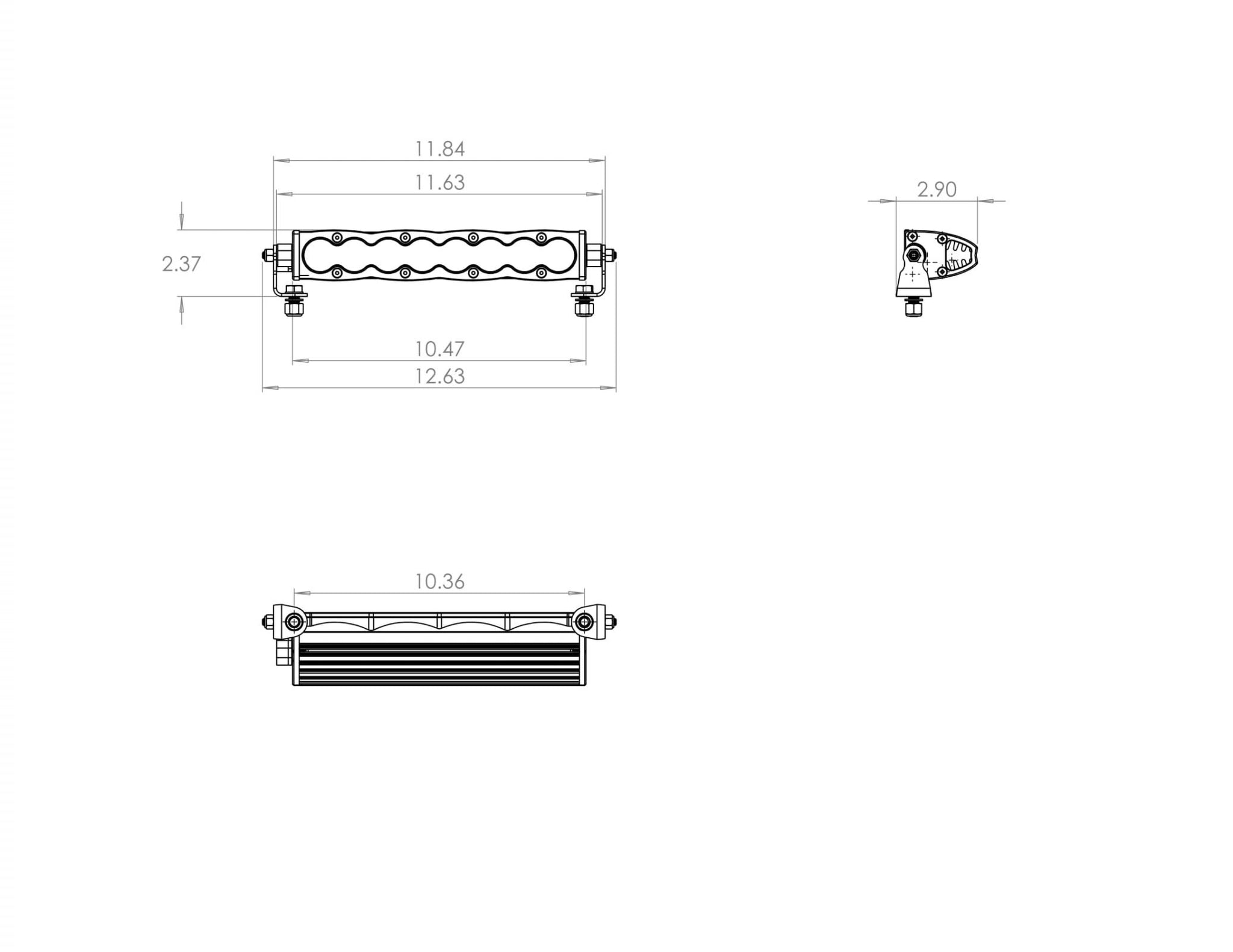

| Depth (in.) | 3 |
| Height (in.) | 1.600 |
| Length (in.) | 10 |
| Weight (lbs.) | 2.400 |
| Amperage Rating (A) | 4.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Work/Scene |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 6324 |
| Description | Work/Scene; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam/Amber Backlit Feature |
| Description_ASC | One Light Bar |
| Description_ASM | Universal |
| Description_DEF | Light Bar |
| Description_DES | S8 Straight LED Light Bar |
| Description_EXT | S8 Straight LED Light Bar (10 Inch; Work/Scene; Clear) |
| Description_TLE | S8 Straight LED Light Bar (10 Inch; Work/Scene; Clear) |
| Description_FAB | Satisfaction Guarantee – 30-Day Money Back Guarantee |
| Description_FAB | Limited Lifetime Warranty – Complete Purchase Protection |
| Description_FAB | uService – Replaceable Lenses And Optics |
| Description_FAB | ClearView – All The Light, Right Where You Need It |
| Description_FAB | MoistureBlock – Waterproof, Rain Proof, Submersible |
| Description_FAB | CopperDrive – Only LED Driven At 100 Percent |
| Description_FAB | 5000K Daylight – Less Driver Fatigue, Natural Color |
| Description_FAB | Please note that this light does NOT include a harness and the applicable harness to this light is 640122. |
| Description_INV | Baja Designs Light Bar |
| Description_FAB | Lumens start at 6,324 raw lumens per 10" section, the S8 is available from 10" to 50" and features high-performance reflectors along with the additional feature of an amber backlight making the S8 a light bar that shines with your vehicle |
| Description_FAB | The S8 LED light bar is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection! NOTE:This light does NOT include a harness |
| Description_FAB | The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10"-30") |
| Description_MKT | The S8 LED light bar from Baja Designs offers a slim and sleek design utilizing eight LEDs per 10-inch section. Lumens start at 6,324 raw lumens per 10" section, the S8 is available from 10" to 50" and features high-performance reflectors along with the additional feature of an amber backlight making the S8 a light bar that shines with your vehicle. The S8 LED light bar is backed by our 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection! NOTE:This light does NOT include a harness. The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10"-30"). |
| Description_SHO | Light Bar |
