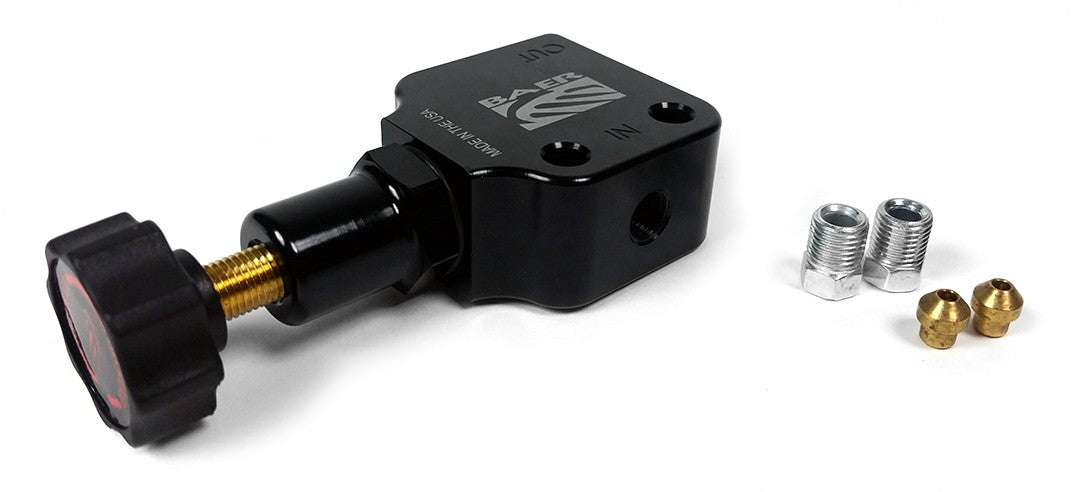

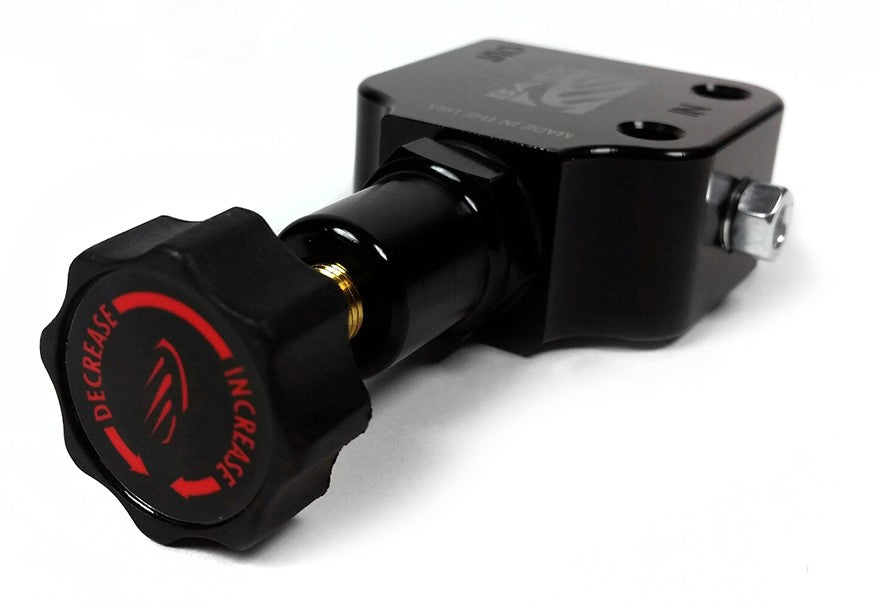

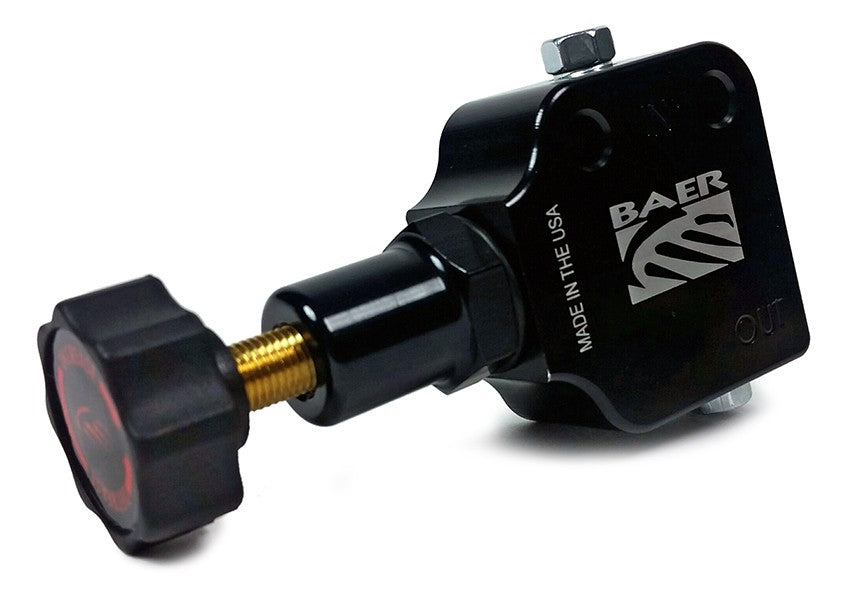

A Proportioning valve is recommended on 4 wheel disc brake applictions without ABS. This valve allows you to adjust the increase rate of the line pressure to the rear wheels for optimum overall braking performance with a trun of the knob. Featuring removable brass seats that when installed create a 3/16" inverted flare seat or when removed can accept banjo or straight 3/8-24 fittings. The valve includes 2) brass seats and 2) 3/8” x 24 tube nuts.
Baer Brake Systems General Fit Proportioning Valve with Adjustable Knob, & Fittings 2000035
Specifications:
| Adjustment Style | Knob |
| Box Count | 1 |
| Brand | Baer Brakes |
| Category | Brake |
| 17 | Black |
| Connector For Warning Light | No |
| Emission Code | 6 |
| Export Description | Brake Components |
| Finish | Black anodized |
| Fittings Included | Yes |
| Grade Type | Premium |
| Includes | 1x Proportioning Valve, 2x Brass Seats, 2x Tube Nuts |
| Inlet Fitting | 3/16" Inverted Flare and Tube Nuts w/ Brass Seat |
| Inlet Fitting | Banjo w/o Brass Seat |
| Inlet Port Inside Diameter | 3/8-24 |
| 766 | 1 |
| 10 | Aluminum |
| 92 | No |
| 30 | No |
| 356 | 2 |
| Outlet Fitting | 3/16" Inverted Flare and Tube Nuts w/ Brass Seat |
| Outlet Fitting | Banjo w/o Brass Seat |
| 1899 | 0.375 |
| Outlet Port Inside Diameter | 3/8 |
| 769 | 1 |
| Outlet Port Size | 3/8-24 |
| part type | Brake Proportioning Valve |
| Port Exit | In-line |
| Product Line | General Fit Proportioning Valve |
| Product Type | Adjustable Proportioning Valve |
| Prop 65 - Short Label | WARNING: Cancer Harm - www.p65warnings.ca.gov |
| Quantity | Sold Individually |
| Removable Seats | Yes |
| Series | Remaster |
| Sub Category | Valves |
| System Notes | General fit valve with fittings |
| Title | Baer Brakes Black General Fit Adjustable Proportioning Valve, Inline, with 3/8-24 Fittings |
| Universal Or Specific Fit | Universal |
| Valve Type | Adjustable |
| Weight | 0.505 |
| Description_INV | Universal Brake Proportioning Valve |
| Description_DES | General Fit Proportioning Valve with Adjustable Knob, & Fittings |
| Description_EXT | General Fit Adjustable Proportioning Valve features removable brass seats, when installed create a 3/16" inverted flare or when removed can accept banjo or straight 3/8-24 fittings. Bracket and Mount sold separately. |
| Description_MKT | A Proportioning valve is recommended on 4 wheel disc brake applictions without ABS. This valve allows you to adjust the increase rate of the line pressure to the rear wheels for optimum overall braking performance with a trun of the knob. Featuring removable brass seats that when installed create a 3/16" inverted flare seat or when removed can accept banjo or straight 3/8-24 fittings. The valve includes 2) brass seats and 2) 3/8” x 24 tube nuts. |
| Description_FAB | Includes tube nuts and brass seats |
| Description_FAB | 3/8-24 Thread, IFF w/included seats, Straight (Banjo) w/o seats |
| Description_FAB | Compatible with most brake systems |
| Description_FAB | Made in the USA |
| Description_FAB | Laser etched body |
| Description_FAB | Sold Individually |
