**IMPORTANT: This system is designed for vehicles with a 15/16” master cylinder and proper pedal ratio. For manual brake setups, a 7/8” master cylinder can be used so less effort is required to apply the brakes. Any master larger than 15/16” will require too much pedal input to generate proper line pressure for your brake system.**
Baer Brake Systems Fits 1982-92 Chevy Camaro & Pontiac Firebird, All (GM F-Body) 4301678R
Specifications:
| Applications | GM F-Body 82-92 |
| Axle | Front |
| Box Count | 2 |
| 9369 | Yes |
| Brand | Baer Brakes |
| Caliper | 2 PGC |
| 8247 | Red |
| Category | Brakes |
| 9363 | 2 |
| 9358 | Floating |
| 151 | D0412 |
| 9361 | Vented |
| 9365 | 13.000 |
| Emission Code | 6 |
| Export Description | Brake Components |
| 3 | Ceramic |
| 3390 | Performance |
| 761 | Stainless Steel |
| Min Wheel Dia (verify using template) | 17 |
| part type | Disc Brake Upgrade Kit |
| Product Line | Classic |
| Product Type | 13 Inch Classic Front Brake Kit |
| Prop 65 (C, R or CR) | C |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Diameter | 13.000 |
| Rotor Thickness | 1.100 |
| Rotor Type | 1-Piece Integral Hub |
| 7171 | Vented |
| Sub Category | Service Kits |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Includes modified stock height spindles |
| Template | D082H |
| Title | Classic Series Front Brake Kit |
| Wheel Lug/Bolt Pattern | 5x4.75 |
| Wheel Stud Size | 1/2-20 |
| Description_INV | 13" CLASSIC SERIES BRAKE KIT FRT RED |
| Description_ASC | ** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| Description_DES | Baer Brakes 13" Classic Series Front Brake Kit |
| Description_EXT | Fits 1982-92 Chevy Camaro & Pontiac Firebird, All (GM F-Body) |

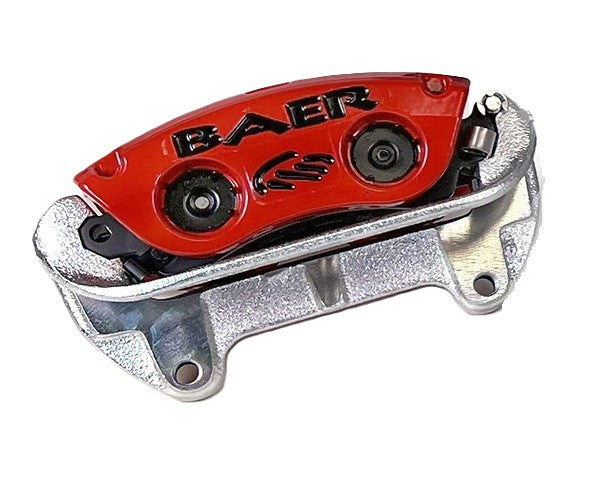

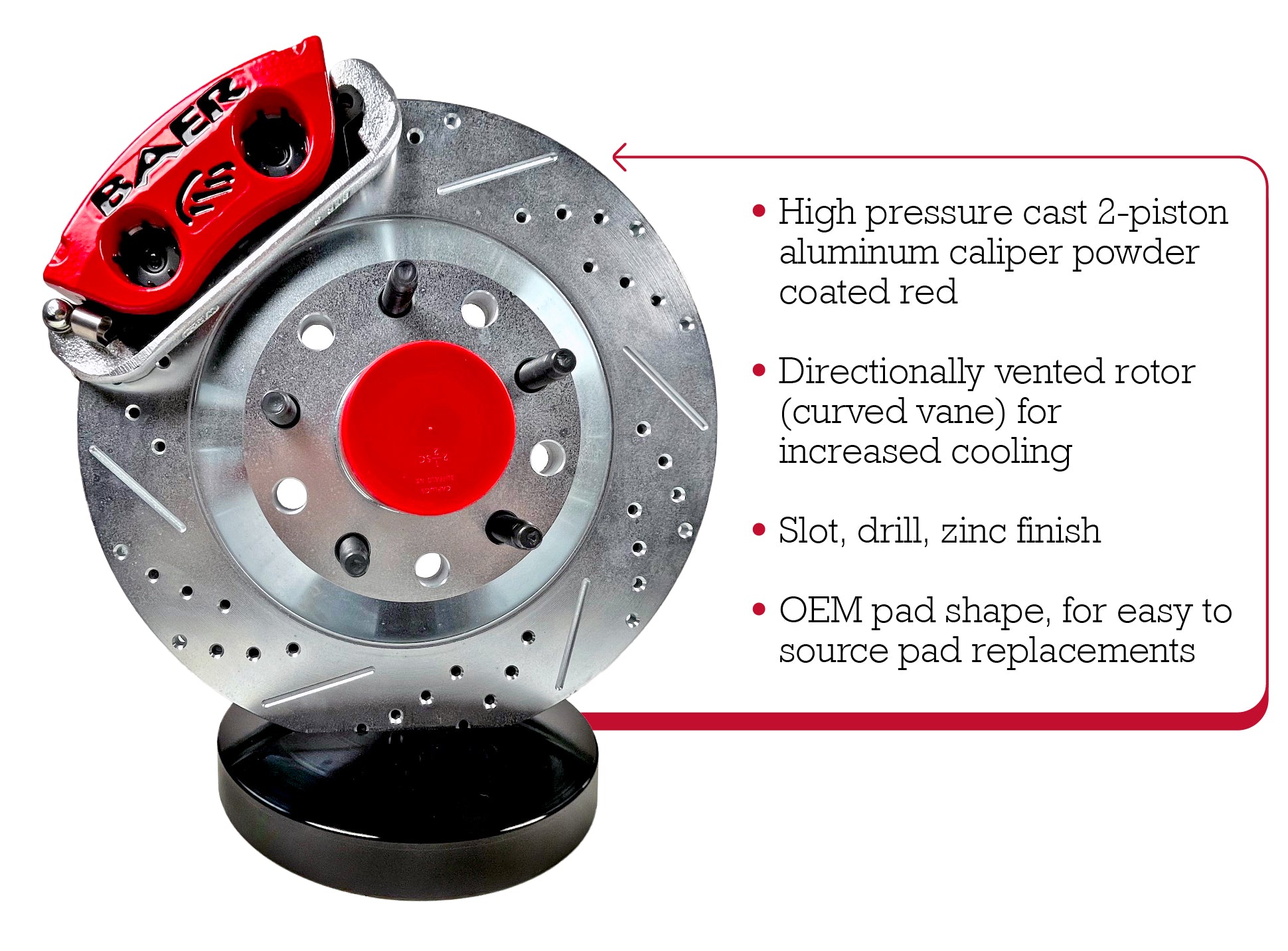

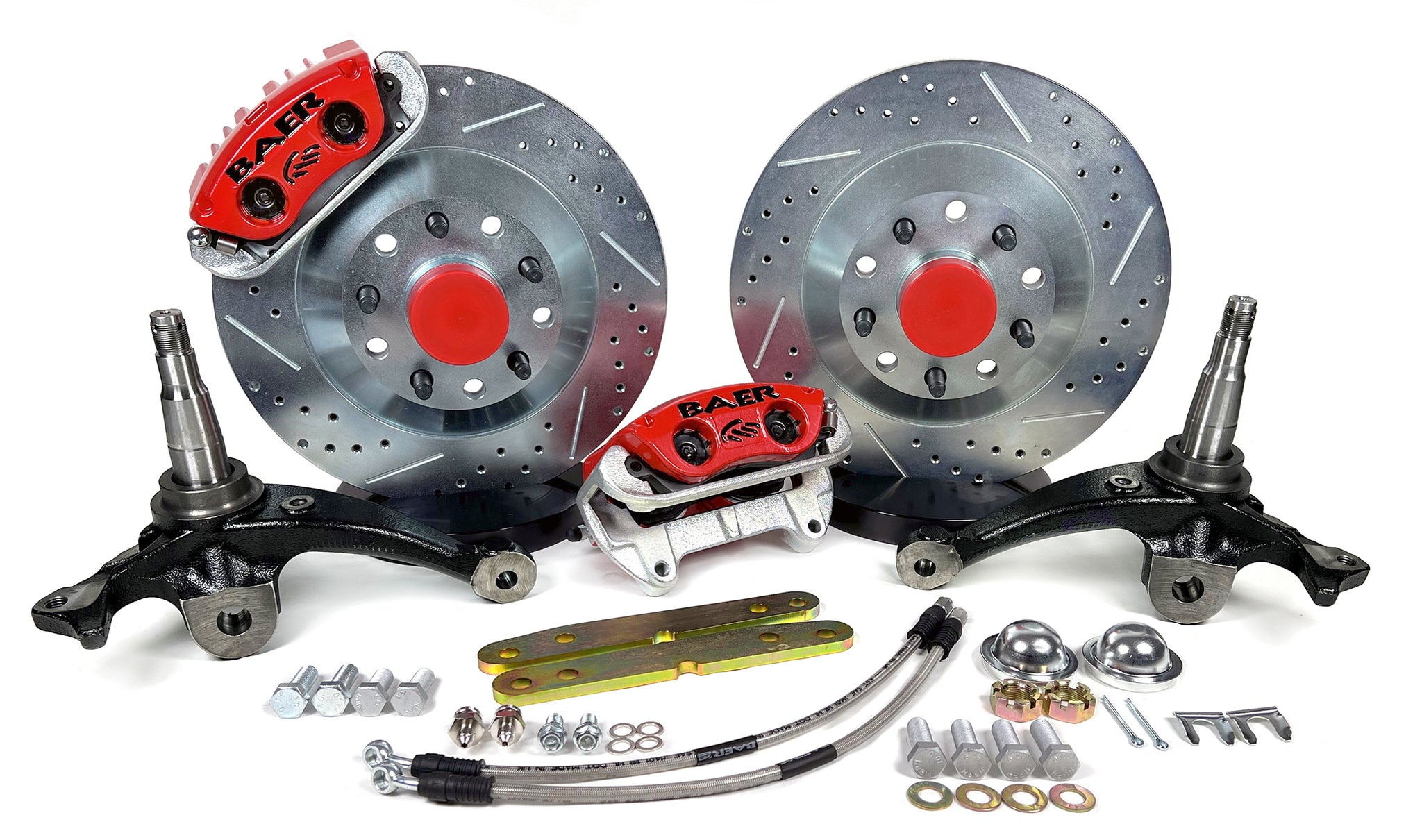

| Description_MKT | This system features the "Original" Baer 2-piston, pad guided caliper (PGC) mounted to a 13", 1-piece slot, drill, zinc plated integral hub rotor. The PGC caliper comes in a red powder coated finish with a black logo, includes dust/weather seal's and uses the popular D412 pad type. The system includes spindles (not installed), premium bearings with races pre-installed, dust caps, mounting brackets, stainless braided hoses and all necessary hardware making for an easy assembly. The 13" "Classic" system fits most 17" or larger wheels. |
| Description_MKT | **IMPORTANT: This system is designed for vehicles with a 15/16” master cylinder and proper pedal ratio. For manual brake setups, a 7/8” master cylinder can be used so less effort is required to apply the brakes. Any master larger than 15/16” will require too much pedal input to generate proper line pressure for your brake system.** |
| Description_FAB | Aluminum, 2-Piston, Pad Guided Caliper |
| Description_FAB | Red Powder Coated Caliper w/Black Baer Logo |
| Description_FAB | Slot, Drill, Zinc Plated Rotor Finish |
| Description_FAB | Stainless Braided Brake Hoses |
| Description_FAB | Uses Common FMSI D0412 Brake Pad |
| Description_FAB | Modern Brakes for Small Wheels at an Economical Price |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1982 | Chevrolet | Camaro | ||
| 1983 | Chevrolet | Camaro | ||
| 1984 | Chevrolet | Camaro | ||
| 1985 | Chevrolet | Camaro | ||
| 1986 | Chevrolet | Camaro | ||
| 1987 | Chevrolet | Camaro | ||
| 1988 | Chevrolet | Camaro | ||
| 1989 | Chevrolet | Camaro | ||
| 1990 | Chevrolet | Camaro | ||
| 1991 | Chevrolet | Camaro | ||
| 1992 | Chevrolet | Camaro | ||
| 1982 | Pontiac | Firebird | ||
| 1983 | Pontiac | Firebird | ||
| 1984 | Pontiac | Firebird | ||
| 1985 | Pontiac | Firebird | ||
| 1986 | Pontiac | Firebird | ||
| 1987 | Pontiac | Firebird | ||
| 1988 | Pontiac | Firebird | ||
| 1989 | Pontiac | Firebird | ||
| 1990 | Pontiac | Firebird | ||
| 1991 | Pontiac | Firebird | ||
| 1992 | Pontiac | Firebird |
