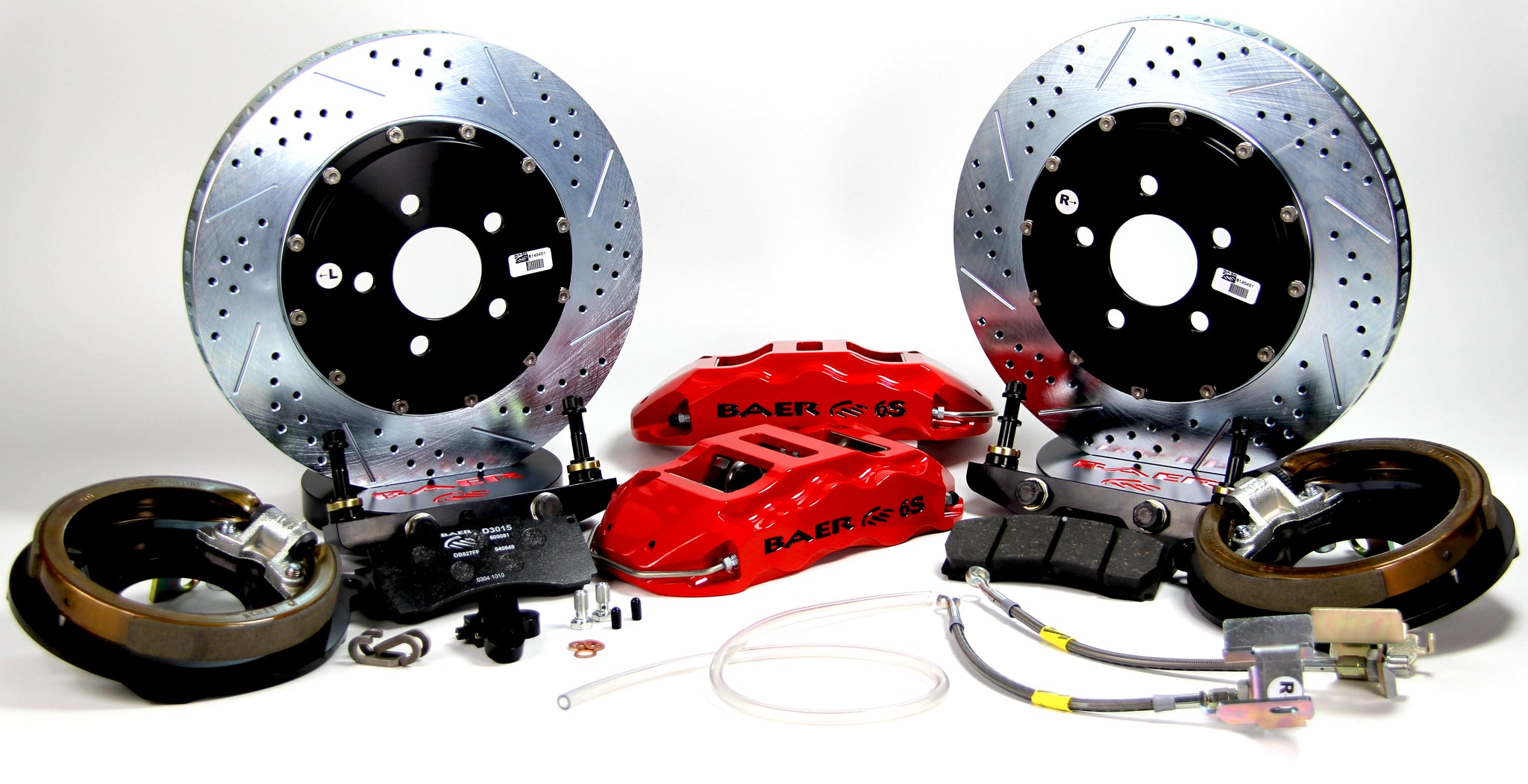

The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 14” Extreme+ fits most 18” or larger wheels.
Baer Brake Systems Baer Brakes 14" Extreme+ Rear Brake Kit, Comp Yellow, SDZ 4302270CY
Specifications:
| Axle | Rear |
| Axle Flange | GM Small Pattern 10/12 Bolt Bearing on Axle (Buick/Olds/Pontiac) |
| Brand | Baer Brakes |
| Caliper | 6S |

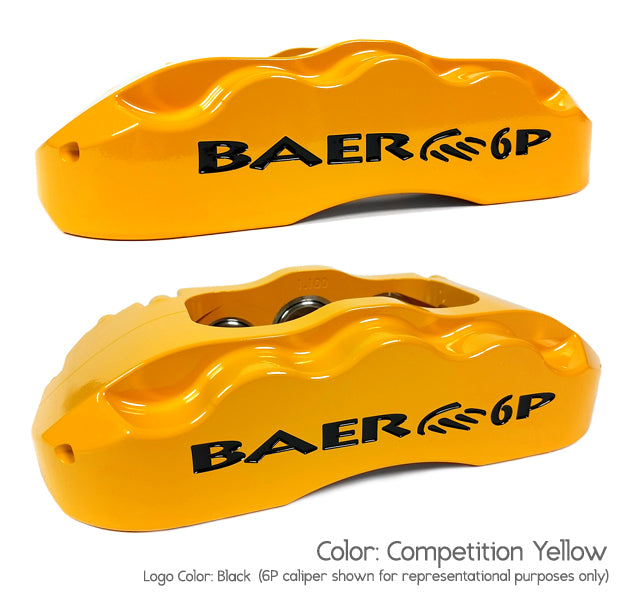

| 8247 | Comp Yellow |
| Category | Brake |
| 9362 | 6 |
| 9359 | Fixed |
| 151 | D1247 |
| 9360 | Vented |
| 9364 | 14.000 |
| Emission Code | 6 |
| Export Description | Brake Components |
| 3390 | Performance |
| 761 | Stainless Steel |
| Includes Park Brake | Yes |
| Includes Park Brake Cables | No |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 18 |
| part type | Disc Brake Upgrade Kit |
| Product Line | 14 Inch Extreme+ |
| Product Type | 14 Inch Extreme+ Rear Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.250 |
| Rotor Type | 2-Piece |
| Sub Category | Service Kits |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Fits GM Small Pattern 10/12 bolt Bearing on Axle (BOP) Housing Ends, Also Fits Hybrid 10/12 Bolt Non-Flush Mount 3.150" Bearing, 2.780" axle register |
| Template | N110P |
| Title | Extreme+ Brake System Rear |
| Wheel Lug/Bolt Pattern | 5x4.75/5x5.00 |
| Description_INV | 14" Ext+ R Brk Kit CY SDZ |
| Description_ASC | ** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| Description_DES | Baer Brakes 14" Extreme+ Rear Brake Kit, Comp Yellow, SDZ |
| Description_EXT | Fits Rear Ends w/GM Small Pattern 10/12 Bolt Bearing on Axle (BOA) Non-Flush Mount Housing Ends (5x4.75", 5x5"BC) |
| Description_MKT | The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 14” Extreme+ fits most 18” or larger wheels. |
| Description_FAB | 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ |
| Description_FAB | CNC Machined from US Sourced 2618 Aluminum Forging |
| Description_FAB | Powder Coated Finish |
| Description_FAB | Stainless Steel Pistons, Abutments and Noise Suppression Clips |
| Description_FAB | Staggered Pistons to Minimize Uneven Pad Wear |
| Description_FAB | Dual Seals, Dust/Weather & Pressure |
| Description_FAB | 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat |
