*item may differ from images

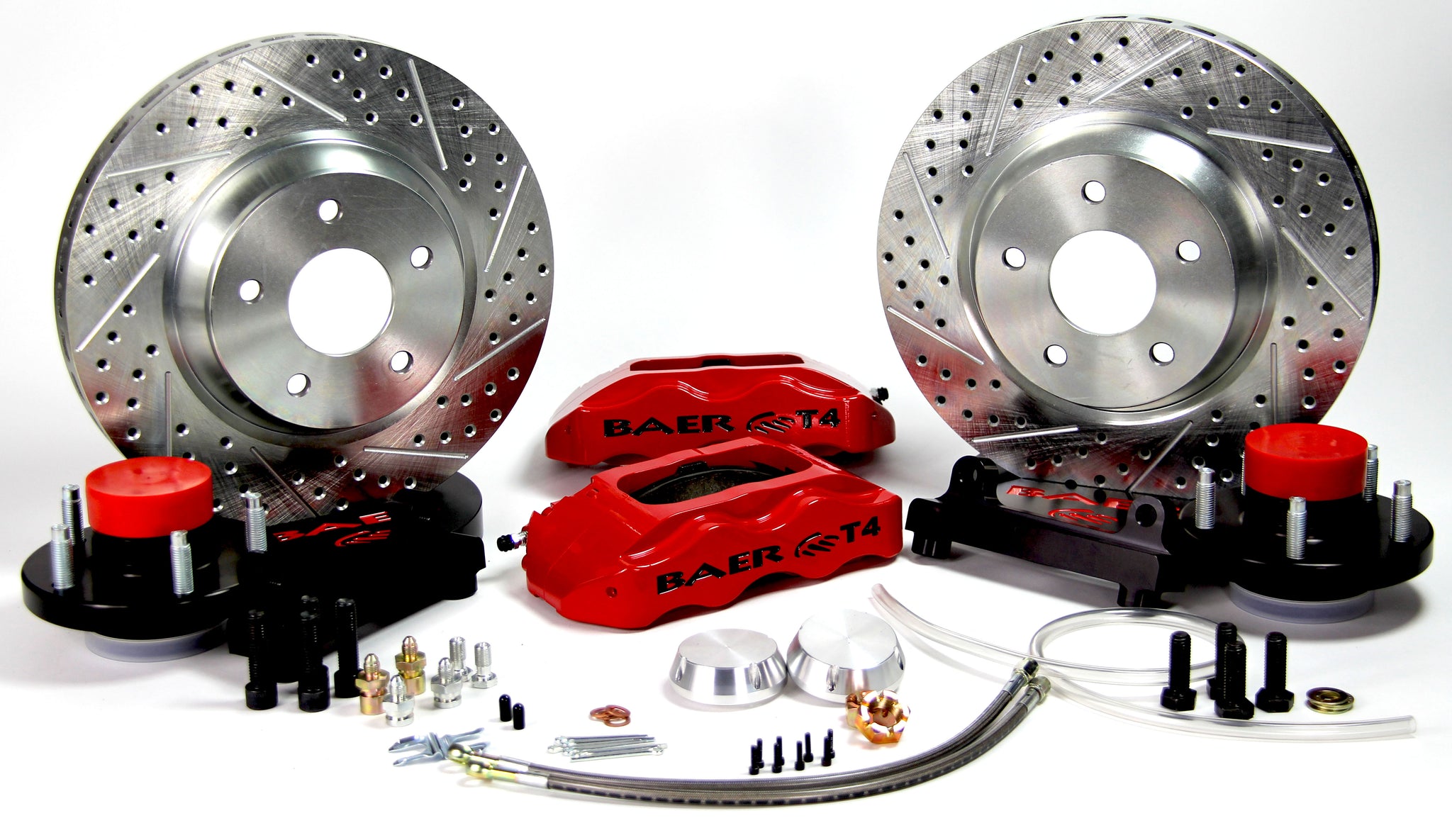

This system features the 4-piston, T4 caliper mounted to a 13", 1 piece slot, drill, zinc plated rotor. The T4 caliper has D.O.T compliant dust and weather seals and uses the popular D0749 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 13" Track4 is designed to fit most 17" or larger wheels.
Baer Brake Systems Baer Brakes 13" Track4 Front Brake Kit, Grabber Blue, SDZ, Std. Studs 4301618GB
Specifications:
| Applications | GM C1500 Trucks 88-98 |
| Applications | GM C1500 SUV's 92-99 |
| Axle | Front |
| Brand | Baer Brakes |
| Caliper | T4 |

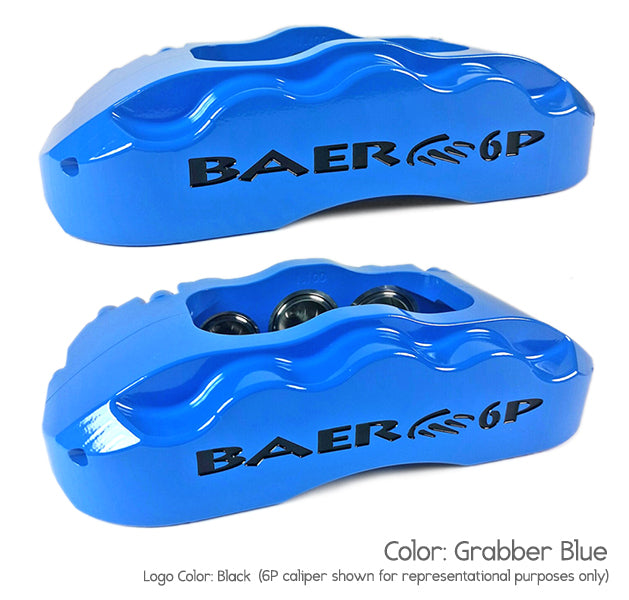

| 8247 | Grabber Blue |
| Category | Brake |
| 9363 | 4 |
| 9358 | Fixed |
| 151 | D0749 |
| 9361 | Vented |
| 9365 | 13.000 |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/React 2 inch Drop Spindles |
| 3390 | Performance |
| 761 | Stainless Steel |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 17 |
| part type | Disc Brake Upgrade Kit |
| Product Line | 13 Inch Track4 |
| Product Type | 13 Inch Track 4 Front Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.100 |
| Rotor Type | 1-Piece |
| Spindle Included | No |
| Spindle Type | React 2" Drop Spindles |
| Sub Category | Service Kits |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Designed to be used with React 2" drop spindles |
| Template | Q117H |
| Title | Track4 Brake System Front |
| Wheel Lug/Bolt Pattern | 5x5.00 |
| Wheel Stud Size | M14-1.50 x 47.5mm |
| Description_INV | 13" Track4 F Brk Kit GB SDZ Std Studs |
| Description_ASC | ** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| Description_DES | Baer Brakes 13" Track4 Front Brake Kit, Grabber Blue, SDZ, Std. Studs |
| Description_EXT | Fits 1988-98 Chevy/GMC C1500 2WD Trucks, 92-99 Chevy/GMC C1500 2WD SUV's w/React 2" Drop Spindle |
| Description_MKT | This system features the 4-piston, T4 caliper mounted to a 13", 1 piece slot, drill, zinc plated rotor. The T4 caliper has D.O.T compliant dust and weather seals and uses the popular D0749 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 13" Track4 is designed to fit most 17" or larger wheels. |
| Description_FAB | 2-Piece, 4-Piston, T4 Caliper Manufactured in Phoenix, AZ |
| Description_FAB | CNC Machined from US Sourced Forged or Billet Aluminum |
| Description_FAB | Powder Coated Finish |
| Description_FAB | Stainless Steel Pistons, Abutments and Noise Suppression Clips |
| Description_FAB | Staggered Pistons to Minimize Uneven Pad Wear |
| Description_FAB | Dual Seals, Dust/Weather & Pressure |
| Description_FAB | 1-Piece Slot, Drilled, Zinc-Plate Rotor |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1988 | Chevrolet | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1989 | Chevrolet | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1990 | Chevrolet | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1991 | Chevrolet | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1992 | Chevrolet | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1993 | Chevrolet | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1994 | Chevrolet | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1995 | Chevrolet | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1996 | Chevrolet | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1997 | Chevrolet | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1998 | Chevrolet | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1992 | Chevrolet | C1500 Suburban | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1993 | Chevrolet | C1500 Suburban | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1994 | Chevrolet | C1500 Suburban | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1995 | Chevrolet | C1500 Suburban | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1996 | Chevrolet | C1500 Suburban | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1997 | Chevrolet | C1500 Suburban | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1998 | Chevrolet | C1500 Suburban | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1999 | Chevrolet | C1500 Suburban | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1995 | Chevrolet | Tahoe | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1996 | Chevrolet | Tahoe | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1997 | Chevrolet | Tahoe | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1998 | Chevrolet | Tahoe | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1999 | Chevrolet | Tahoe | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1988 | GMC | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1989 | GMC | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1990 | GMC | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1991 | GMC | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1992 | GMC | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1993 | GMC | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1994 | GMC | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1995 | GMC | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1996 | GMC | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1997 | GMC | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1998 | GMC | C1500 | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1992 | GMC | C1500 Suburban | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1993 | GMC | C1500 Suburban | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1994 | GMC | C1500 Suburban | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1995 | GMC | C1500 Suburban | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1996 | GMC | C1500 Suburban | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1997 | GMC | C1500 Suburban | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1998 | GMC | C1500 Suburban | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1999 | GMC | C1500 Suburban | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1992 | GMC | Yukon | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1993 | GMC | Yukon | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1994 | GMC | Yukon | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1995 | GMC | Yukon | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1996 | GMC | Yukon | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1997 | GMC | Yukon | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1998 | GMC | Yukon | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only | |
| 1999 | GMC | Yukon | Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only,Fits React 2" drop spindles only |
